Model # 58032187 Official Craftsman 3500-watt electric start portable alternator

Here are the diagrams and repair parts for Official Craftsman 58032187 3500-watt electric start portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

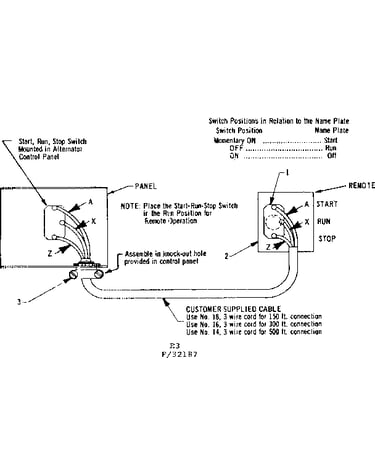

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Plug 43483
#13

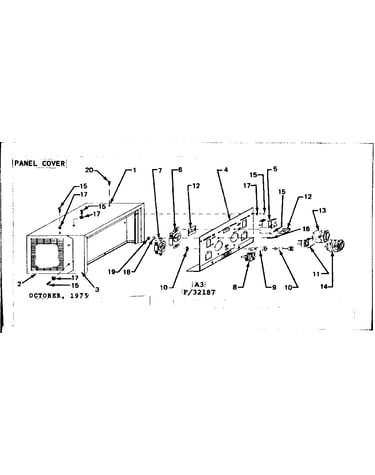

Control panel cover diagram

Plug

Part #43483

Replaced by #100522GS

?
Manufacturer substitution
This part replaces 43483. Substitute parts can look different from the original.
This item is not returnable
$35.79 |
14% OFF Phone Price : $41.79
In Stock
Outlet 37807
#7

Control panel cover diagram

Outlet

Part #37807

Replaced by #705932

?
Manufacturer substitution
This part replaces 37807. Substitute parts can look different from the original.
$53.53
In Stock
Outlet 43482
#6

Control panel cover diagram

Outlet

Part #43482

Replaced by #68867GS

?
Manufacturer substitution
This part replaces 43482. Substitute parts can look different from the original.
$65.98
In Stock
Lock Nut 26772
#8

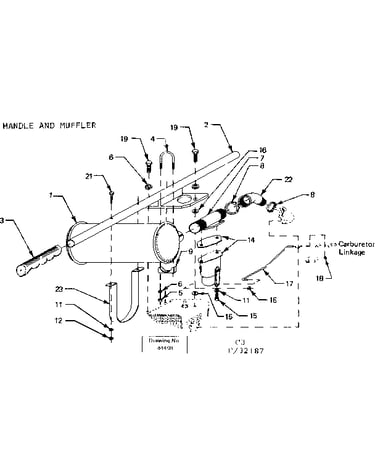

Handle and muffler diagram

Lock nut

Part #26772

Replaced by #691808

?
Manufacturer substitution
This part replaces 26772. Substitute parts can look different from the original.
This item is not returnable
$14.34
In Stock
Bearing 24049
#5

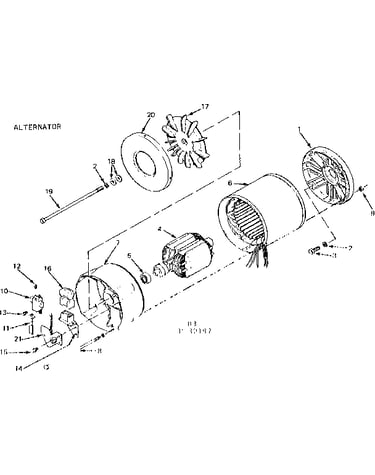

Alternator diagram

Bearing

Part #24049

The manufacturer no longer makes this part, and there's no substitute part

Pilot Light 27767
#12

Control panel cover diagram

Pilot light

Part #27767

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22283
#17

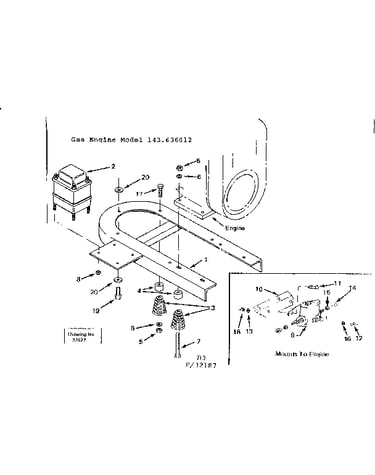

Mounting base diagram

Cap screw

Part #22283

The manufacturer no longer makes this part, and there's no substitute part

Clip 28552
#18

Handle and muffler diagram

Clip

Part #28552

The manufacturer no longer makes this part, and there's no substitute part

Washer 22145
Washer

Part #22145

The manufacturer no longer makes this part, and there's no substitute part

Screw 24490
#19

Mounting base diagram

Screw

Part #24490

The manufacturer no longer makes this part, and there's no substitute part
