Craftsman
Gas Walk-Behind Mower

Model # 917388632 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388632 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Grass Bag 189262
#50

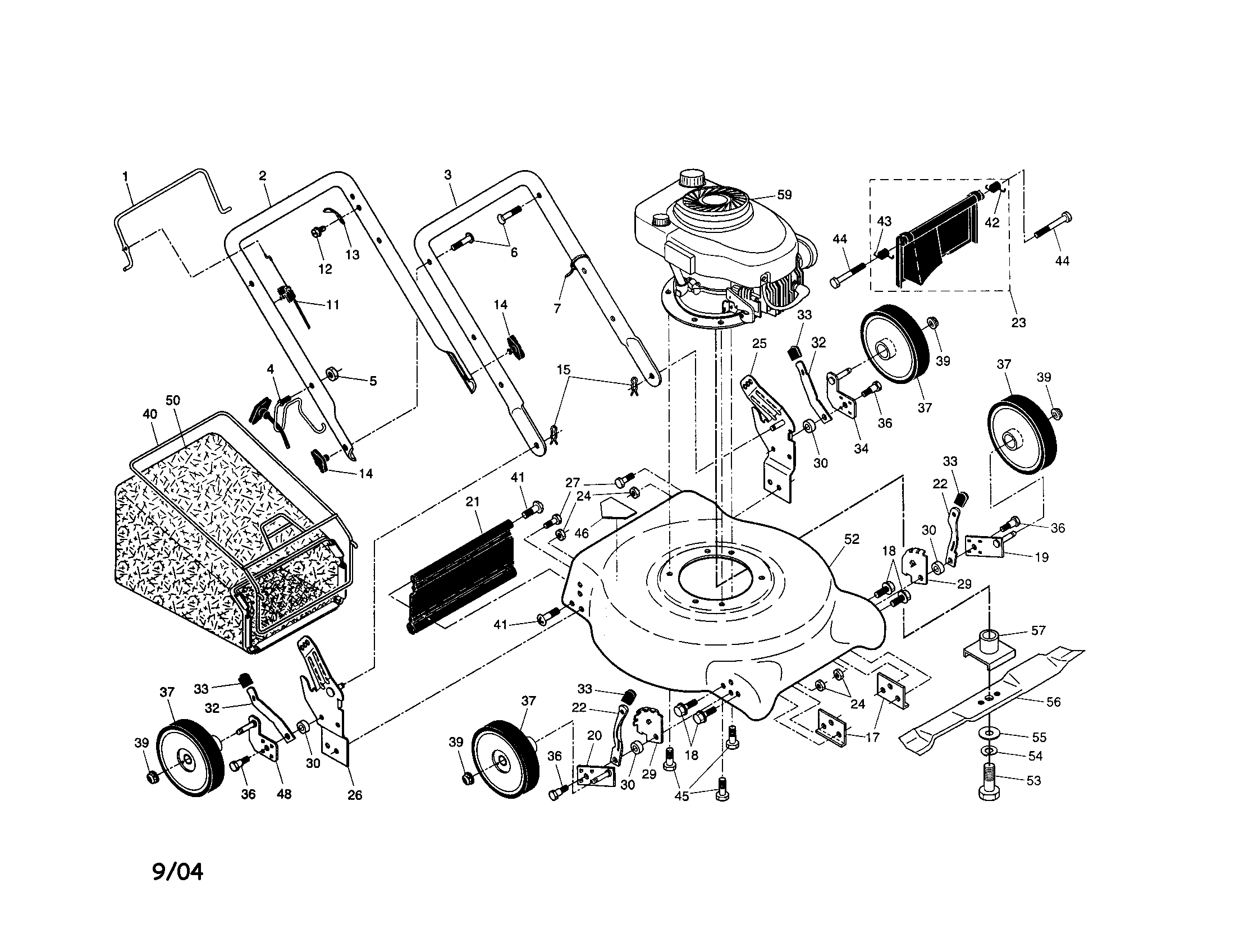

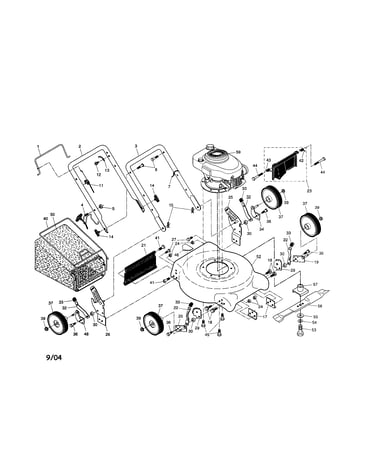

Engine/housing/handle/bag/wheels diagram

Grass bag

Part #189262

Replaced by #532410666

?
Manufacturer substitution
This part replaces 189262. Substitute parts can look different from the original.
BEST SELLER
$68.54 |
8% OFF Phone Price : $74.54
In Stock
Nut 132004
#5

Engine/housing/handle/bag/wheels diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Engine/housing/handle/bag/wheels diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
American Yard Products Lawn Mower Anti-fold Bracket 186079
#4

Engine/housing/handle/bag/wheels diagram

American yard products lawn mower anti-fold bracket

Part #186079

Replaced by #586122501

?
Manufacturer substitution
This part replaces 186079. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Engine/housing/handle/bag/wheels diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Handle Bolt 191574
#6

Engine/housing/handle/bag/wheels diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Hndl.knob.bl 189713X428
#14

Engine/housing/handle/bag/wheels diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Axle 186575X004
#48

Engine/housing/handle/bag/wheels diagram

Lawn mower axle

Part #186575X004

Replaced by #532186575

?
Manufacturer substitution
This part replaces 186575X004. Substitute parts can look different from the original.
$17.11
In Stock
Frigidaire Lawn Mower Hex Head Thread Rolling Screw, 1/4-20 X 3/4-in 17600406
#18

Engine/housing/handle/bag/wheels diagram

Frigidaire lawn mower hex head thread rolling screw, 1/4-20 x 3/4-in

Part #17600406

Replaced by #817600406

?
Manufacturer substitution
This part replaces 17600406. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Housing 166872
#52

Engine/housing/handle/bag/wheels diagram

Housing

Part #166872

Replaced by #583021901

?
Manufacturer substitution
This part replaces 166872. Substitute parts can look different from the original.
$154.76
In Stock
