Model # A806 Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag A806 washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

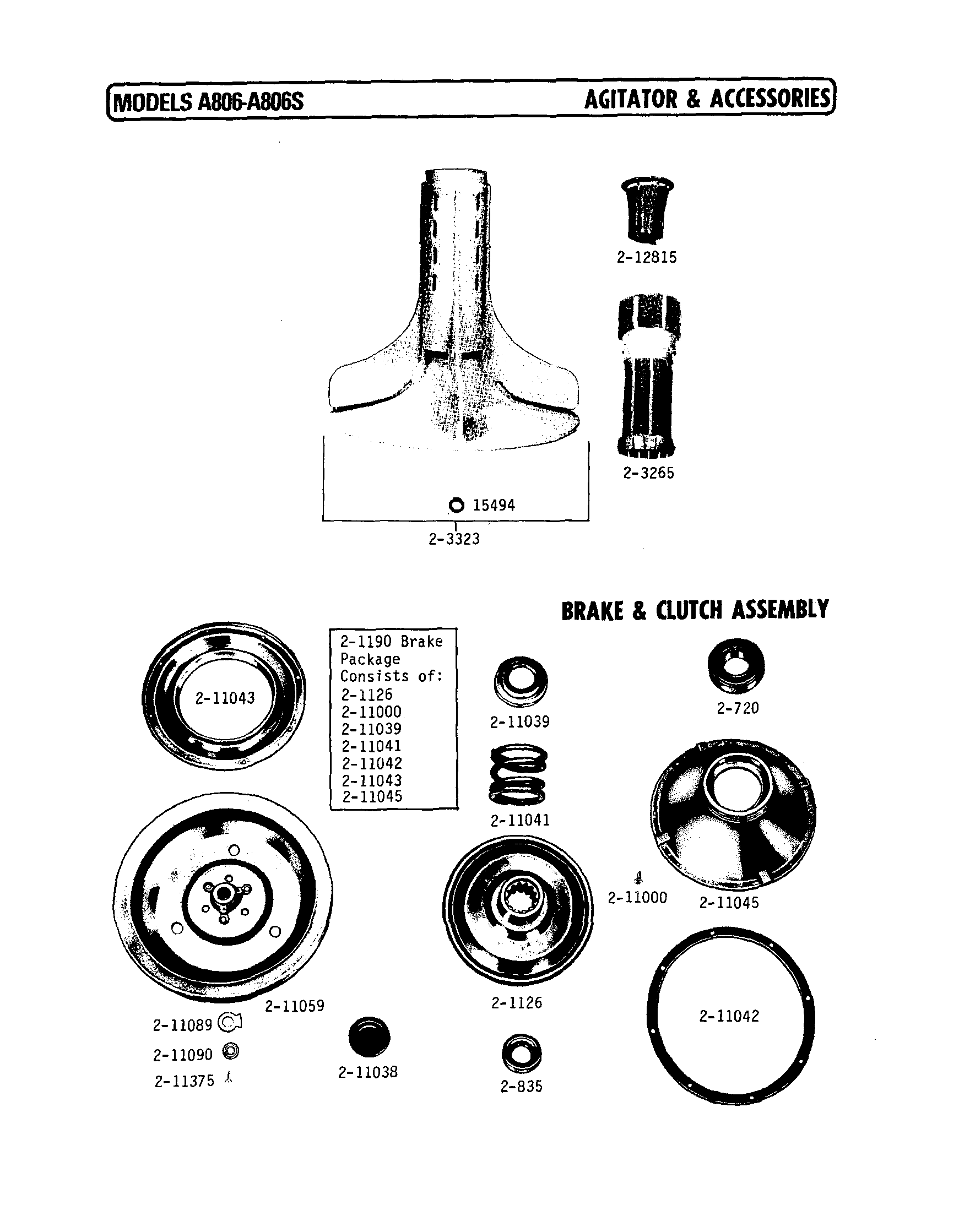

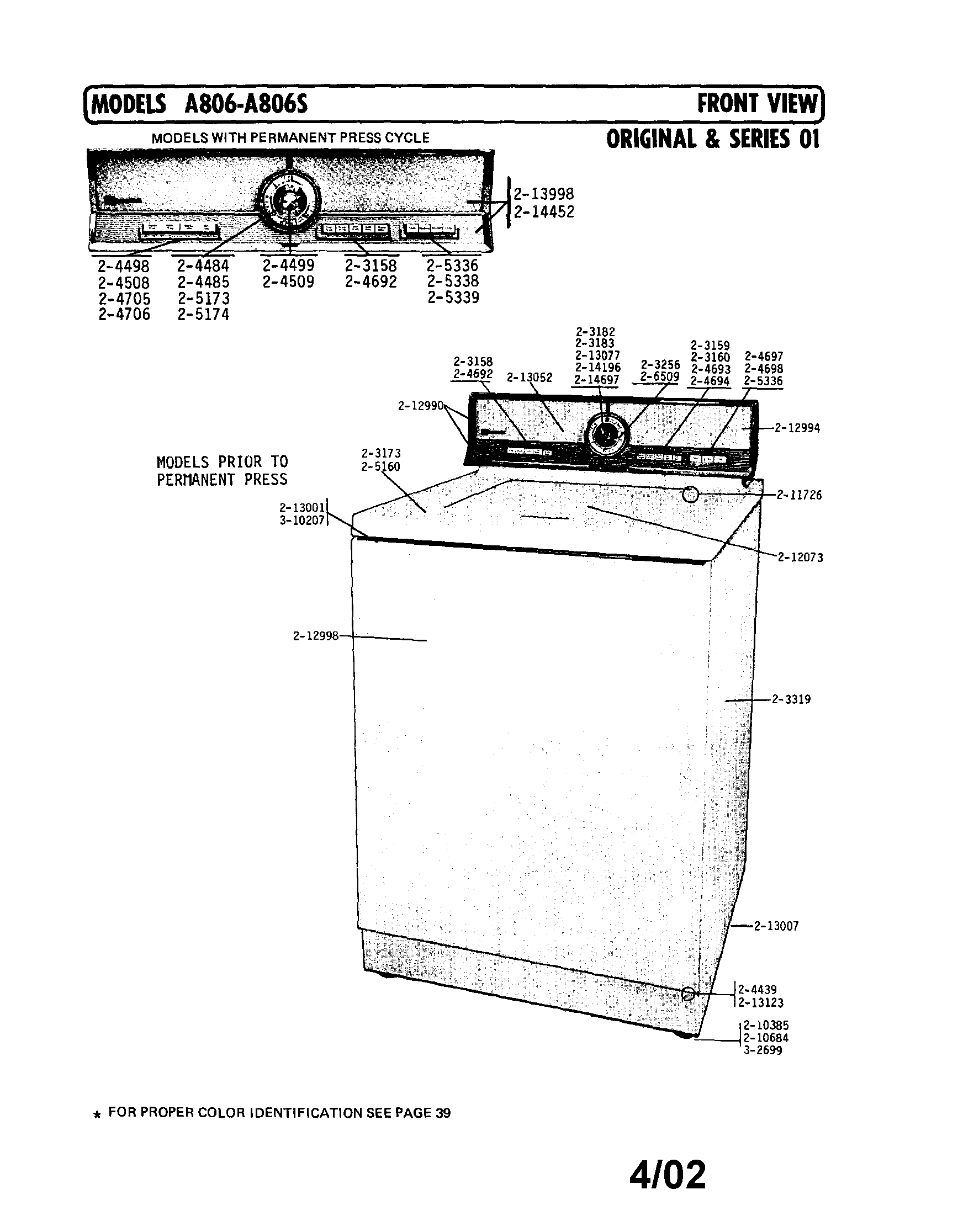

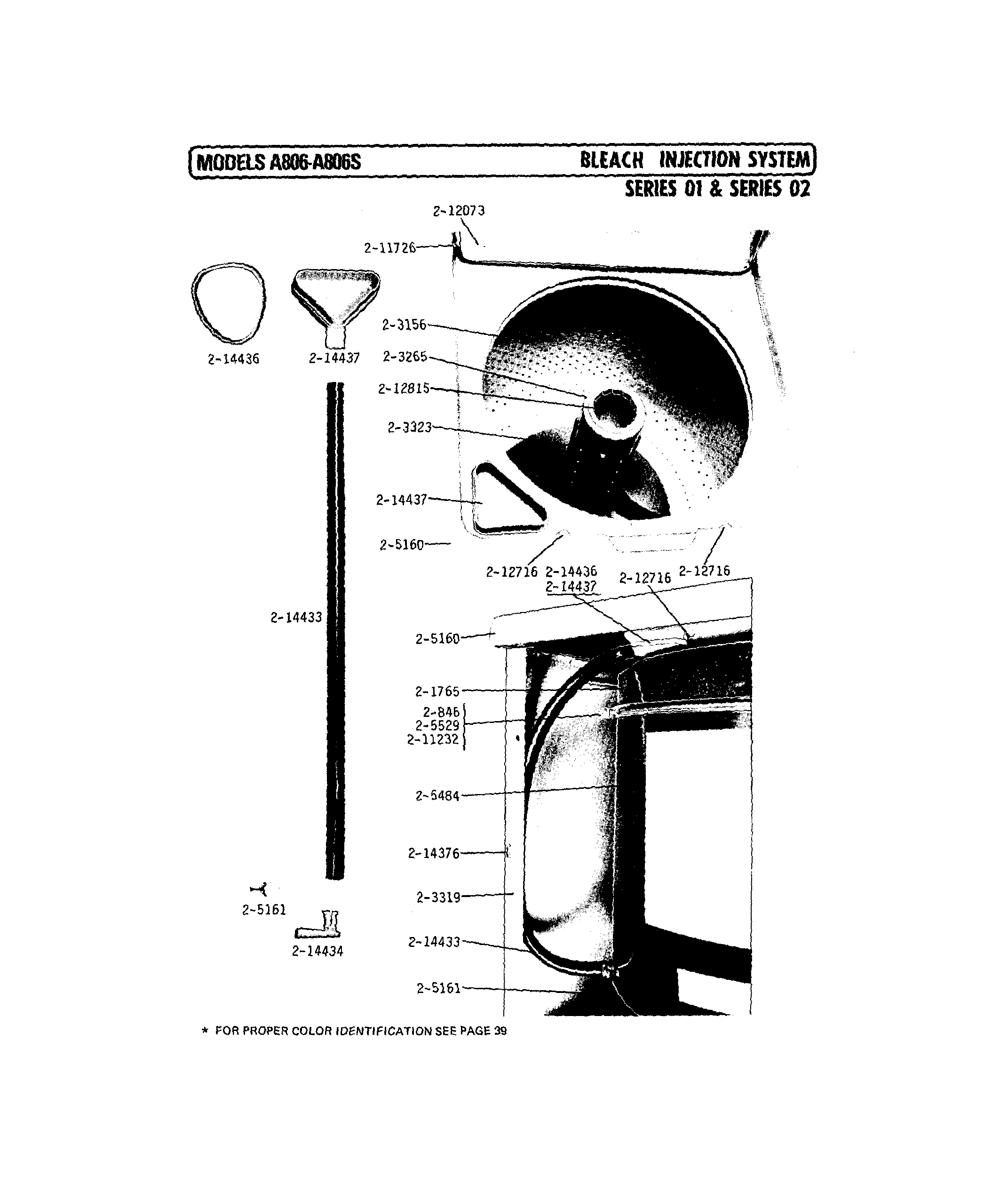

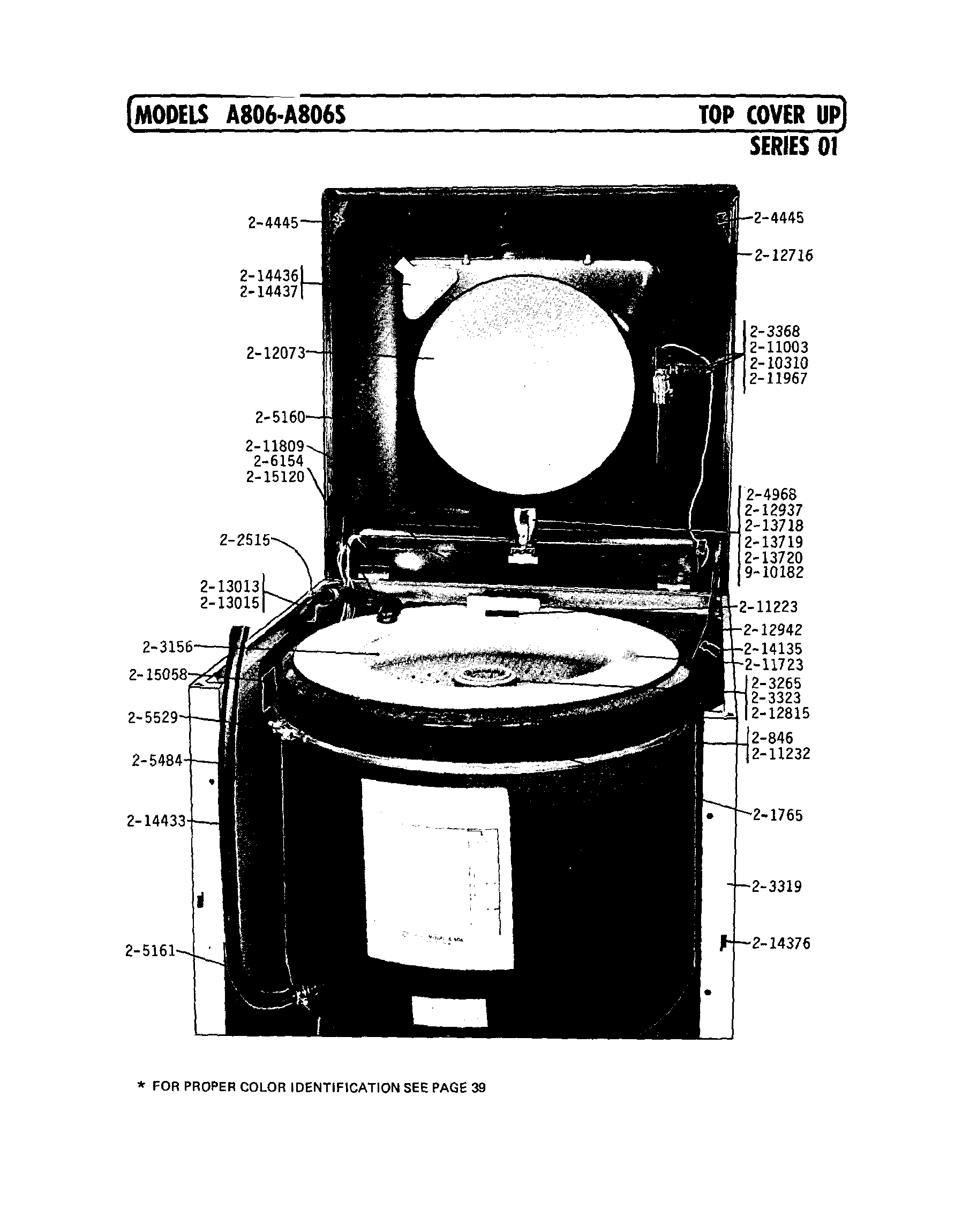

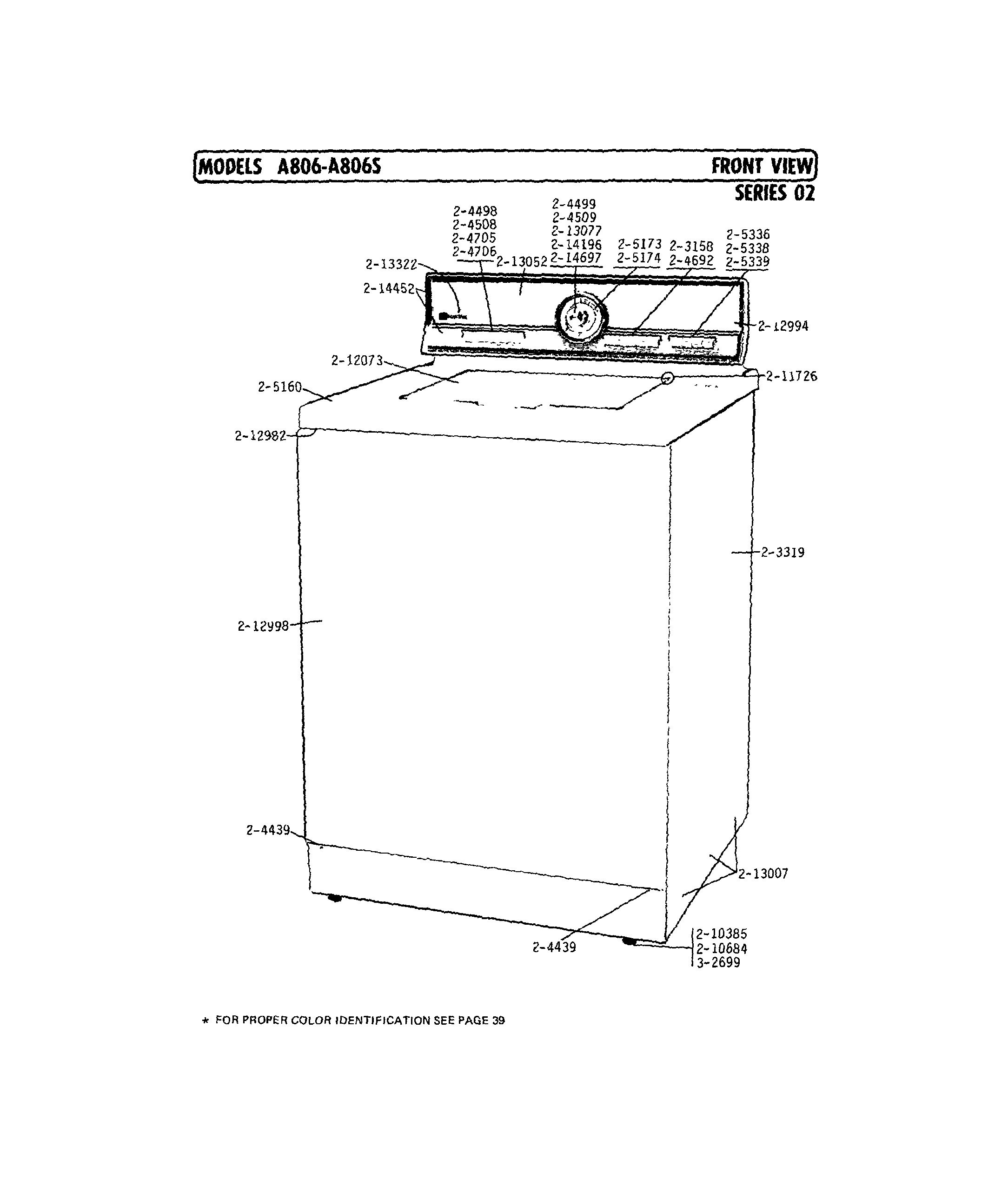

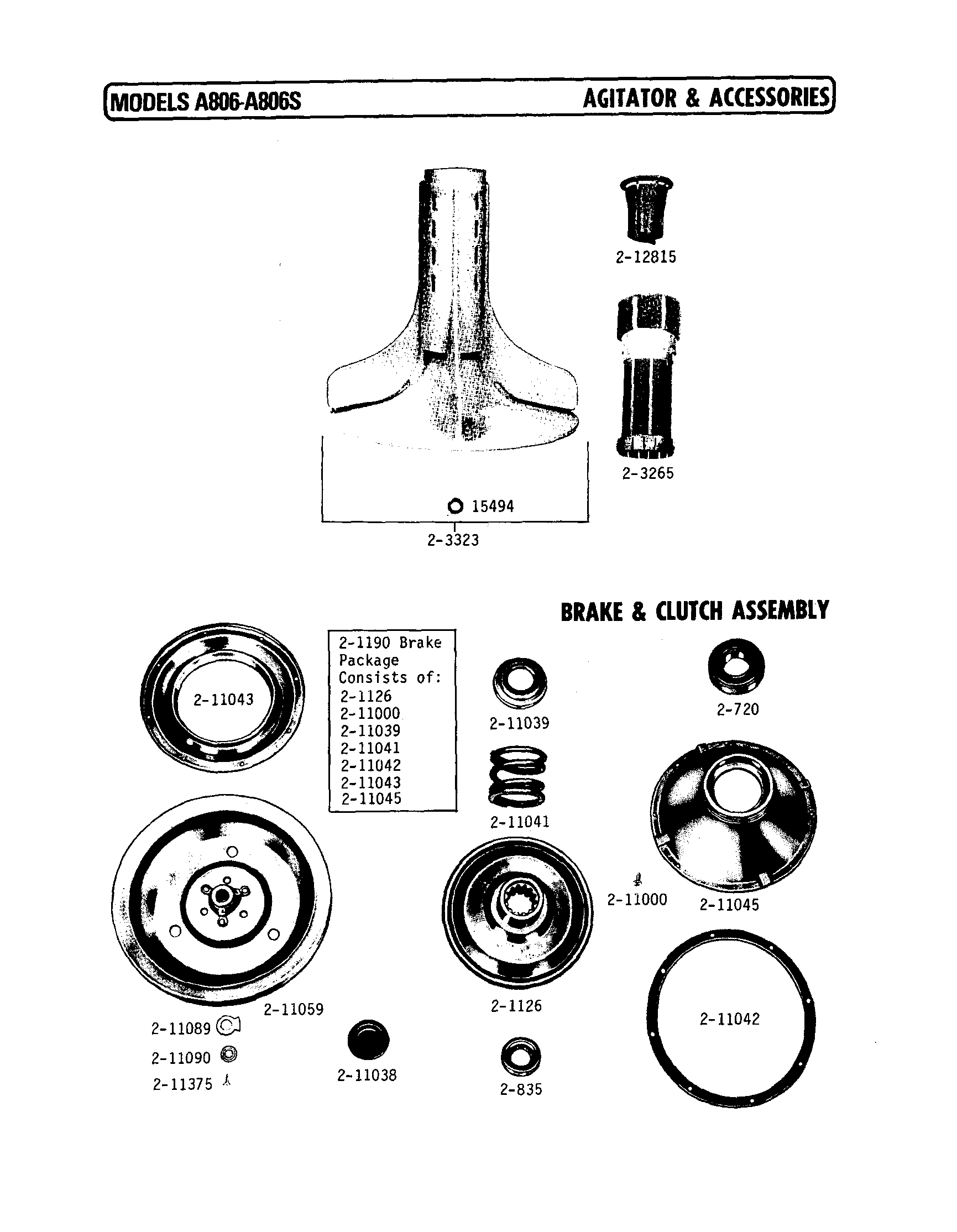

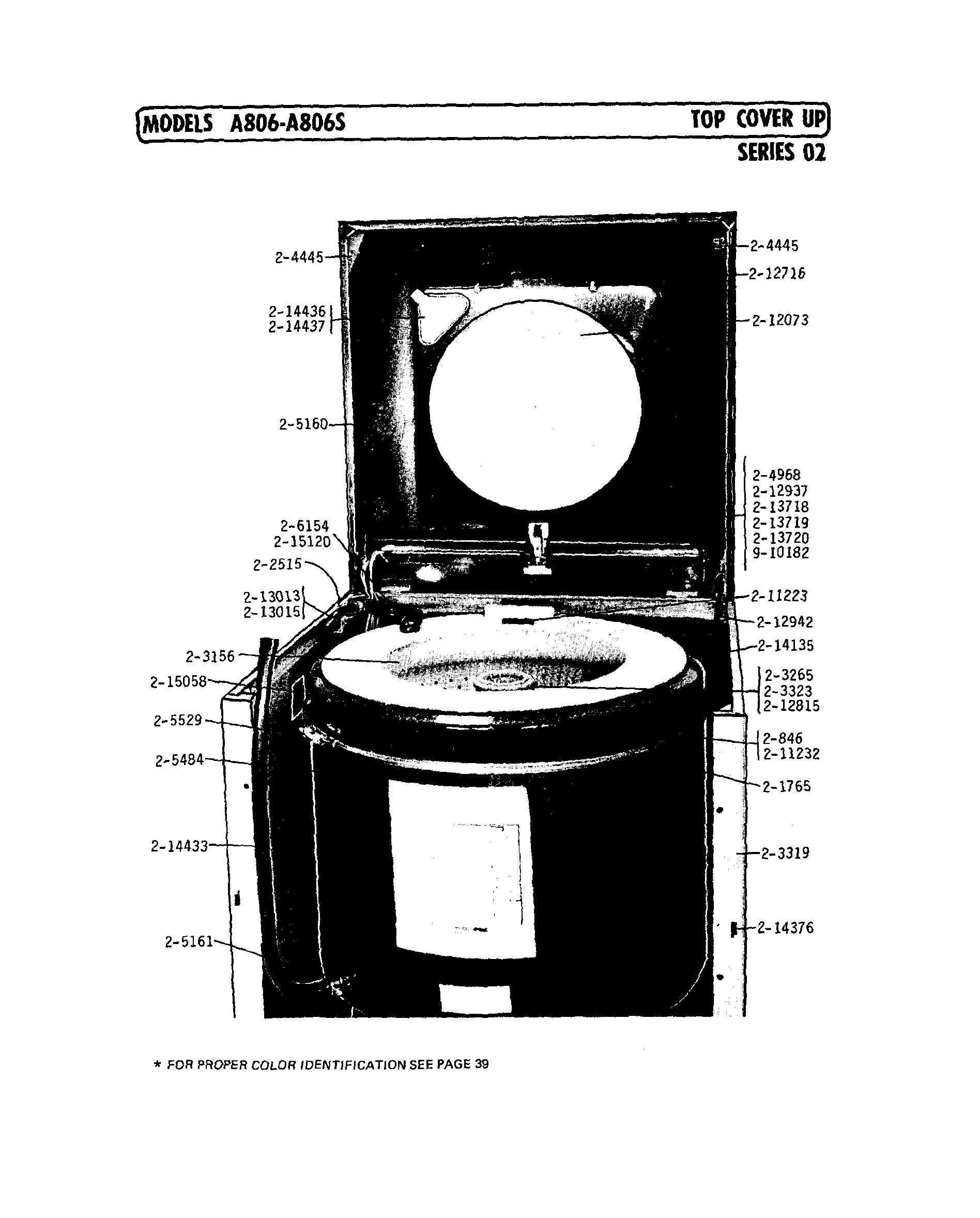

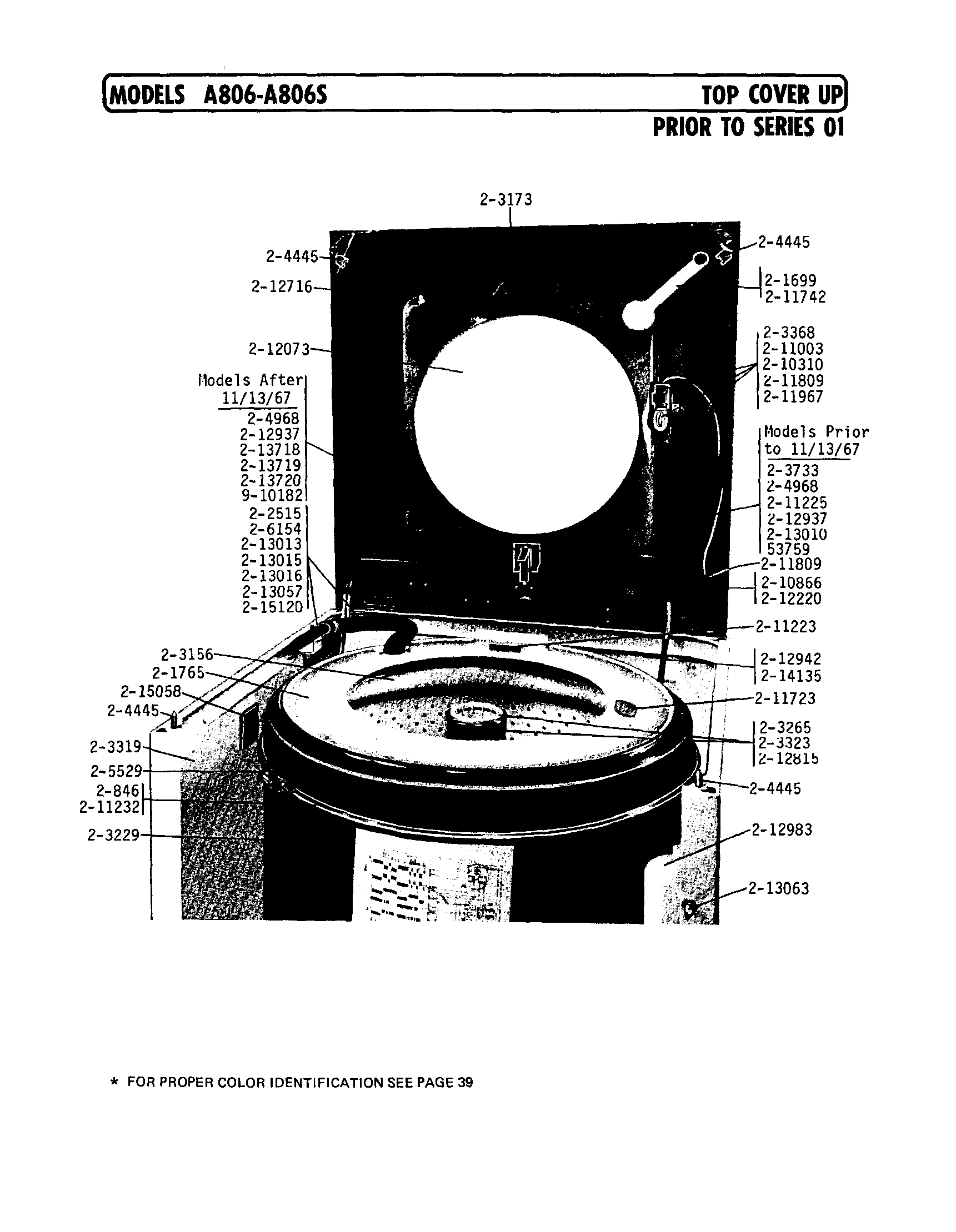

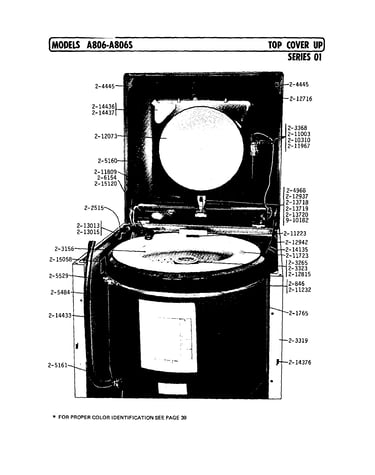

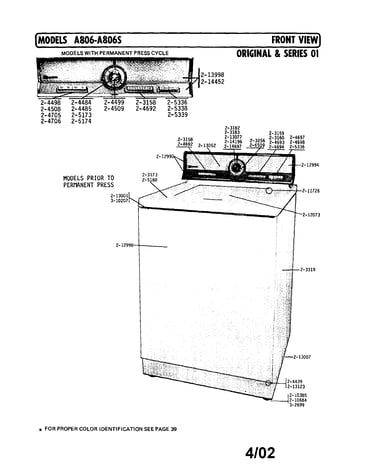

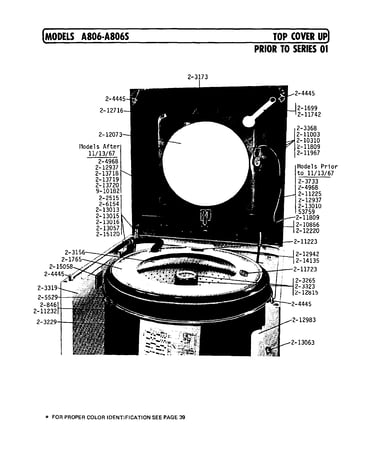

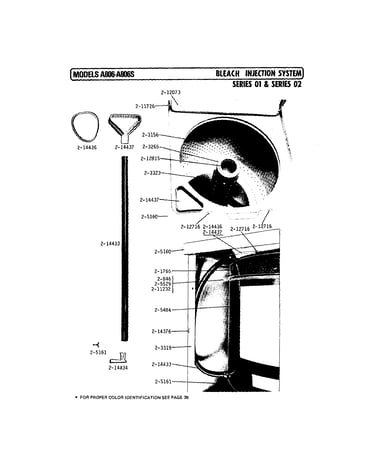

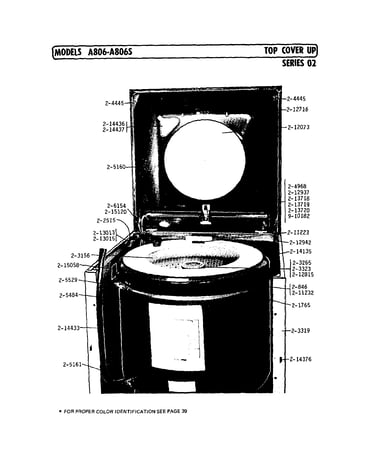

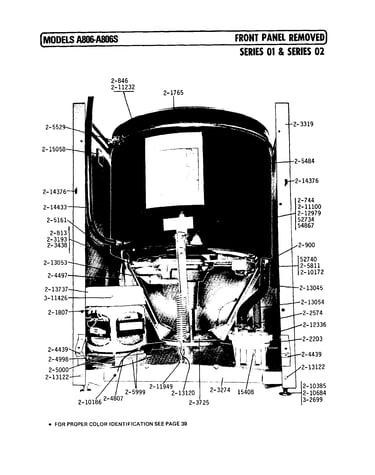

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 266 parts  |
Lid Switch 205415
#31

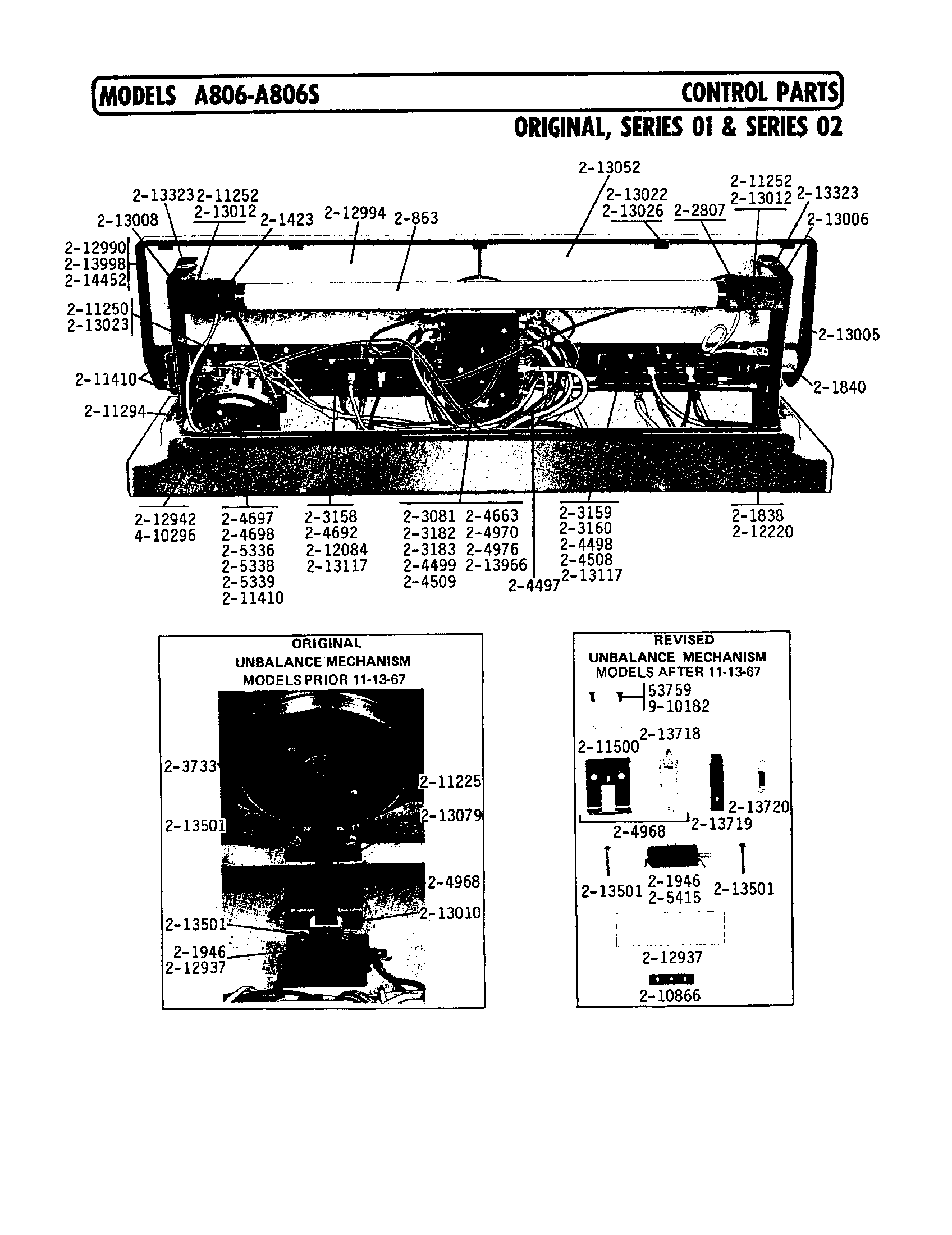

Control parts diagram

Lid switch

Part #205415

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 205415. Substitute parts can look different from the original.
BEST SELLER
$24.95 |
19% OFF Phone Price : $30.95
In Stock

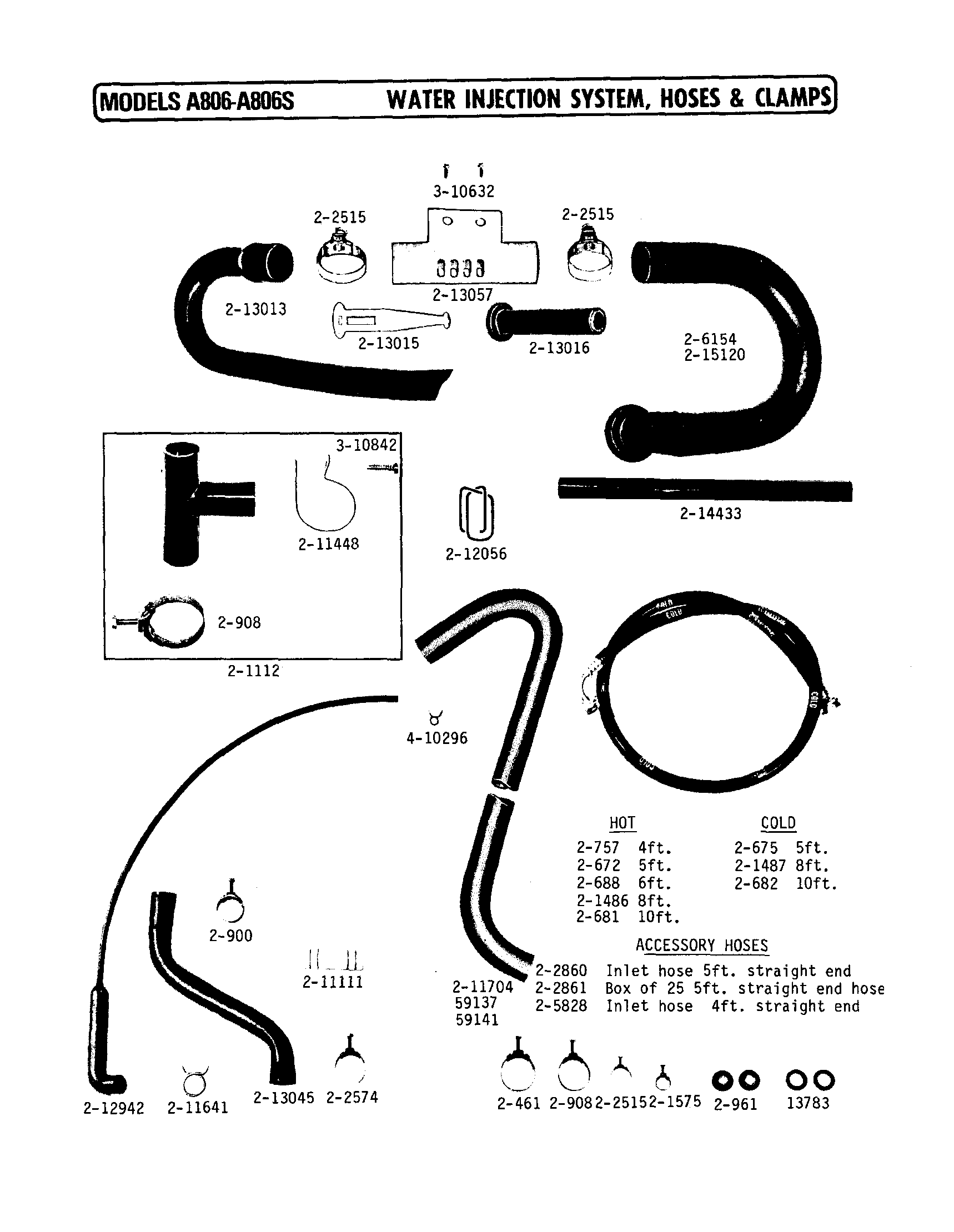

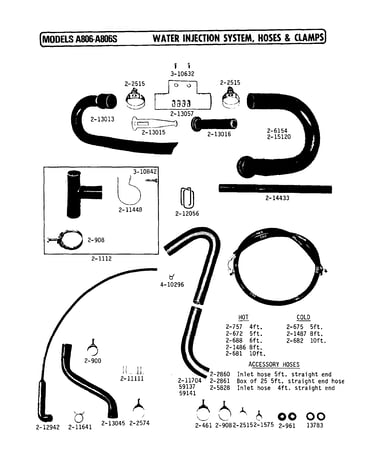

Hose Clamp 201575
Hose clamp

Part #201575

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 201575. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Water Clamp 410296
Water clamp

Part #410296

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 410296. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 202515
Hose clamp

Part #202515

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 202515. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 400179
Hose clamp

Part #400179

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 400179. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Pump Drive Belt 211124
#12

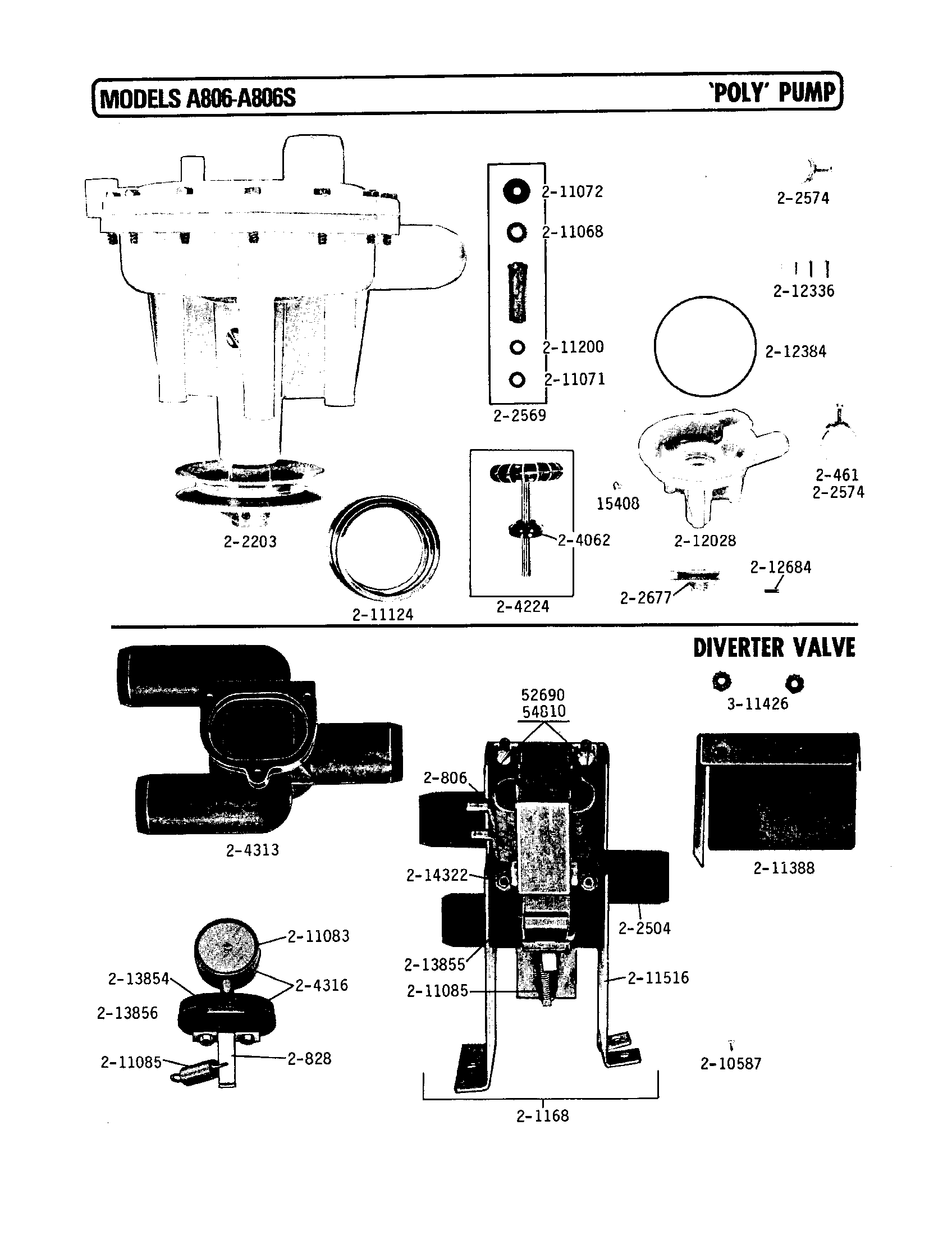

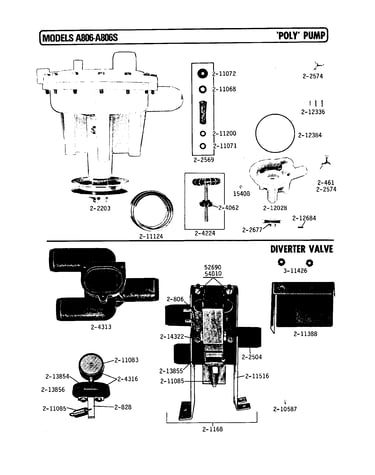

Poly pump diagram

Washer pump drive belt

Part #211124

Replaced by #12112425

?
Manufacturer substitution
This part replaces 211124. Substitute parts can look different from the original.
BEST SELLER
$42.37 |
12% OFF Phone Price : $48.37
In Stock

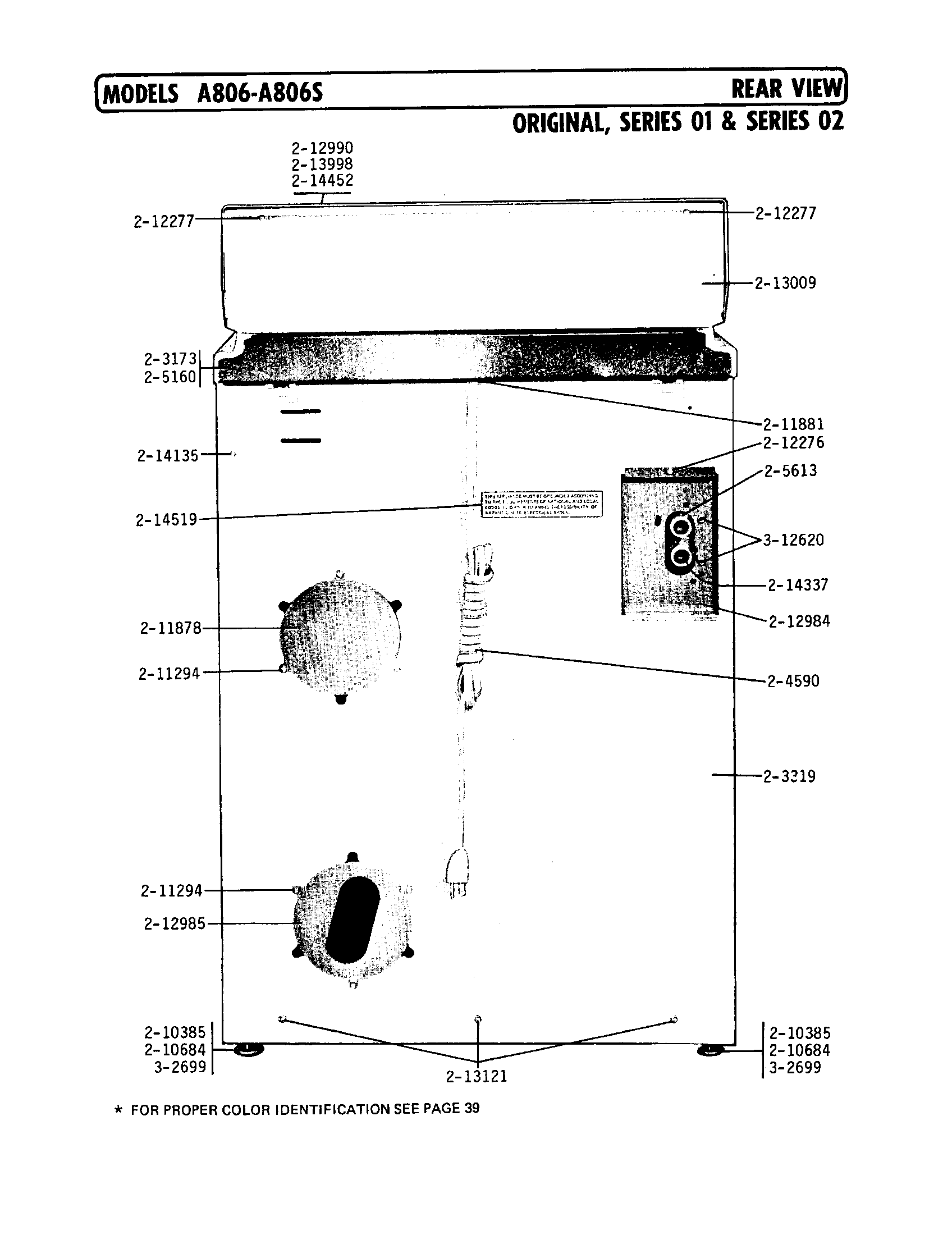

Washer Screw 211294
Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock

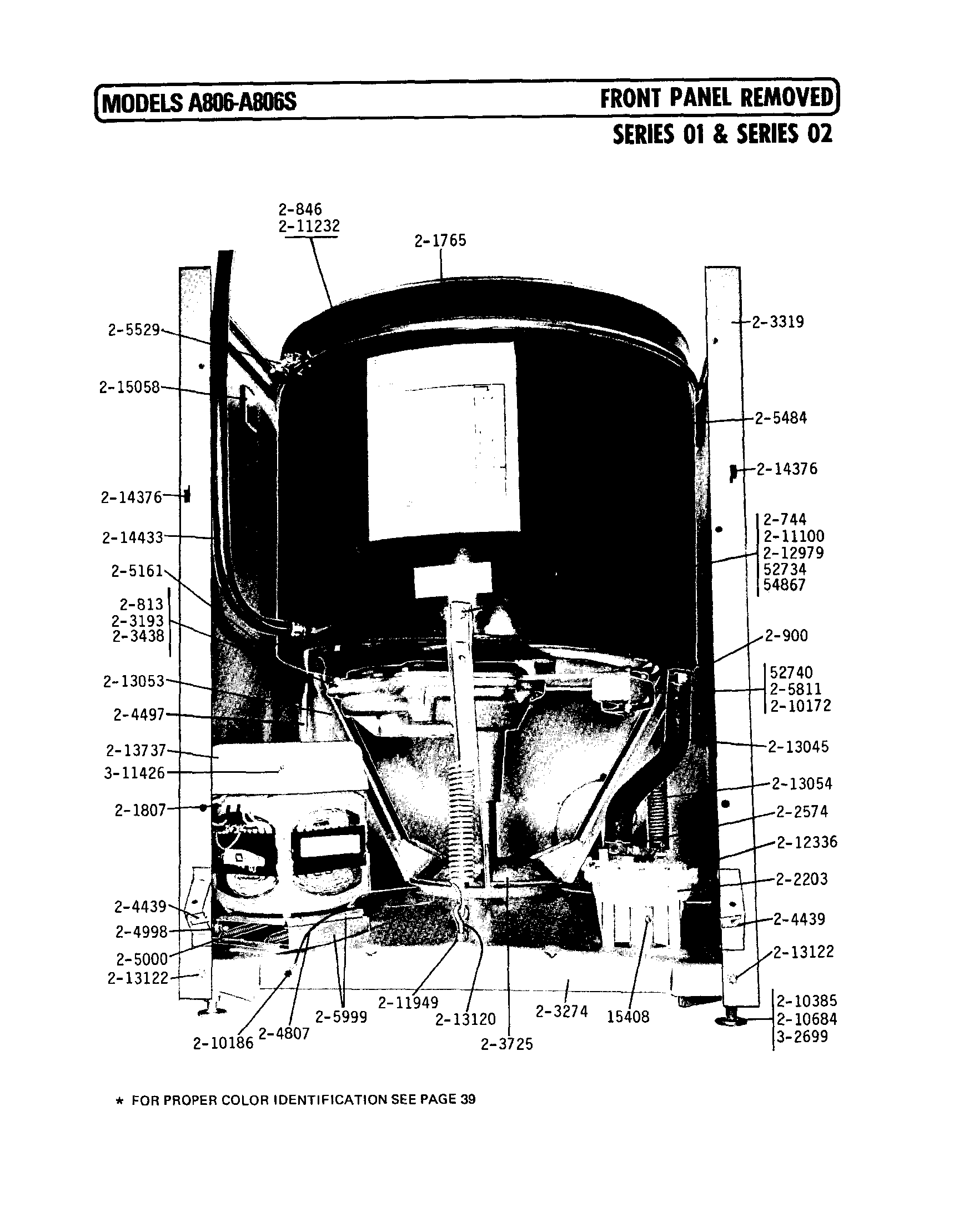

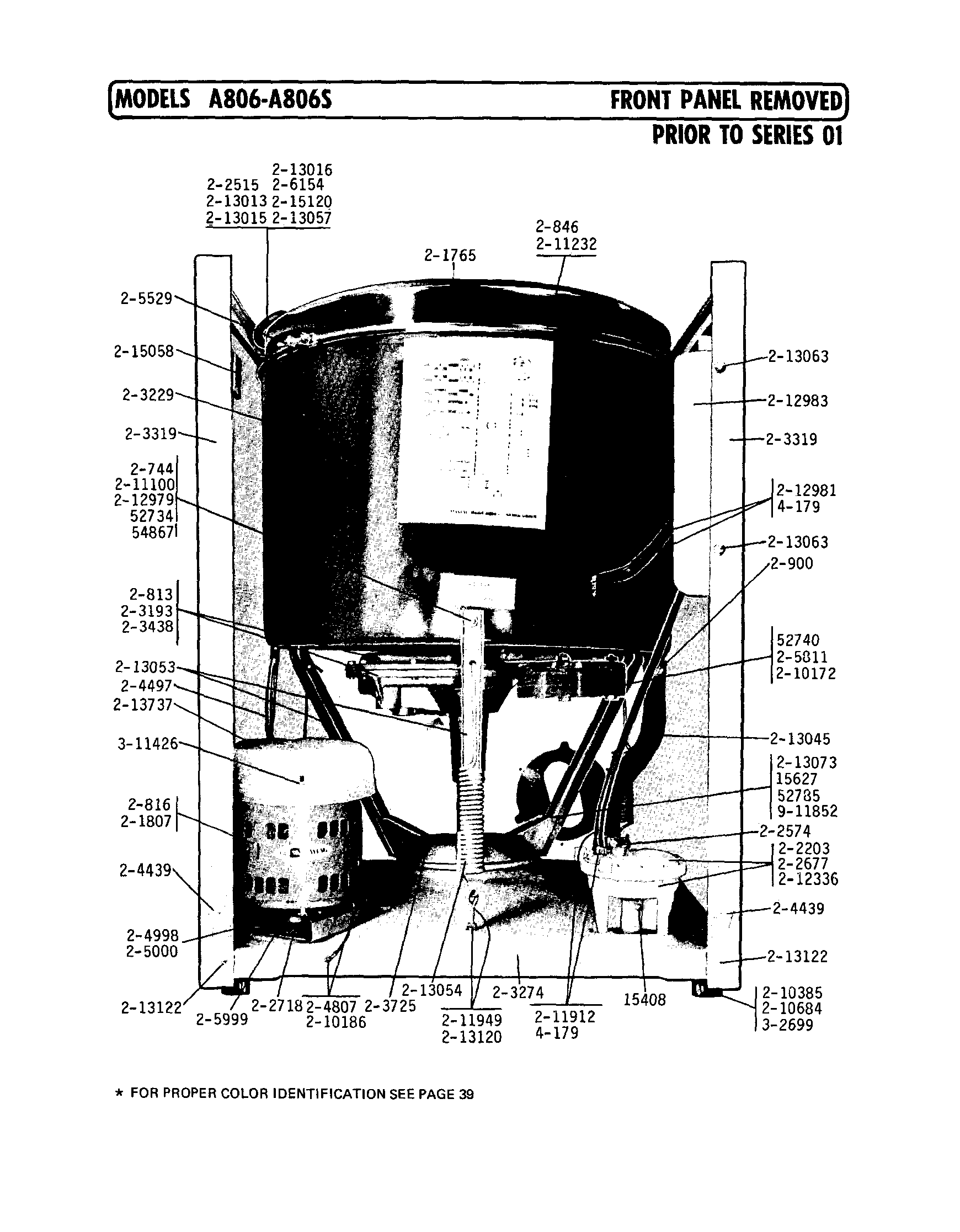

Pump 202203
Pump

Part #202203

Replaced by #WP6-2022030

?
Manufacturer substitution
This part replaces 202203. Substitute parts can look different from the original.
BEST SELLER
$77.82 |
7% OFF Phone Price : $83.82
In Stock

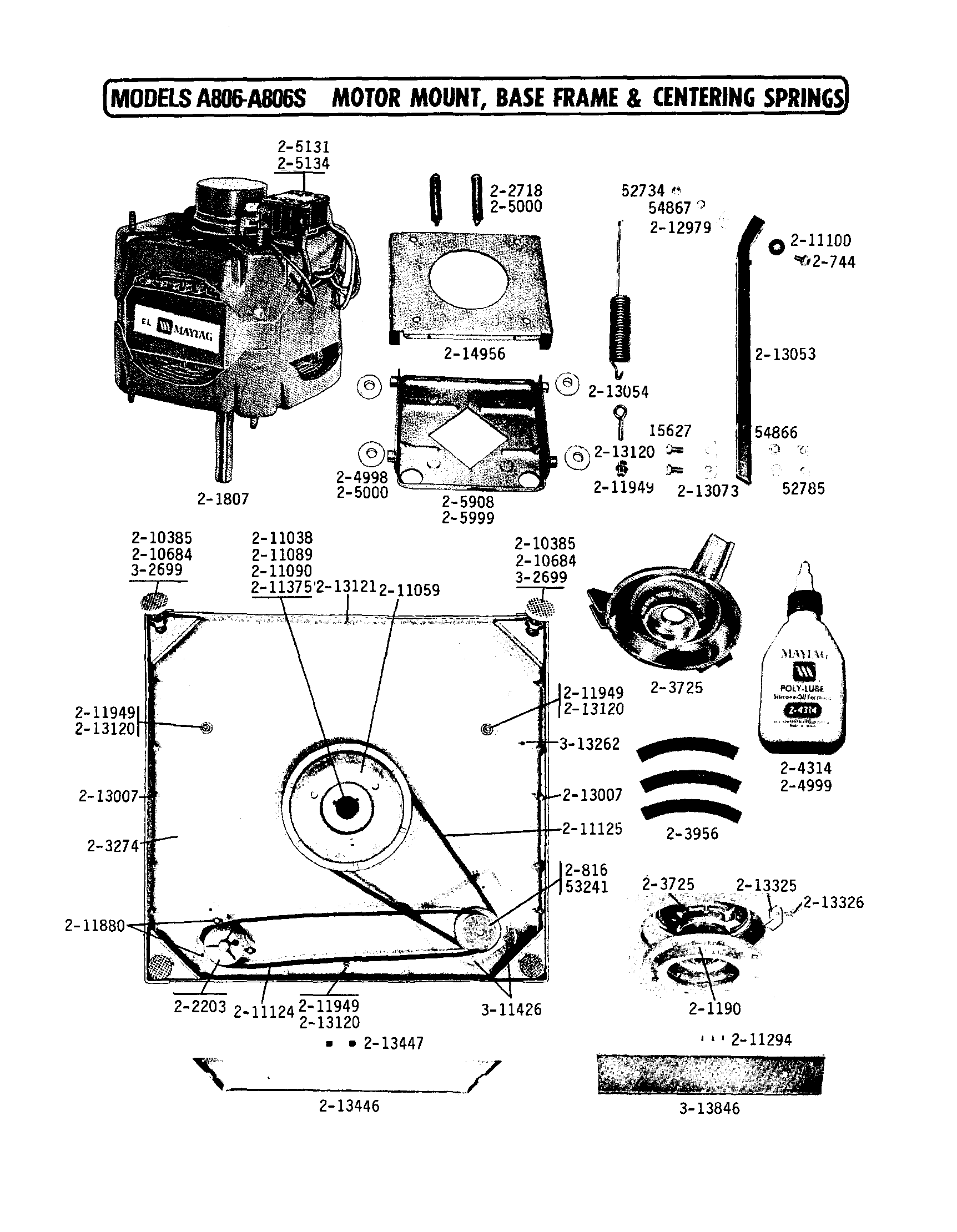

Keps Nut Motor 311426
Keps nut motor

Part #311426

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 311426. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Valve For In 213016
Valve for in

Part #213016

Replaced by #WP216201

?
Manufacturer substitution
This part replaces 213016. Substitute parts can look different from the original.
This item is not returnable
$15.29 |
12% OFF Phone Price : $17.29
In Stock
