Room Air Conditioner

Model # AZ41E09DABW5 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ41E09DABW5 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

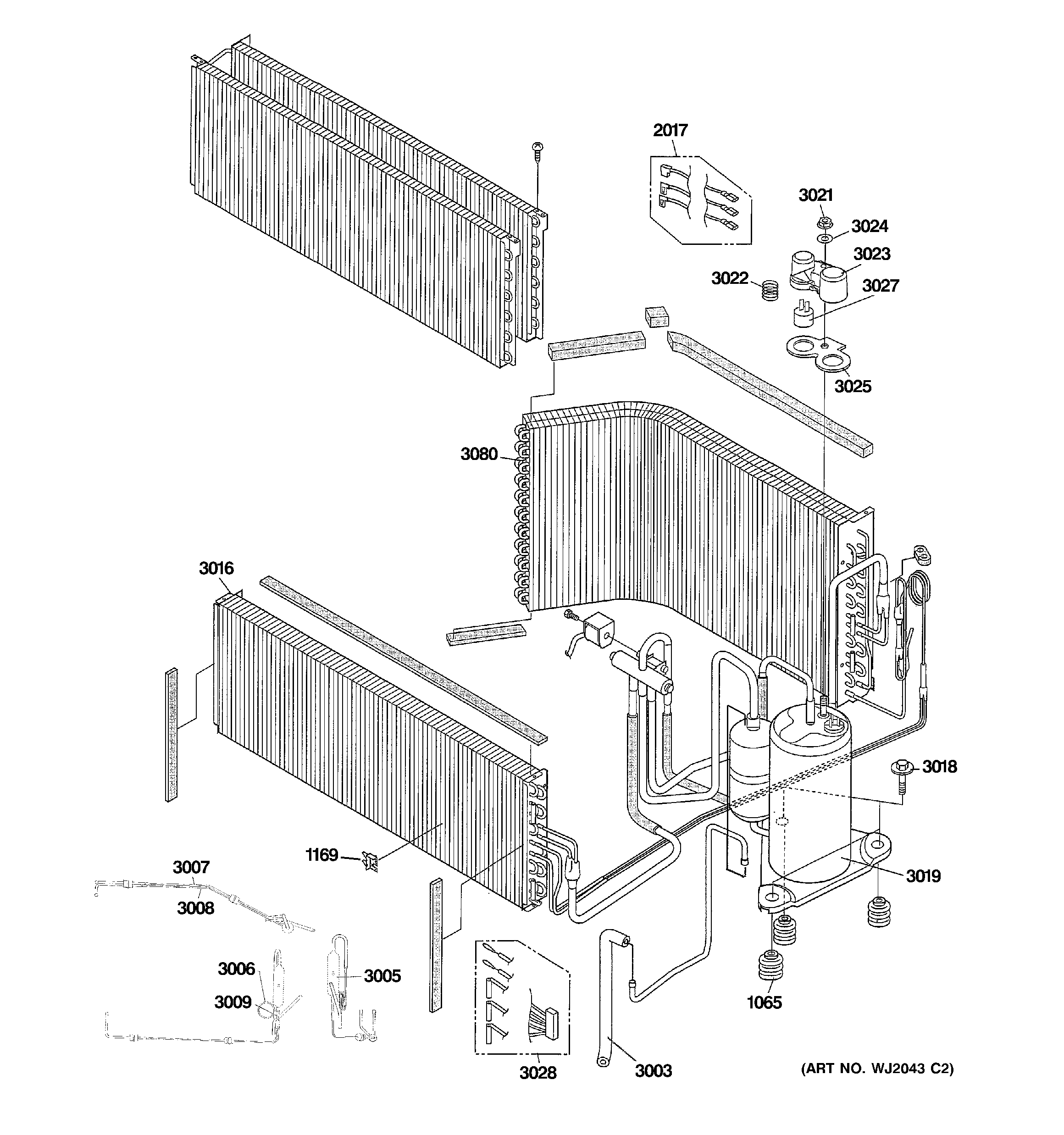

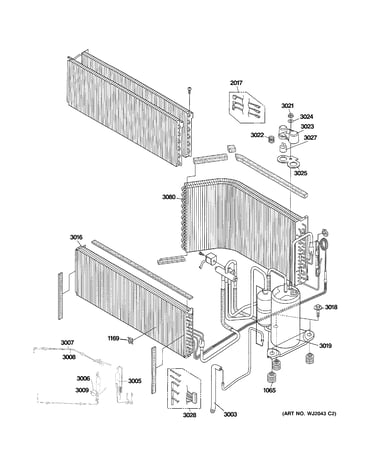

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Room Air Conditioner Air Filter WP85X10008
#1021

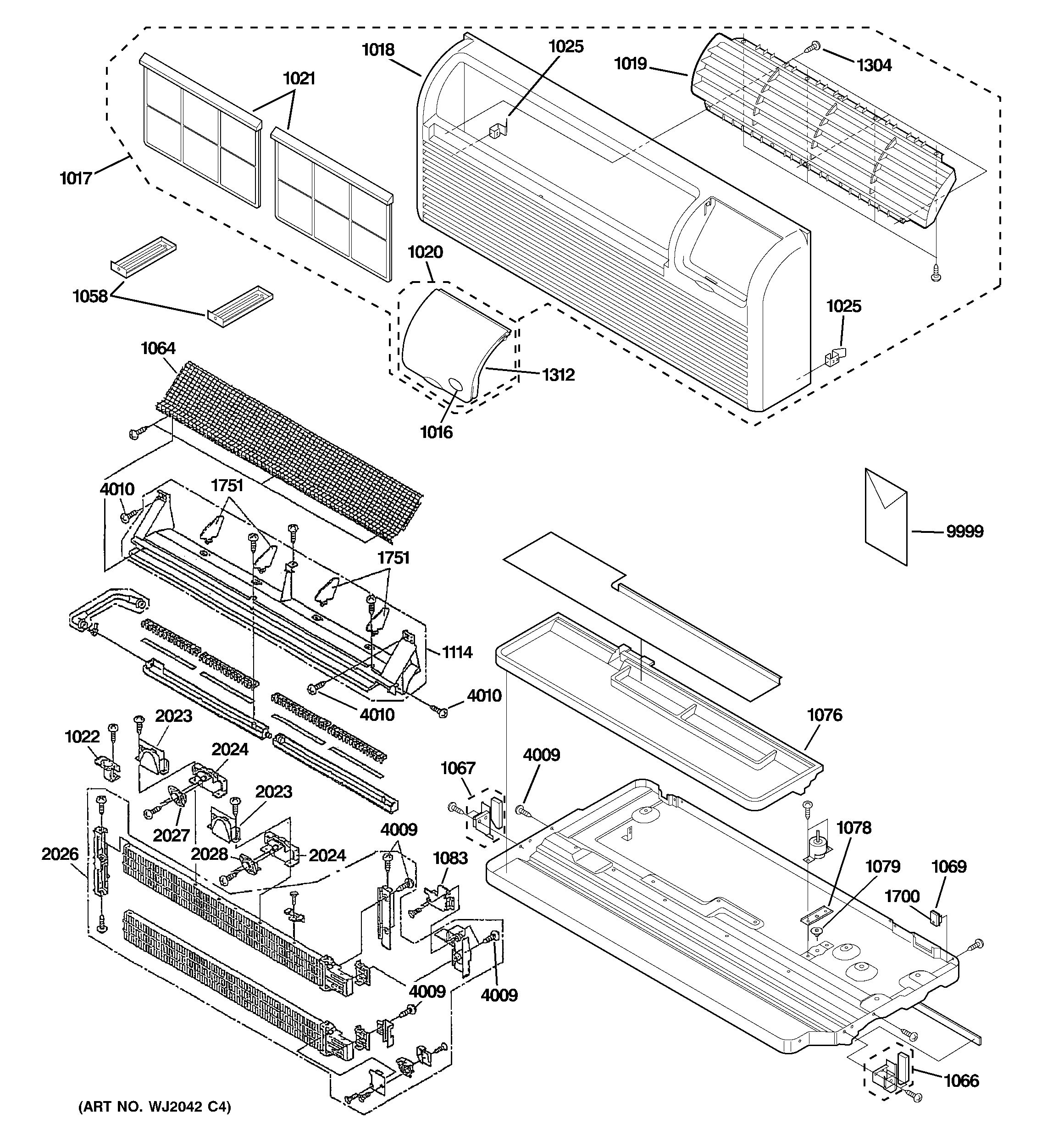

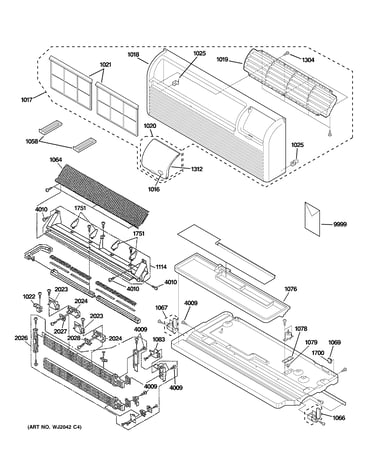

Grille, heater & base pan parts diagram

Room air conditioner air filter

Part #WP85X10008

This item is not returnable
$26.02 |
19% OFF Phone Price : $32.02
In Stock
Room Air Conditioner Blower Wheel Bearing WP76X10006
#1070

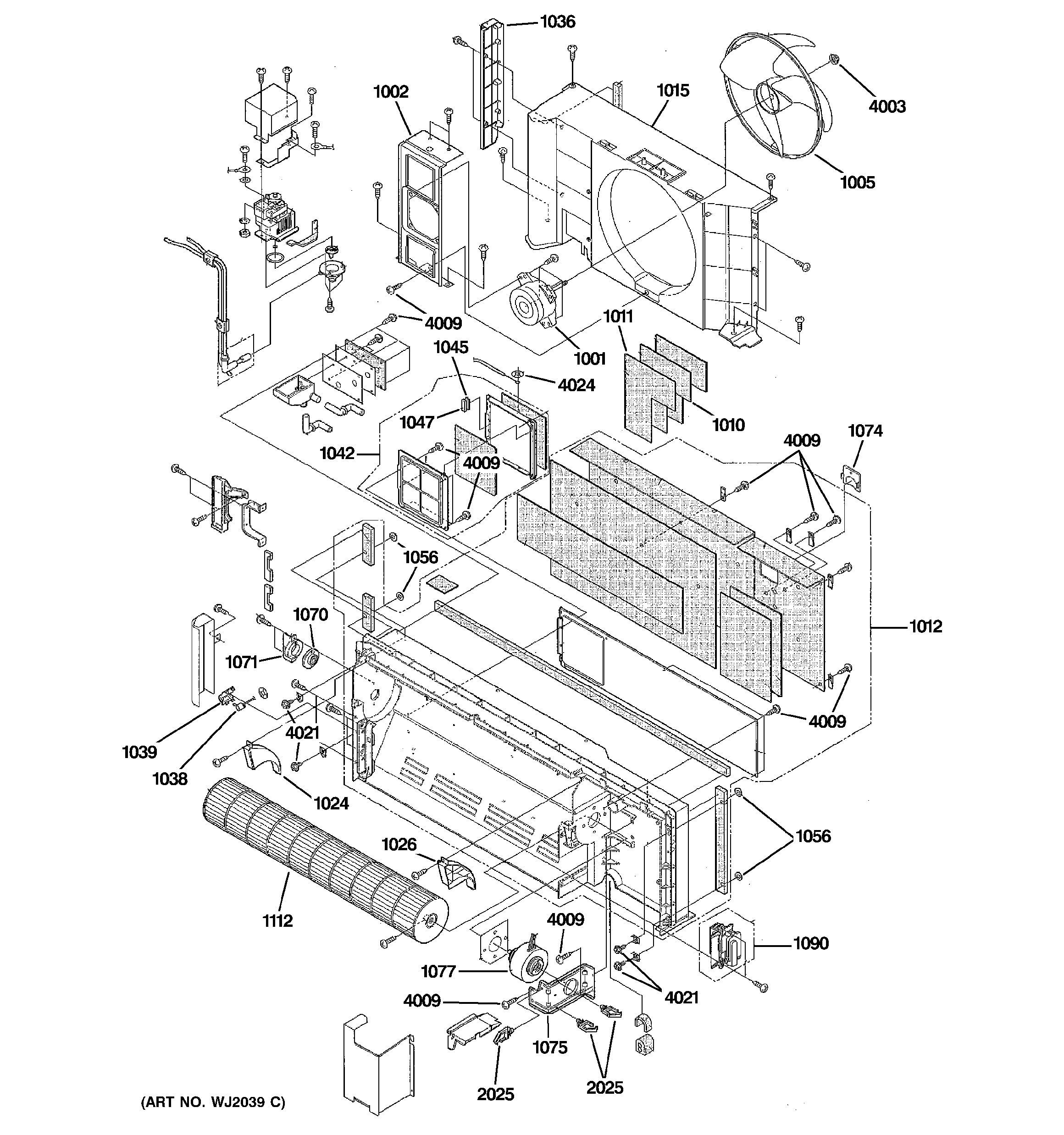

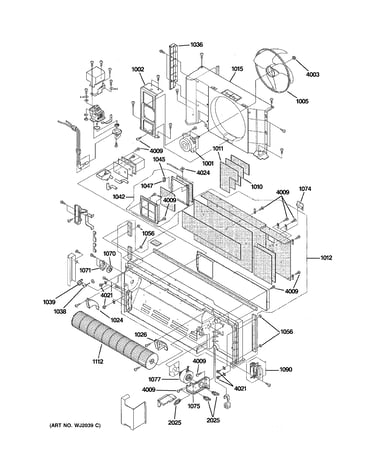

Motor & chassis parts diagram

Room air conditioner blower wheel bearing

Part #WP76X10006

$9.62 |
9% OFF Phone Price : $10.62
In Stock
Fan WP73X10013
#1112

Motor & chassis parts diagram

Fan

Part #WP73X10013

$80.19 |
7% OFF Phone Price : $86.19
Back Order
Fan Housing WP03X10020
#1026

Motor & chassis parts diagram

Fan housing

Part #WP03X10020

This item is not returnable
$7.14
In Stock
Cover WP01X10039
#1010

Motor & chassis parts diagram

Cover

Part #WP01X10039

$18.29
In Stock
Drain Tray WP89X10023
#1076

Grille, heater & base pan parts diagram

Drain tray

Part #WP89X10023

$19.81
In Stock
Capacitor Clamp WP03X10031
#2201

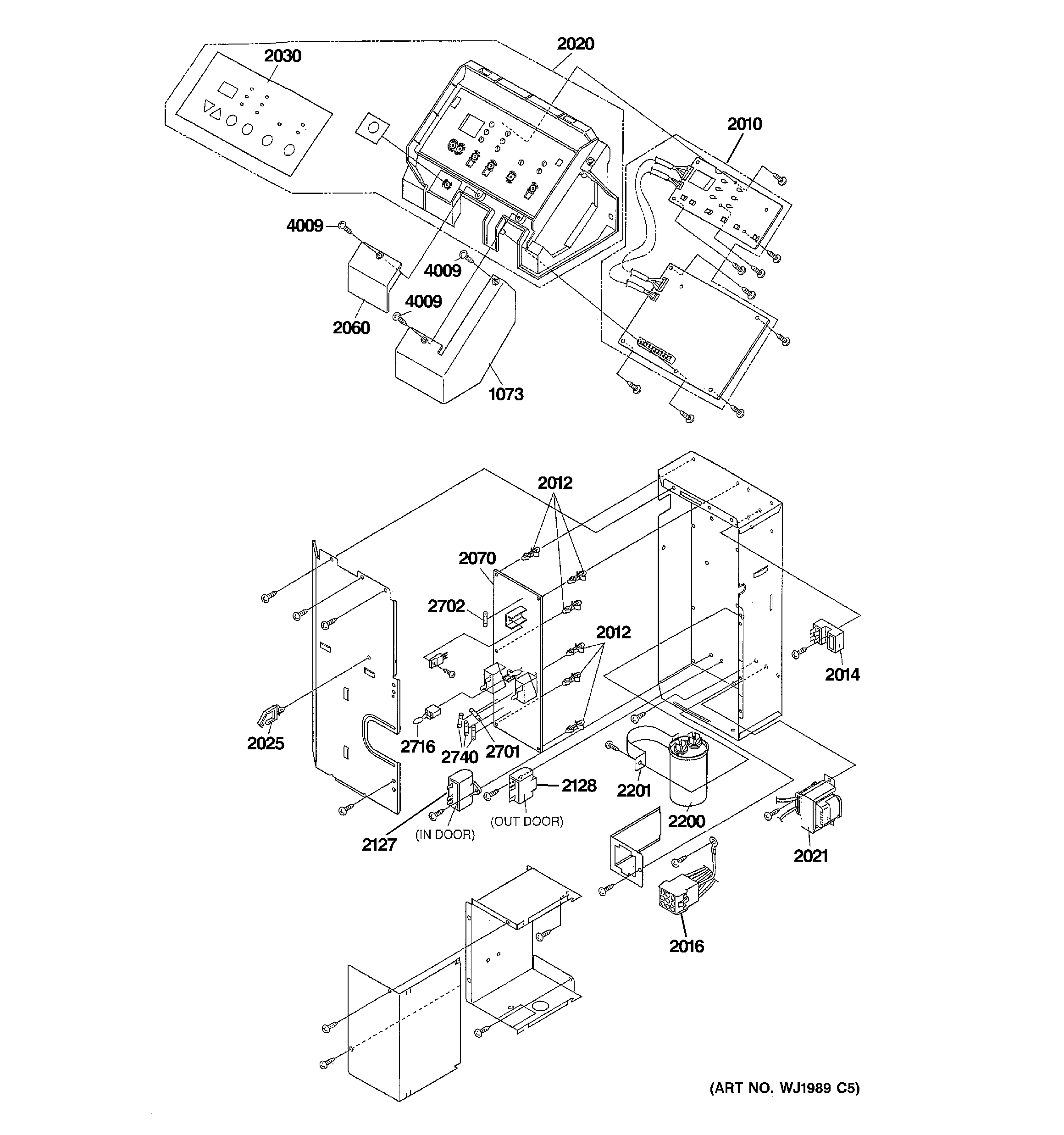

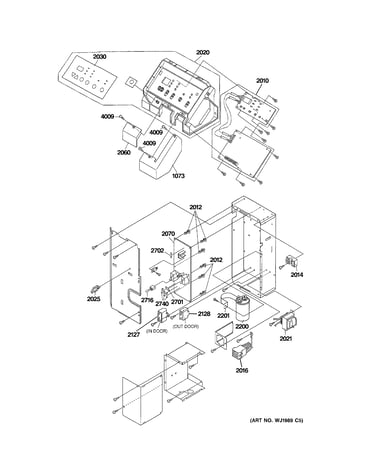

Control parts diagram

Capacitor clamp

Part #WP03X10031

This item is not returnable
$6.11
In Stock
Damper Lever WP01X10058
#1039

Motor & chassis parts diagram

Damper lever

Part #WP01X10058

This item is not returnable
$4.35
In Stock
Fan Housing WP03X10019
#1024

Motor & chassis parts diagram

Fan housing

Part #WP03X10019

This item is not returnable
$7.14
In Stock
Connector WP03X10024
#2016

Control parts diagram

Connector

Part #WP03X10024

$78.51
In Stock
