Model # LP120CED-Y8 Official LG package unit

Here are the diagrams and repair parts for Official LG LP120CED-Y8 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Room Air Conditioner Fan Blade Clamp 3H02932B
#W486

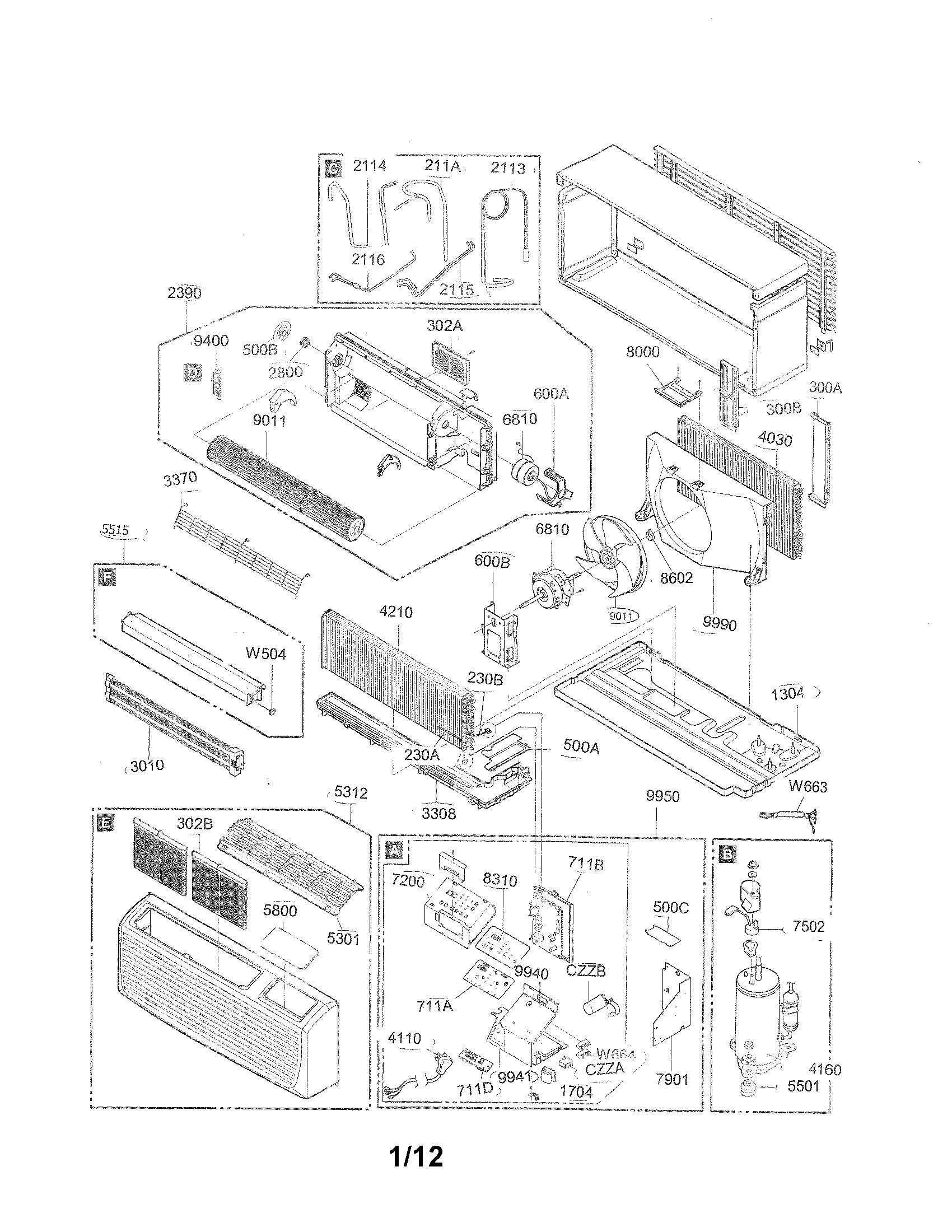

Exploded view parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Control Panel Overlay 3831A20145E
#8310

Exploded view parts diagram

Room air conditioner control panel overlay

Part #3831A20145E

$27.47 |
18% OFF Phone Price : $33.47
In Stock
Room Air Conditioner Evaporator Fan Blade 5901A20050A
#9011

Exploded view parts diagram

Room air conditioner evaporator fan blade

Part #5901A20050A

$58.19 |
9% OFF Phone Price : $64.19
In Stock
Room Air Conditioner Blower Wheel Bearing 4280A20004A
#2800

Exploded view parts diagram

Room air conditioner blower wheel bearing

Part #4280A20004A

Replaced by #4280A20004M

?
Manufacturer substitution
This part replaces 4280A20004A. Substitute parts can look different from the original.
This item is not returnable
$5.58 |
15% OFF Phone Price : $6.58
In Stock
Thermistor A 6323A20006A
#230A

Exploded view parts diagram

Thermistor a

Part #6323A20006A

Replaced by #EBG61106833

?
Manufacturer substitution
This part replaces 6323A20006A. Substitute parts can look different from the original.
$14.51
In Stock
Room Air Conditioner Front Grille Assembly 3531A10149D
#5231

Exploded view parts diagram

Room air conditioner front grille assembly

Part #3531A10149D

Replaced by #3531A10149J

?
Manufacturer substitution
This part replaces 3531A10149D. Substitute parts can look different from the original.
$105.92
In Stock
Kenmore Protector 6750U-L061A
#7502

Exploded view parts diagram

Kenmore protector

Part #6750U-L061A

$24.09
In Stock
Icp Room Air Conditioner Compressor Grommet 4H00982E
#5501

Exploded view parts diagram

Icp room air conditioner compressor grommet

Part #4H00982E

This item is not returnable
$3.51 |
22% OFF Phone Price : $4.51
In Stock
Pan Asy,drai 3087A20033A
#3308

Exploded view parts diagram

Pan asy,drai

Part #3087A20033A

$23.07
In Stock
Evap Asy,fir 5421A20118C
#4210

Exploded view parts diagram

Evap asy,fir

Part #5421A20118C

$178.88
In Stock
