Wall Oven/Microwave Combo

Model # KEMS307DBL2 Official KitchenAid 30" electric built-in double oven

Here are the diagrams and repair parts for Official KitchenAid KEMS307DBL2 30" electric built-in double oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

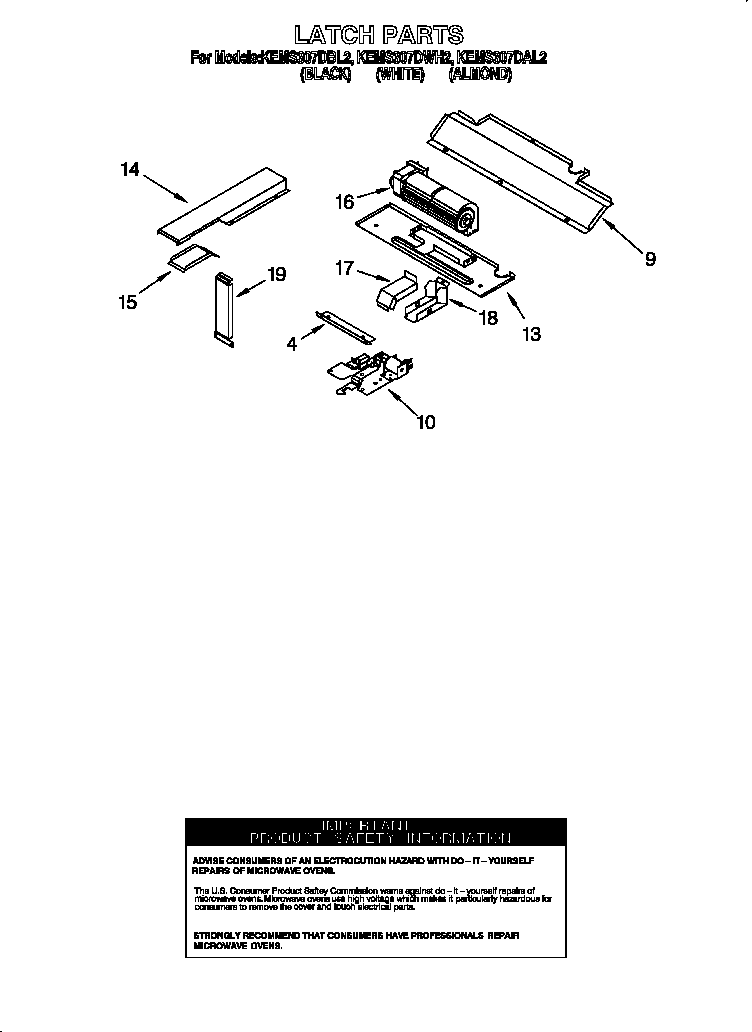

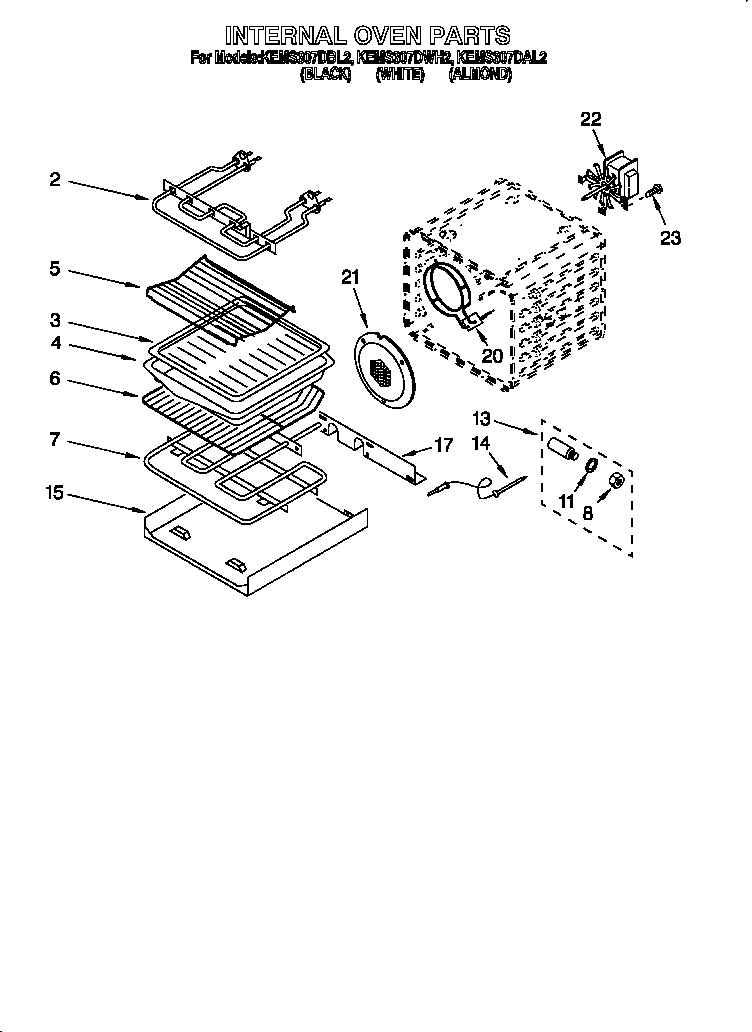

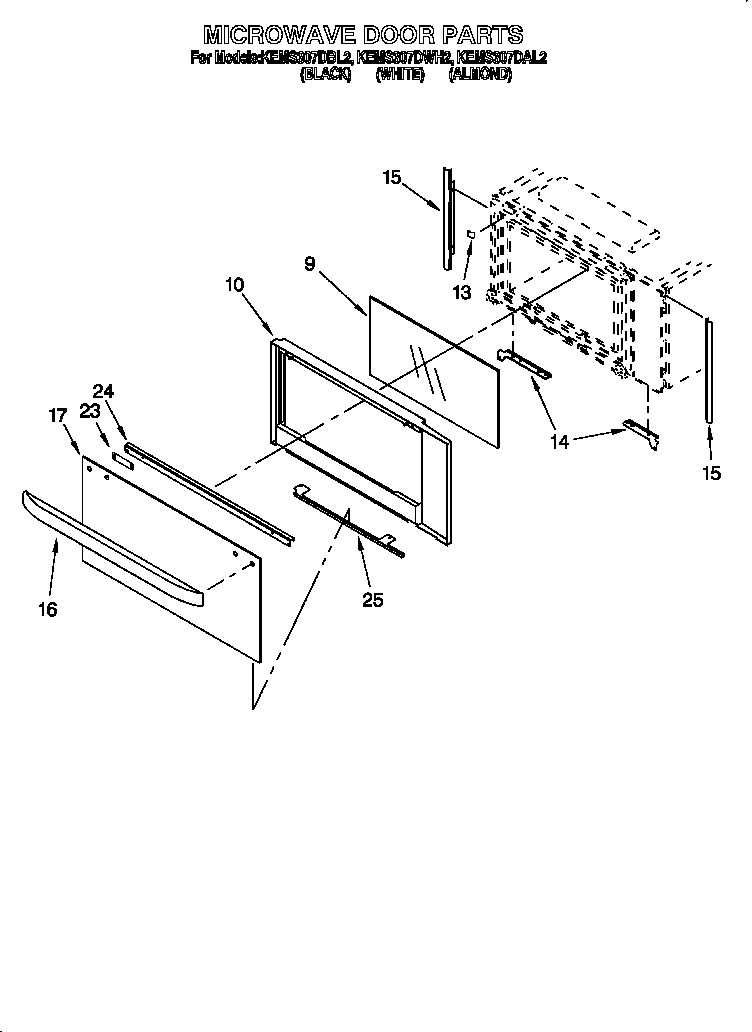

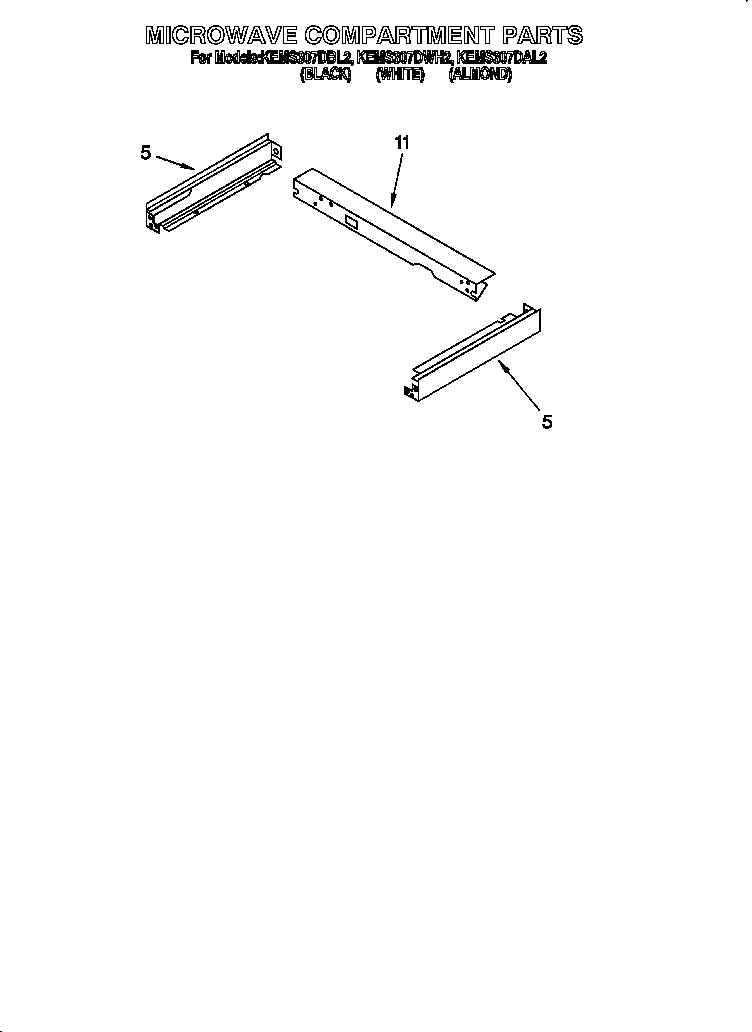

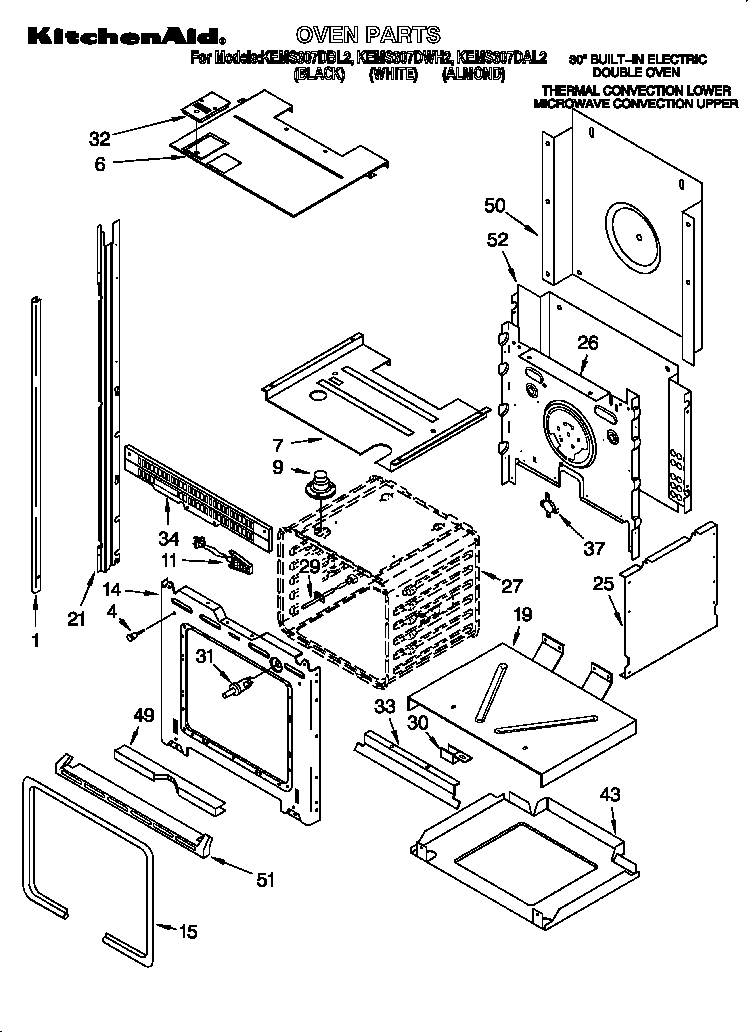

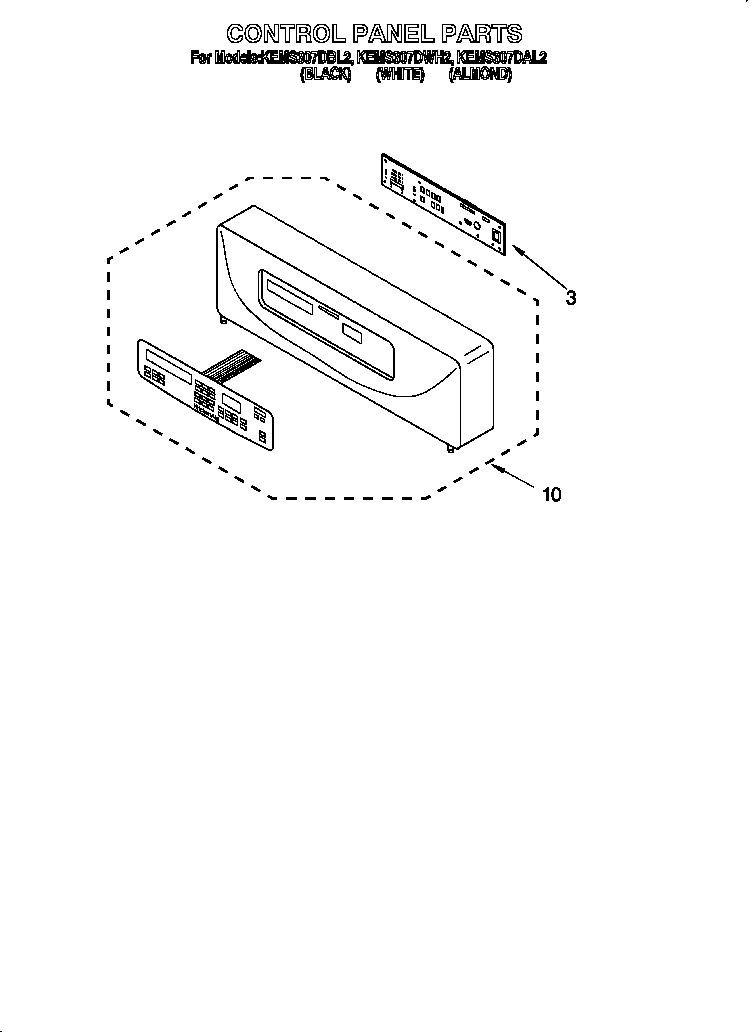

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
KEMS307DBL2 30" Electric Built-In Double Oven
Microwave Door Interlock Switch 4375346
#53

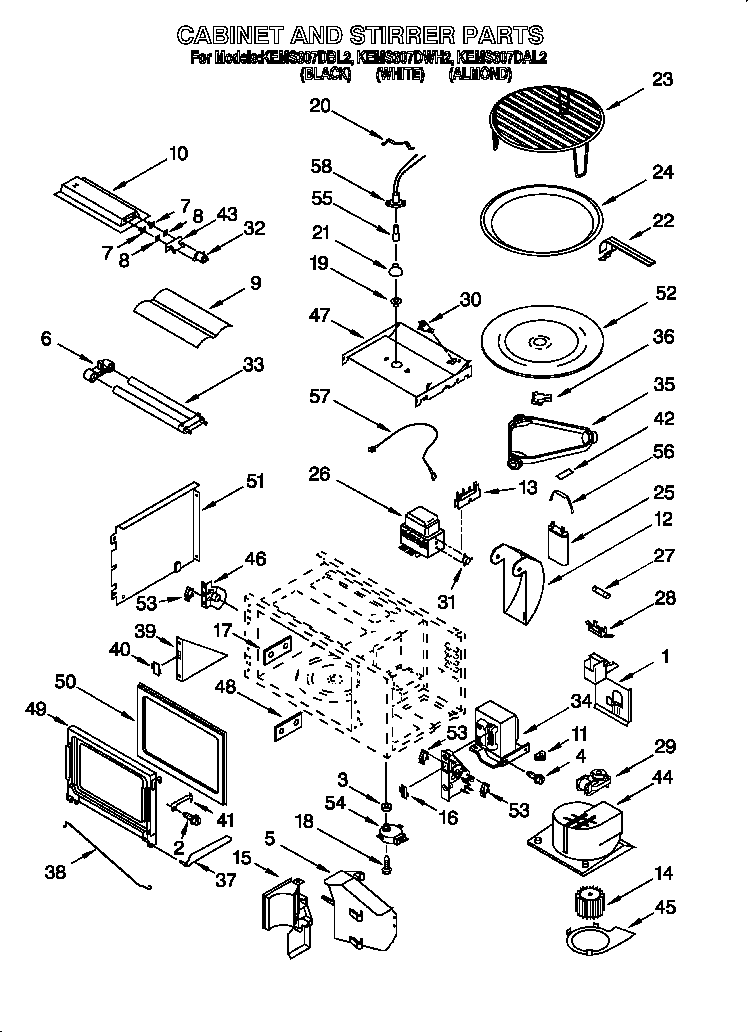

Cabinet and stirrer diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$29.69 |
17% OFF Phone Price : $35.69
In Stock
Wall Oven Door Inner Glass 4449259
#3

Oven door diagram

Wall oven door inner glass

Part #4449259

Replaced by #WP4449259

?
Manufacturer substitution
This part replaces 4449259. Substitute parts can look different from the original.
BEST SELLER
$83.92 |
7% OFF Phone Price : $89.92
In Stock
Magnetron 4375072
#26

Cabinet and stirrer diagram

Magnetron

Part #4375072

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 4375336
#46B

Cabinet and stirrer diagram

Mounting bracket

Part #4375336

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375336. Substitute parts can look different from the original.
BEST SELLER
$88.84 |
6% OFF Phone Price : $94.84
In Stock
Oven Mounting Bracket 4375335
#46A

Cabinet and stirrer diagram

Oven mounting bracket

Part #4375335

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375335. Substitute parts can look different from the original.
BEST SELLER
$88.84 |
6% OFF Phone Price : $94.84
In Stock
Appliance Touch-up Paint 72017

#NI

All parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Oven Baseless Lamp 4375348
#55

Cabinet and stirrer diagram

Oven baseless lamp

Part #4375348

Replaced by #WPW10440740

?
Manufacturer substitution
This part replaces 4375348. Substitute parts can look different from the original.
BEST SELLER
$22.69 |
21% OFF Phone Price : $28.69
In Stock
Diode 4375349
#56

Cabinet and stirrer diagram

Diode

Part #4375349

Replaced by #WPW10687786

?
Manufacturer substitution
This part replaces 4375349. Substitute parts can look different from the original.
BEST SELLER
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Microwave High-voltage Capacitor 4375020
#25

Cabinet and stirrer diagram

Microwave high-voltage capacitor

Part #4375020

Replaced by #WP4375020

?
Manufacturer substitution
This part replaces 4375020. Substitute parts can look different from the original.
BEST SELLER
$108.39 |
10% OFF Phone Price : $120.39
In Stock
Microwave Door Torsion Spring 4451009
#38

Cabinet and stirrer diagram

Microwave door torsion spring

Part #4451009

Replaced by #WP4451009

?
Manufacturer substitution
This part replaces 4451009. Substitute parts can look different from the original.
$56.82 |
10% OFF Phone Price : $62.82
In Stock
