Caloric
Gas Range

Model # RLD351 Official Caloric gas range

Here are the diagrams and repair parts for Official Caloric RLD351 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

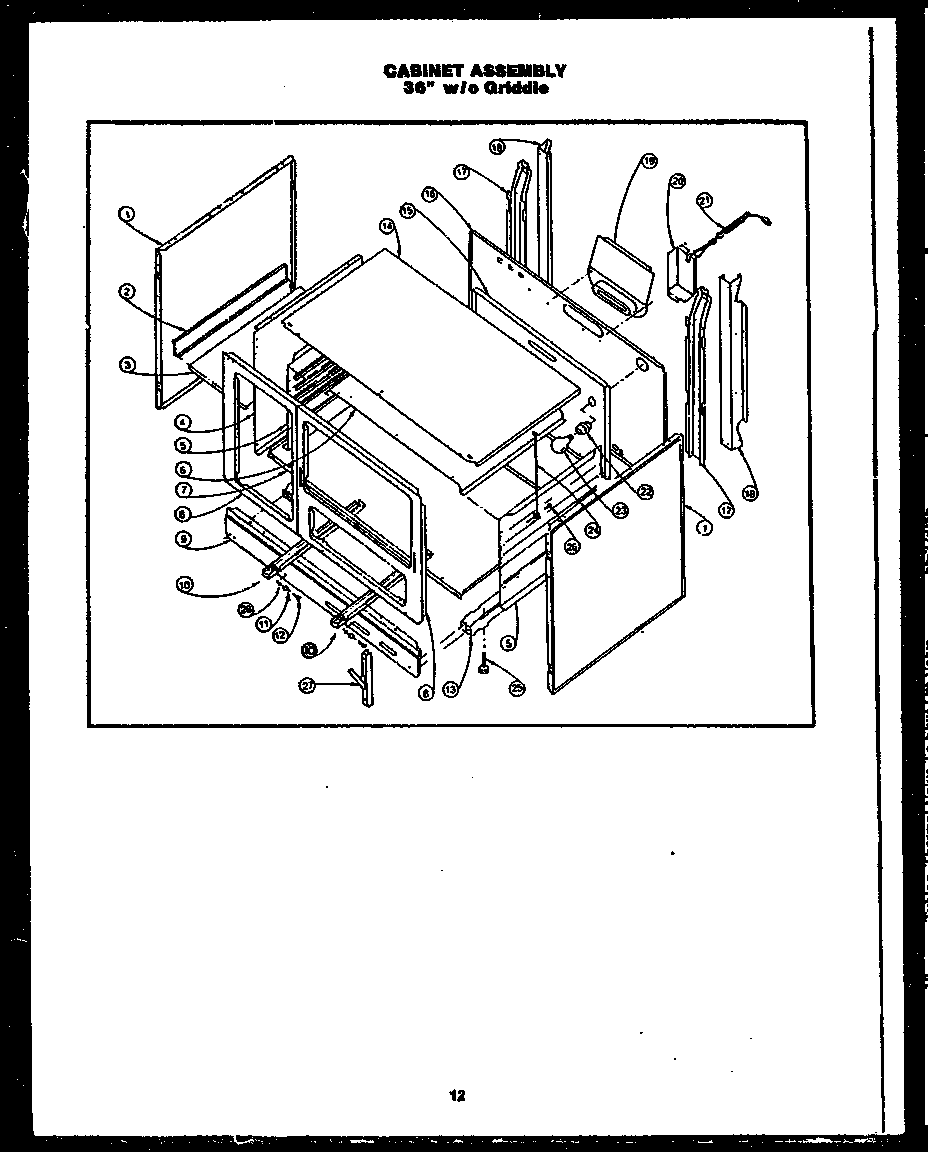

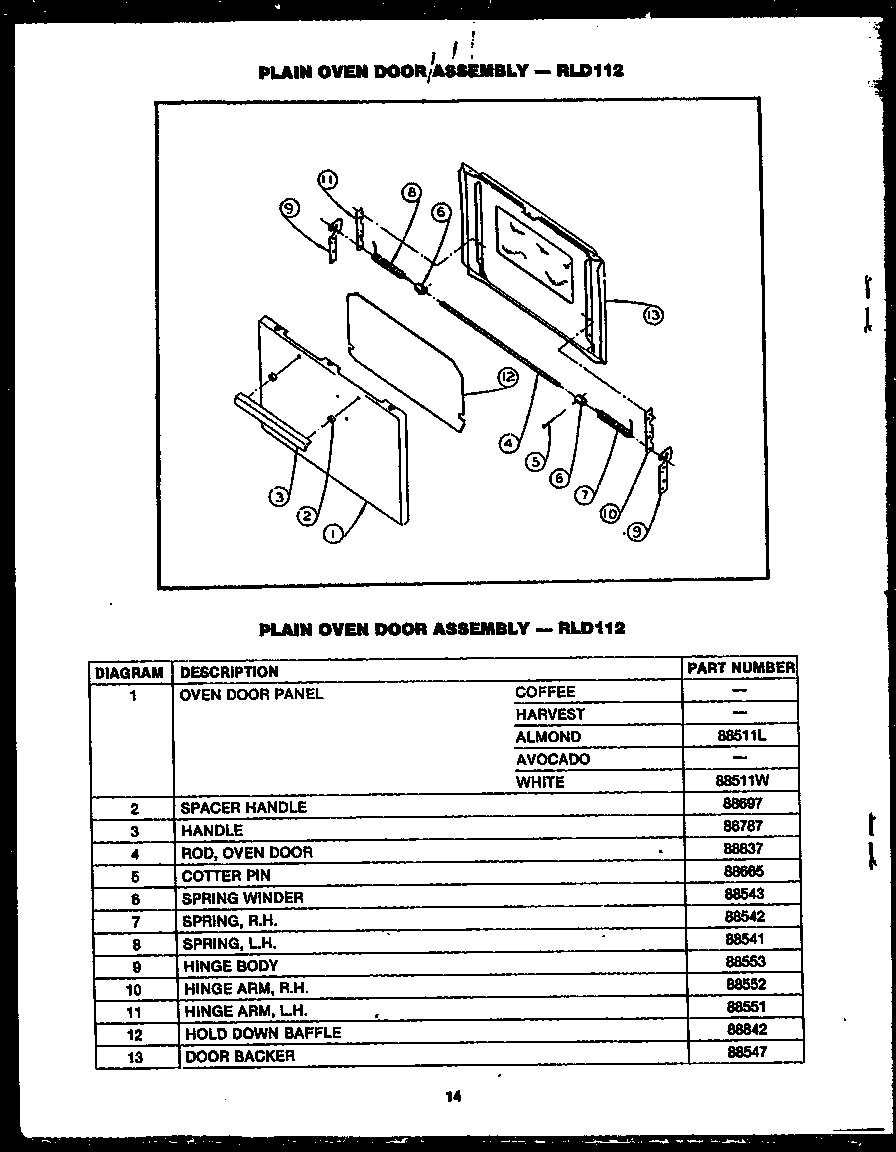

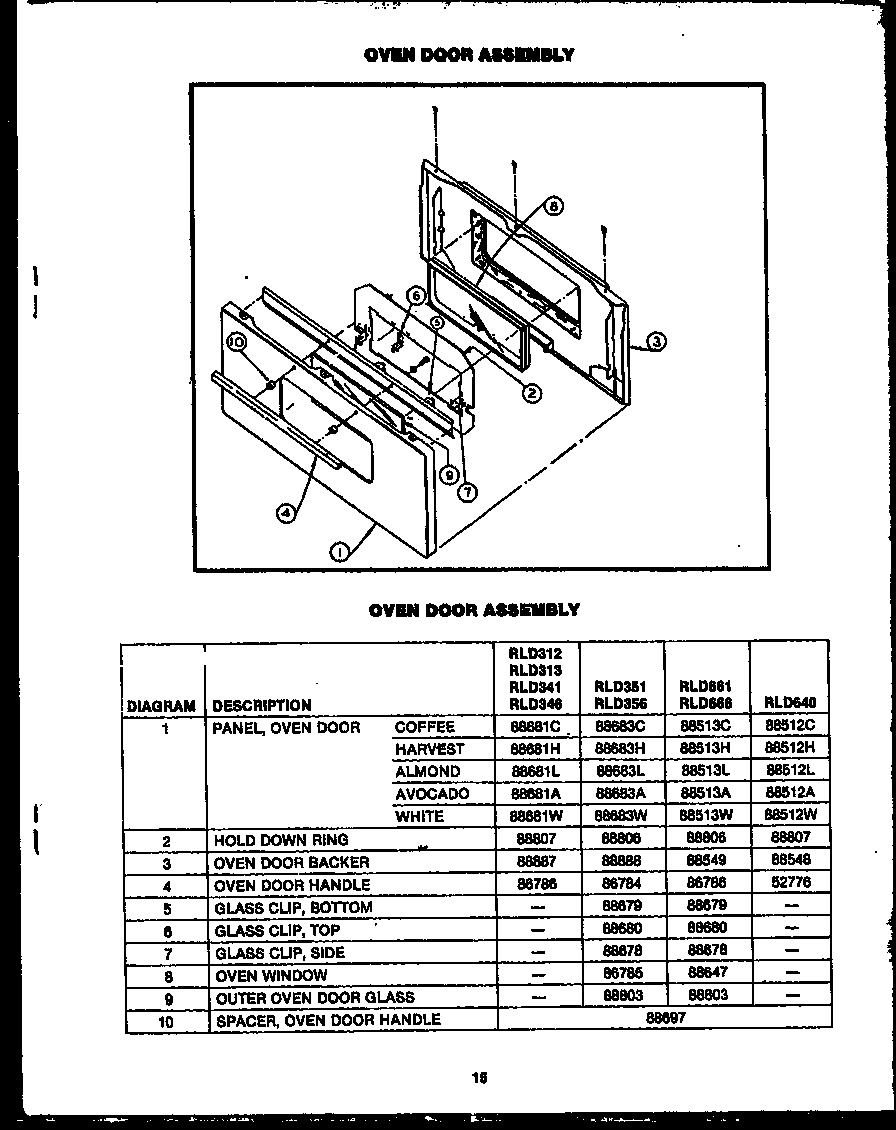

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 281 parts  |

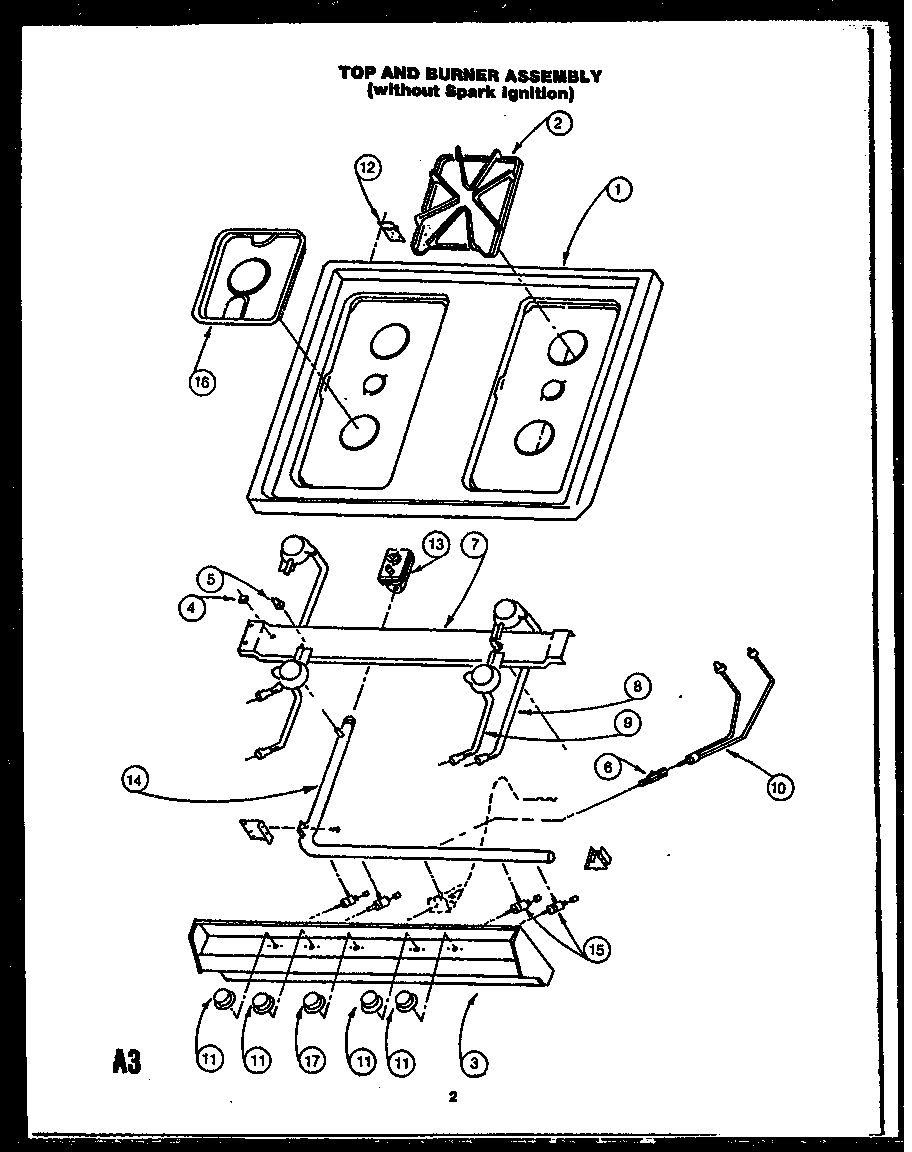

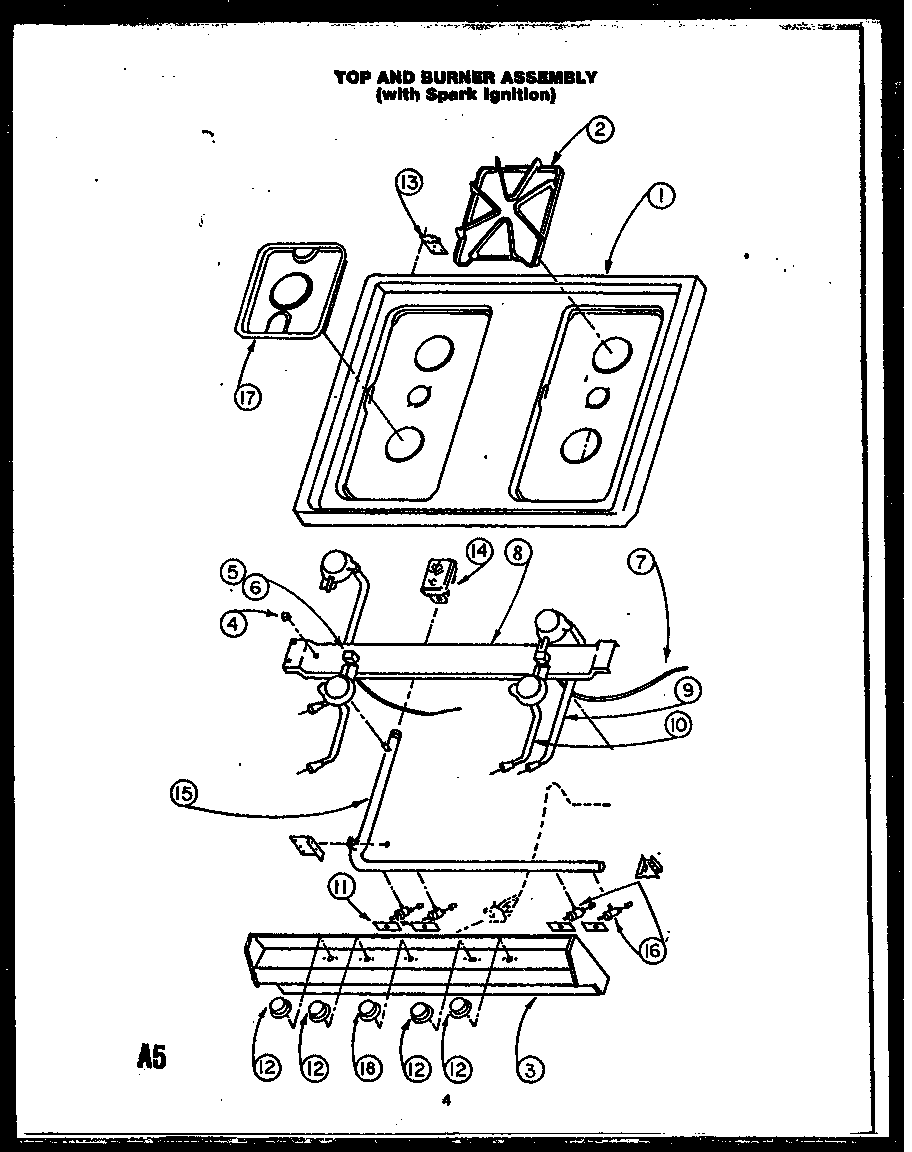

Burner Assembly 87028
Burner assembly

Part #87028

The manufacturer no longer makes this part, and there's no substitute part

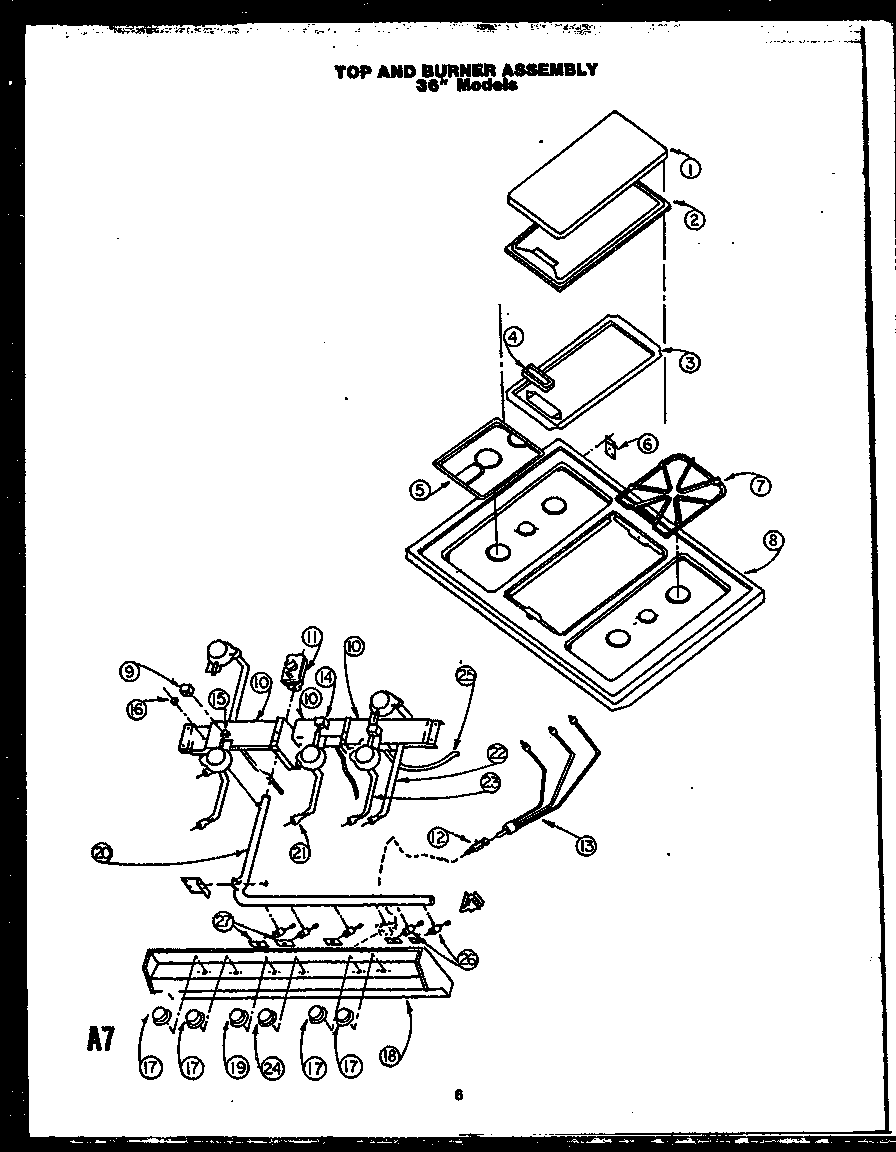

Main Top Avocado 86960A
Main top avocado

Part #86960A

The manufacturer no longer makes this part, and there's no substitute part

Top Pilot Harness 88793
Top pilot harness

Part #88793

The manufacturer no longer makes this part, and there's no substitute part

Main Top Almond 86961L
Main top almond

Part #86961L

The manufacturer no longer makes this part, and there's no substitute part

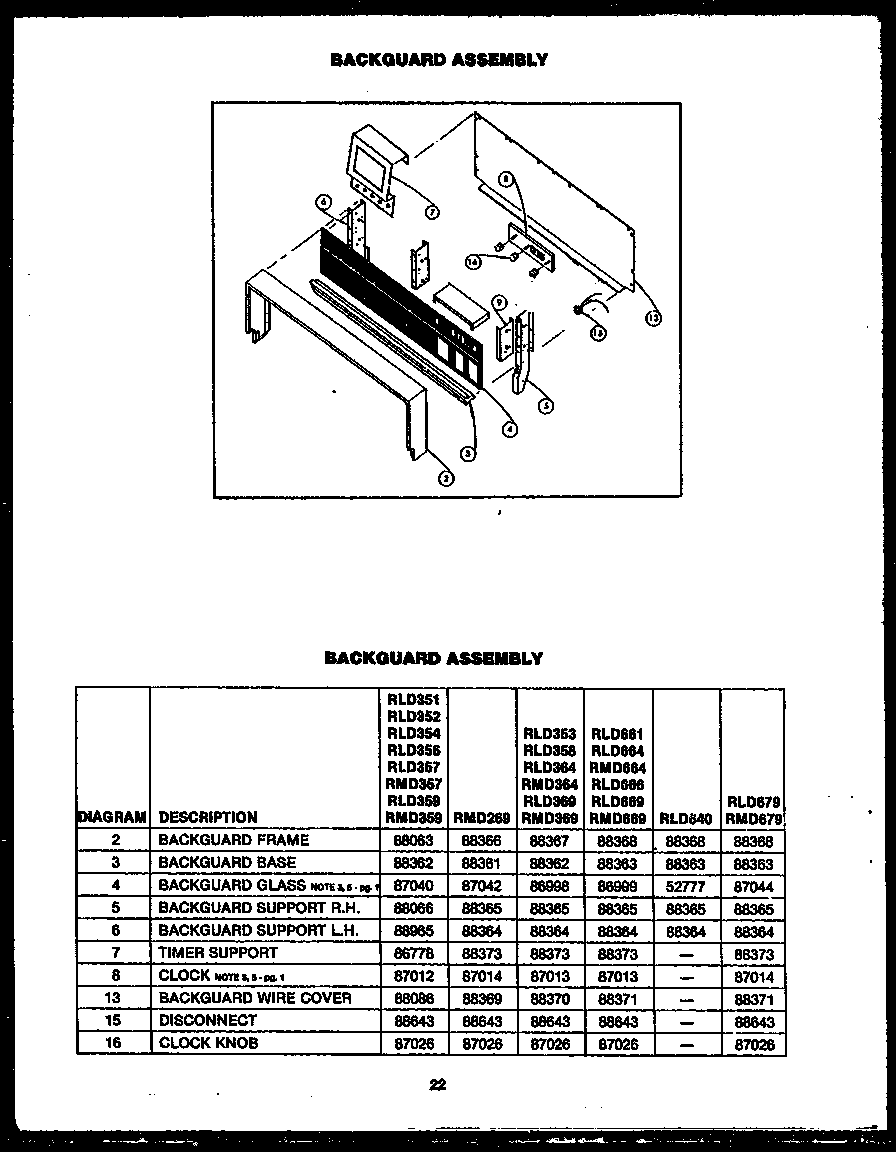

Backguard Glass (on Rld/rmd379 - Models Starting With Se 86997
#4E

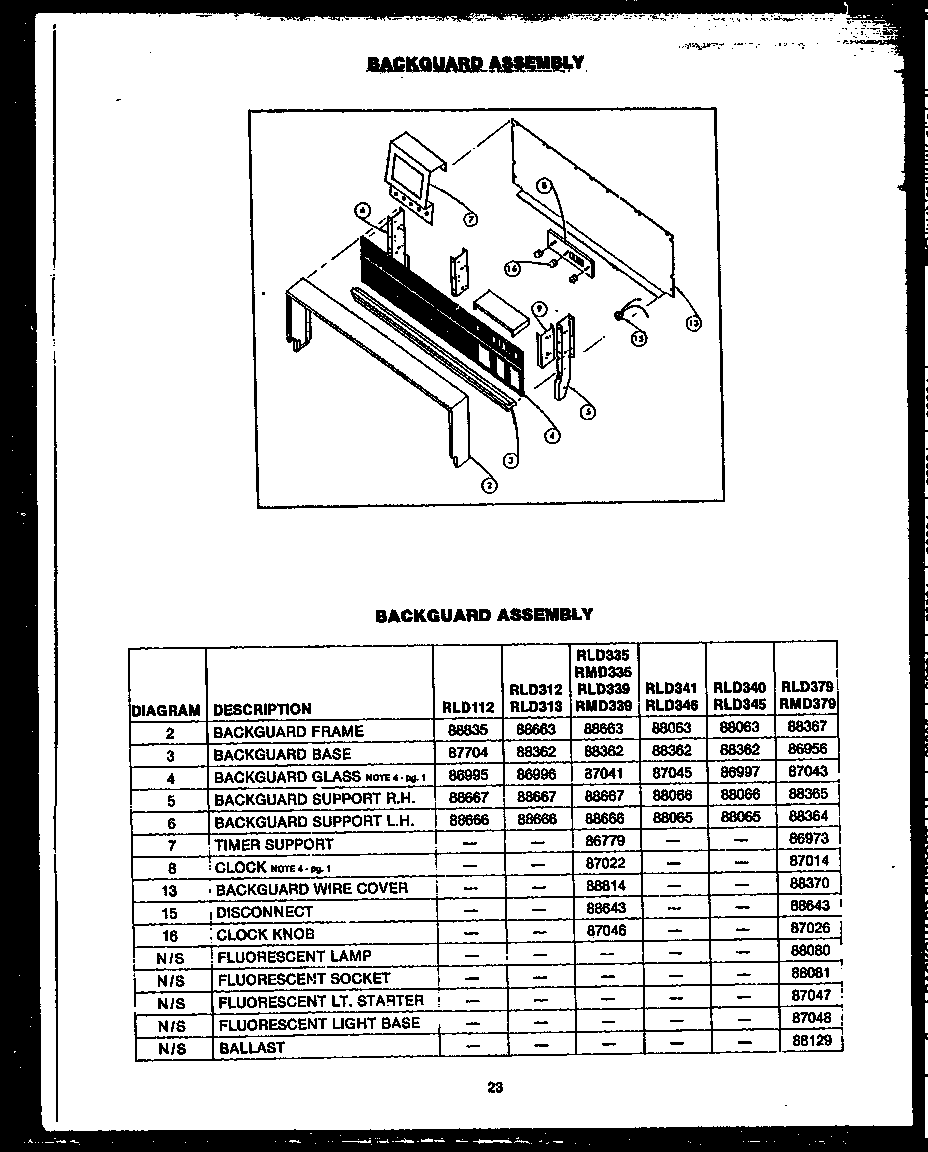

Backguard assembly (rld112) (rld312) (rld340) (rld341) (rld335) (rmd335) (rld313) (rld345) (rld346) diagram

Backguard glass (on rld/rmd379 - models starting with se

Part #86997

The manufacturer no longer makes this part, and there's no substitute part

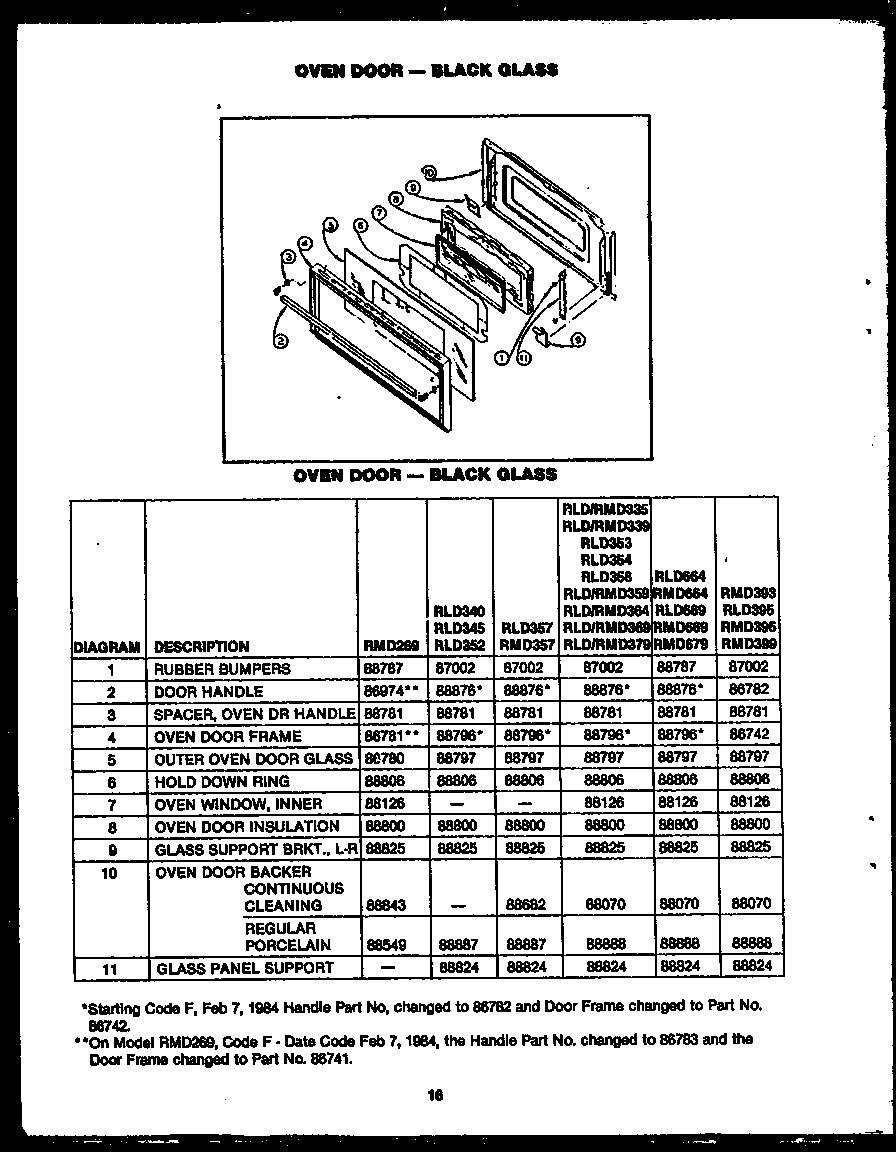

Rubber Bumpers 87002
Rubber bumpers

Part #87002

The manufacturer no longer makes this part, and there's no substitute part

Rear Support 88658
Rear support

Part #88658

The manufacturer no longer makes this part, and there's no substitute part

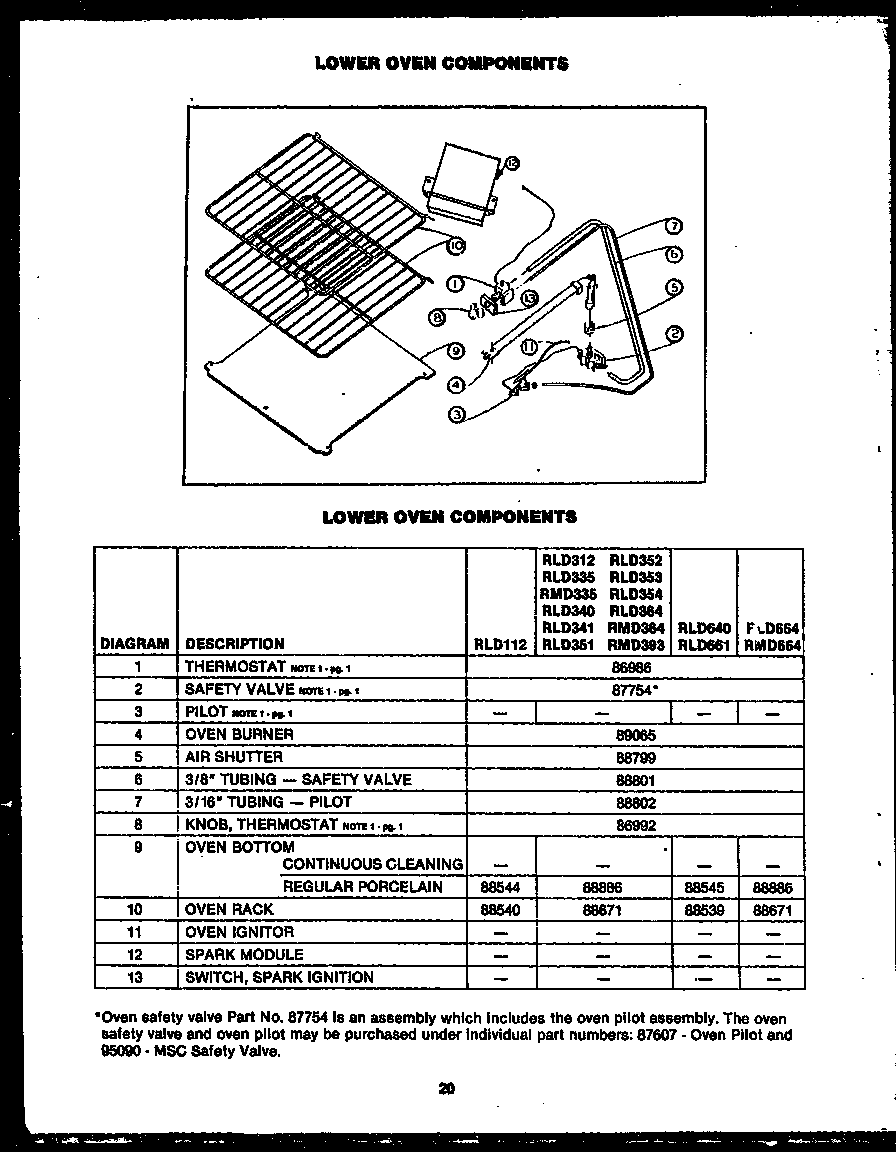

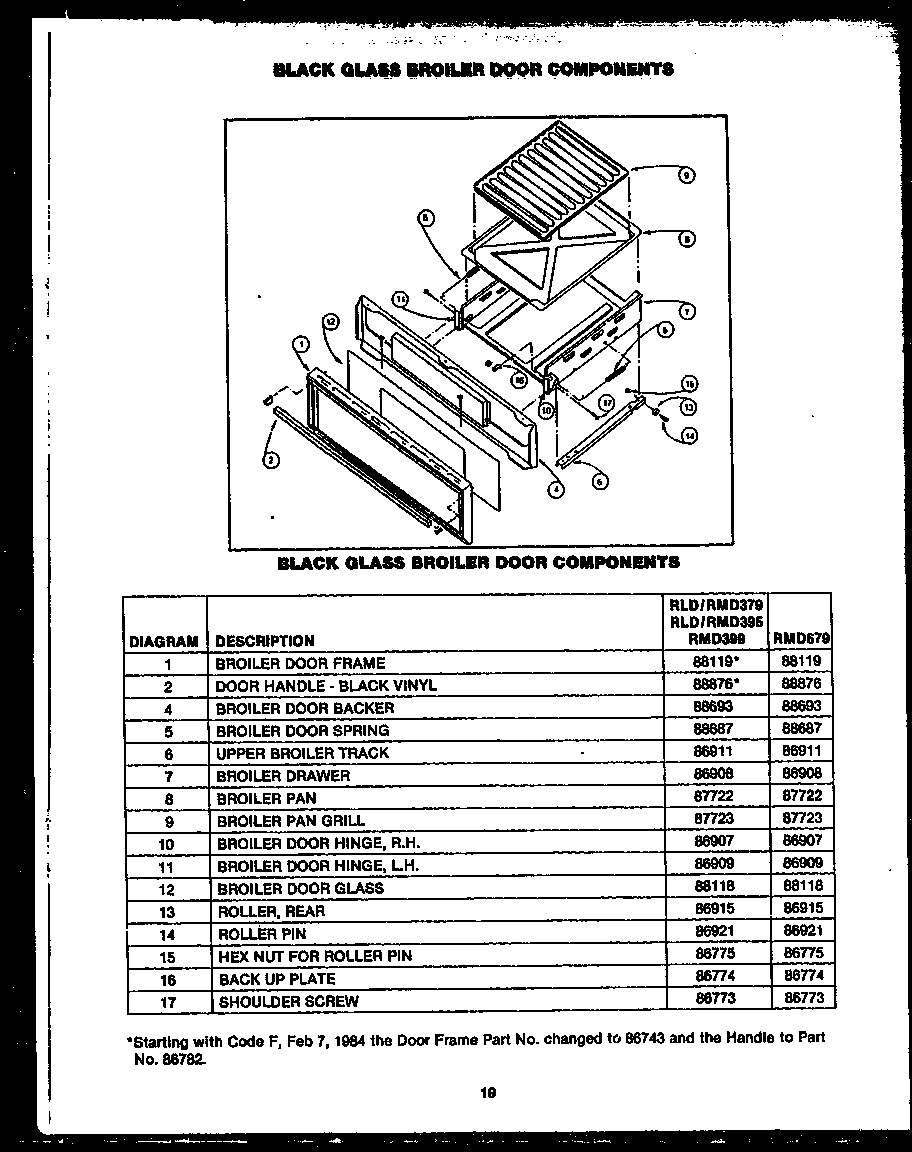

Broiler Door Backer (liner) (at Rating Plate Code "ar" A 88559
#4B

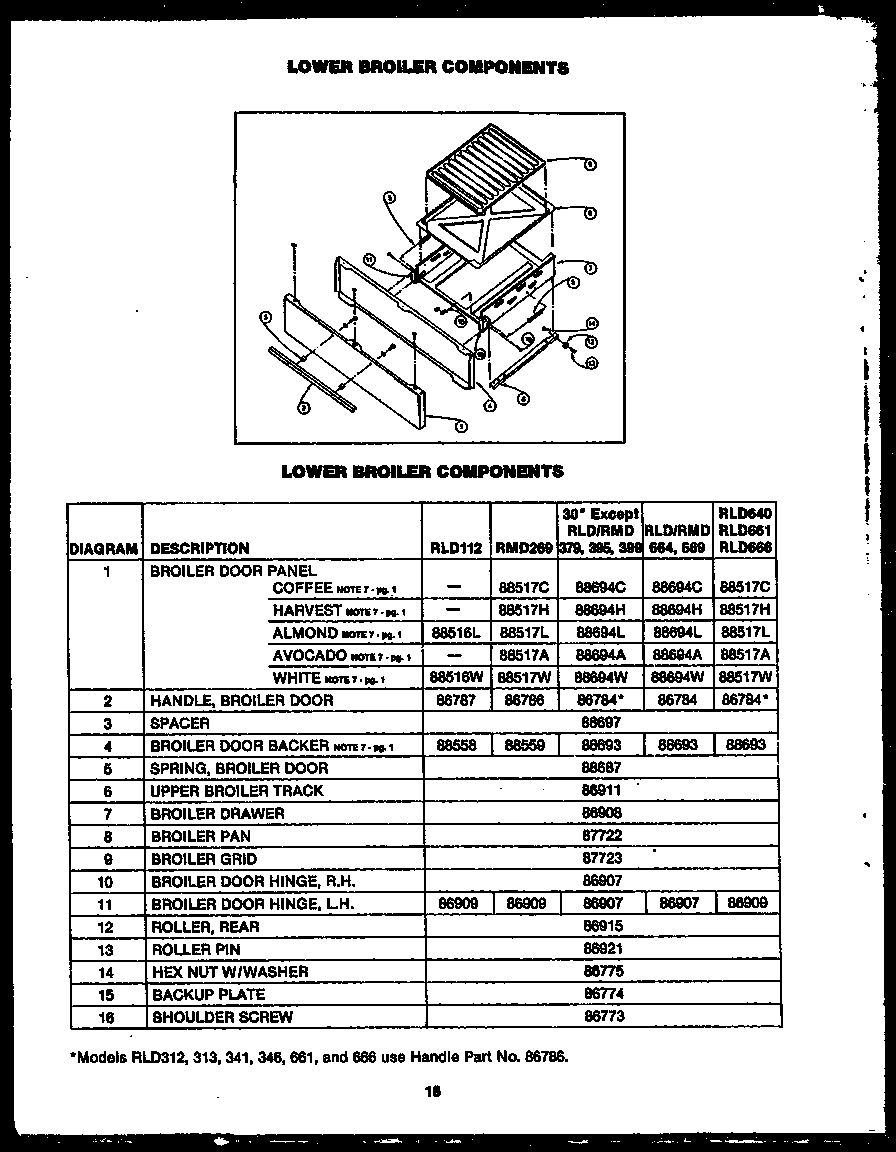

Lower broiler components n201e09@lower oven components (rld112) (rld395) (rmd395) (rmd399) (rmd269) diagram

Broiler door backer (liner) (at rating plate code "ar" a

Part #88559

The manufacturer no longer makes this part, and there's no substitute part

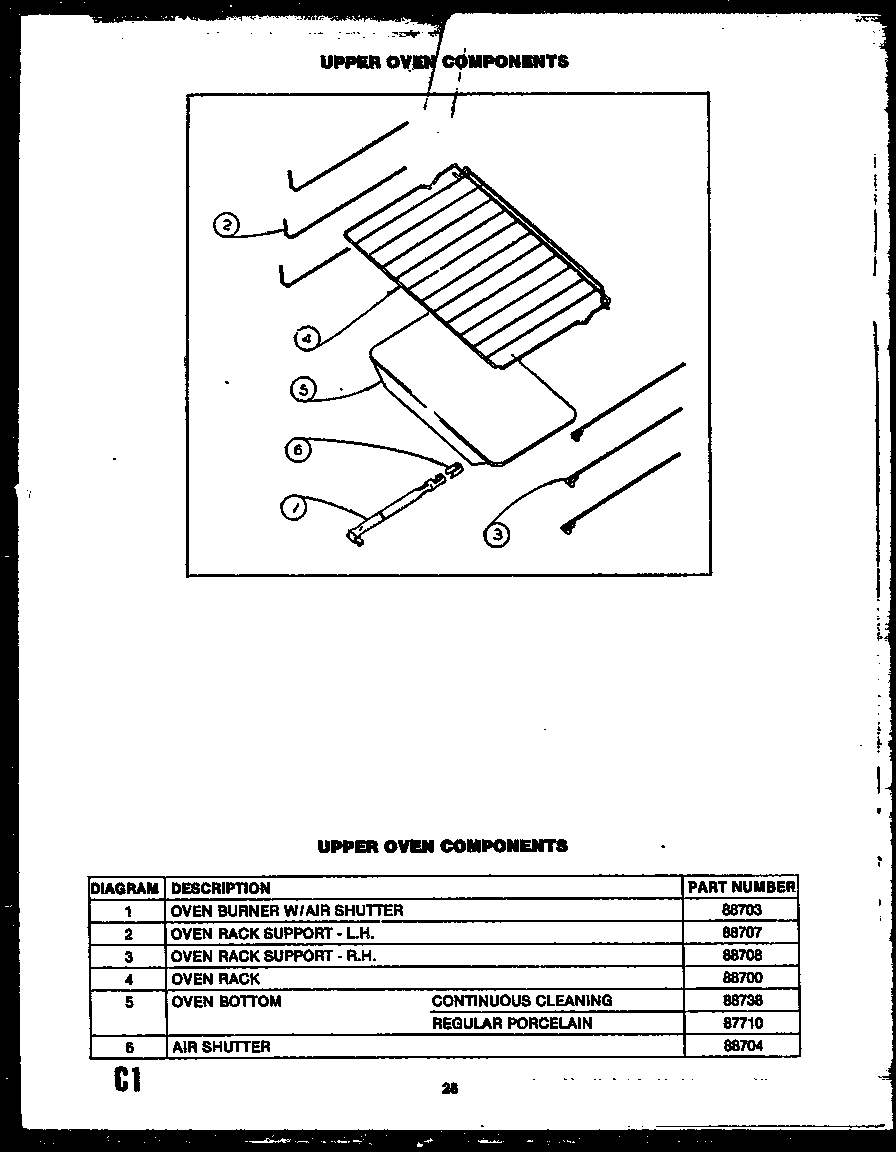

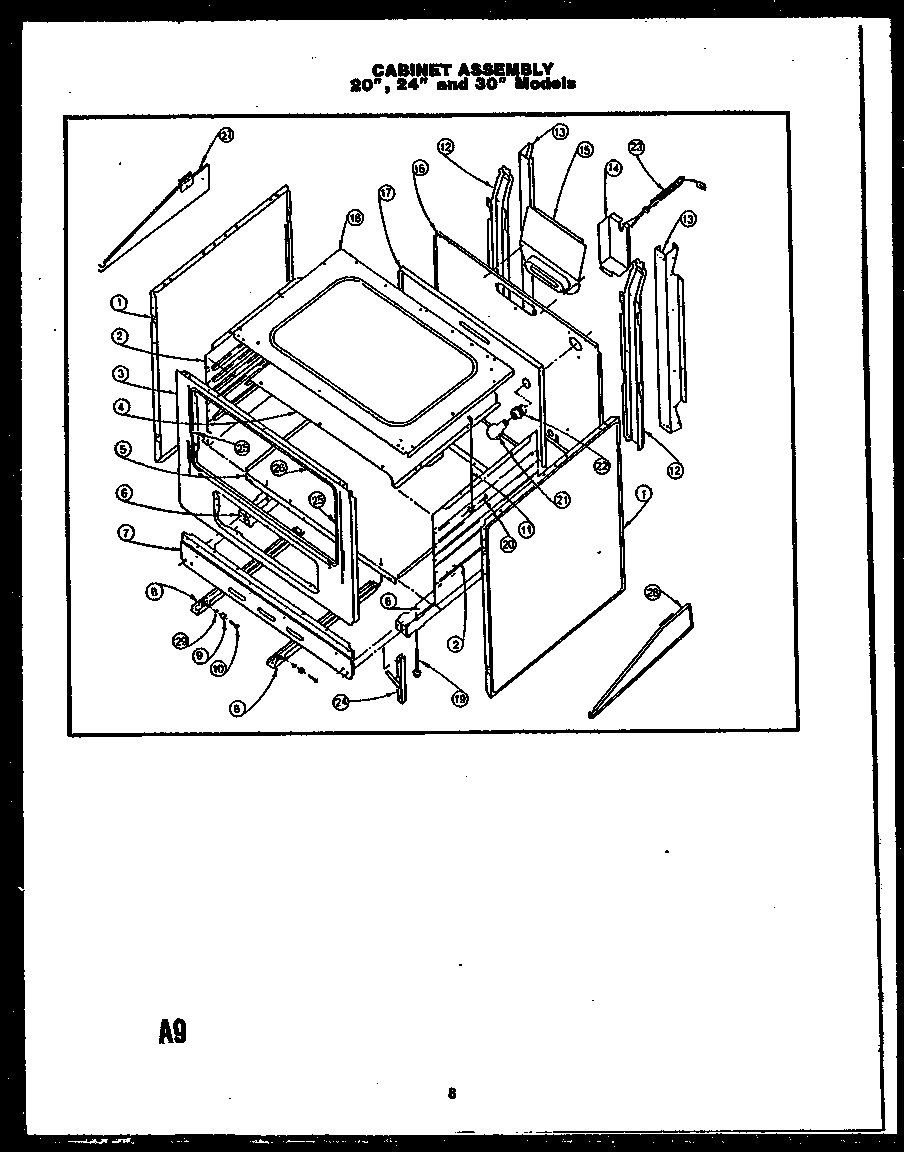

Top Panel (white) 88733W
#1E

Upper oven cabinet parts (rmd393) (rld395) (rmd395) (rmd399) diagram

Top panel (white)

Part #88733W

The manufacturer no longer makes this part, and there's no substitute part

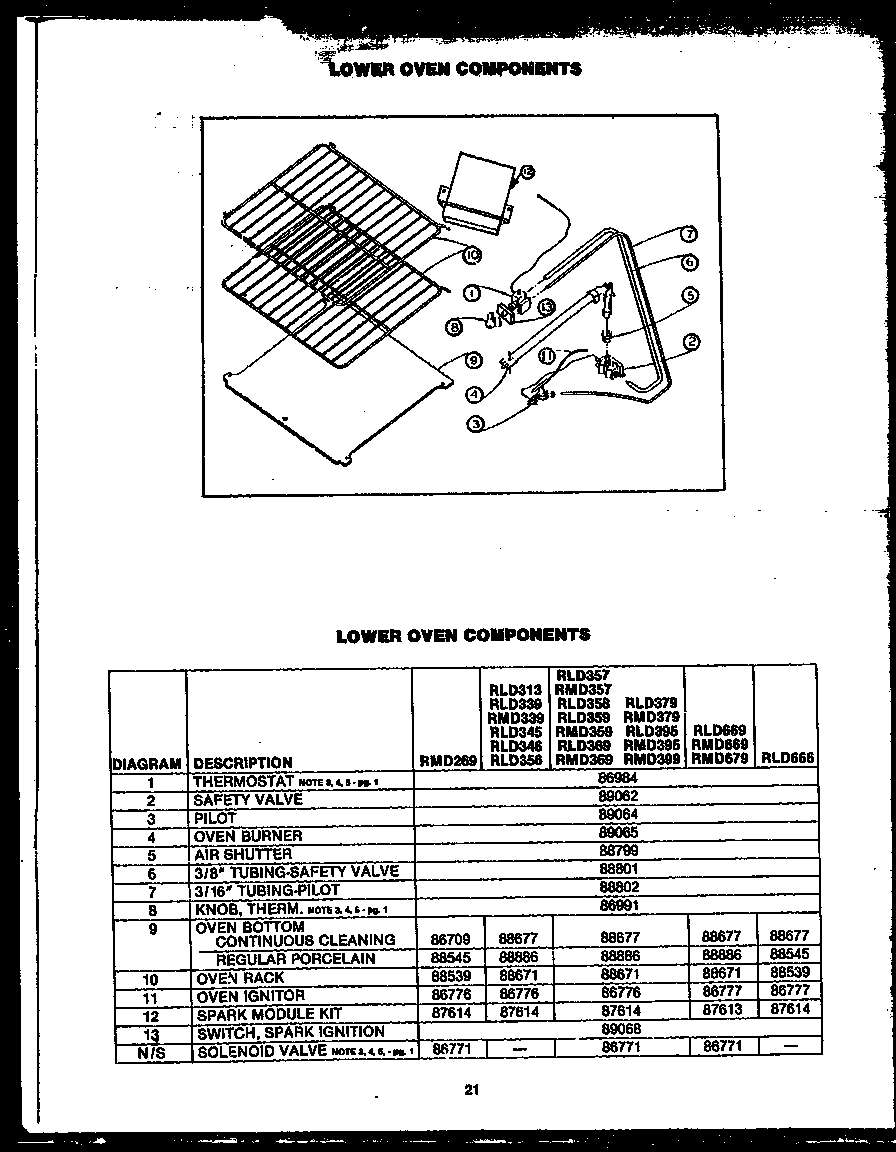

Solenoid Valve (on Rld/rmd269, Models Starting With Seri 86771

#NI

All parts diagram

Solenoid valve (on rld/rmd269, models starting with seri

Part #86771

The manufacturer no longer makes this part, and there's no substitute part
