Built-In Microwave

Model # IMBS104GSS02 Official Ikea built-in microwave

Here are the diagrams and repair parts for Official Ikea IMBS104GSS02 built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

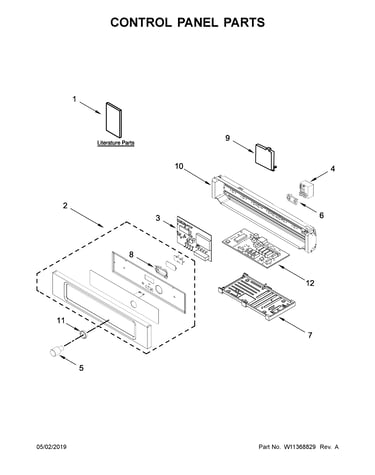

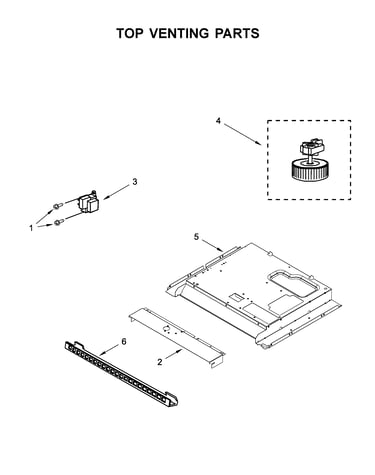

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Switch 461967848881
#6

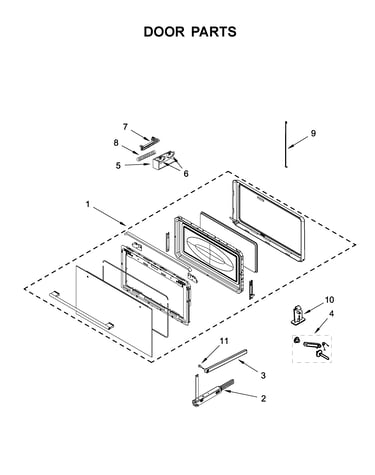

Door parts diagram

Switch

Part #461967848881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
BEST SELLER
$30.85 |
16% OFF Phone Price : $36.85
In Stock
Inverter W11237240
#17

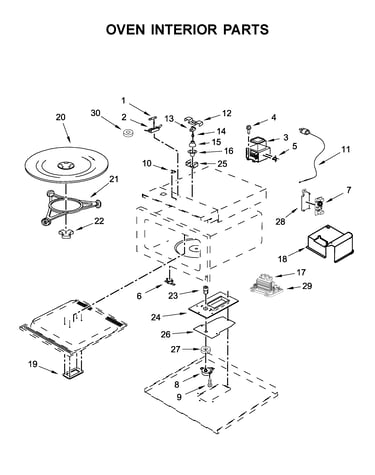

Oven interior parts diagram

Inverter

Part #W11237240

Replaced by #W11325604

?
Manufacturer substitution
This part replaces W11237240. Substitute parts can look different from the original.
BEST SELLER
$151.29 |
7% OFF Phone Price : $163.29
In Stock
Microwave Turntable Motor 461967848971
#8

Oven interior parts diagram

Microwave turntable motor

Part #461967848971

Replaced by #W10911403

?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
BEST SELLER
$69.43 |
8% OFF Phone Price : $75.43
In Stock
Lamp G4 Halo W10795595
#14

Oven interior parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Fuse Mda 20a 241908600053
#1

Oven interior parts diagram

Fuse mda 20a

Part #241908600053

Replaced by #W11188752

?
Manufacturer substitution
This part replaces 241908600053. Substitute parts can look different from the original.
This item is not returnable
$10.29 |
16% OFF Phone Price : $12.29
In Stock
Microwave Magnetron Thermostat 4375079
#5

Oven interior parts diagram

Microwave magnetron thermostat

Part #4375079

Replaced by #WP4375079

?
Manufacturer substitution
This part replaces 4375079. Substitute parts can look different from the original.
$35.31 |
15% OFF Phone Price : $41.31
In Stock
Push Rod Obi 461967750464
#7

Door parts diagram

Push rod obi

Part #461967750464

Replaced by #WPW10120235

?
Manufacturer substitution
This part replaces 461967750464. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Sliding Arm 461967750483
#3

Door parts diagram

Sliding arm

Part #461967750483

Replaced by #W11214480

?
Manufacturer substitution
This part replaces 461967750483. Substitute parts can look different from the original.
$43.33 |
12% OFF Phone Price : $49.33
In Stock
Mw Inlet Cov 461967749842
#19

Oven interior parts diagram

Mw inlet cov

Part #461967749842

Replaced by #W11087199

?
Manufacturer substitution
This part replaces 461967749842. Substitute parts can look different from the original.
This item is not returnable
$12.63 |
14% OFF Phone Price : $14.63
In Stock
O Turntable 461967721091
#20

Oven interior parts diagram

O turntable

Part #461967721091

Replaced by #W10818723

?
Manufacturer substitution
This part replaces 461967721091. Substitute parts can look different from the original.
$105.60 |
10% OFF Phone Price : $117.60
In Stock
