Model # 165155451 Official Craftsman airless paint system

Here are the diagrams and repair parts for Official Craftsman 165155451 airless paint system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Power Paint Roller Tubing End Cap 0155439
#2

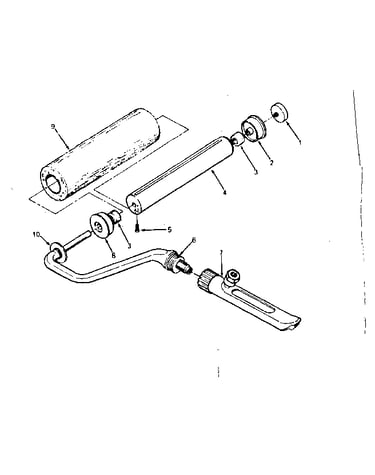

Craftsman airless roller assembly diagram

Power paint roller tubing end cap

Part #0155439

The manufacturer no longer makes this part, and there's no substitute part

Power Paint Roller Tubing End Cap Seal 0155438
#3

Craftsman airless roller assembly diagram

Power paint roller tubing end cap seal

Part #0155438

The manufacturer no longer makes this part, and there's no substitute part

Paint Sprayer Screw, 8 X 1/2-in 9802215
#5

Craftsman airless roller assembly diagram

Paint sprayer screw, 8 x 1/2-in

Part #9802215

The manufacturer no longer makes this part, and there's no substitute part

End Cap 0155436
#8

Craftsman airless roller assembly diagram

End cap

Part #0155436

The manufacturer no longer makes this part, and there's no substitute part

Filter Pack 30-16207
#21

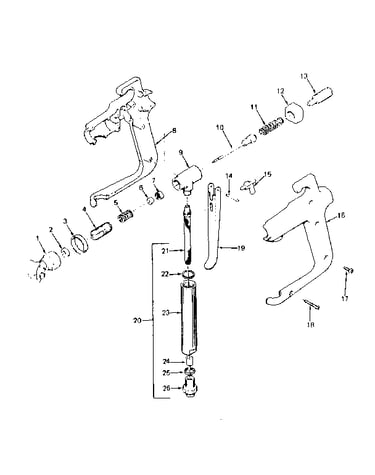

Filter accessory complete assembly diagram

Filter pack

Part #30-16207

The manufacturer no longer makes this part, and there's no substitute part

Fitng Outlet 0138315
#30

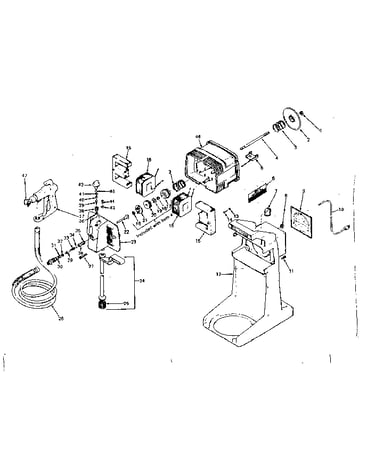

Sears airless paint system diagram

Fitng outlet

Part #0138315

The manufacturer no longer makes this part, and there's no substitute part

Diffuser 0089697
#4

Filter accessory complete assembly diagram

Diffuser

Part #0089697

The manufacturer no longer makes this part, and there's no substitute part

Cord 0089726
#8

Sears airless paint system diagram

Cord

Part #0089726

The manufacturer no longer makes this part, and there's no substitute part

High Pressure Airless Hose 3/16" X 25 Feet 30-16230
#26

Sears airless paint system diagram

High pressure airless hose 3/16" x 25 feet

Part #30-16230

The manufacturer no longer makes this part, and there's no substitute part

Suction Tube 0138209
#24

Sears airless paint system diagram

Suction tube

Part #0138209

The manufacturer no longer makes this part, and there's no substitute part
