Whirlpool
Bottom-Mount Refrigerator

Model # GX5FHDXVQ07 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool GX5FHDXVQ07 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

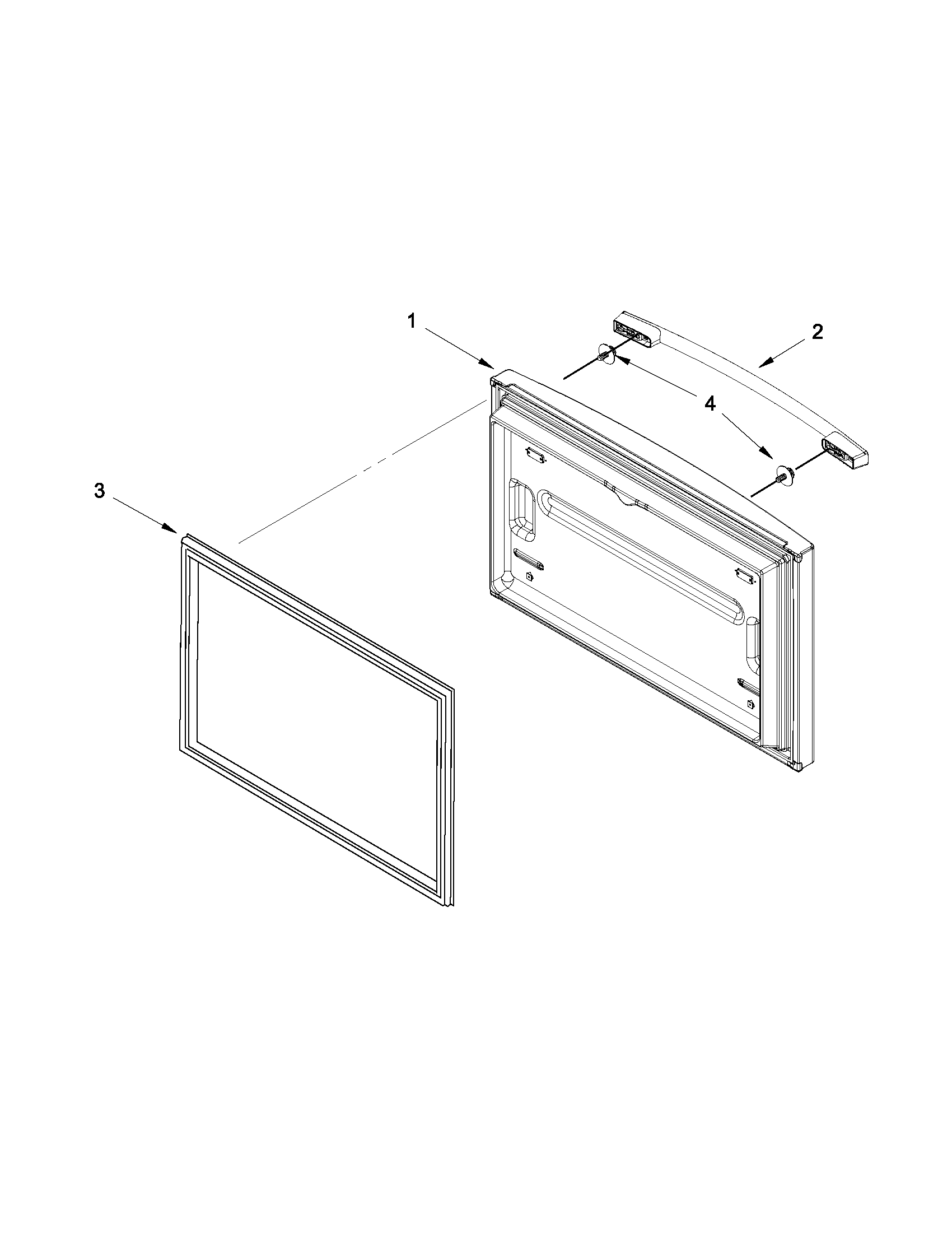

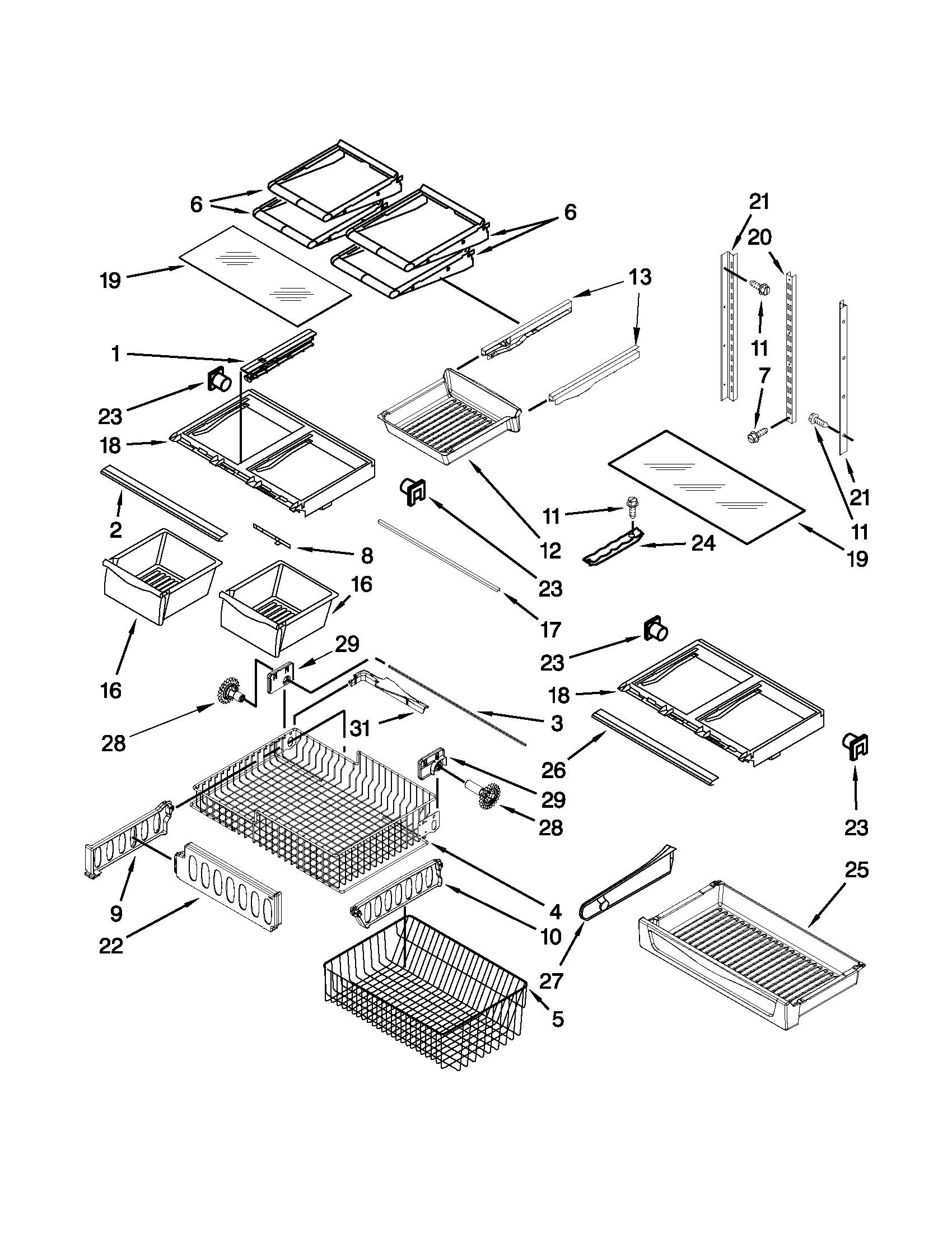

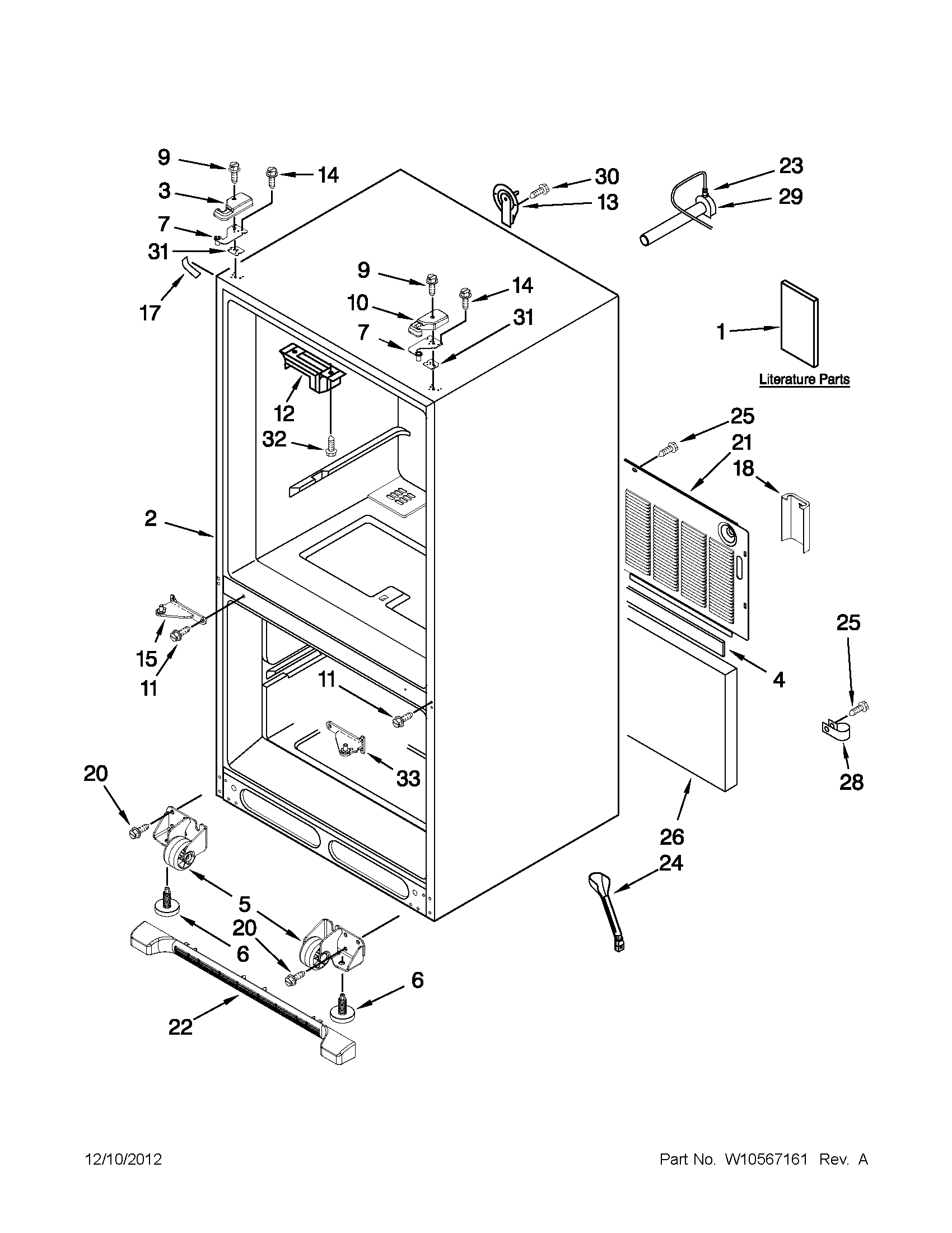

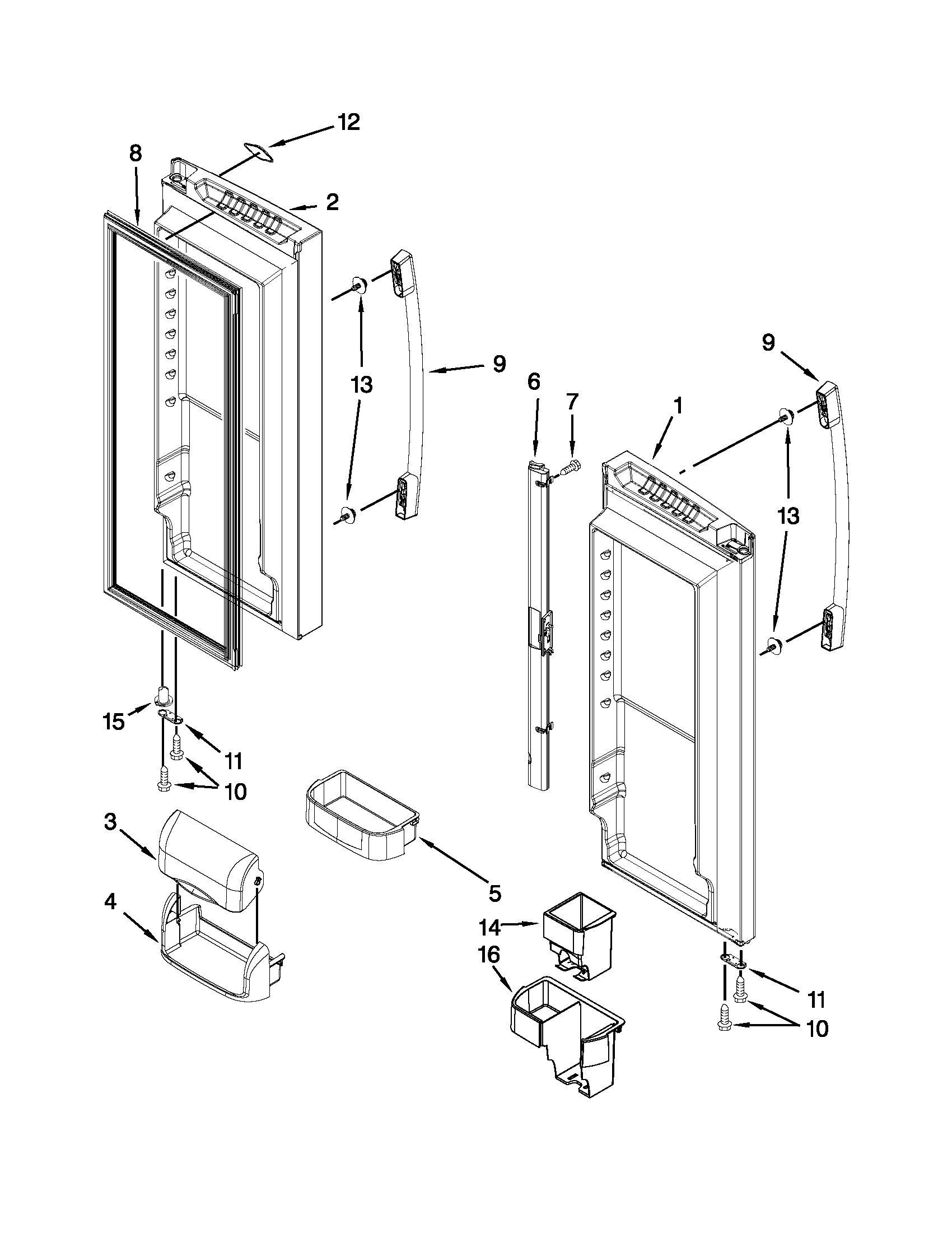

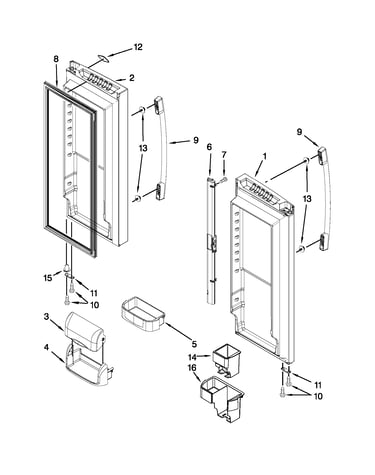

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 217 parts  |
Drier Tube W10177049
#27

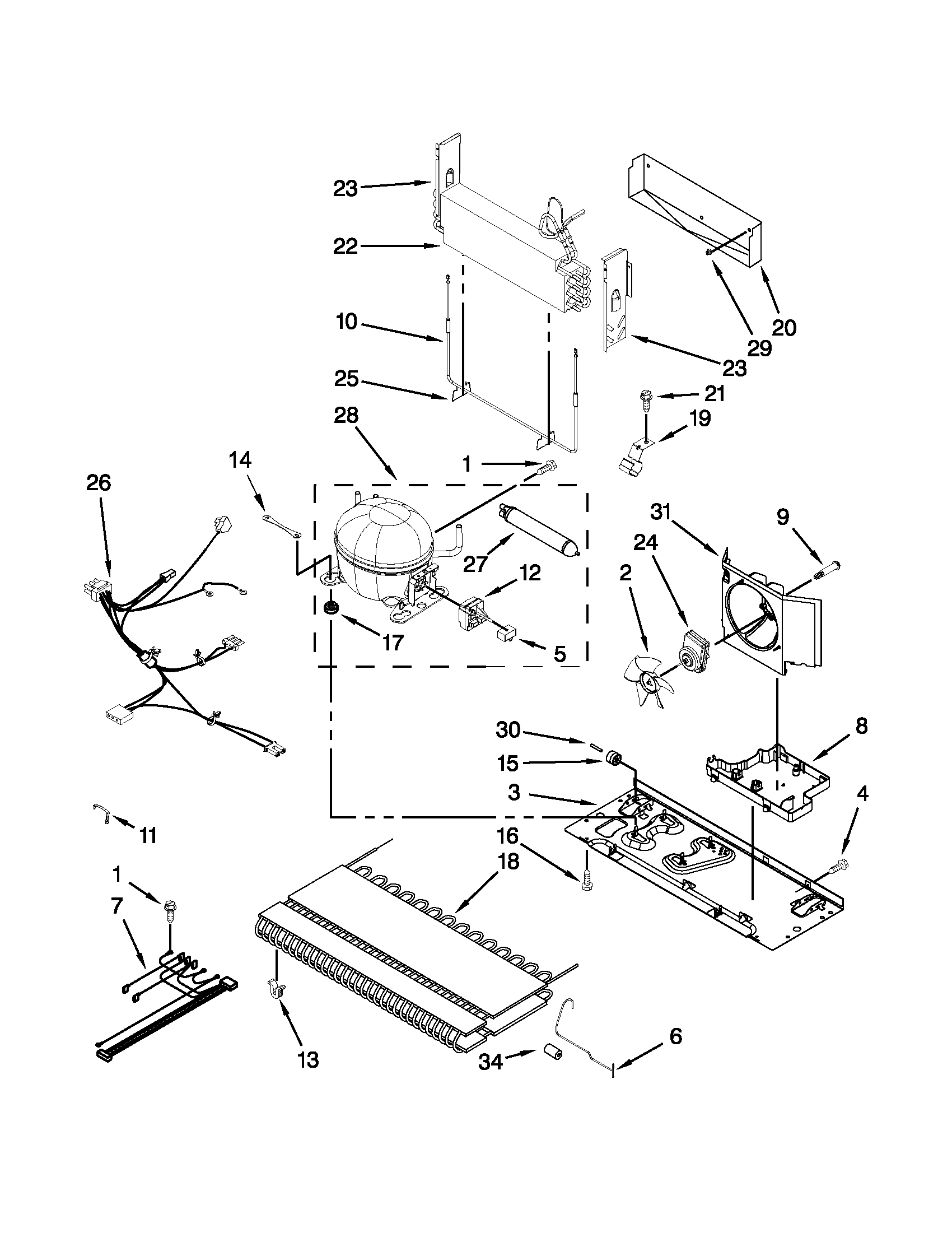

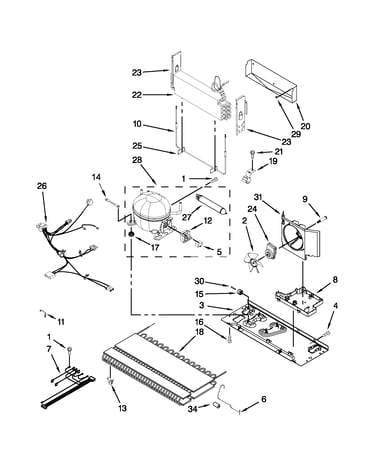

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker Assembly W10469286
#100

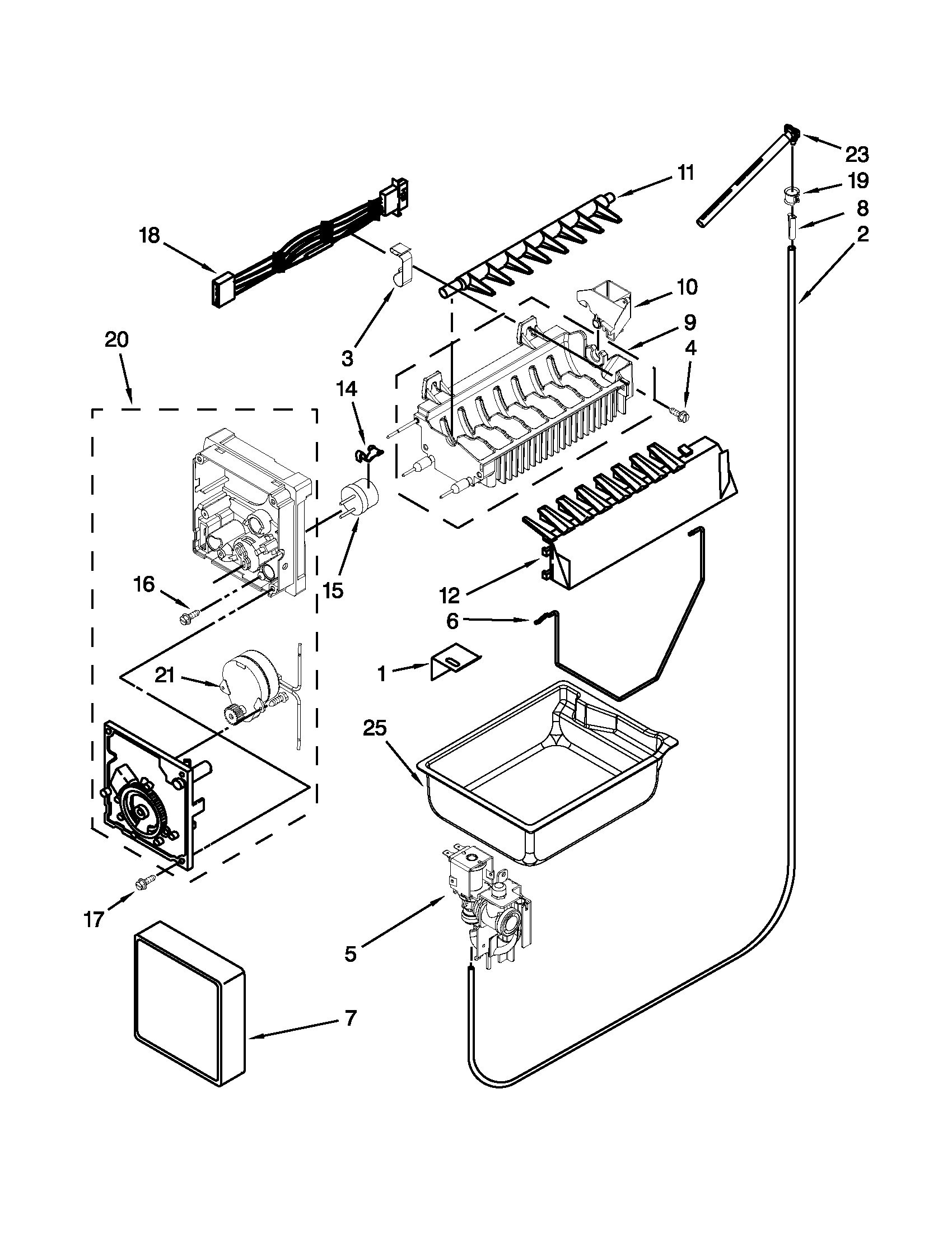

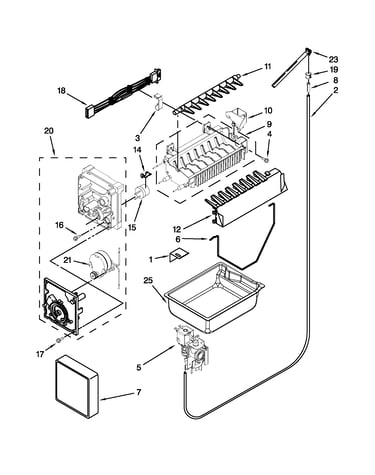

Icemaker parts diagram

Refrigerator ice maker assembly

Part #W10469286

Replaced by #W10884390

?
Manufacturer substitution
This part replaces W10469286. Substitute parts can look different from the original.
BEST SELLER
$92.98 |
6% OFF Phone Price : $98.98
In Stock
Refrigerator Light Bulb W10311505N
#9

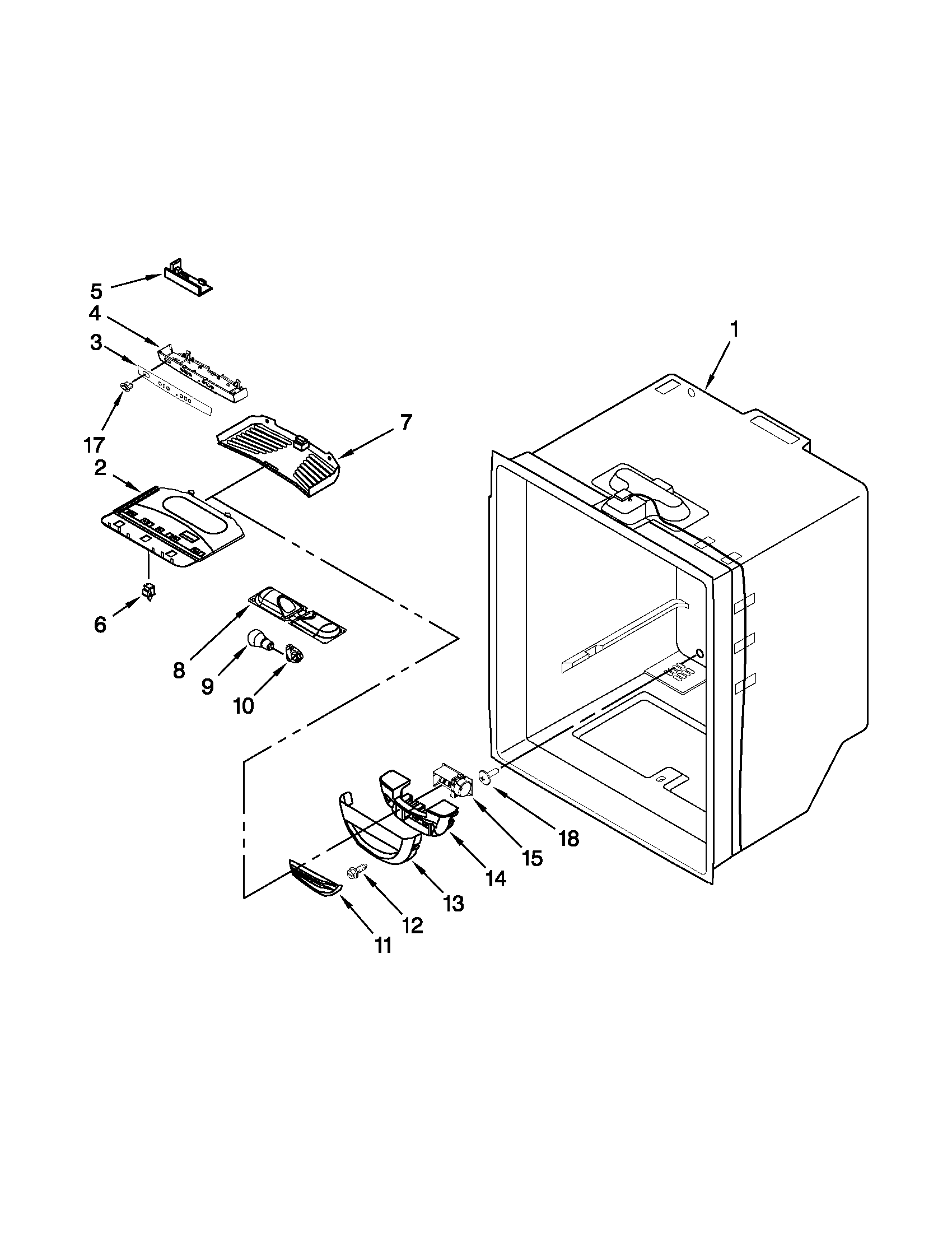

Refrigerator liner parts diagram

Refrigerator light bulb

Part #W10311505N

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10311505N. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Bulb W10311505
#9

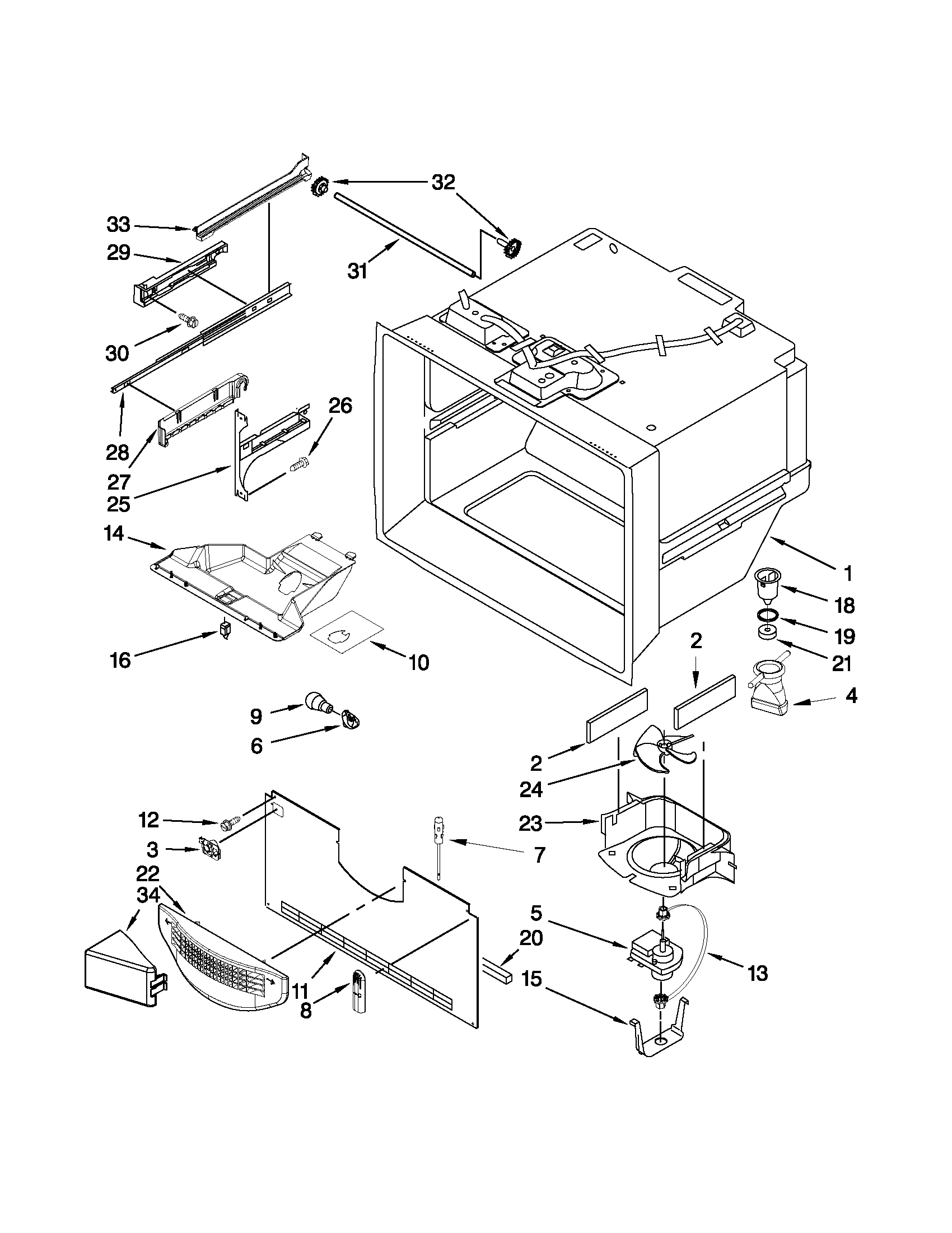

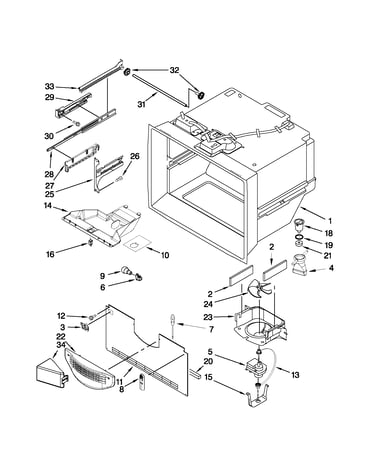

Freezer liner parts diagram

Refrigerator light bulb

Part #W10311505

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10311505. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Thermistor 12791409SP
#7

Freezer liner parts diagram

Refrigerator thermistor

Part #12791409SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791409SP. Substitute parts can look different from the original.
BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Refrigerator Electronic Control Board W10503278
#5

Refrigerator liner parts diagram

Refrigerator electronic control board

Part #W10503278

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces W10503278. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Refrigerator Switch C3680310V
#6

Refrigerator liner parts diagram

Refrigerator switch

Part #C3680310V

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Compressor W10445422
#28

Unit parts diagram

Refrigerator compressor

Part #W10445422

Replaced by #W10507884

?
Manufacturer substitution
This part replaces W10445422. Substitute parts can look different from the original.
BEST SELLER
$353.01 |
$12.00 OFF Phone Price : $365.01
In Stock
Refrigerator Damper Control Assembly W10196393
#15

Refrigerator liner parts diagram

Refrigerator damper control assembly

Part #W10196393

Replaced by #WPW10196393

?
Manufacturer substitution
This part replaces W10196393. Substitute parts can look different from the original.
BEST SELLER
$73.83 |
8% OFF Phone Price : $79.83
In Stock
Light Swit 12466105
#16

Freezer liner parts diagram

Light swit

Part #12466105

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466105. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
