Model # ARTC8600E/P1142675NE Official Amana electric range
Here are the diagrams and repair parts for Official Amana ARTC8600E/P1142675NE electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

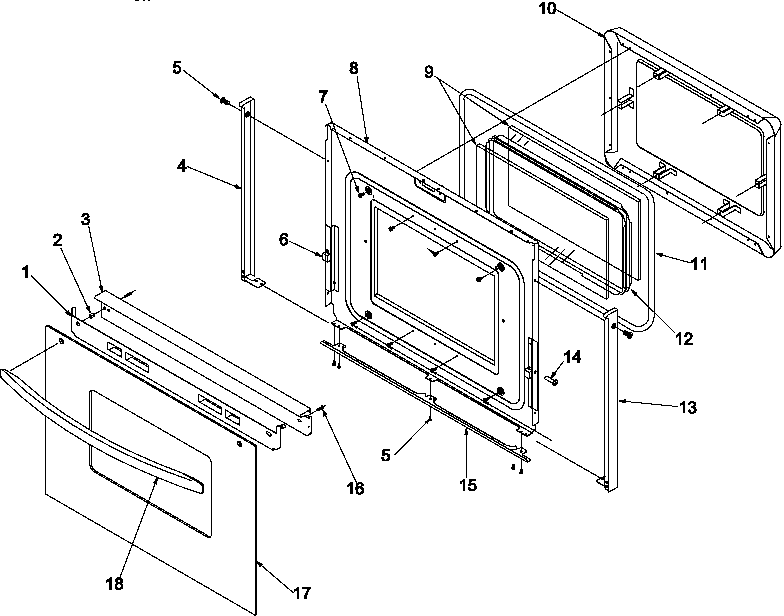

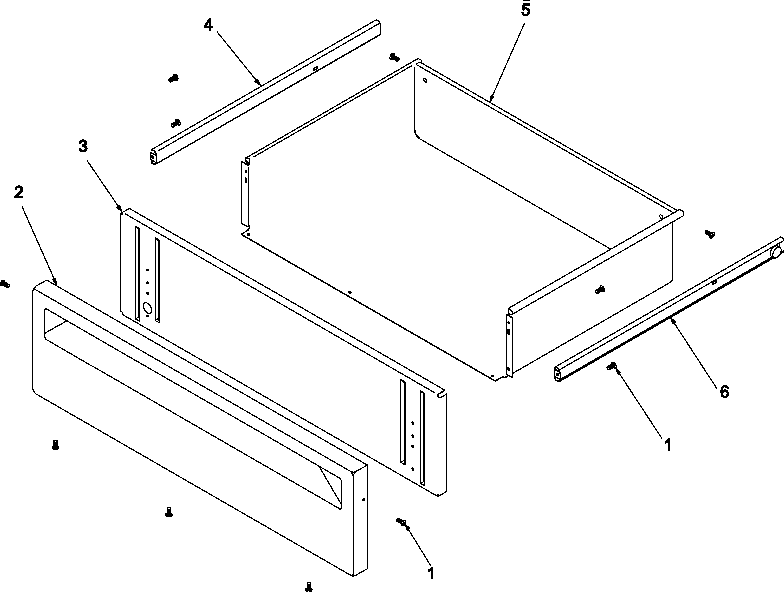

SELECT DIAGRAM
Browse Parts forARTC8600E/P1142675NE Ranges
- #18

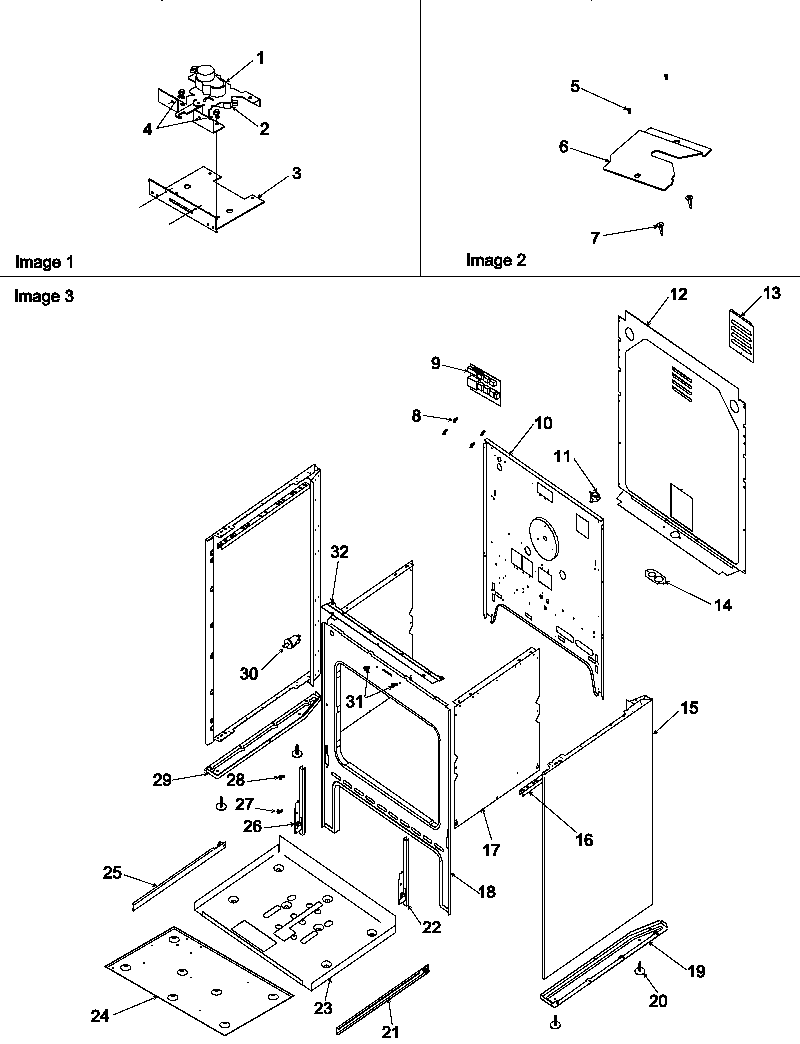

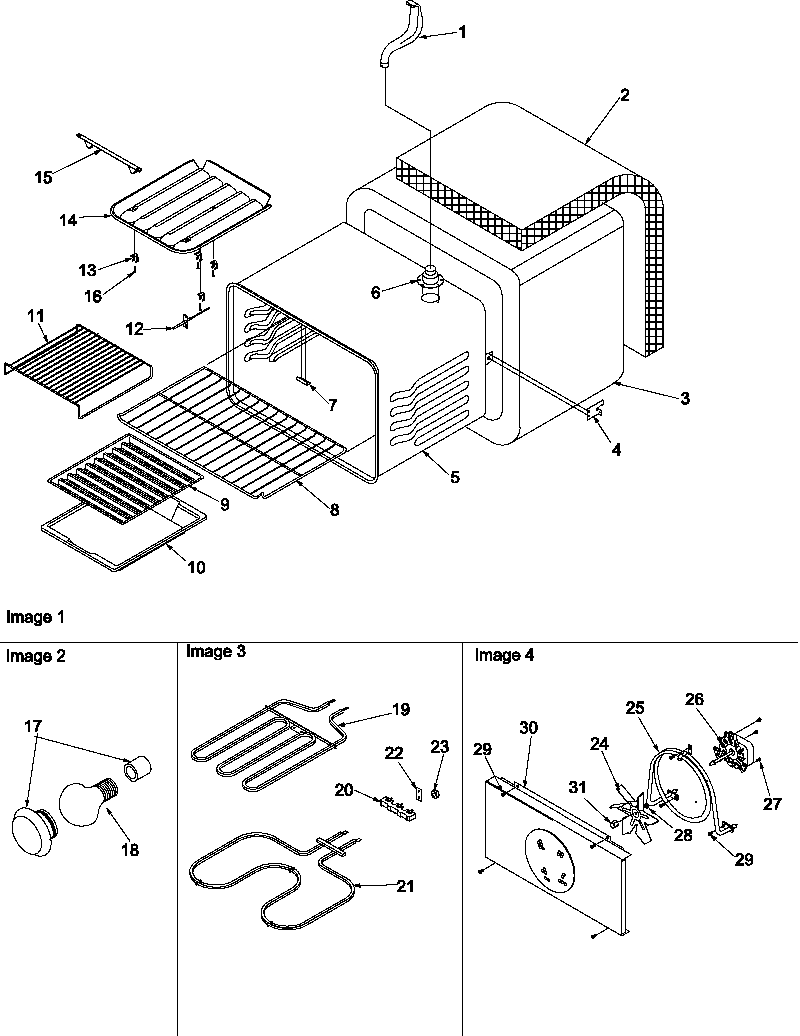

Cavity diagram
LampPart #0042175
Replaced by #40A15
?Manufacturer substitutionThis part replaces 0042175. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #22
Cavity diagram
Cover,backgdPart #0306379
Replaced by #WPW10245259
?Manufacturer substitutionThis part replaces 0306379. Substitute parts can look different from the original.$24.63 |24% OFF Was : $32.40In Stock - #21
Cavity diagram
Element-blkPart #0059552
The manufacturer no longer makes this part, and there's no substitute part
- #20
Cavity diagram
Terminal blockPart #0306378
Replaced by #WP8203546
?Manufacturer substitutionThis part replaces 0306378. Substitute parts can look different from the original.This item is not returnable$17.40 |10% OFF Phone Price : $19.40In Stock - #4

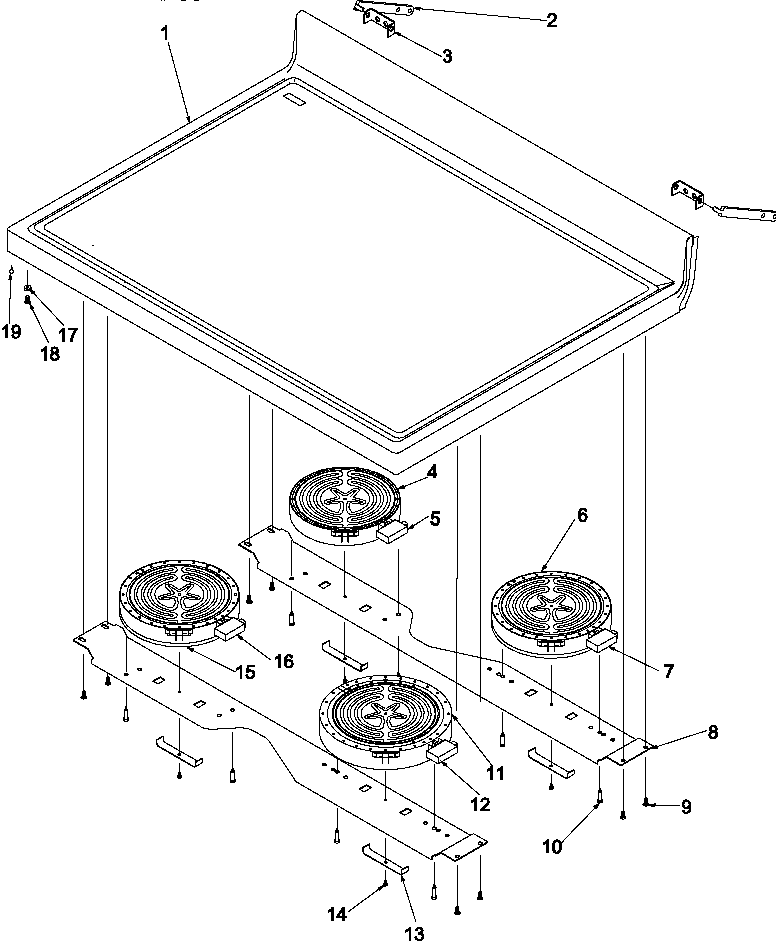

Main top diagram
ElementPart #0314912
Replaced by #W10823710
?Manufacturer substitutionThis part replaces 0314912. Substitute parts can look different from the original.$151.00 |7% OFF Phone Price : $163.00In Stock - #12
Cavity diagram
Oven sensorPart #0314907
The manufacturer no longer makes this part, and there's no substitute part
- #15

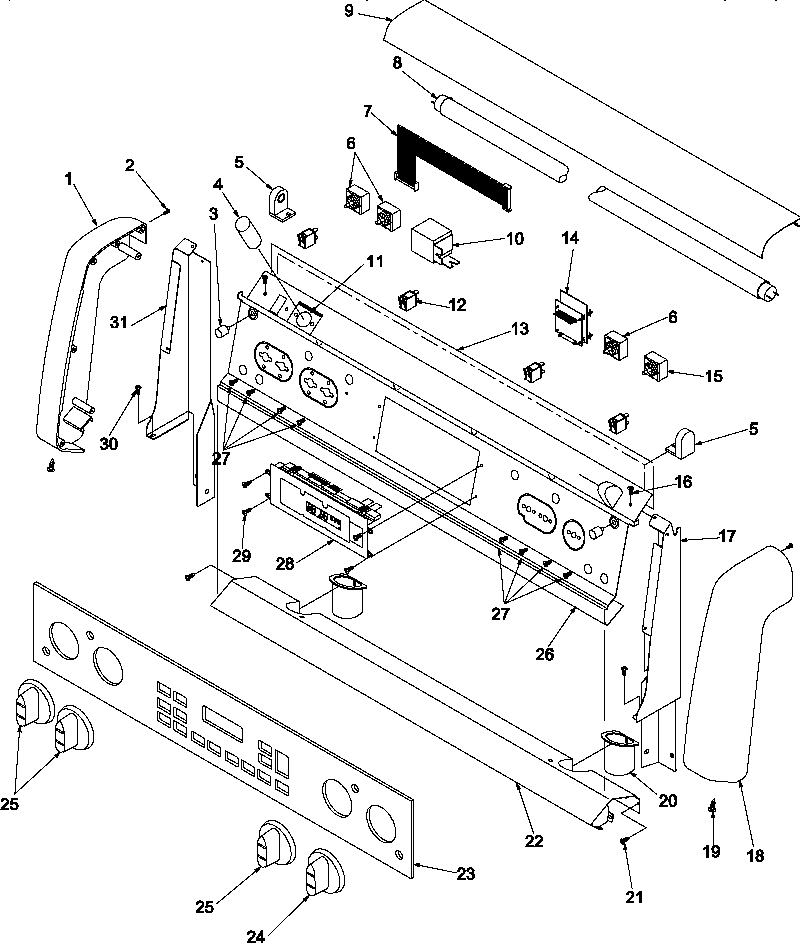

Backguard diagram
Infinite switchPart #0315855
$65.56In Stock - #9
Cavity diagram
"grid, broile"Part #304451CG
Replaced by #4396923
?Manufacturer substitutionThis part replaces 304451CG. Substitute parts can look different from the original.$31.03 |16% OFF Phone Price : $37.03In Stock - Screw
Part #0309016
Replaced by #WP693995
?Manufacturer substitutionThis part replaces 0309016. Substitute parts can look different from the original.$38.45In Stock - Screw
Part #0059445
Replaced by #W11245710
?Manufacturer substitutionThis part replaces 0059445. Substitute parts can look different from the original.This item is not returnable$16.43 |11% OFF Phone Price : $18.43In Stock
