Craftsman
Front-Engine Lawn Tractor

Model # 502256080 Official Craftsman 36" 10-hp riding lawn mower with electric start

Here are the diagrams and repair parts for Official Craftsman 502256080 36" 10-hp riding lawn mower with electric start, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

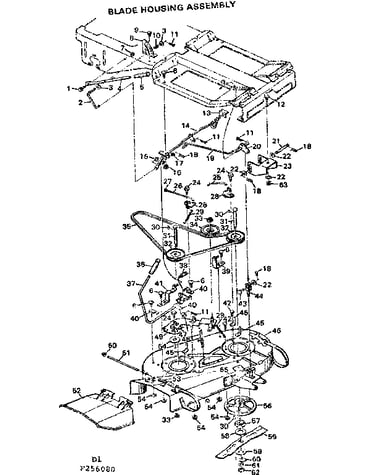

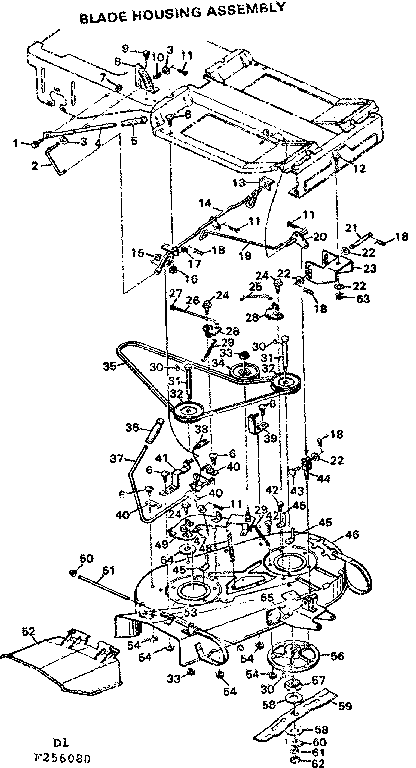

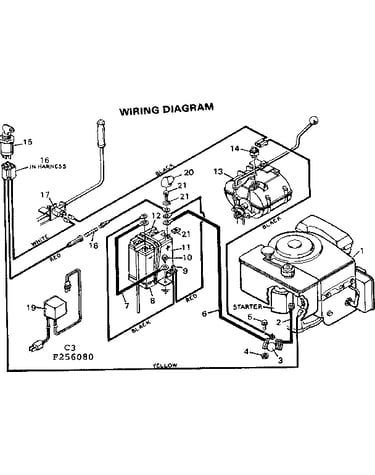

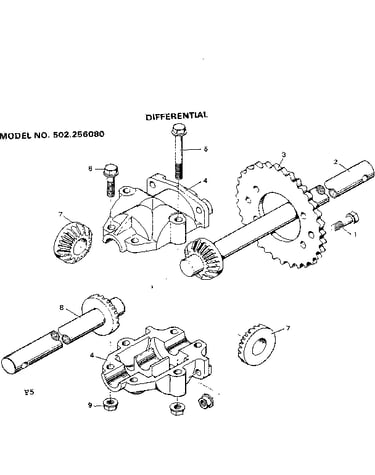

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 264 parts  |
Pin 786026
#26

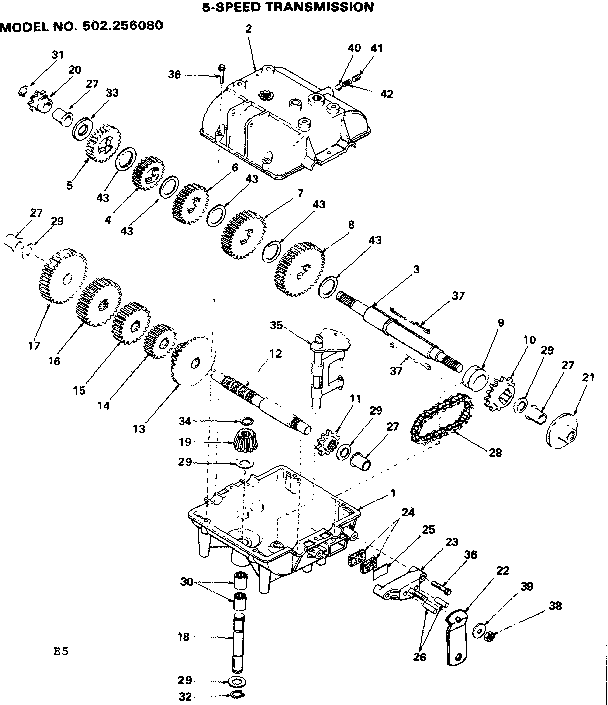

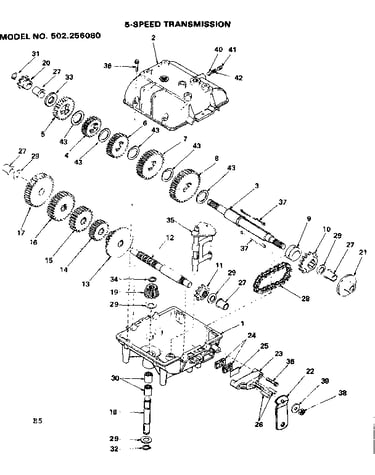

5-speed transmission diagram

Pin

Part #786026

Replaced by #786026B

?
Manufacturer substitution
This part replaces 786026. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Holder 790005
#23

5-speed transmission diagram

Holder

Part #790005

Replaced by #790025

?
Manufacturer substitution
This part replaces 790005. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.30 |
10% OFF Phone Price : $20.30
In Stock
Murray Lawn Tractor Spring 792079
#42

5-speed transmission diagram

Murray lawn tractor spring

Part #792079

This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Bolt STD533107
Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Flange Nut 15X79
Flange nut

Part #15X79

Replaced by #703409

?
Manufacturer substitution
This part replaces 15X79. Substitute parts can look different from the original.
$9.27 |
10% OFF Phone Price : $10.27
In Stock
Lock Nut 15X88Z
Lock nut

Part #15X88Z

The manufacturer no longer makes this part, and there's no substitute part

Idler Pulley 20613
#53

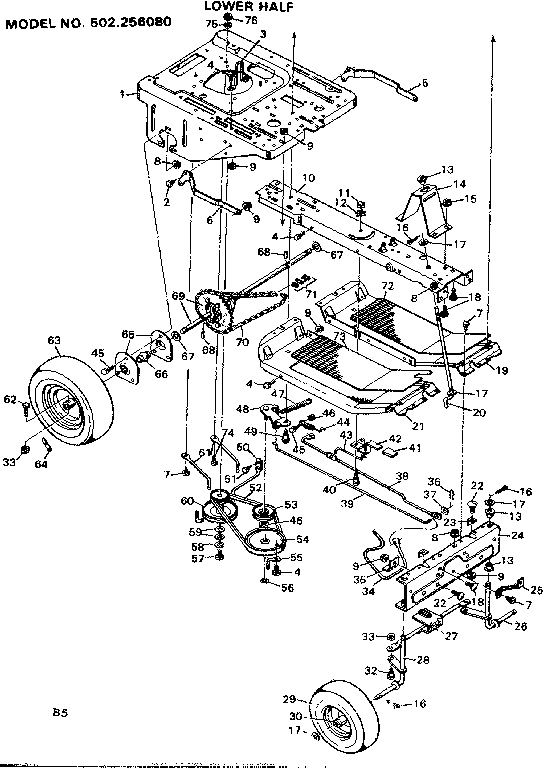

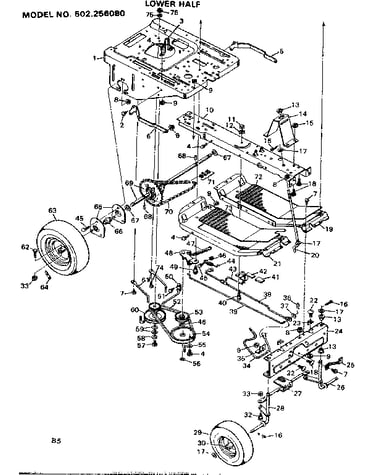

Lower half diagram

Idler pulley

Part #20613

Replaced by #420613MA

?
Manufacturer substitution
This part replaces 20613. Substitute parts can look different from the original.
This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
In Stock
Lock Nut 792075
#38

5-speed transmission diagram

Lock nut

Part #792075

The manufacturer no longer makes this part, and there's no substitute part

Chain 786062
#28

5-speed transmission diagram

Chain

Part #786062

Replaced by #786062A

?
Manufacturer substitution
This part replaces 786062. Substitute parts can look different from the original.
$27.29
In Stock
Washer 17X102
#61

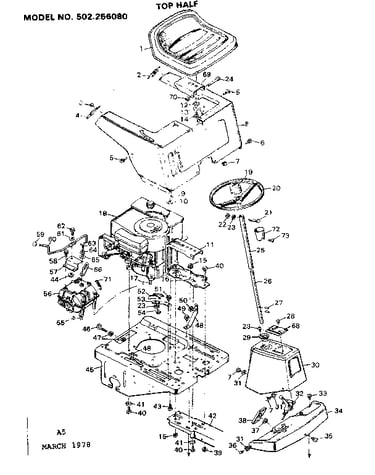

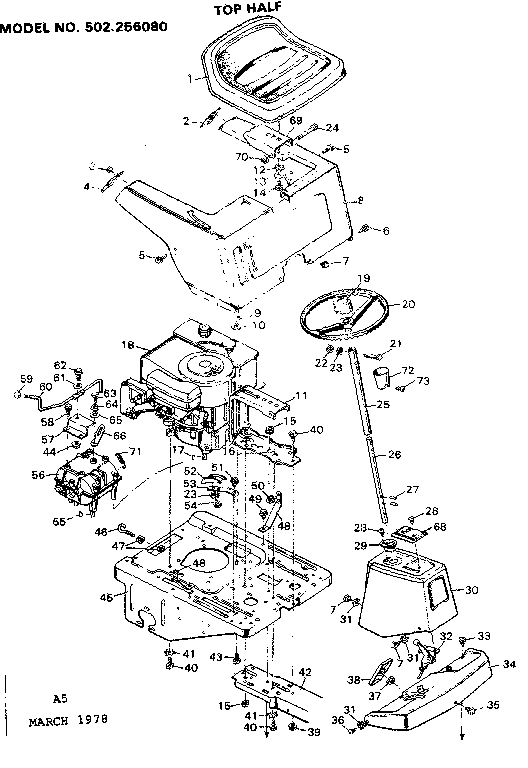

Top half diagram

Washer

Part #17X102

Replaced by #703128

?
Manufacturer substitution
This part replaces 17X102. Substitute parts can look different from the original.
This item is not returnable
$6.31
In Stock
