Model # IHW8303WS0 Official Ikea 30" vented range hood

Here are the diagrams and repair parts for Official Ikea IHW8303WS0 30" vented range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

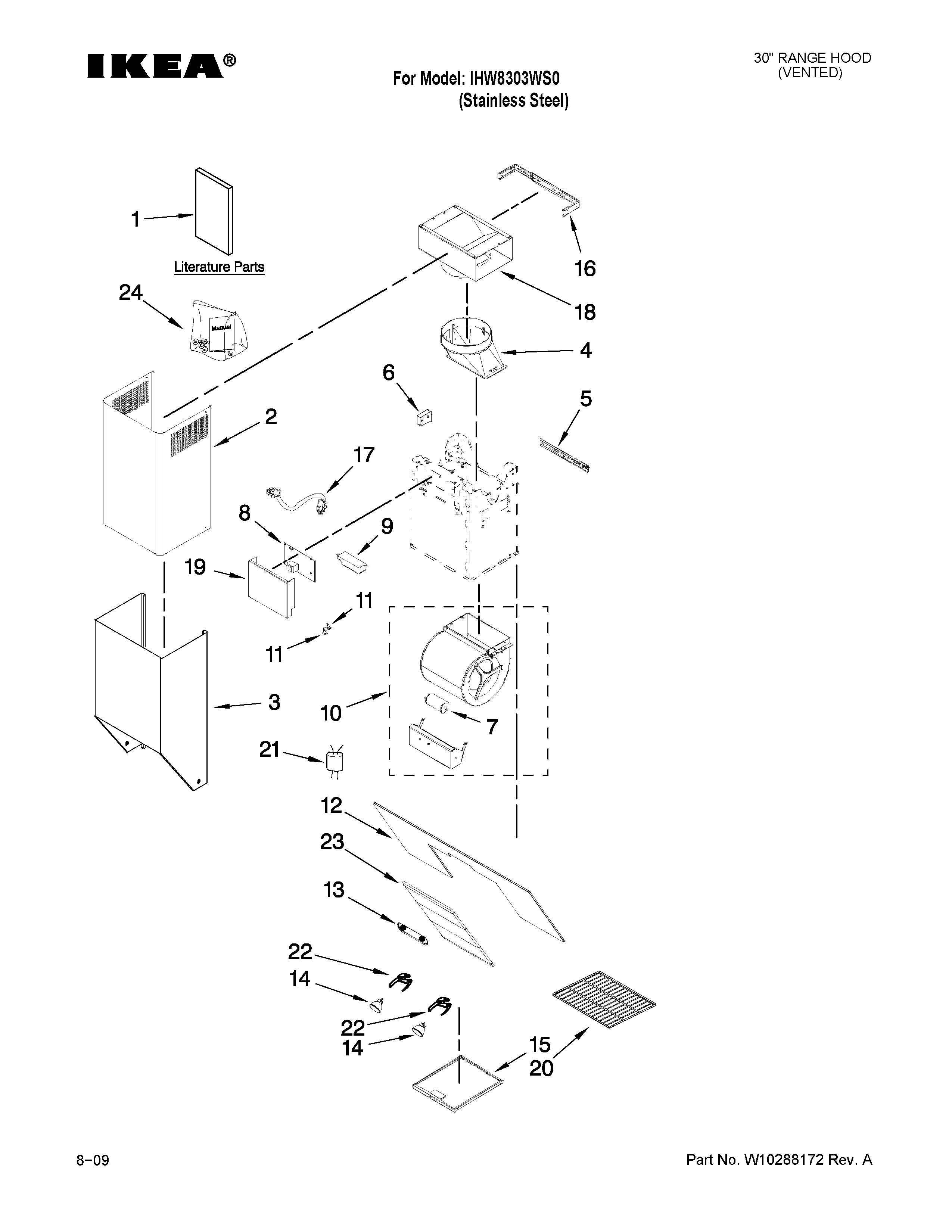

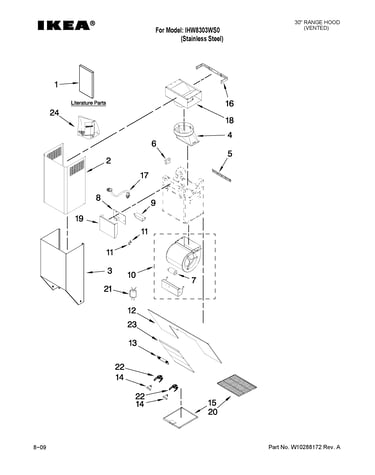

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Filter 8190968
#23

Range hood parts diagram

Filter

Part #8190968

In Stock
Range Hood Blower Motor Capacitor 8186677
#7

Range hood parts diagram

Range hood blower motor capacitor

Part #8186677

In Stock
Range Hood Electronic Control W10211246
#8

Range hood parts diagram

Range hood electronic control

Part #W10211246

Replaced by #WPW10211246

?
Manufacturer substitution
This part replaces W10211246. Substitute parts can look different from the original.
In Stock
Range Hood Filters 8190836
#15

Range hood parts diagram

Range hood filters

Part #8190836

Replaced by #WP8190836

?
Manufacturer substitution
This part replaces 8190836. Substitute parts can look different from the original.
$88.34
6% OFF Phone Price : $94.34
In Stock
Transformer 8186686
#9

Range hood parts diagram

Transformer

Part #8186686

Replaced by #W11186486

?
Manufacturer substitution
This part replaces 8186686. Substitute parts can look different from the original.
$114.79
9% OFF Phone Price : $126.79
In Stock
Mounting Bracket W10211251
#16

Range hood parts diagram

Mounting bracket

Part #W10211251

The manufacturer no longer makes this part, and there's no substitute part

Chimney W10211999
#2

Range hood parts diagram

Chimney

Part #W10211999

The manufacturer no longer makes this part, and there's no substitute part

Panel W10212000
#12

Range hood parts diagram

Panel

Part #W10212000

The manufacturer no longer makes this part, and there's no substitute part

Hardware W10256664
#24

Range hood parts diagram

Hardware

Part #W10256664

The manufacturer no longer makes this part, and there's no substitute part

Panel W10212002
#20

Range hood parts diagram

Panel

Part #W10212002

The manufacturer no longer makes this part, and there's no substitute part
