Model # WRF532SNHW03 Official Whirlpool refrigerator, french door, bottom mount

Here are the diagrams and repair parts for Official Whirlpool WRF532SNHW03 refrigerator, french door, bottom mount, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

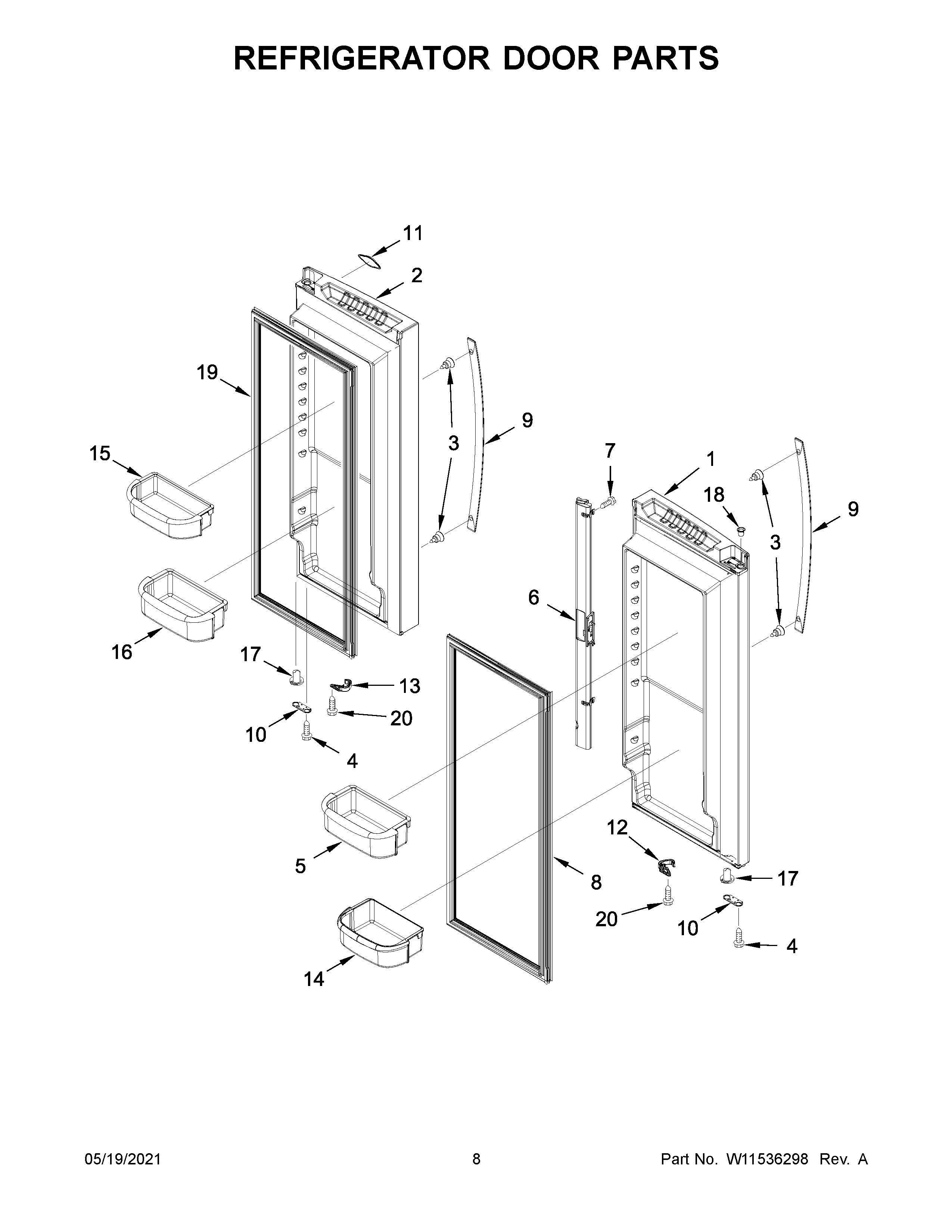

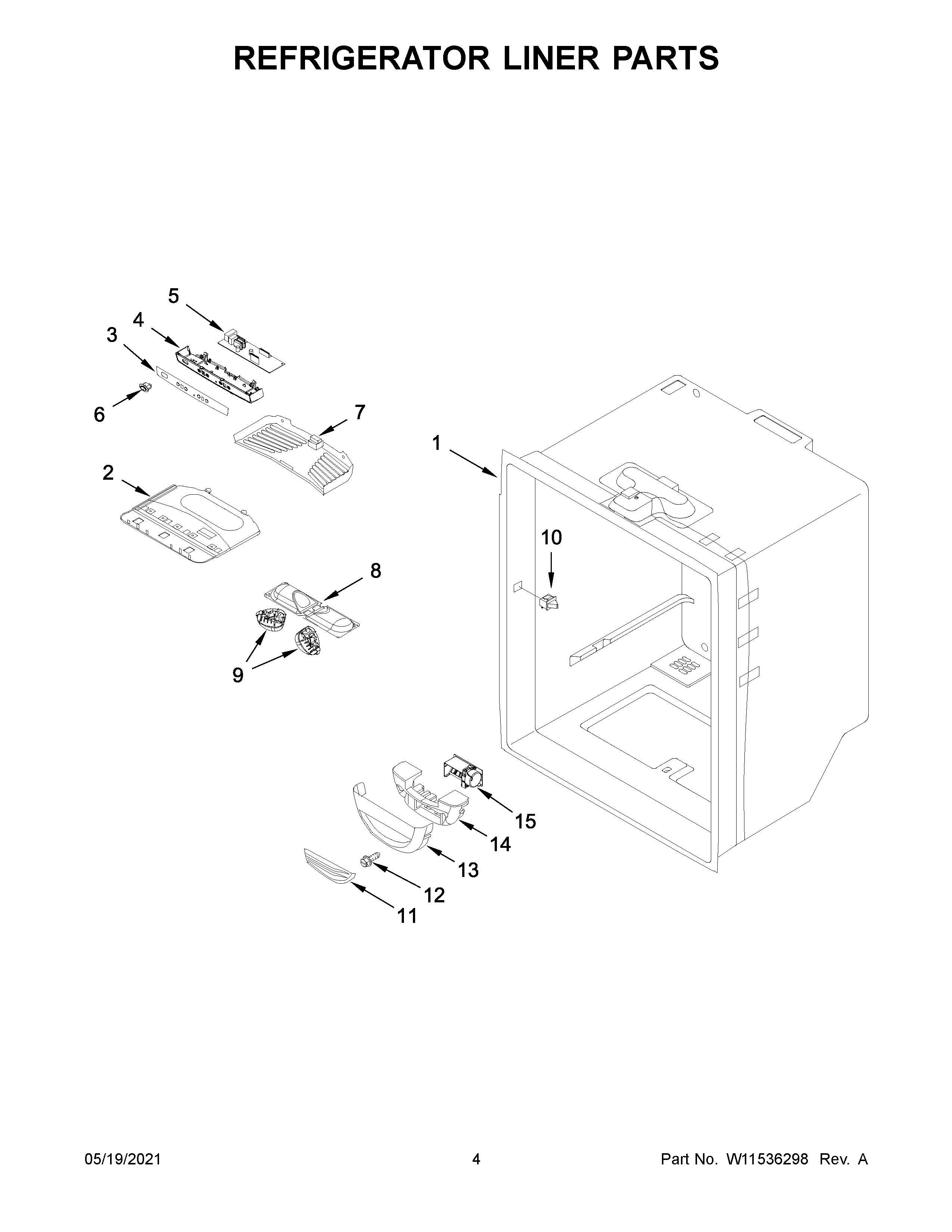

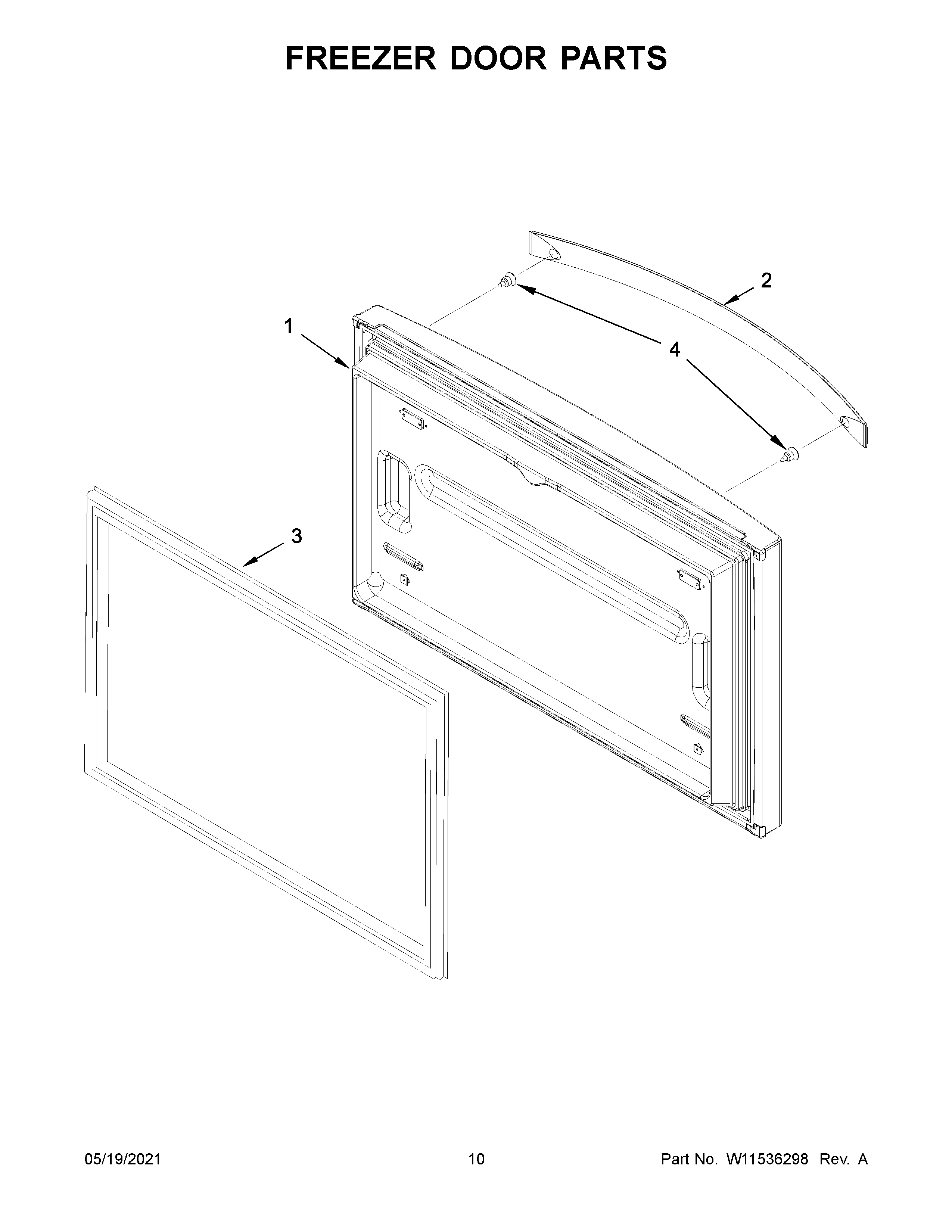

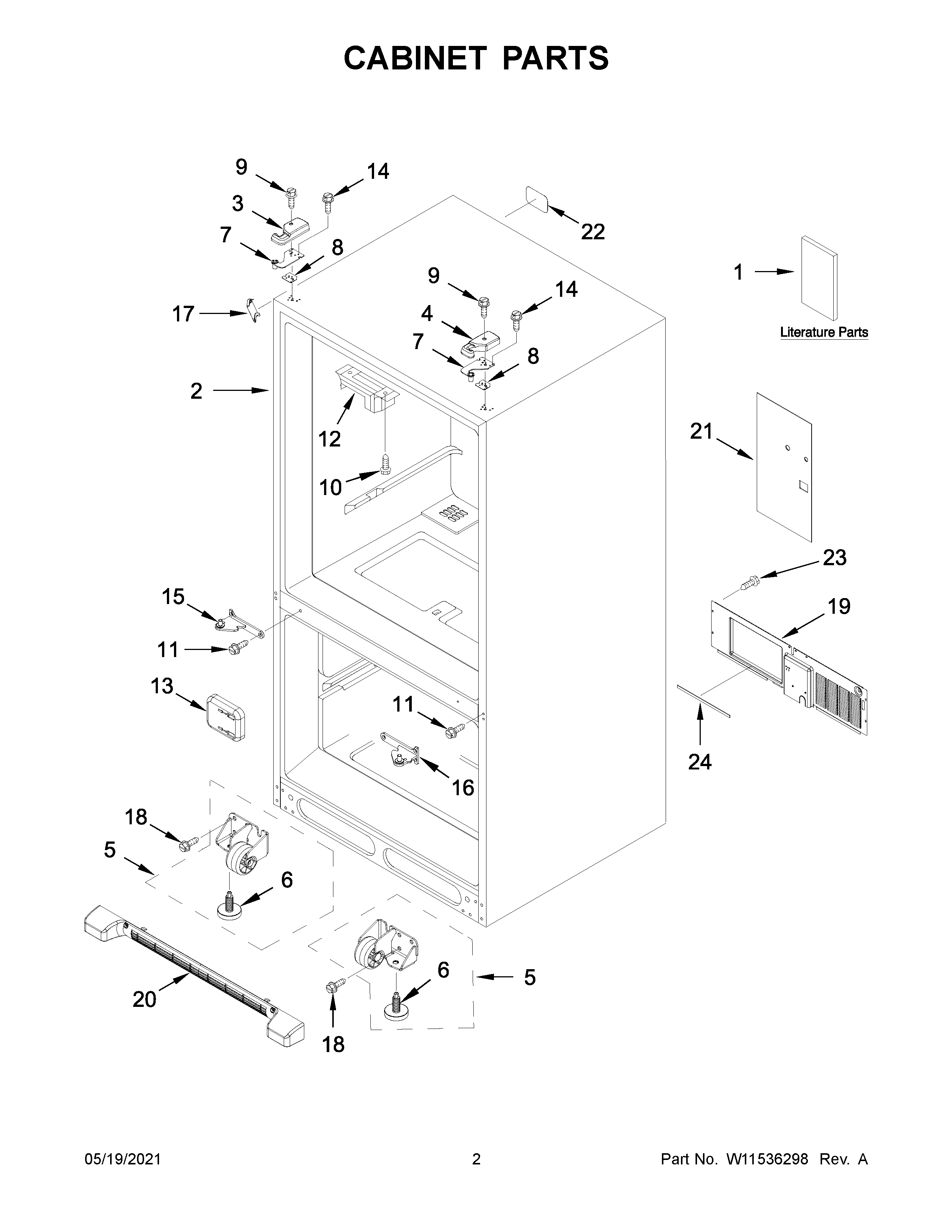

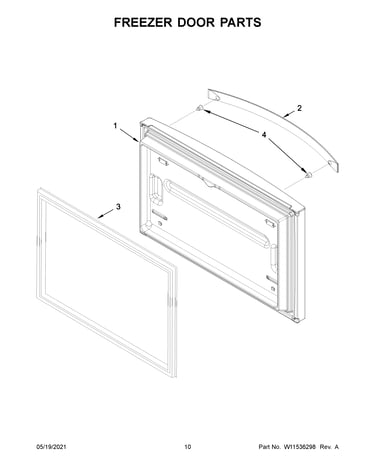

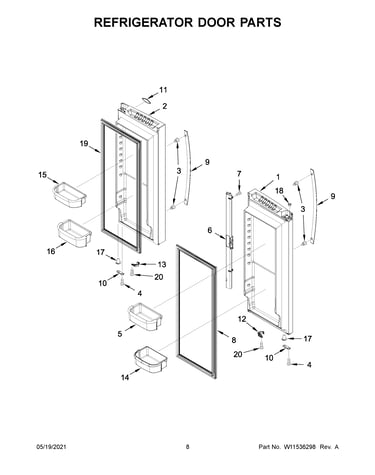

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |
Refrigerator Thermistor 12791409SP
#17

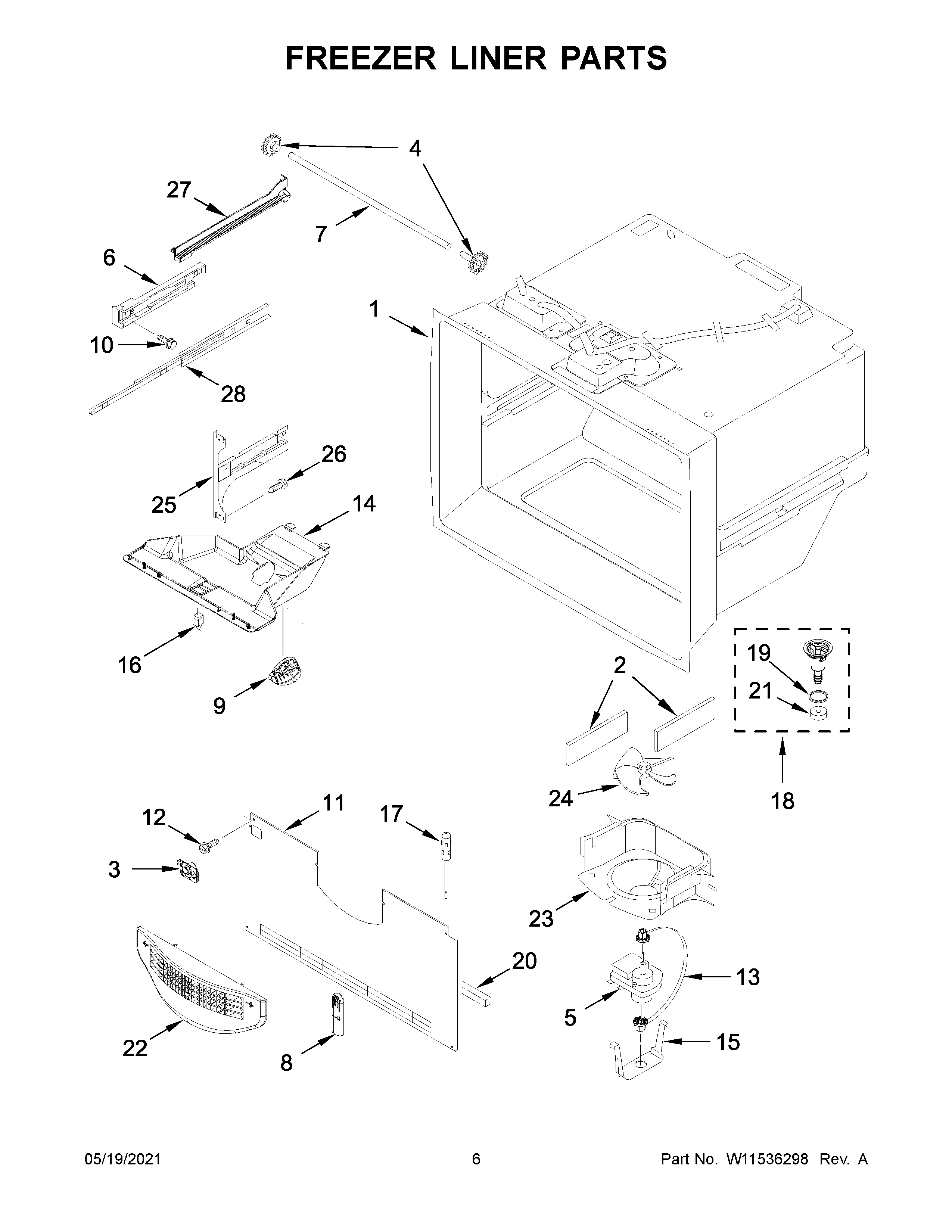

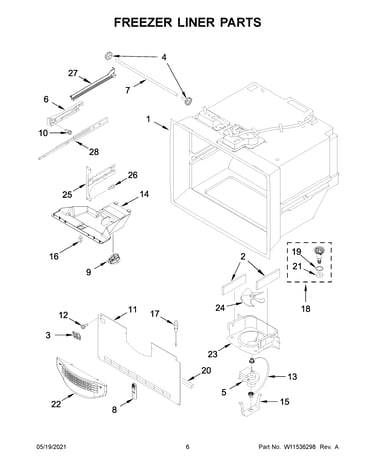

Freezer liner parts diagram

Refrigerator thermistor

Part #12791409SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791409SP. Substitute parts can look different from the original.
BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Hemera 30 De W11468934
Hemera 30 de

Part #W11468934

Replaced by #W11602886

?
Manufacturer substitution
This part replaces W11468934. Substitute parts can look different from the original.
BEST SELLER
$19.61 |
9% OFF Phone Price : $21.61
In Stock
Refrigerator Crisper Drawer Support Rail, Center W10671238
#36

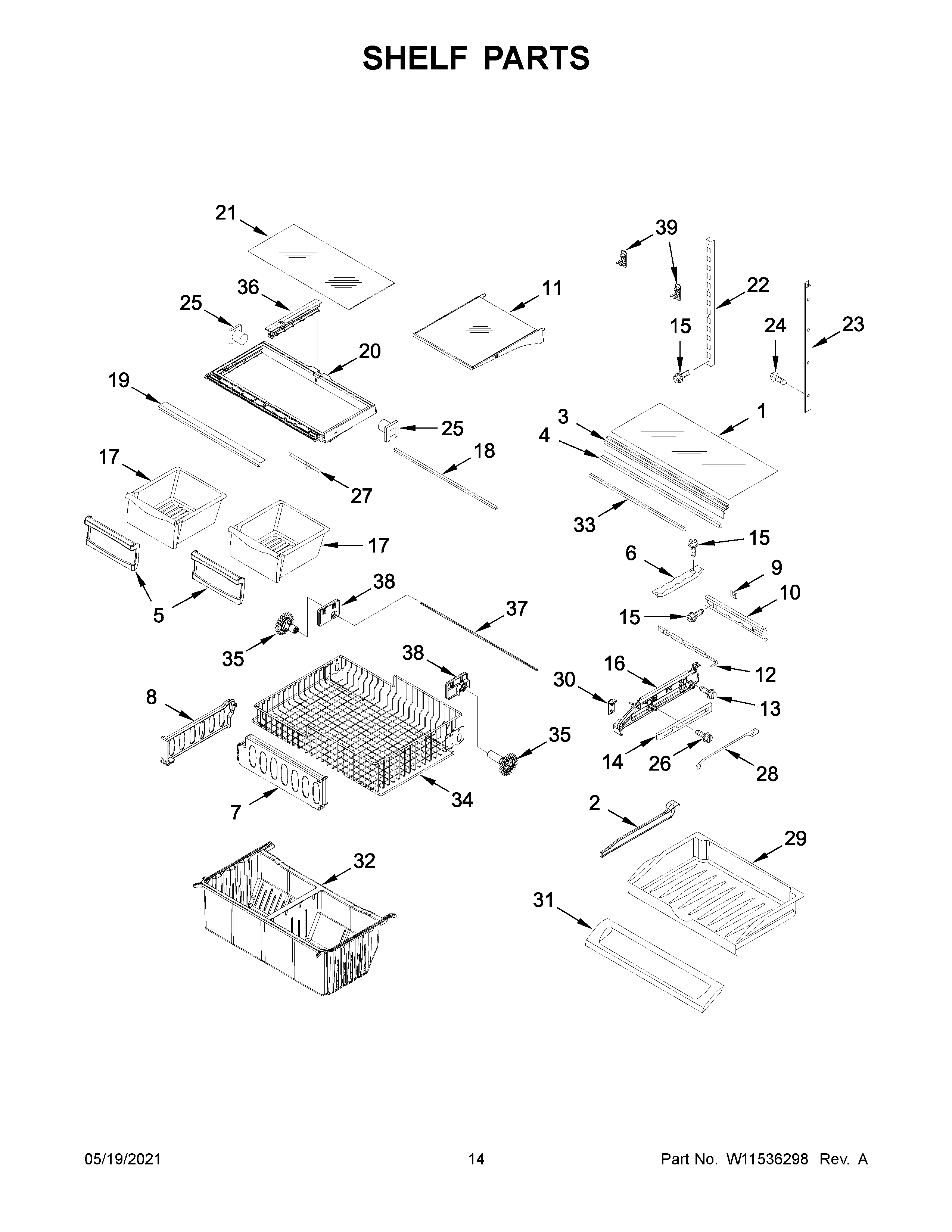

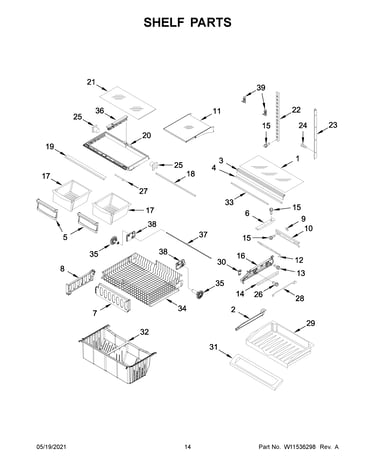

Shelf parts diagram

Refrigerator crisper drawer support rail, center

Part #W10671238

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces W10671238. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Refrigerator Start Relay W10197428
#12

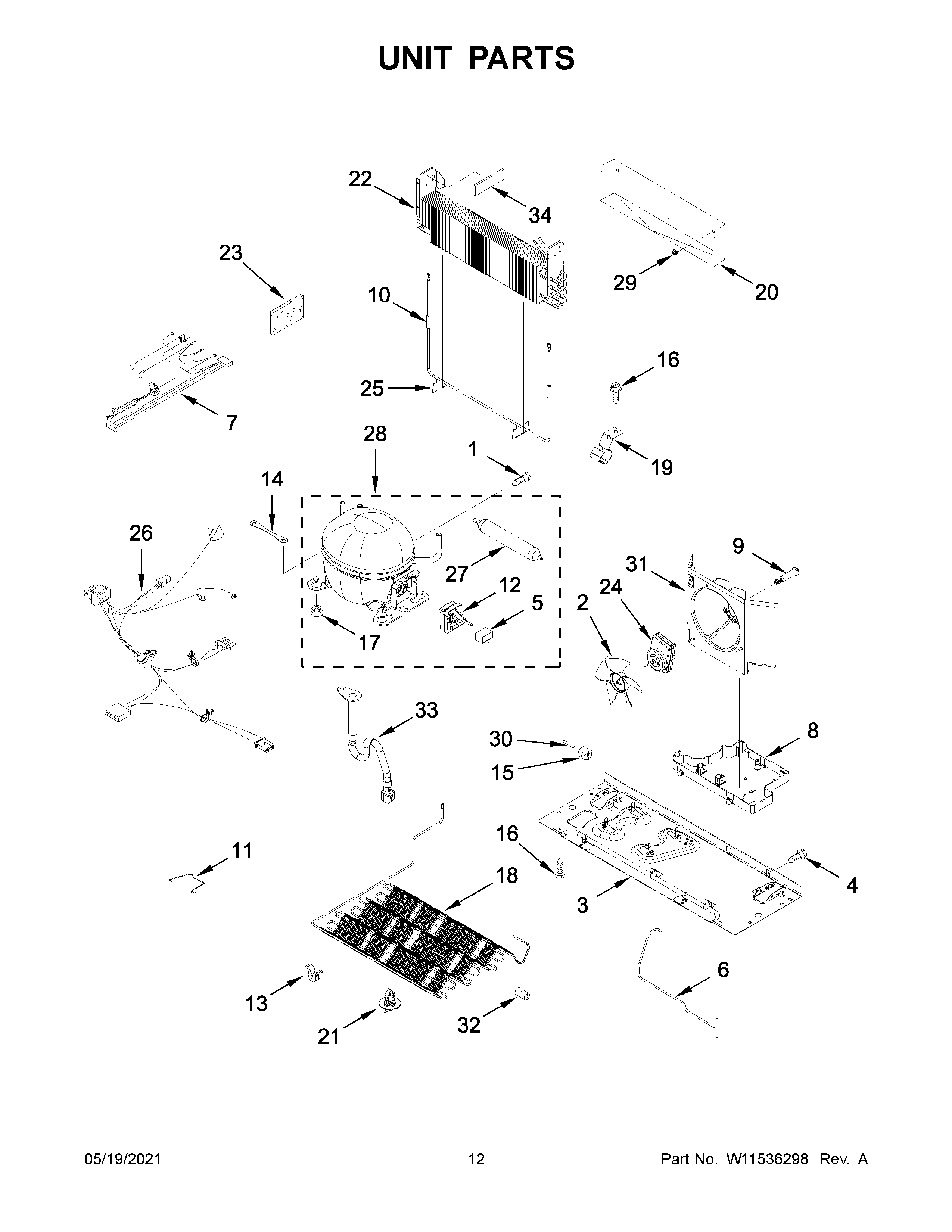

Unit parts diagram

Refrigerator start relay

Part #W10197428

Replaced by #WPW10197428

?
Manufacturer substitution
This part replaces W10197428. Substitute parts can look different from the original.
BEST SELLER
$50.91 |
11% OFF Phone Price : $56.91
In Stock
Refrigerator Evaporator Motor 13062901
#5

Freezer liner parts diagram

Refrigerator evaporator motor

Part #13062901

Replaced by #W11024089

?
Manufacturer substitution
This part replaces 13062901. Substitute parts can look different from the original.
BEST SELLER
$45.28 |
12% OFF Phone Price : $51.28
In Stock
Refrigerator Run Capacitor W10350564
#5

Unit parts diagram

Refrigerator run capacitor

Part #W10350564

Replaced by #WPW10350564

?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
BEST SELLER
$46.40 |
11% OFF Phone Price : $52.40
In Stock
Refrigerator Drawer Cover 12656823
#31

Shelf parts diagram

Refrigerator drawer cover

Part #12656823

Replaced by #W10827914

?
Manufacturer substitution
This part replaces 12656823. Substitute parts can look different from the original.
BEST SELLER
$103.19 |
10% OFF Phone Price : $115.19
In Stock
Drier-11g,lo W11353156
#27

Unit parts diagram

Drier-11g,lo

Part #W11353156

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W11353156. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Refrigerator Freezer Slide Rail W10120018
#28

Freezer liner parts diagram

Refrigerator freezer slide rail

Part #W10120018

Replaced by #WPW10120018

?
Manufacturer substitution
This part replaces W10120018. Substitute parts can look different from the original.
BEST SELLER
$118.53 |
9% OFF Phone Price : $130.53
In Stock
Extension-dr W10622099
#33

Unit parts diagram

Extension-dr

Part #W10622099

Replaced by #W10619951

?
Manufacturer substitution
This part replaces W10622099. Substitute parts can look different from the original.
BEST SELLER
$26.33 |
19% OFF Phone Price : $32.33
In Stock
