Model # FPEW3077RFC Official Frigidaire built-in oven
Here are the diagrams and repair parts for Official Frigidaire FPEW3077RFC built-in oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

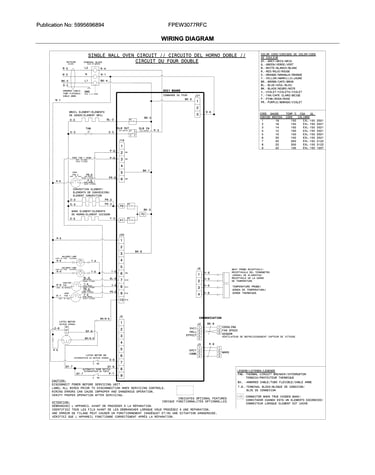

Error CodesBy Schematic
By Part

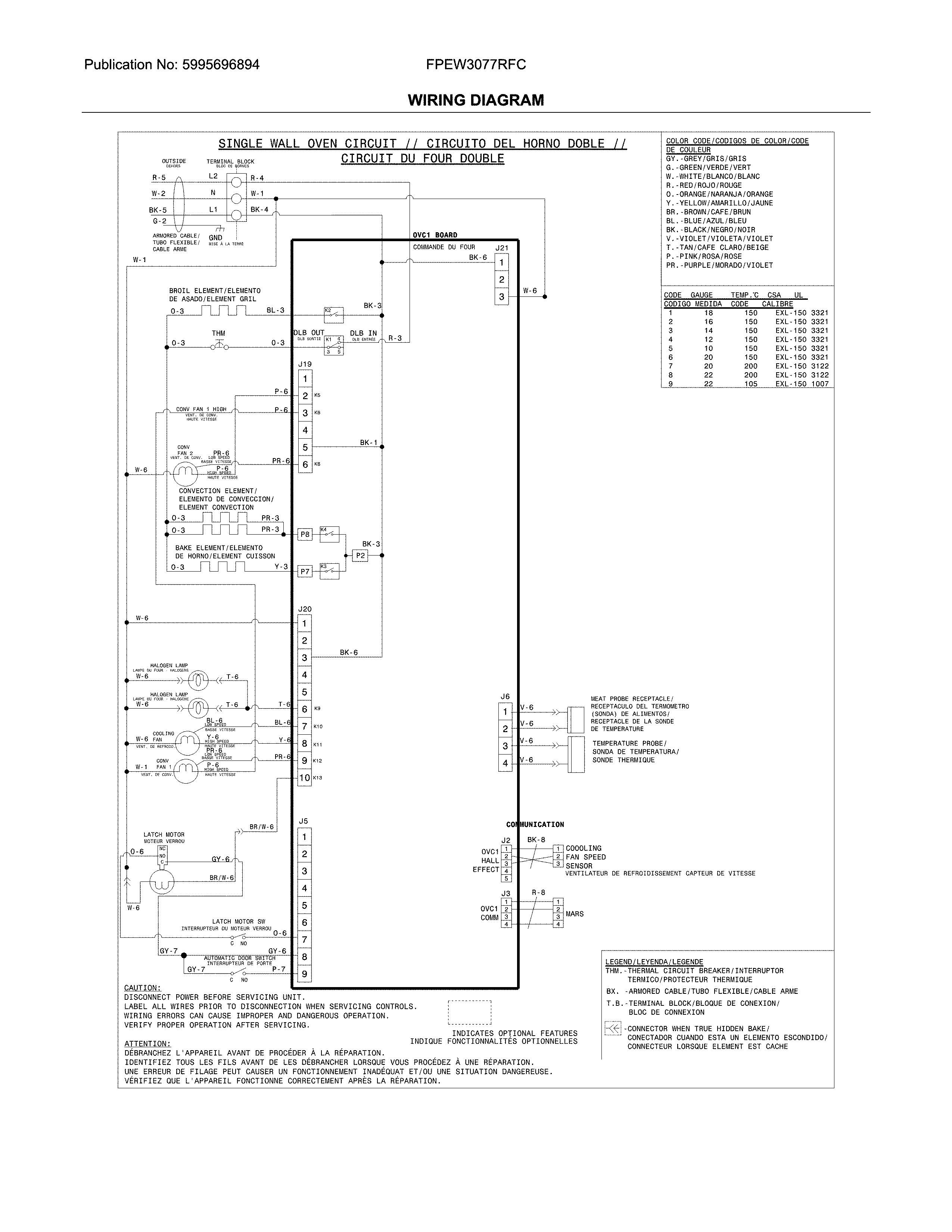

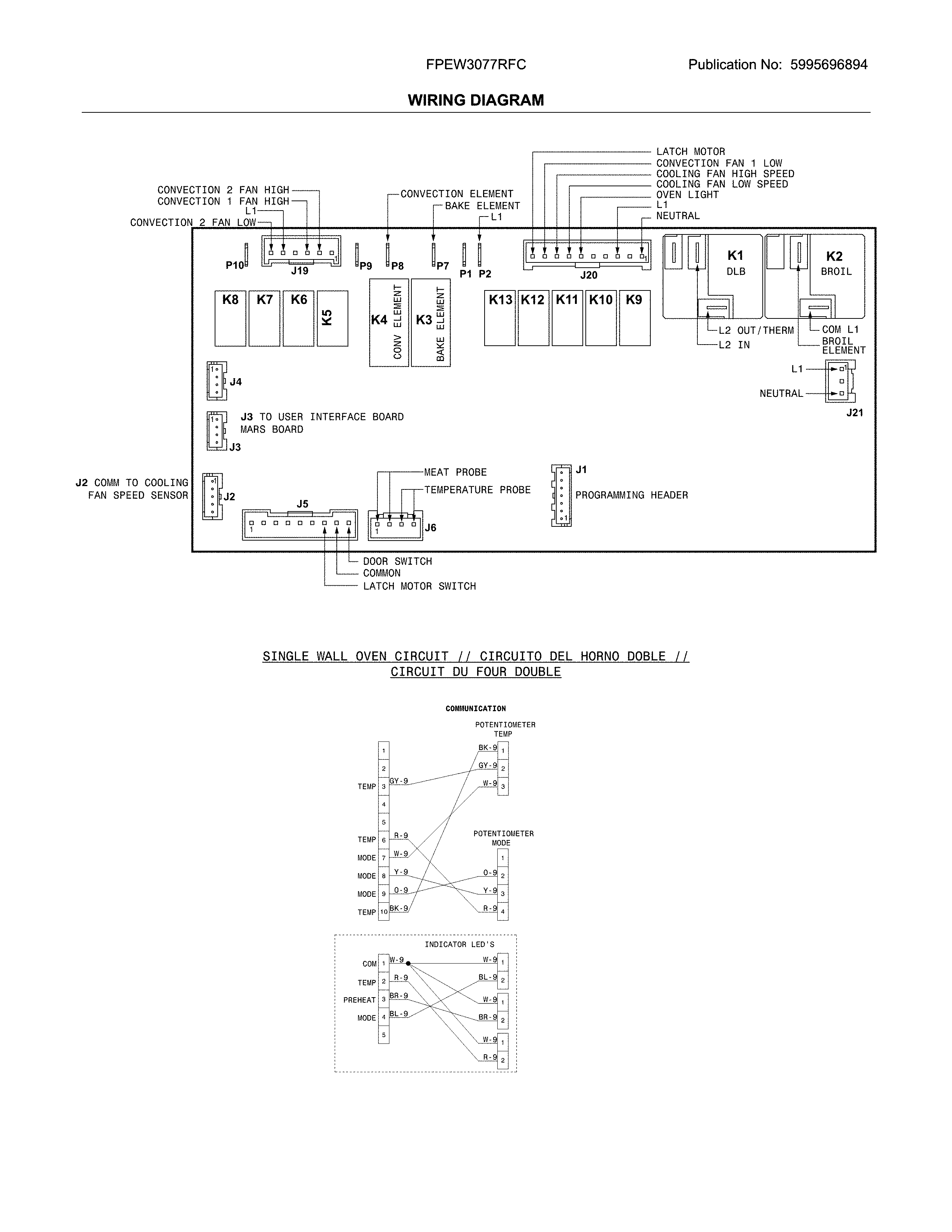

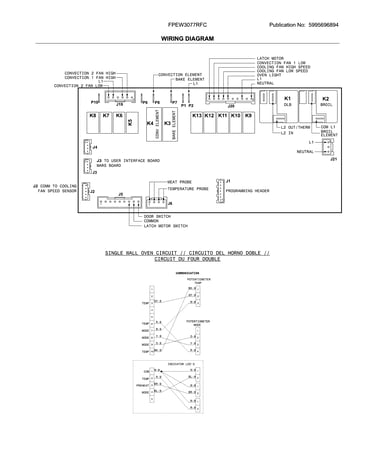

SELECT DIAGRAM
Browse Parts forFPEW3077RFC Wall Ovens
- #37

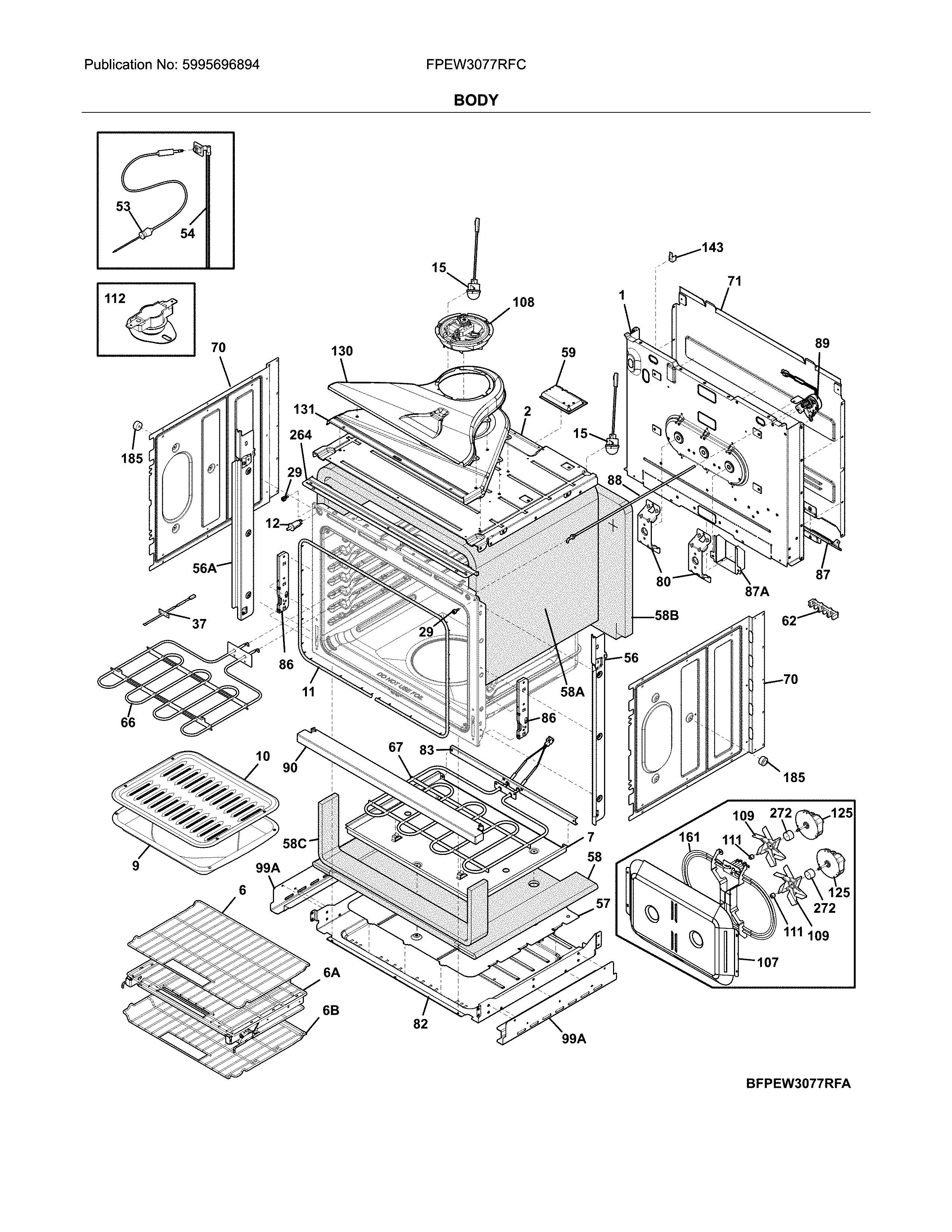

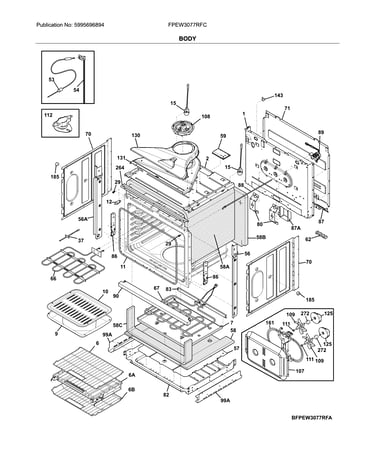

Body diagram
Cooking appliance oven temperature sensorPart #5304504897
$31.06 |16% OFF Phone Price : $37.06In Stock - #62
Body diagram
Terminal blockPart #316056000
Replaced by #5304409888
?Manufacturer substitutionThis part replaces 316056000. Substitute parts can look different from the original.$22.93 |21% OFF Phone Price : $28.93In Stock - #97

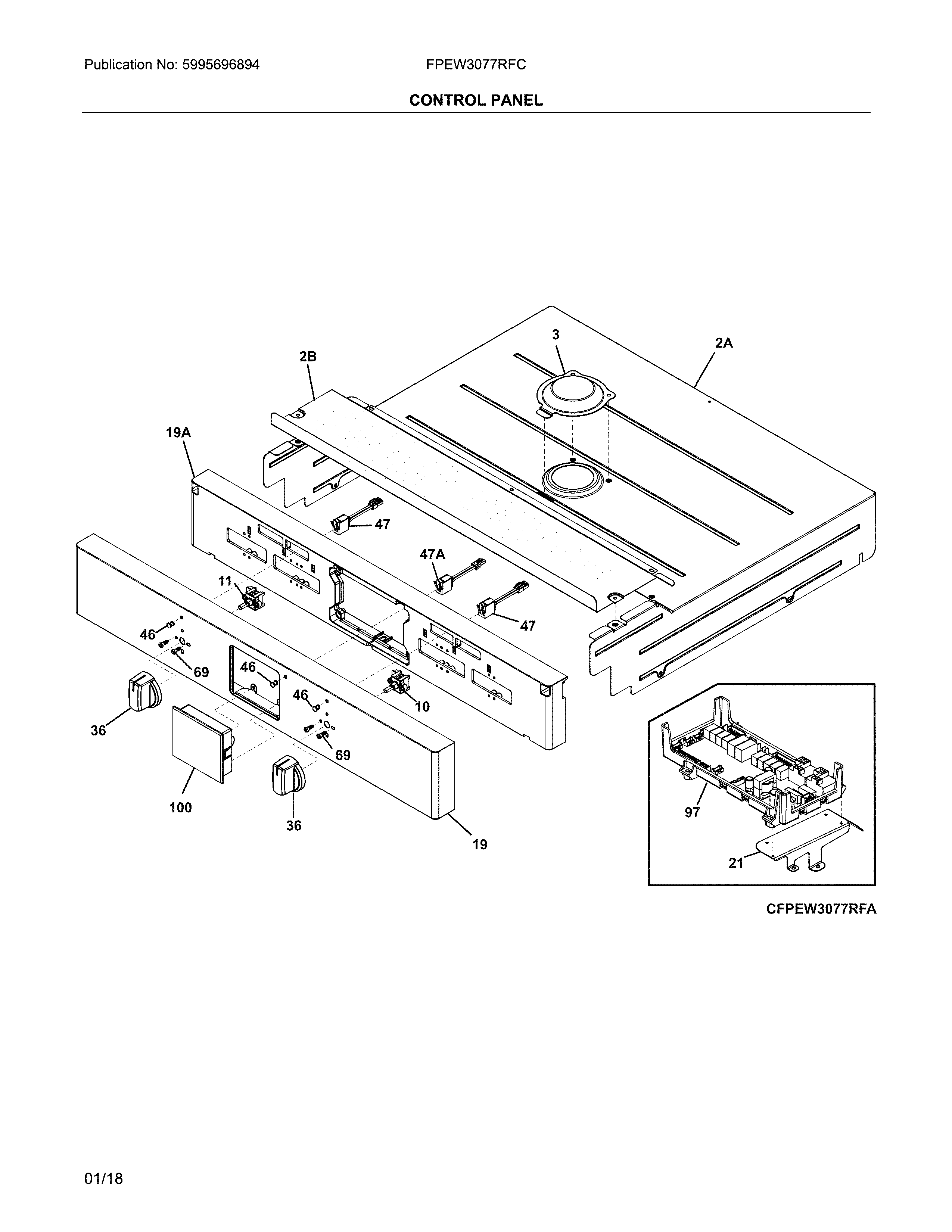

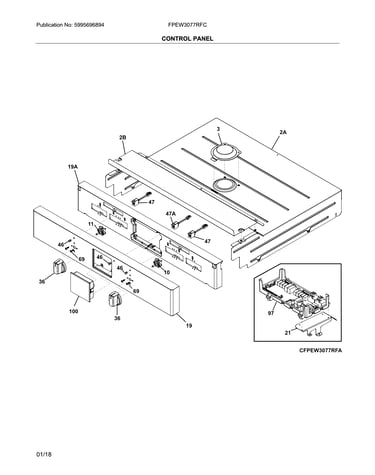

Control panel diagram
Range oven relay control boardPart #316472802
Replaced by #316472807
?Manufacturer substitutionThis part replaces 316472802. Substitute parts can look different from the original.$313.76 |$12.00 OFF Phone Price : $325.76In Stock - #111
Body diagram
Range convection fan blade nutPart #316136600
$19.42 |9% OFF Phone Price : $21.42In Stock - #NI

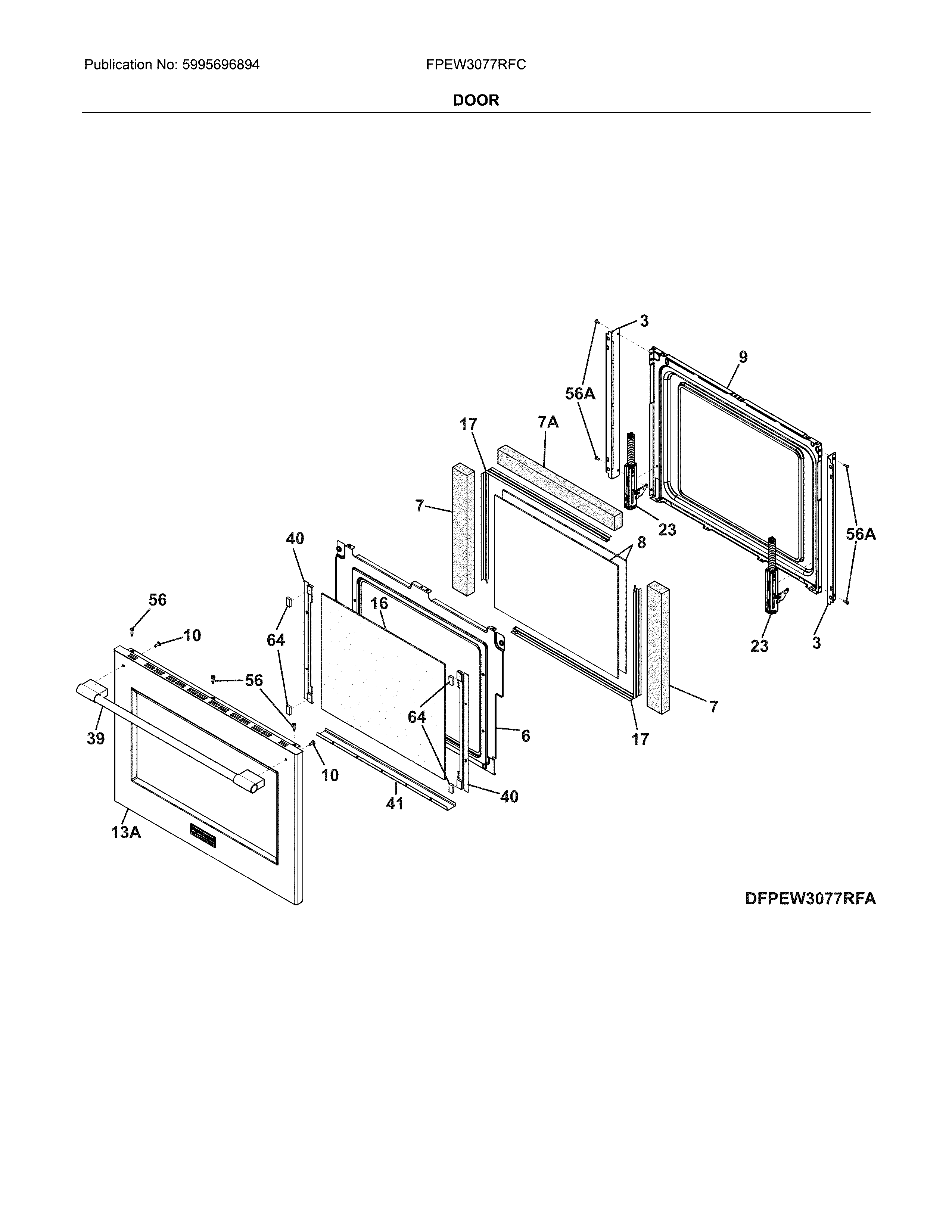

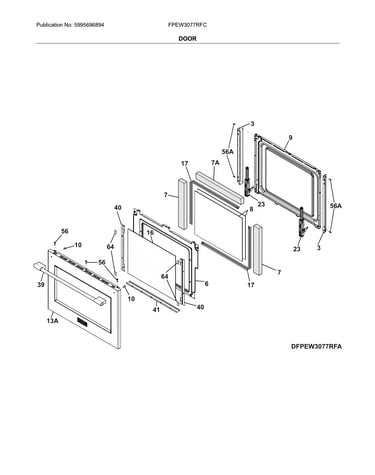

Door diagram
WasherPart #5304490894
Replaced by #316008401
?Manufacturer substitutionThis part replaces 5304490894. Substitute parts can look different from the original.$13.71 |13% OFF Phone Price : $15.71In Stock - Range screw
Part #316021109
$14.46 |12% OFF Phone Price : $16.46In Stock - #112
Body diagram
Wall oven safety thermostatPart #318578509
$44.99 |12% OFF Phone Price : $50.99In Stock - Range hex head screw, #8-18 x 3/8-in
Part #316021105
Replaced by #316021109
?Manufacturer substitutionThis part replaces 316021105. Substitute parts can look different from the original.$14.46 |12% OFF Phone Price : $16.46In Stock - Range screw
Part #316021110
Replaced by #316021109
?Manufacturer substitutionThis part replaces 316021110. Substitute parts can look different from the original.$14.46 |12% OFF Phone Price : $16.46In Stock - #53
Body diagram
Range oven meat probe sensorPart #5304504202
$88.94 |6% OFF Phone Price : $94.94In Stock
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair difficulty
Time required
60 minutes or less
How to replace a wall oven control thermostat
Get your oven temperature under your control by replacing a faulty oven control thermostat.…
Repair difficulty
Time required
60 minutes or less
How to replace wall oven door hinges
If your oven door flops open fast, it's time to replace the hinges. Follow these step-by-step instructions to do it your…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Beeping oven driving you nuts? Find out what your oven is trying to tell you.…
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
