Porter Cable
Stand Mixer

Model # 7822 Official Porter Cable mixer

Here are the diagrams and repair parts for Official Porter Cable 7822 mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

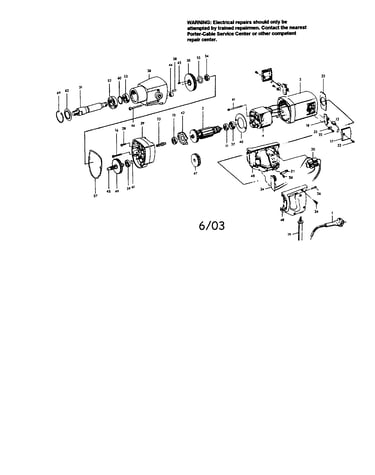

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Craftsman Bearing 254443
#11

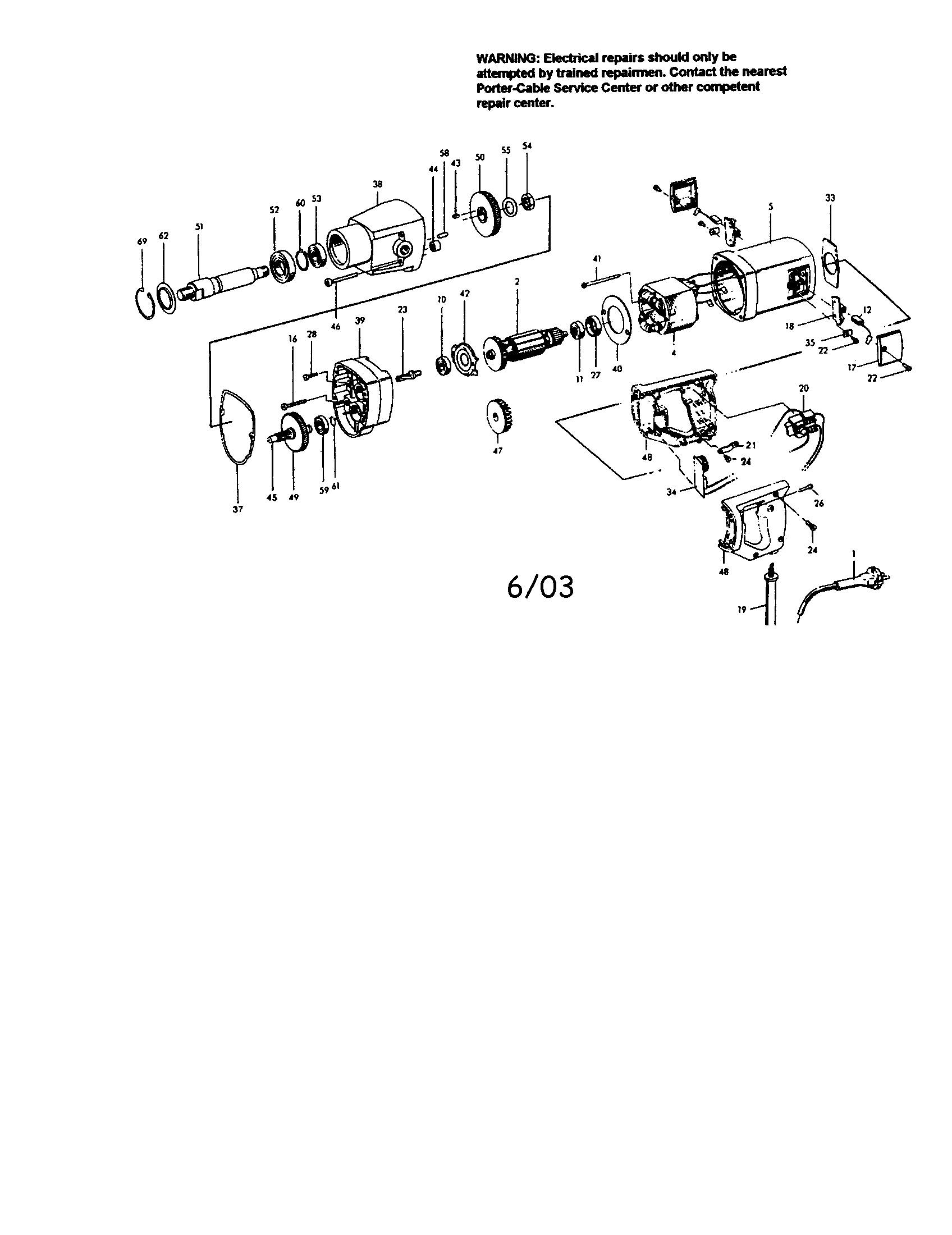

Mixer diagram

Craftsman bearing

Part #254443

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 214655
#1

Mixer diagram

Ac cord

Part #214655

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw 195715
#22

Mixer diagram

Craftsman screw

Part #195715

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Nut 119490
#54

Mixer diagram

Porter cable nut

Part #119490

The manufacturer no longer makes this part, and there's no substitute part

Bearing 257354
#27

Mixer diagram

Bearing

Part #257354

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Armature 211125
#2

Mixer diagram

Porter cable armature

Part #211125

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Driver 111392
#69

Mixer diagram

Porter cable driver

Part #111392

The manufacturer no longer makes this part, and there's no substitute part

Brush Clamp 194816
#35

Mixer diagram

Brush clamp

Part #194816

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Snap Ring 223344
#60

Mixer diagram

Porter cable snap ring

Part #223344

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Brush 211710
#12

Mixer diagram

Porter cable brush

Part #211710

The manufacturer no longer makes this part, and there's no substitute part
