Electric Cooktop

Model # FEC3X6XAS1 Official Frigidaire electric cooktop - 5995235131

Here are the diagrams and repair parts for Official Frigidaire FEC3X6XAS1 electric cooktop - 5995235131, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forFEC3X6XAS1 Cooktops

  • Screw 5303292005
    #170

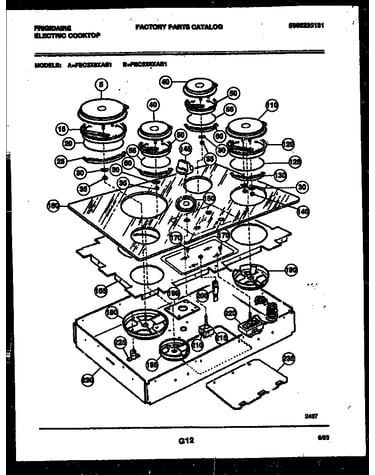

    Cooktop parts diagram

    Screw

    Part #5303292005

    Replaced by #5304501948

    ?
    Manufacturer substitution
    This part replaces 5303292005. Substitute parts can look different from the original.
    In Stock
  • Switch 5303285411
    #215

    Cooktop parts diagram

    Switch

    Part #5303285411

    Replaced by #5303935086

    ?
    Manufacturer substitution
    This part replaces 5303285411. Substitute parts can look different from the original.
    $38.98
    16% OFF Phone Price : $46.19
    In Stock
  • Switch 5303285410
    #210

    Cooktop parts diagram

    Switch

    Part #5303285410

    Replaced by #5303935086

    ?
    Manufacturer substitution
    This part replaces 5303285410. Substitute parts can look different from the original.
    $38.98
    16% OFF Phone Price : $46.19
    In Stock
  • Escutcheon Knob 5303297396
    #150

    Cooktop parts diagram

    Escutcheon knob

    Part #5303297396

    The manufacturer no longer makes this part, and there's no substitute part

  • Retainer 5303051881
    #50

    Cooktop parts diagram

    Retainer

    Part #5303051881

    The manufacturer no longer makes this part, and there's no substitute part

  • Pan Shield 5303285409
    #190

    Cooktop parts diagram

    Pan shield

    Part #5303285409

    The manufacturer no longer makes this part, and there's no substitute part

  • Nut 08014255
    #140

    Cooktop parts diagram

    Nut

    Part #08014255

    The manufacturer no longer makes this part, and there's no substitute part

  • Wiring Diagram--(not For Purchase) 204873-1110

    #NI

    All parts diagram

    Wiring diagram--(not for purchase)

    Part #204873-1110

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket 08014745
    #125

    Cooktop parts diagram

    Gasket

    Part #08014745

    The manufacturer no longer makes this part, and there's no substitute part

  • Overload 5303202475
    #225

    Cooktop parts diagram

    Overload

    Part #5303202475

    The manufacturer no longer makes this part, and there's no substitute part
