Model # SWT110WM Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen SWT110WM washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

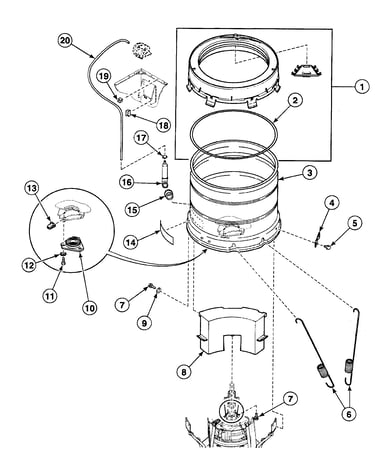

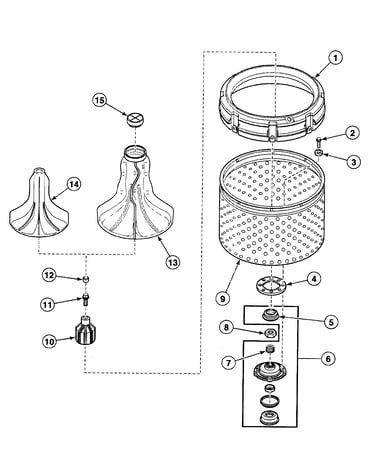

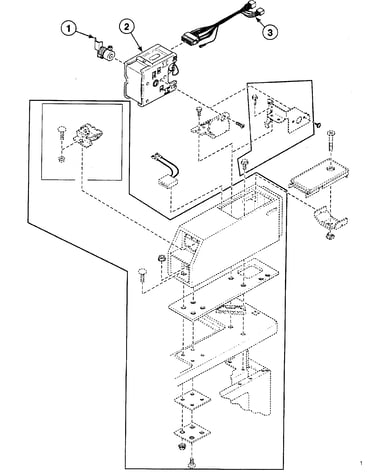

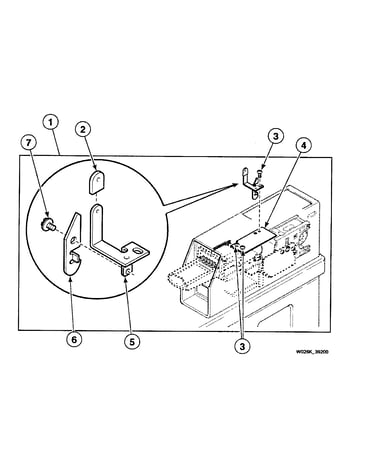

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
SWT110WM Washer
Screw 503688
#7

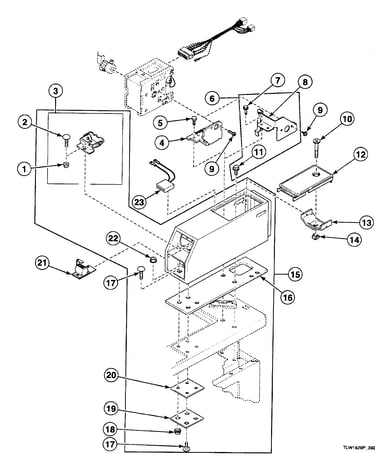

Meter case diagram

Screw

Part #503688

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 503688. Substitute parts can look different from the original.
This item is not returnable
$4.17
19% OFF Phone Price : $5.17
In Stock
Washer Drain Pump 201566P
#17

Motor assy diagram

Washer drain pump

Part #201566P

Replaced by #205217P

?
Manufacturer substitution
This part replaces 201566P. Substitute parts can look different from the original.
In Stock
Washer Main Bearing 28944RP
#11

Brake assy diagram

Washer main bearing

Part #28944RP

The manufacturer no longer makes this part, and there's no substitute part

Pullet 38225P
#15

Motor assy diagram

Pullet

Part #38225P

The manufacturer no longer makes this part, and there's no substitute part

Motor Switch 35632P
#30

Motor assy diagram

Motor switch

Part #35632P

In Stock
Amana Washer Tub Spring Removal Tool 321P4
#3

Tools 1 diagram

Amana washer tub spring removal tool

Part #321P4

In Stock
Anti-seize 27604P
#NI

Transmission diagram

Anti-seize

Part #27604P

The manufacturer no longer makes this part, and there's no substitute part

Hook 254P4P
#8

Tools 2 diagram

Hook

Part #254P4P

The manufacturer no longer makes this part, and there's no substitute part

Washer Front Panel (white) 38335WP
#19

Cabinet diagram

Washer front panel (white)

Part #38335WP

In Stock
Control Hood 37075W
#1

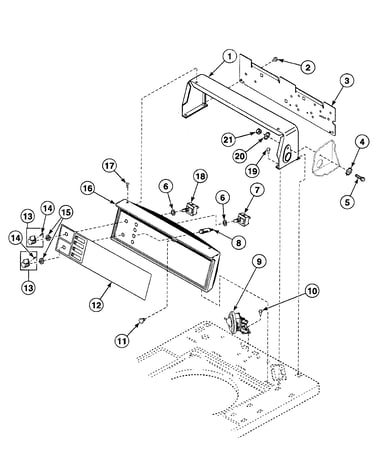

Control panel diagram

Control hood

Part #37075W

In Stock
