Model # FAK103J1V1 Official Frigidaire air conditioner
Here are the diagrams and repair parts for Official Frigidaire FAK103J1V1 air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
FAK103J1V1 Air Conditioner
Bracket screw
Part #3015312
Replaced by #5303293767
?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$34.17
In Stock
Seal condenser
Part #5303313964
This item is not returnable
$2.16
In Stock
#17

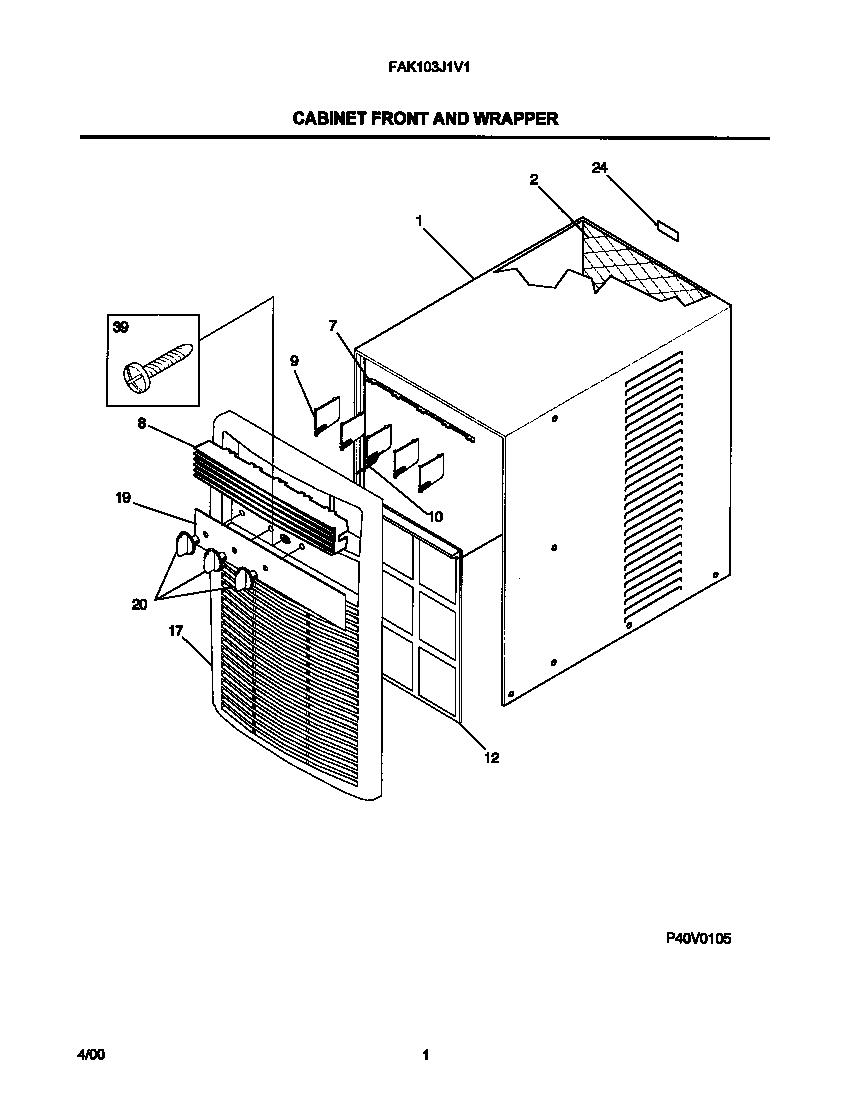

Cabinet front and wrapper diagram
Front assembly
Part #309622404
$45.42
In Stock
#28
Control parts diagram
White-westinghouse ventilation door
Part #309625301
$15.79
In Stock
#2
Air handling parts diagram
Screw
Part #3202975
Replaced by #5304410881
?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
#30
Air handling parts diagram
Plate
Part #309624601
The manufacturer no longer makes this part, and there's no substitute part
#7
Control parts diagram
Control panel
Part #309606501
The manufacturer no longer makes this part, and there's no substitute part
#13
Control parts diagram
Capacitor
Part #5304403167
The manufacturer no longer makes this part, and there's no substitute part
#9

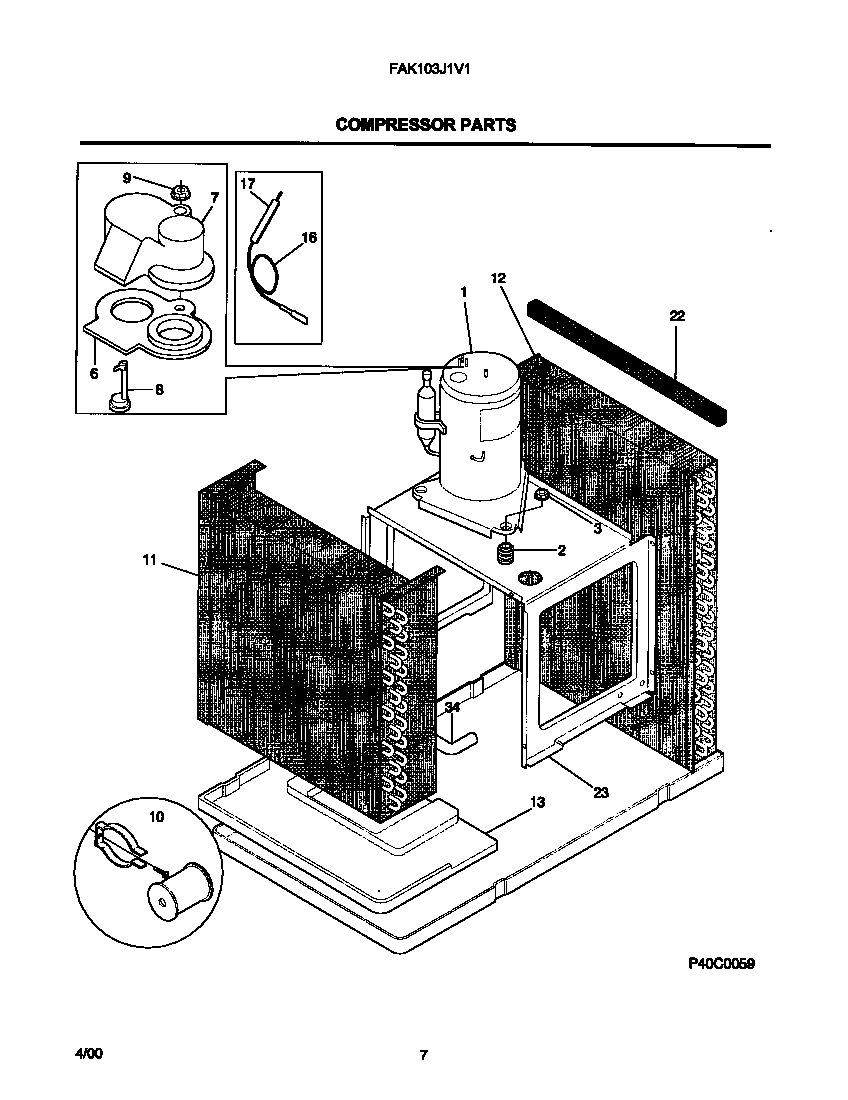

Compressor parts diagram
Nut
Part #3201670
The manufacturer no longer makes this part, and there's no substitute part
#33
Window mounting parts diagram
Frame-expando slide (ncs1403)
Part #5304414118
The manufacturer no longer makes this part, and there's no substitute part
