Craftsman
Gas Walk-Behind Mower

Model # 917388811 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388811 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
Belt, 21-in 175064
#56

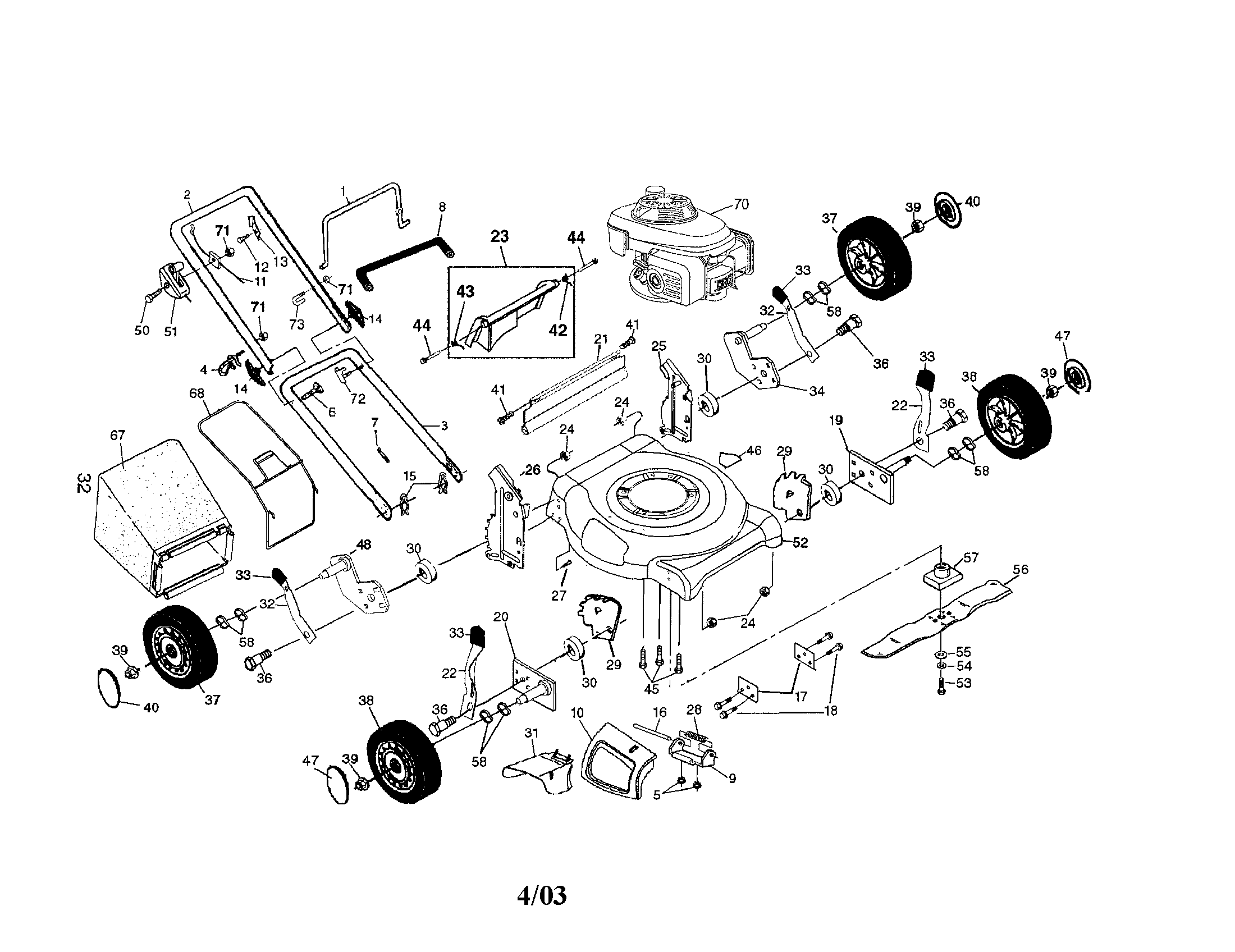

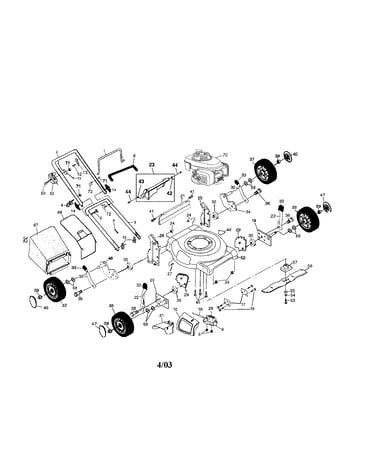

Engine/housing/handle/wheels/bag diagram

Belt, 21-in

Part #175064

Replaced by #532406712

?
Manufacturer substitution
This part replaces 175064. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.79 |
21% OFF Phone Price : $28.79
In Stock
Discharge Guard 165760
#31

Engine/housing/handle/wheels/bag diagram

Discharge guard

Part #165760

Replaced by #589482402

?
Manufacturer substitution
This part replaces 165760. Substitute parts can look different from the original.
BEST SELLER
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Selector Knob 180912
#33

Engine/housing/handle/wheels/bag diagram

Selector knob

Part #180912

Replaced by #532701037

?
Manufacturer substitution
This part replaces 180912. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Gbag.250f4.w 185525
#67

Engine/housing/handle/wheels/bag diagram

Gbag.250f4.w

Part #185525

Replaced by #532410666

?
Manufacturer substitution
This part replaces 185525. Substitute parts can look different from the original.
BEST SELLER
$68.54 |
8% OFF Phone Price : $74.54
In Stock
Lawn Mower Blade Adapter 851514
#57

Engine/housing/handle/wheels/bag diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Nut 132004
#71

Engine/housing/handle/wheels/bag diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Engine/housing/handle/wheels/bag diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Torsion Spring 152124
#28

Engine/housing/handle/wheels/bag diagram

Torsion spring

Part #152124

Replaced by #532152124

?
Manufacturer substitution
This part replaces 152124. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Rope Guide 179585
#4

Engine/housing/handle/wheels/bag diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Mulcher Door 165754
#10

Engine/housing/handle/wheels/bag diagram

Mulcher door

Part #165754

Replaced by #532165754

?
Manufacturer substitution
This part replaces 165754. Substitute parts can look different from the original.
This item is not returnable
$13.31 |
13% OFF Phone Price : $15.31
In Stock
