Model # FGP305EN0 Official Roper gas range & oven

Here are the diagrams and repair parts for Official Roper FGP305EN0 gas range & oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Broiler Pan 4364064
#19

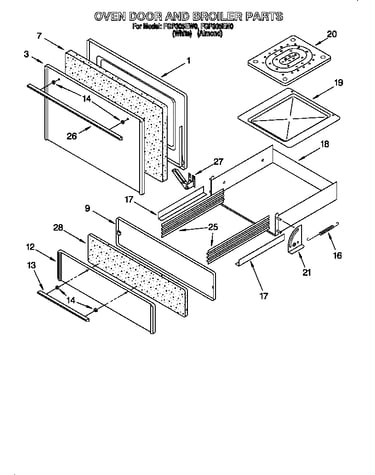

Oven door and broiler diagram

Broiler pan

Part #4364064

The manufacturer no longer makes this part, and there's no substitute part

Handle Spacer 4364055
#14

Oven door and broiler diagram

Handle spacer

Part #4364055

The manufacturer no longer makes this part, and there's no substitute part

Grill, Broiler 4364065
#20

Oven door and broiler diagram

Grill, broiler

Part #4364065

The manufacturer no longer makes this part, and there's no substitute part

Ring, Oven Light 4364093
#41

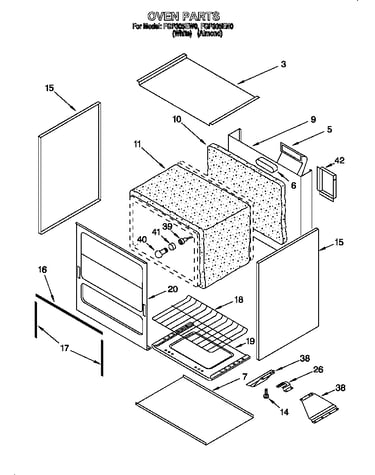

Oven diagram

Ring, oven light

Part #4364093

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin (2) 4364102
#3

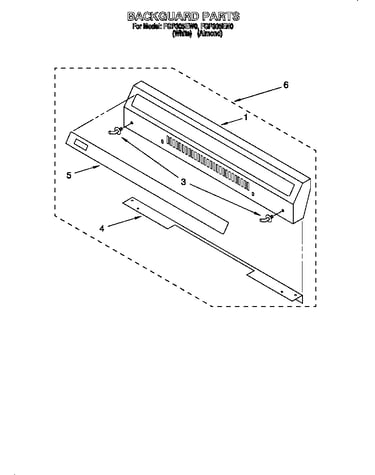

Backguard diagram

Hinge pin (2)

Part #4364102

The manufacturer no longer makes this part, and there's no substitute part

Bolt, Thermostat 4364167
#31

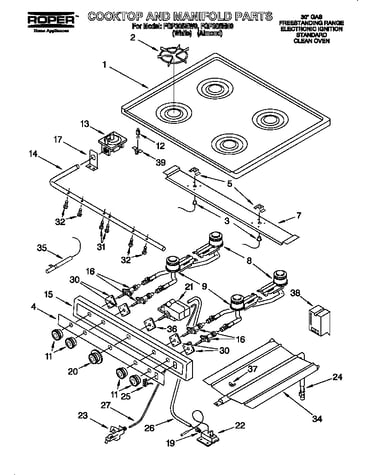

Cooktop and manifold diagram

Bolt, thermostat

Part #4364167

The manufacturer no longer makes this part, and there's no substitute part

Support, Side, Left 4364089
#38A

Oven diagram

Support, side, left

Part #4364089

The manufacturer no longer makes this part, and there's no substitute part

Liner, Brlr Drawer 4364122
#9

Oven door and broiler diagram

Liner, brlr drawer

Part #4364122

The manufacturer no longer makes this part, and there's no substitute part

Oven Bottom 4364086
#19

Oven diagram

Oven bottom

Part #4364086

The manufacturer no longer makes this part, and there's no substitute part

Box, Power 4364094
#42

Oven diagram

Box, power

Part #4364094

The manufacturer no longer makes this part, and there's no substitute part
