Model # LDC22720SW/00 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LDC22720SW-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Refrigerator Drier Assembly 5851JJ2002F
#317A

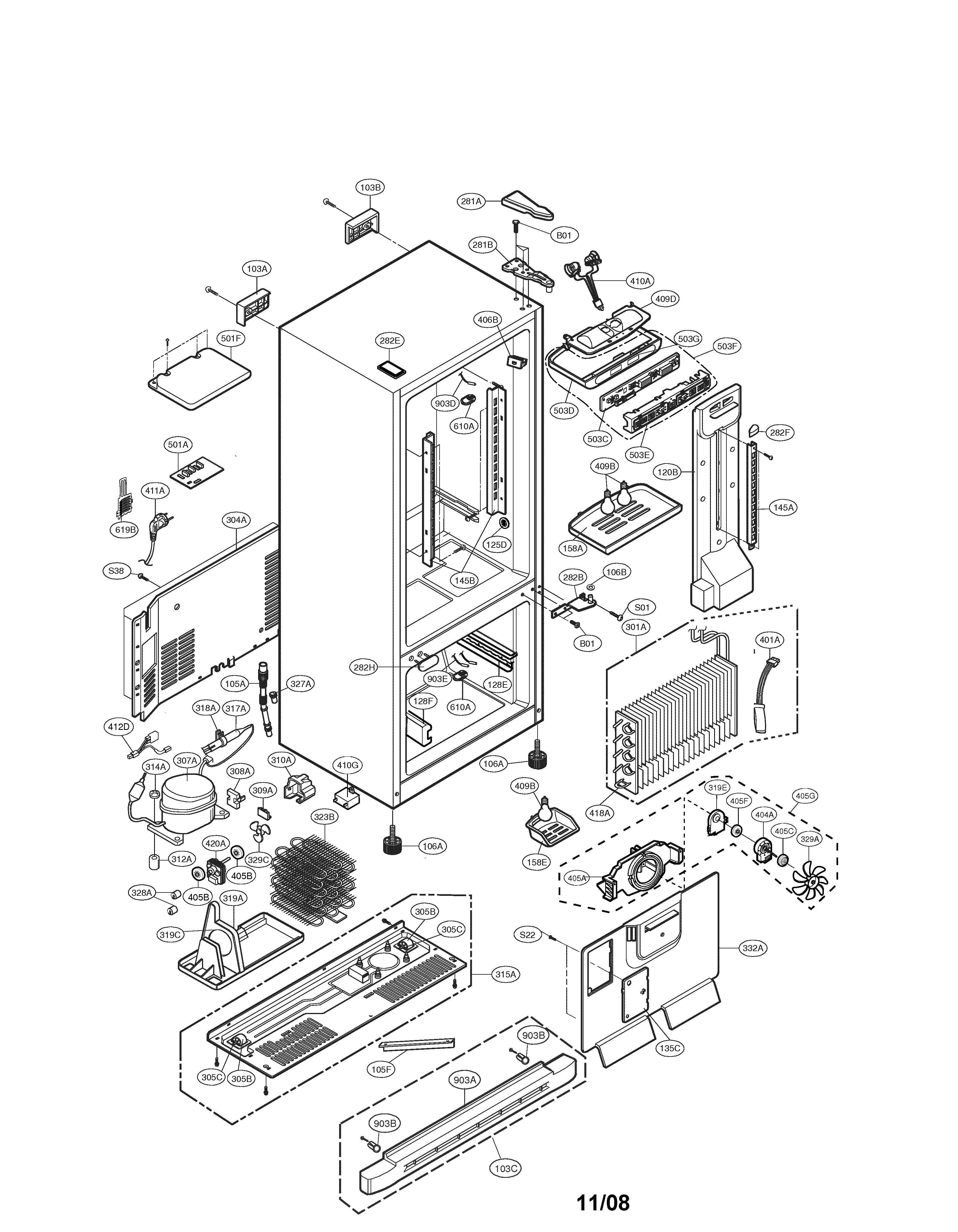

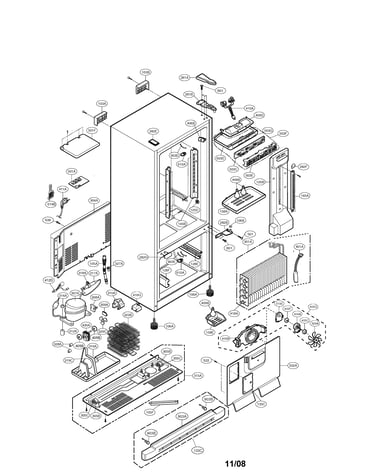

Case diagram

Refrigerator drier assembly

Part #5851JJ2002F

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JJ2002F. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Refrigerator Door Push-button Switch 6600JB1004A
#406B

Case diagram

Refrigerator door push-button switch

Part #6600JB1004A

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1004A. Substitute parts can look different from the original.
BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Door Hinge Bushing 4984JJ3003A
#286A

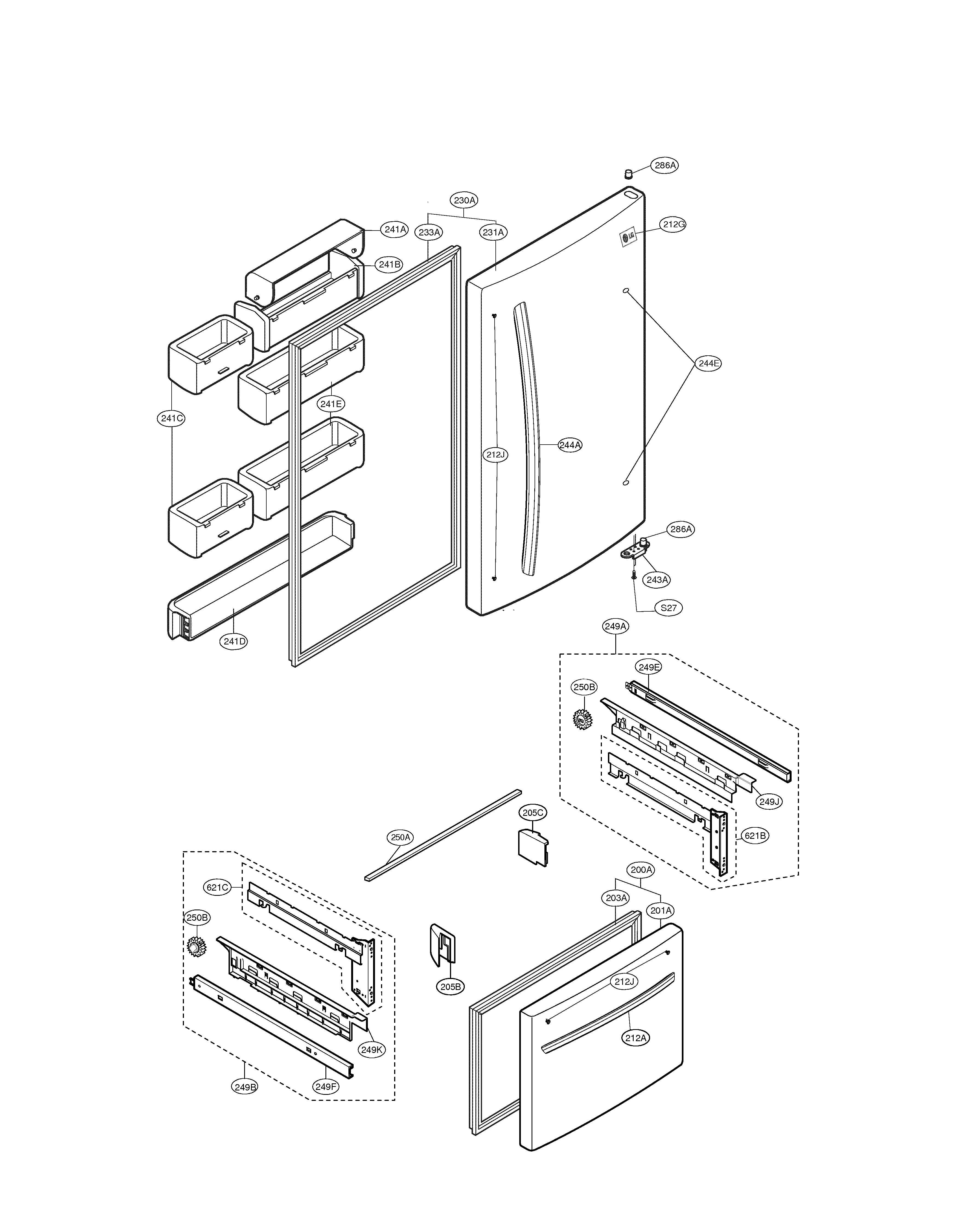

Doors diagram

Refrigerator door hinge bushing

Part #4984JJ3003A

BEST SELLER
$11.62 |
15% OFF Phone Price : $13.62
In Stock
Refrigerator Drawer Track 4975JJ2028D
#145F

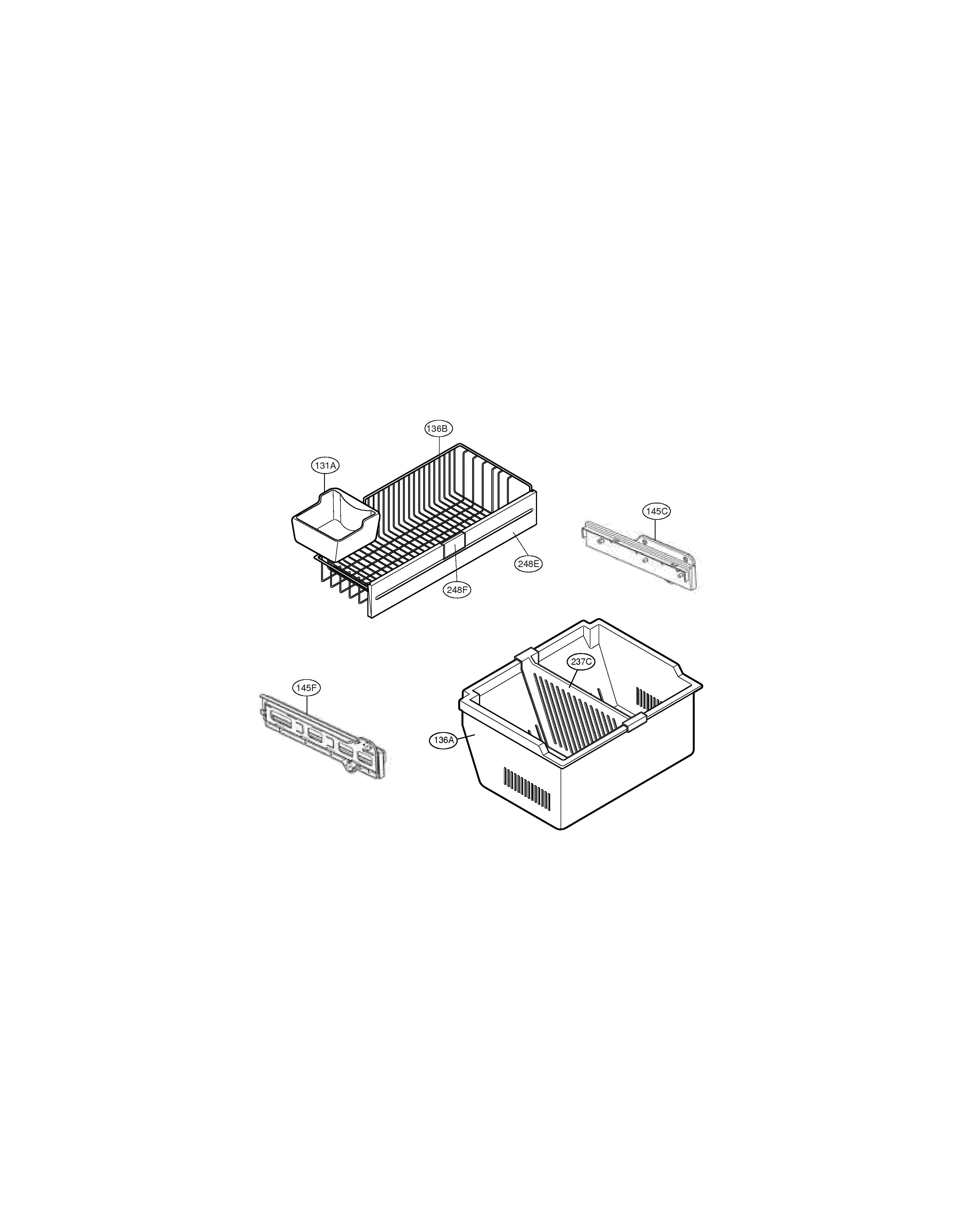

Freezer diagram

Refrigerator drawer track

Part #4975JJ2028D

BEST SELLER
$84.91 |
7% OFF Phone Price : $90.91
In Stock
Refrigerator Air Damper Motor 4681JK1004A
#404A

Case diagram

Refrigerator air damper motor

Part #4681JK1004A

Replaced by #4681JB1029H

?
Manufacturer substitution
This part replaces 4681JK1004A. Substitute parts can look different from the original.
BEST SELLER
$76.72 |
7% OFF Phone Price : $82.72
In Stock
Refrigerator Water Valve AJU55759301
#619C

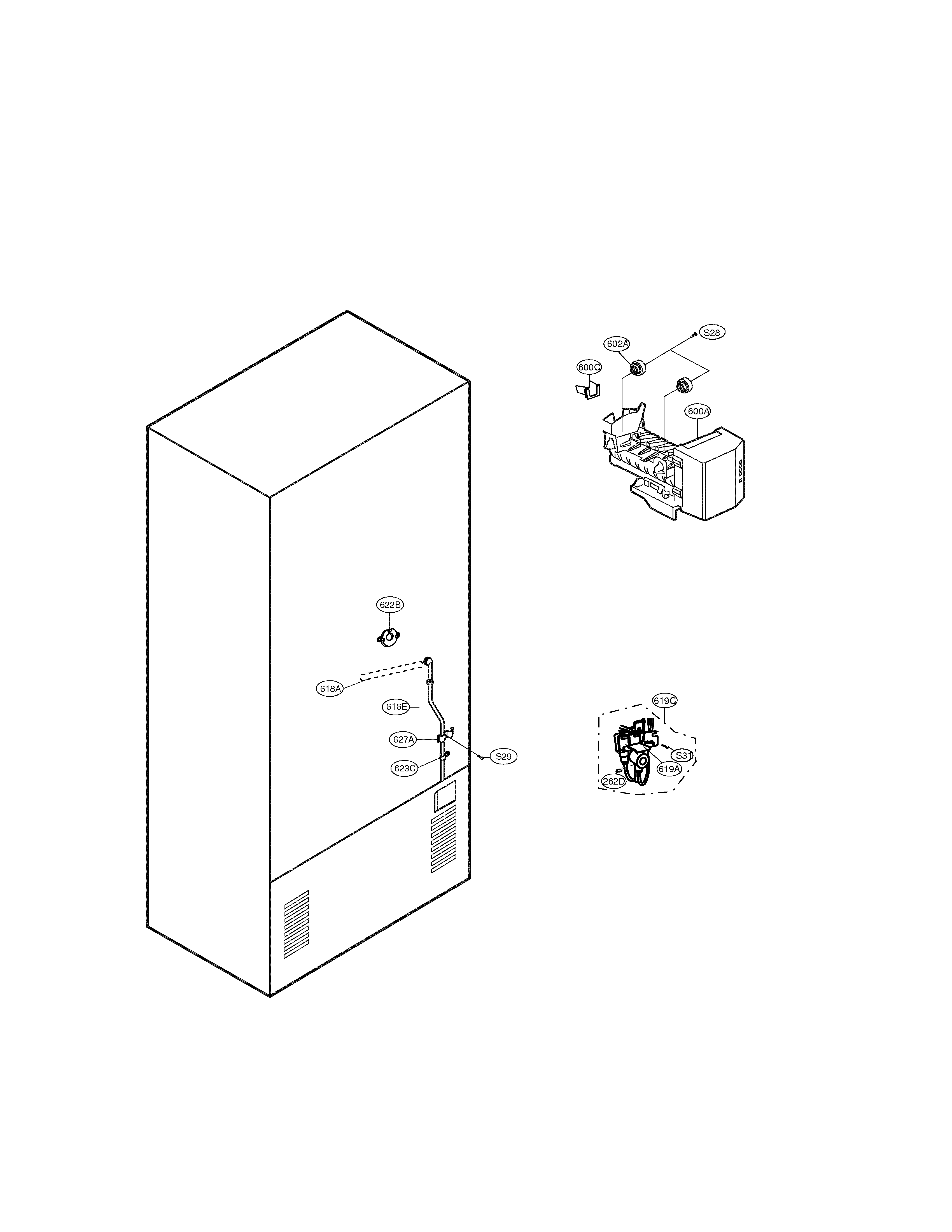

Ice maker diagram
