Gas Line Trimmer

Model # RY30000 Official Ryobi trimmer

Here are the diagrams and repair parts for Official Ryobi RY30000 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Spacer PS05267
#33

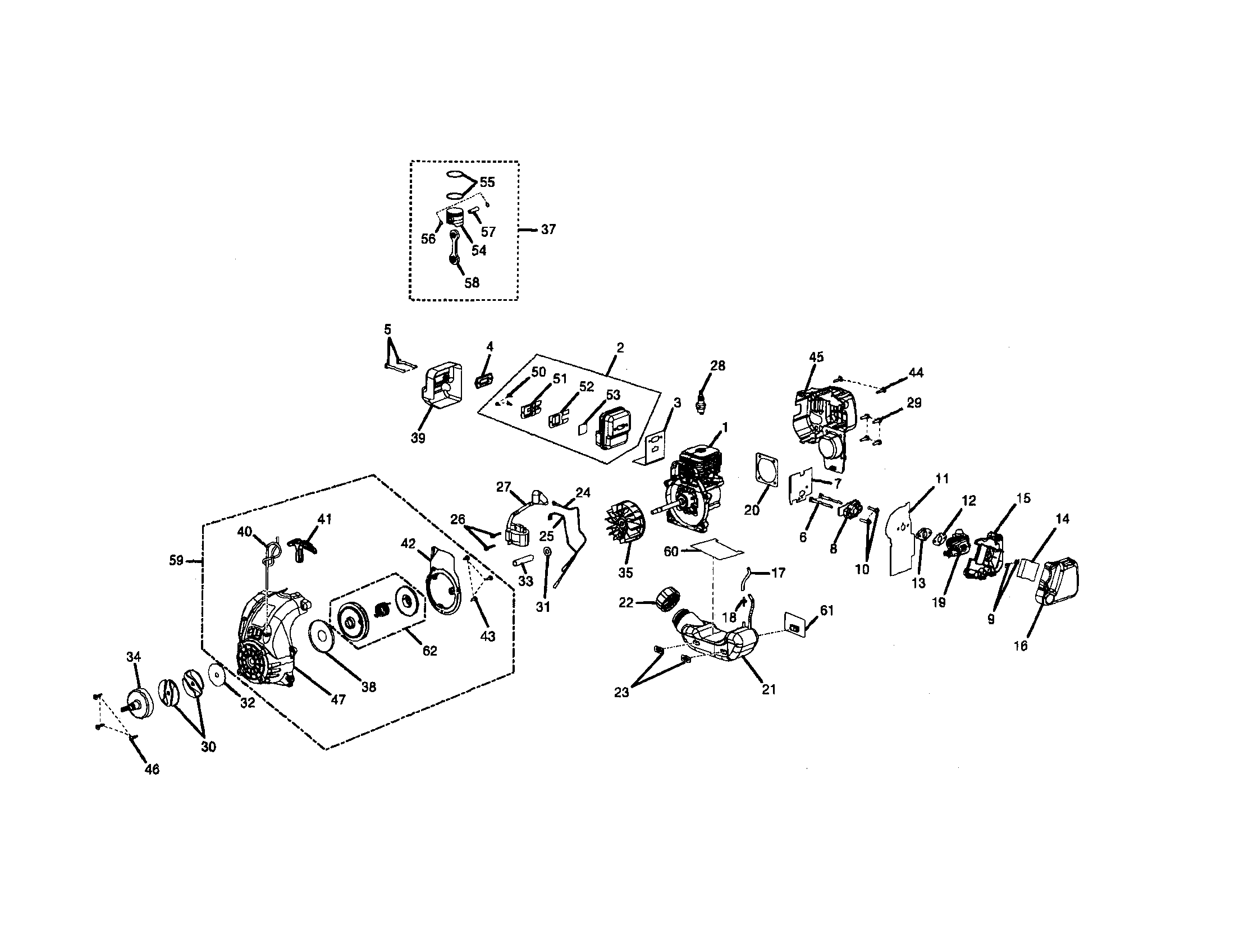

Ignition/carburetor/muffler diagram

Spacer

Part #PS05267

The manufacturer no longer makes this part, and there's no substitute part

Shield 985623002
#4

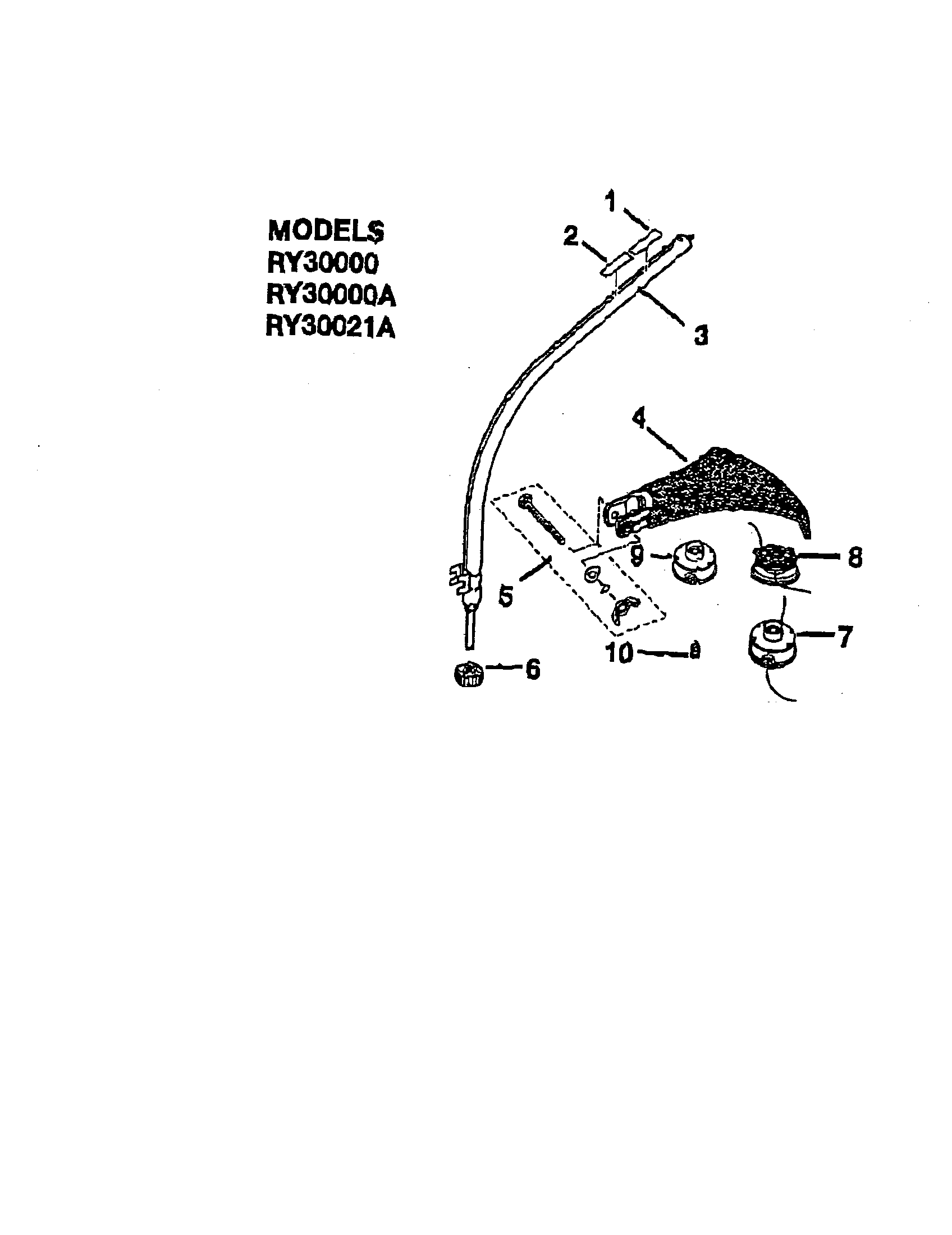

Curved shaft assembly diagram

Shield

Part #985623002

The manufacturer no longer makes this part, and there's no substitute part

Screw 82540
#26

Ignition/carburetor/muffler diagram

Screw

Part #82540

The manufacturer no longer makes this part, and there's no substitute part

Handle PS01125
#4

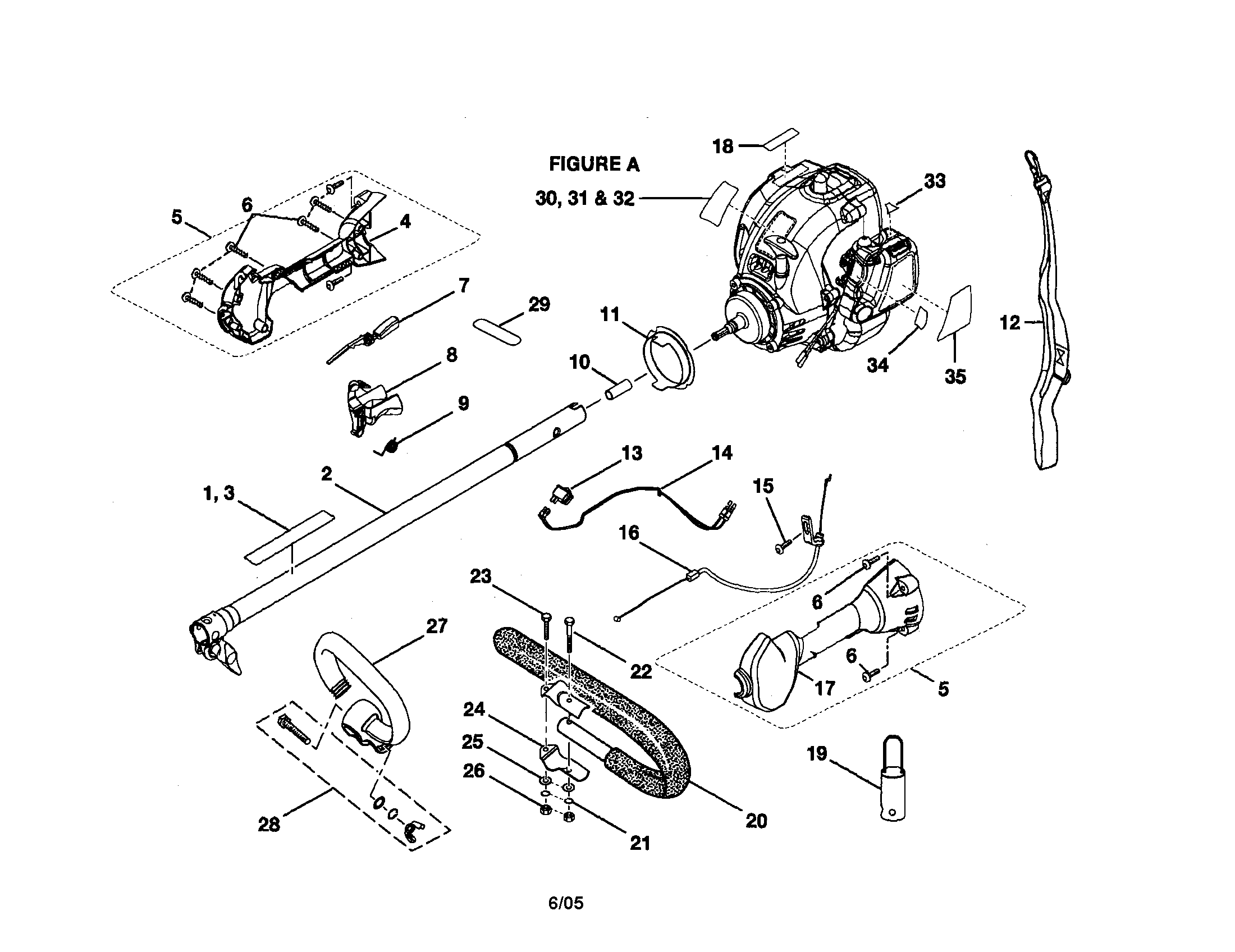

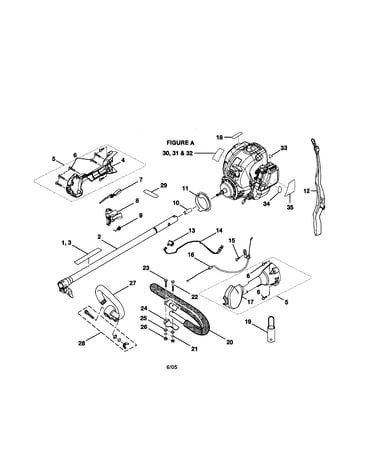

Boom and handle assembly diagram

Handle

Part #PS01125

The manufacturer no longer makes this part, and there's no substitute part

Switch 07385
#13A

Boom and handle assembly diagram

Switch

Part #07385

The manufacturer no longer makes this part, and there's no substitute part

Tri Arc Blade 06297
#7

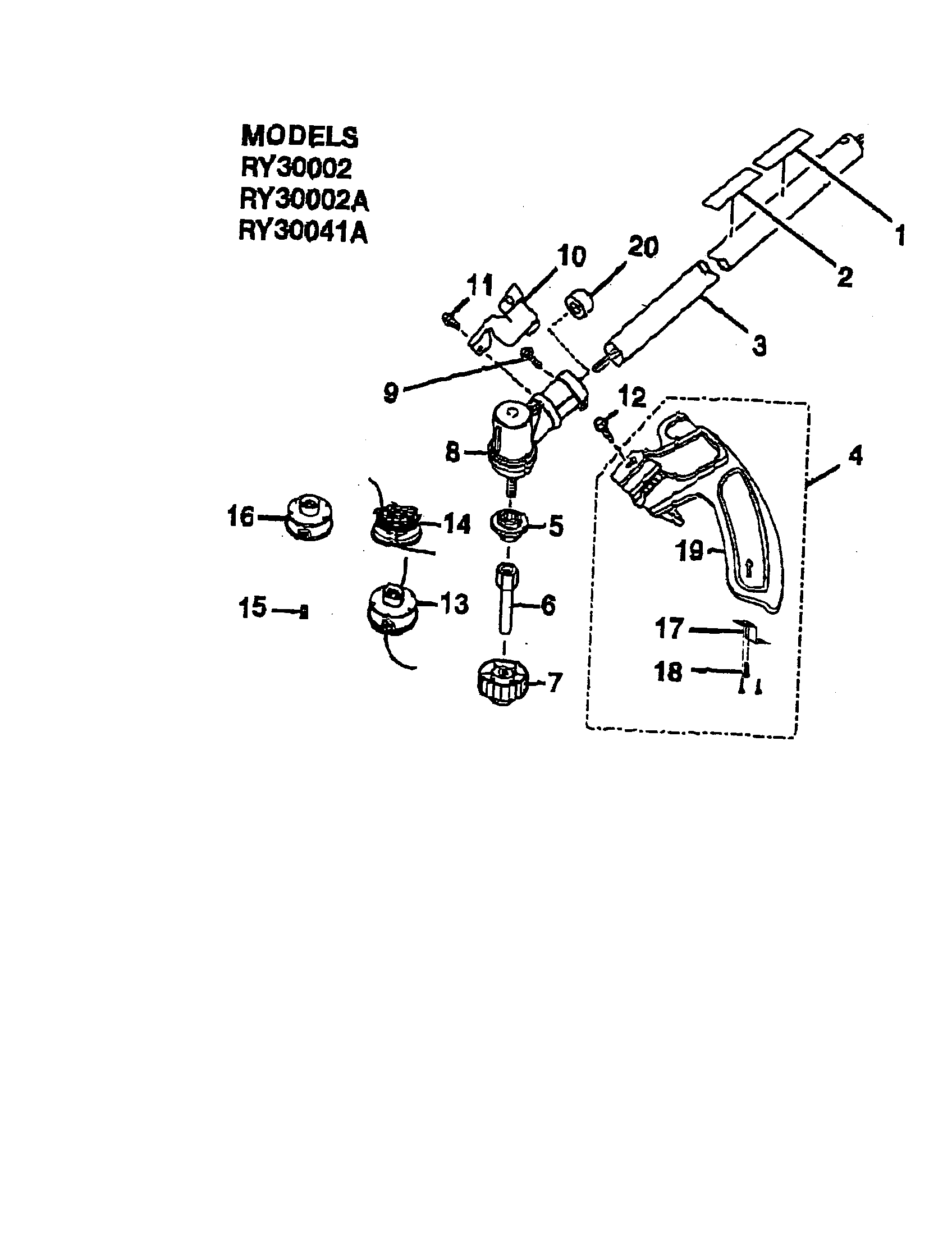

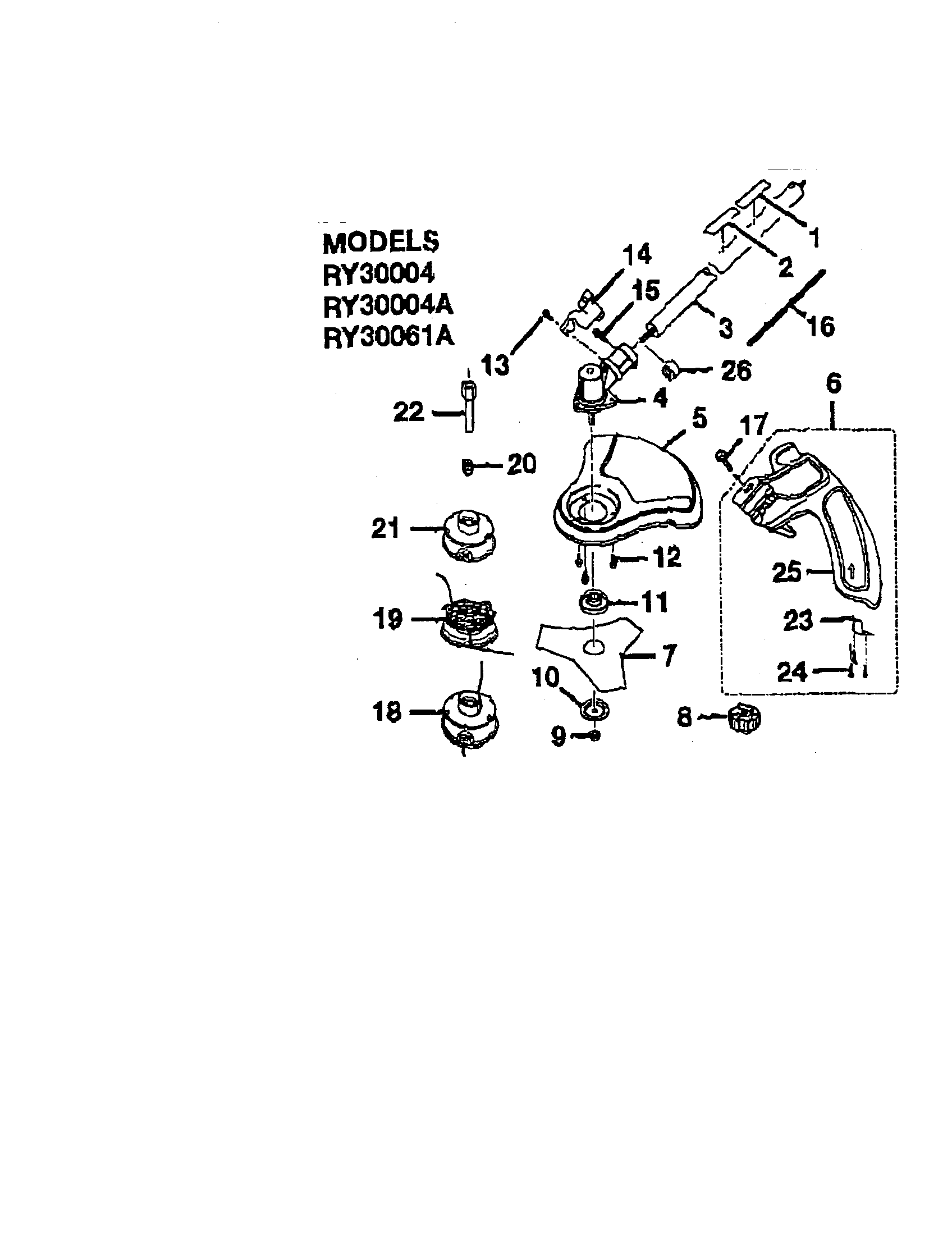

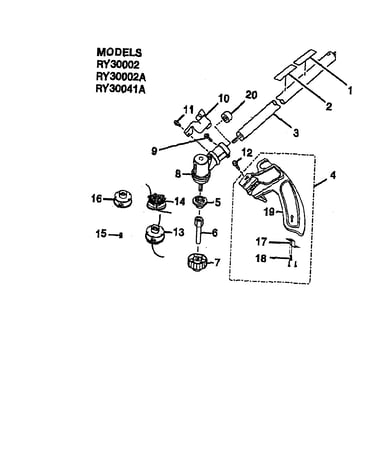

Straight shaft assembly diagram

Tri arc blade

Part #06297

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Screw 82278
#22

Boom and handle assembly diagram

Line trimmer screw

Part #82278

The manufacturer no longer makes this part, and there's no substitute part

Screw 88049
#12

Straight shaft assembly diagram

Screw

Part #88049

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Carburetor Gasket 9074002
#11

Ignition/carburetor/muffler diagram

Line trimmer carburetor gasket

Part #9074002

The manufacturer no longer makes this part, and there's no substitute part

Starting 985592001
#35

Boom and handle assembly diagram

Starting

Part #985592001

The manufacturer no longer makes this part, and there's no substitute part
