Kenmore
Electric Wall Oven

Model # 21335(1988) Official Kenmore electric wall oven

Here are the diagrams and repair parts for Official Kenmore 213351988 electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

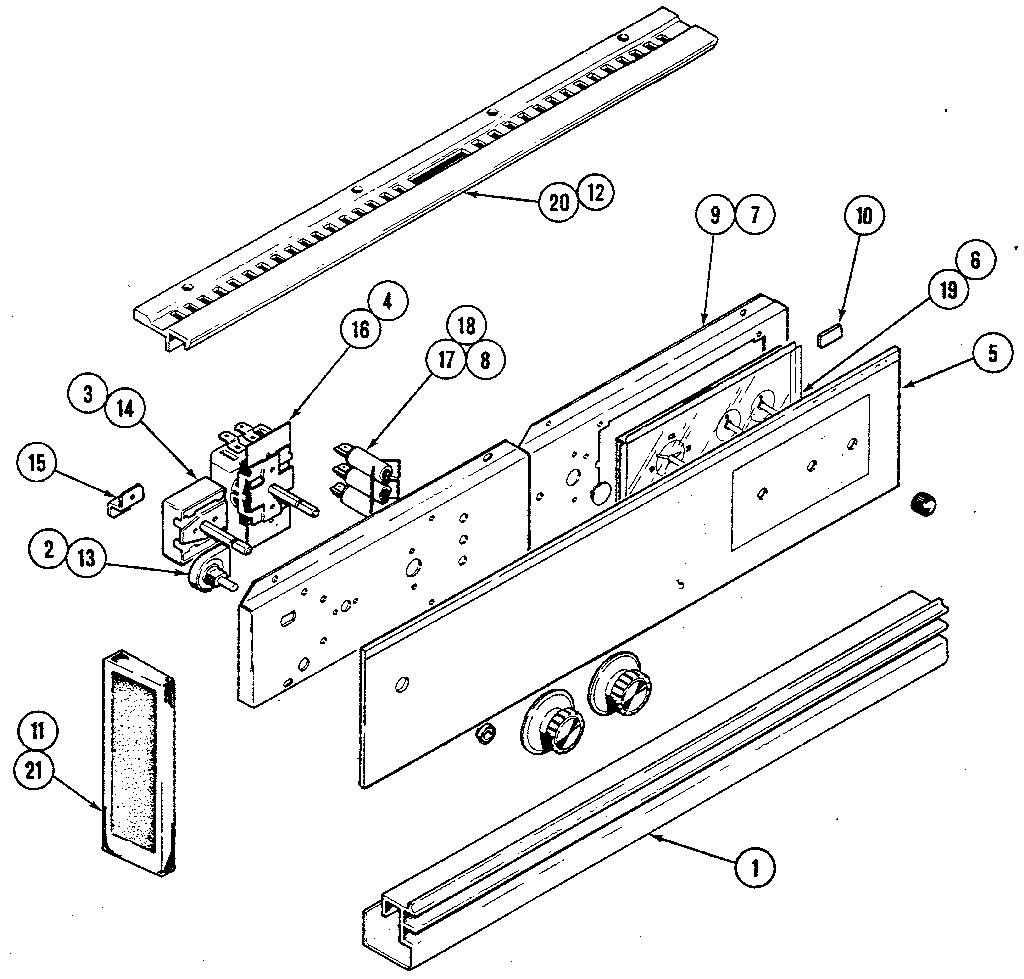

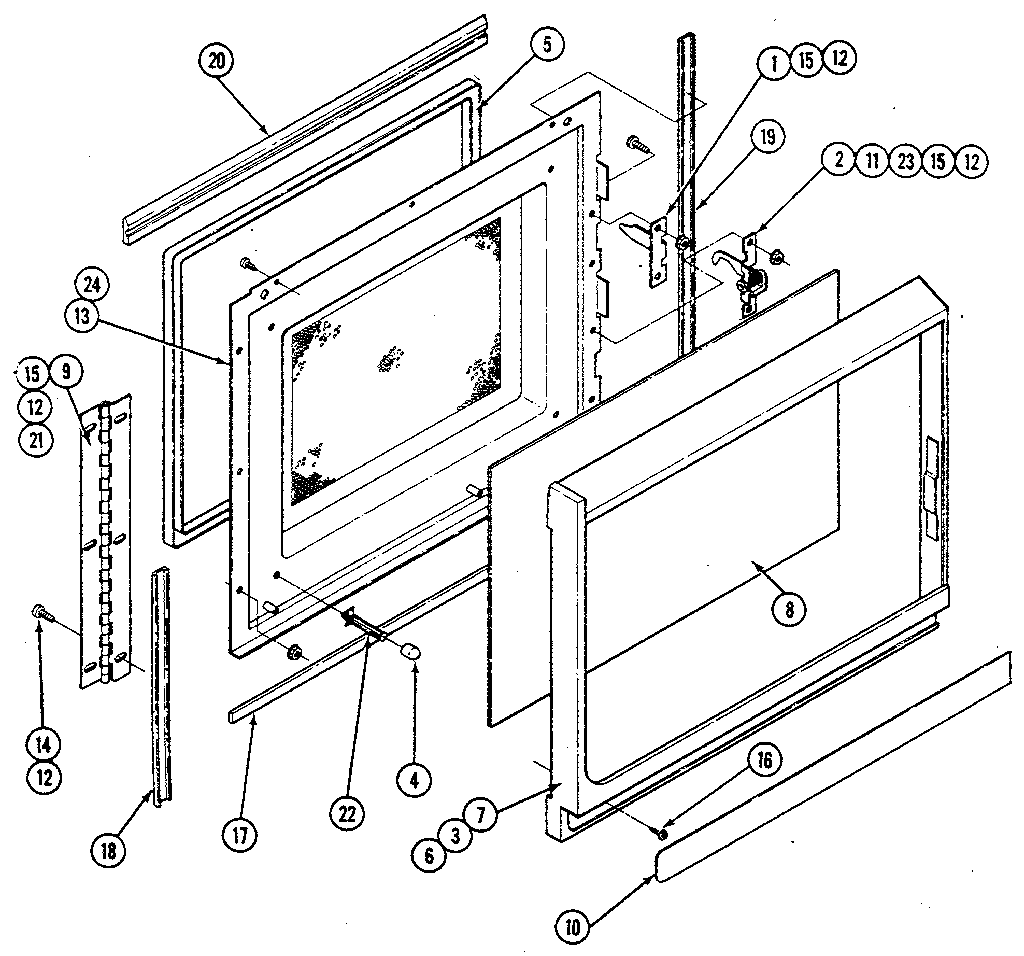

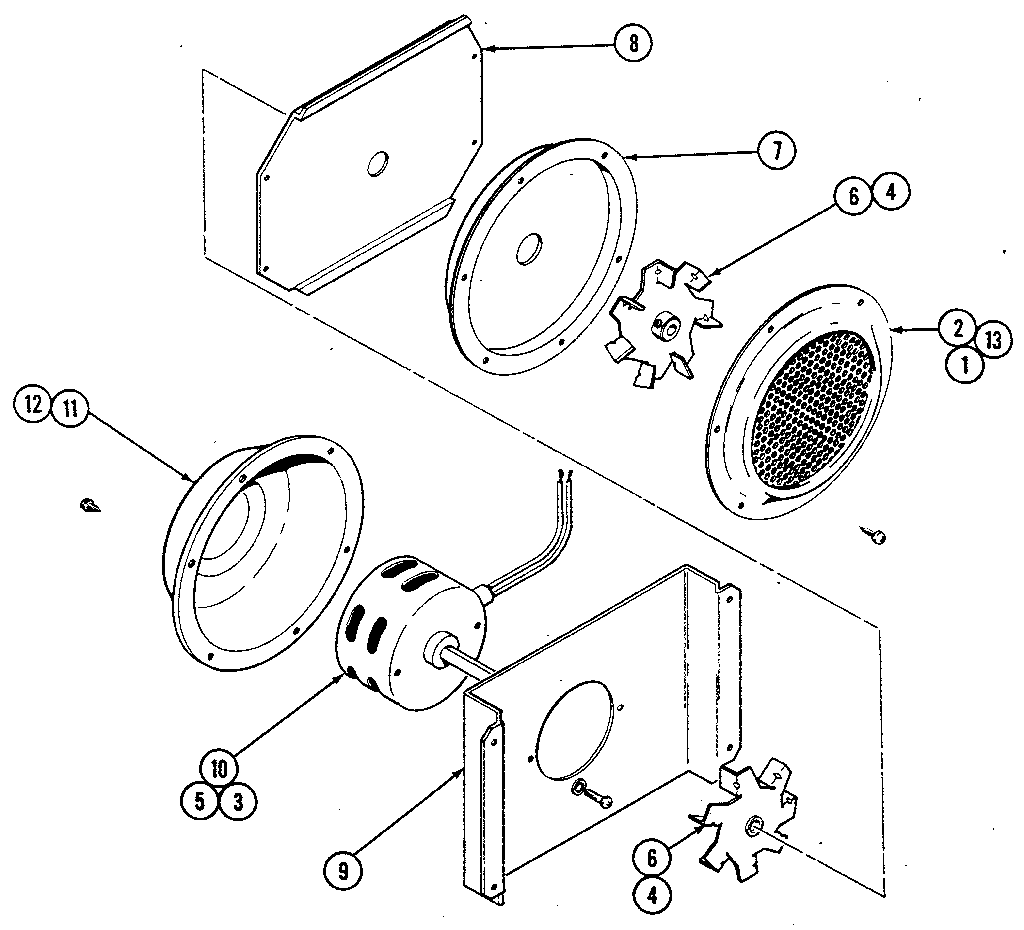

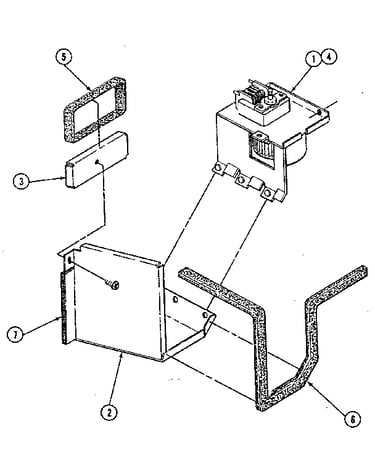

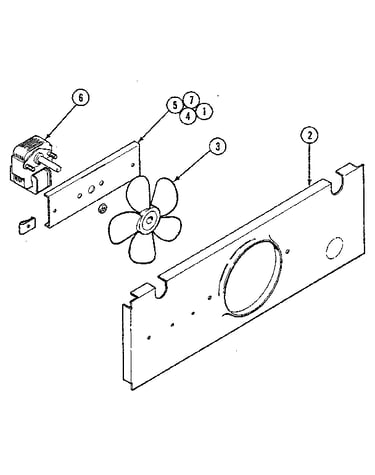

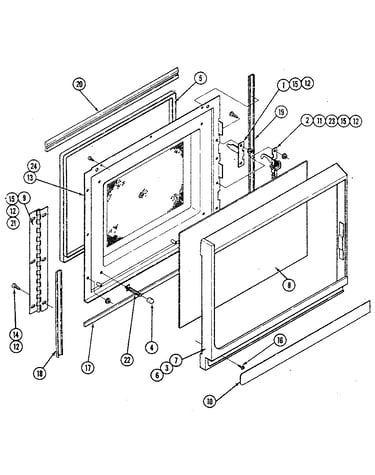

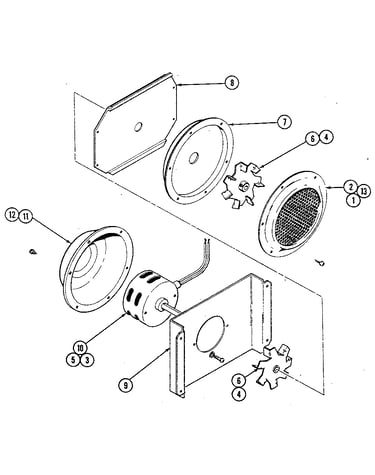

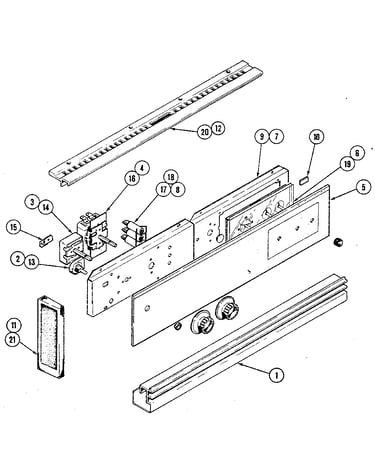

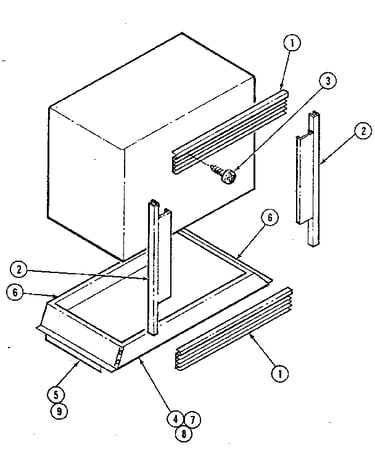

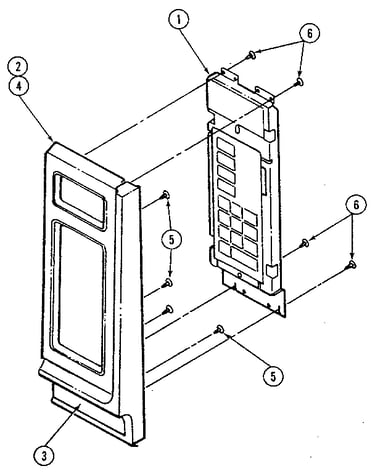

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 248 parts  |
Screw 790154
#20

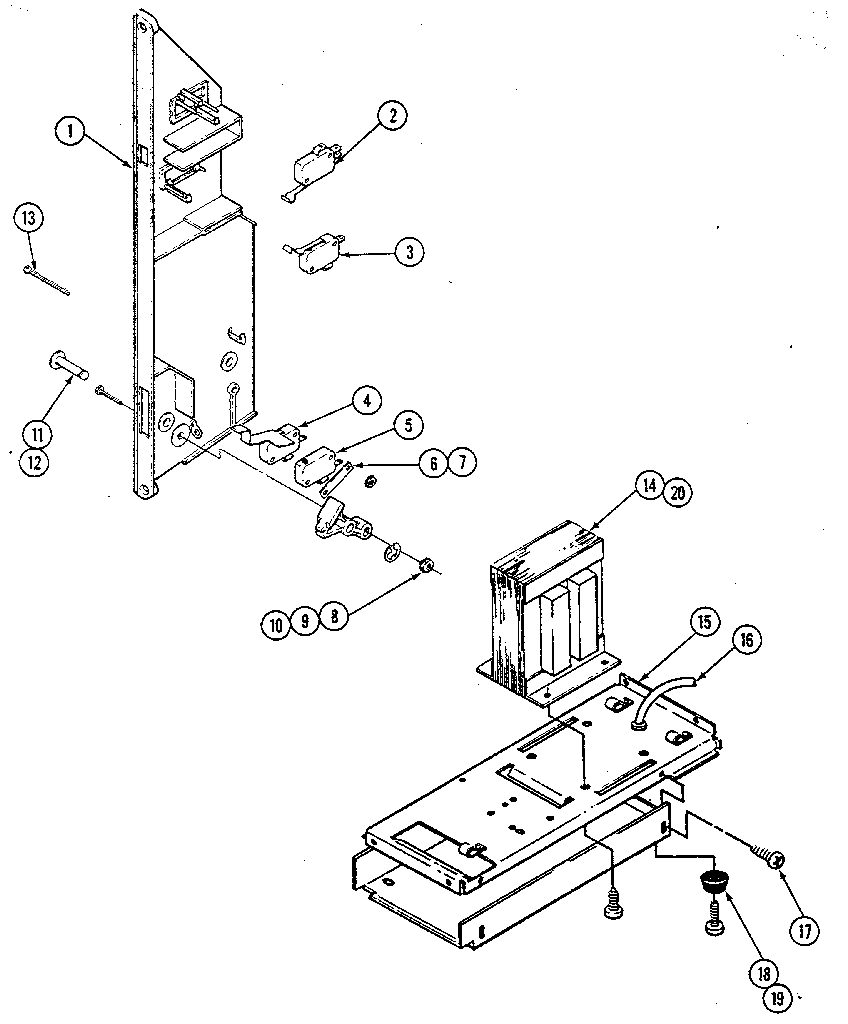

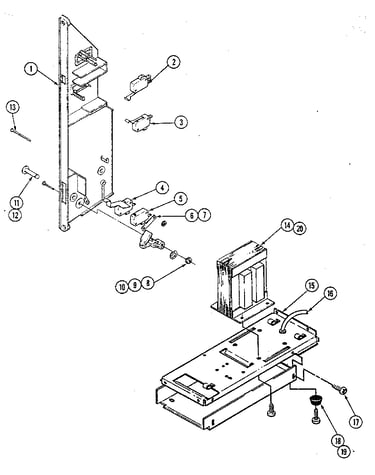

Internal controls - upper oven diagram

Screw

Part #790154

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 790154. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Keps Nut 712089
#29

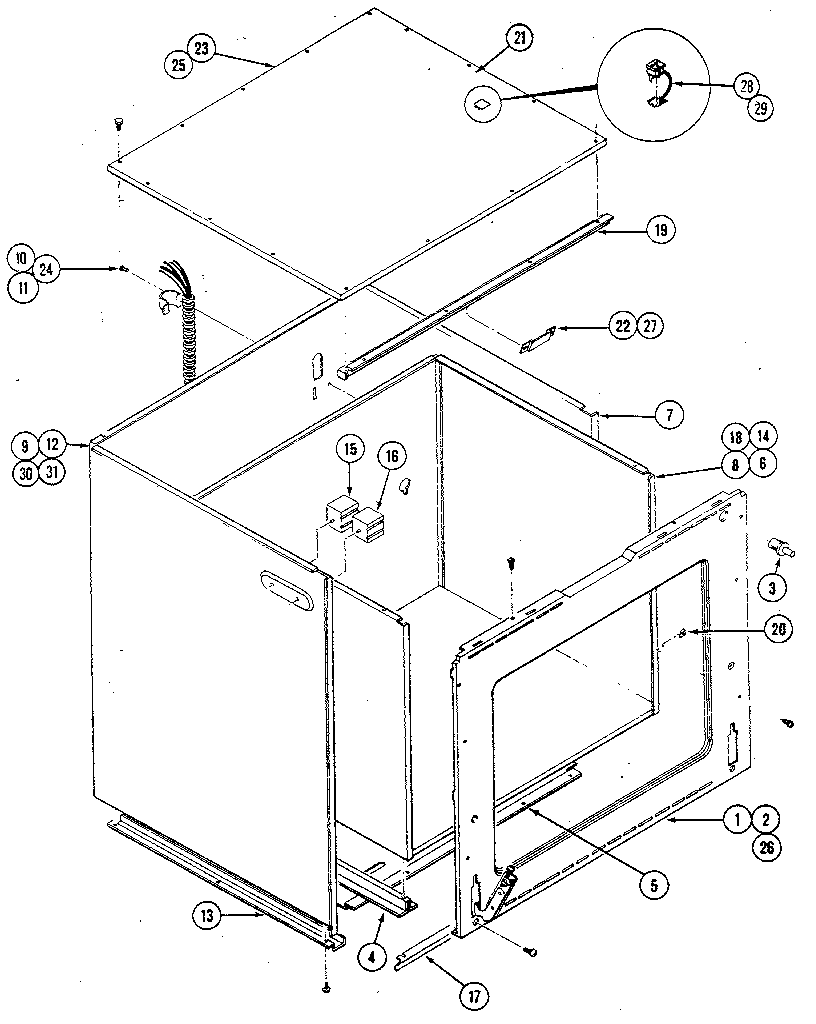

Lower oven - body diagram

Keps nut

Part #712089

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 712089. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 704238
#9

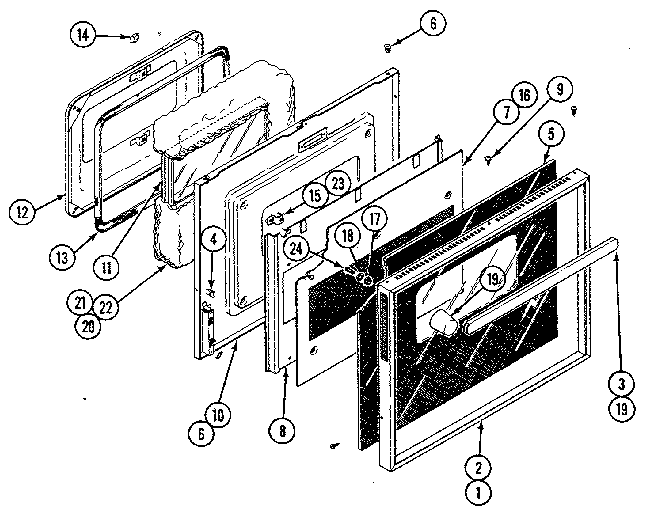

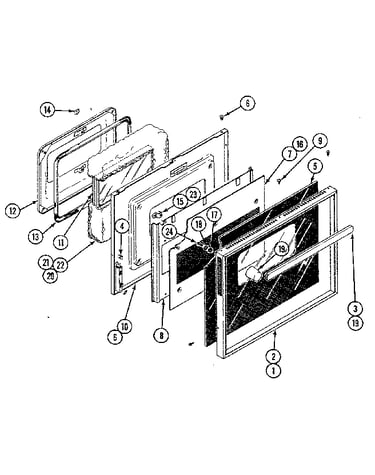

Door - lower oven diagram

Screw

Part #704238

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 704238. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 703958
#23

Door - lower oven diagram

Screw

Part #703958

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 703958. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 707172
#11

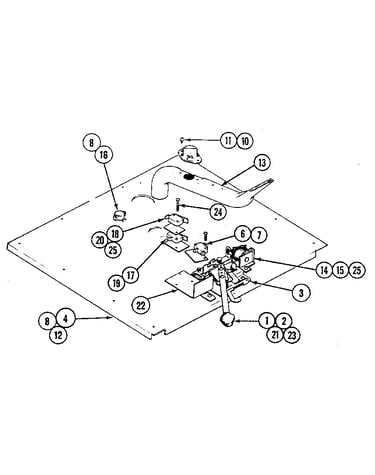

Internal controls - lower oven diagram

Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Broil Element 701729
#6

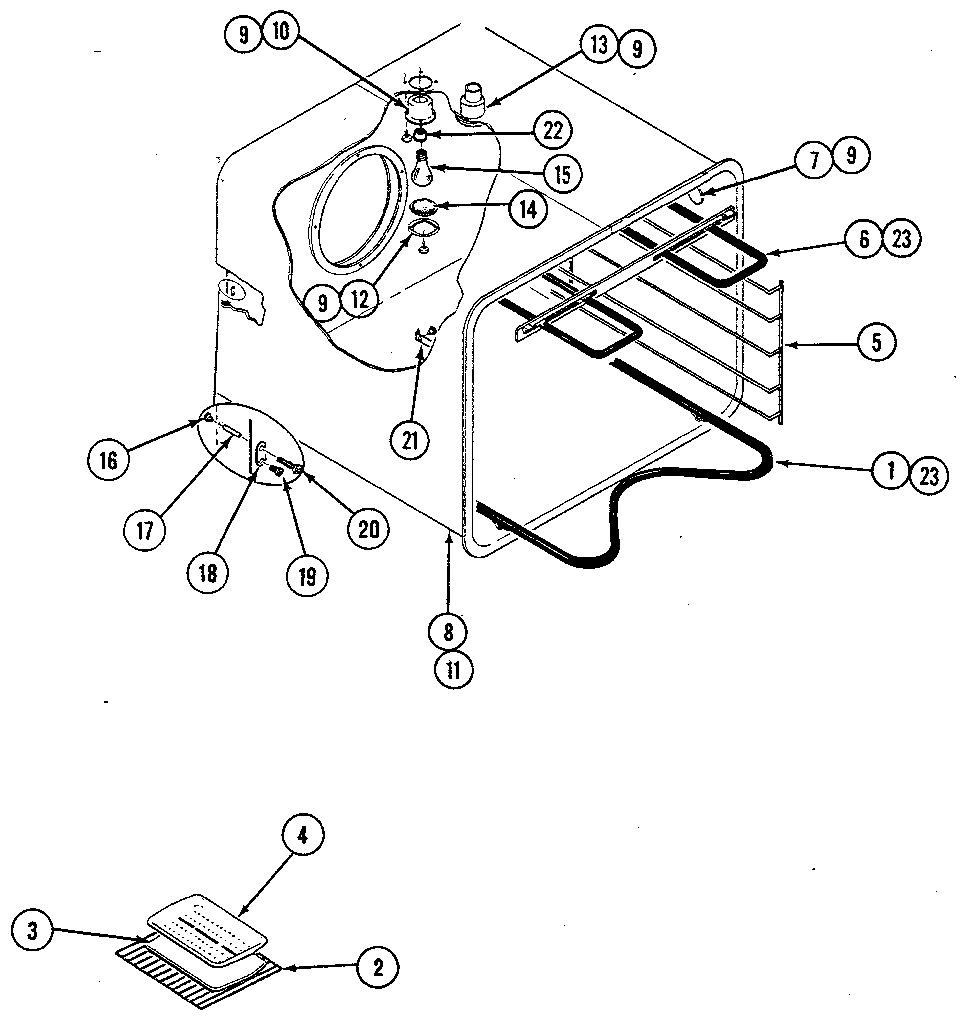

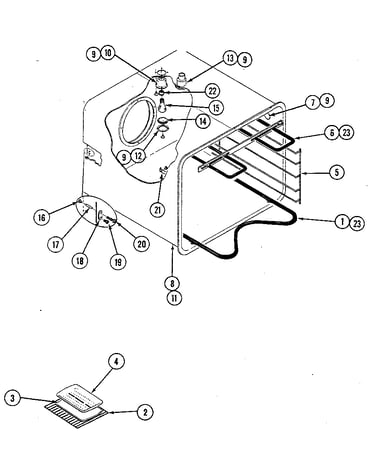

Lower oven - liner diagram

Broil element

Part #701729

Replaced by #WPY04100016

?
Manufacturer substitution
This part replaces 701729. Substitute parts can look different from the original.
$69.99 |
8% OFF Phone Price : $75.99
In Stock
Screw 712087
#19

Lower oven - liner diagram

Screw

Part #712087

Replaced by #WP71001171

?
Manufacturer substitution
This part replaces 712087. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 790163
#2

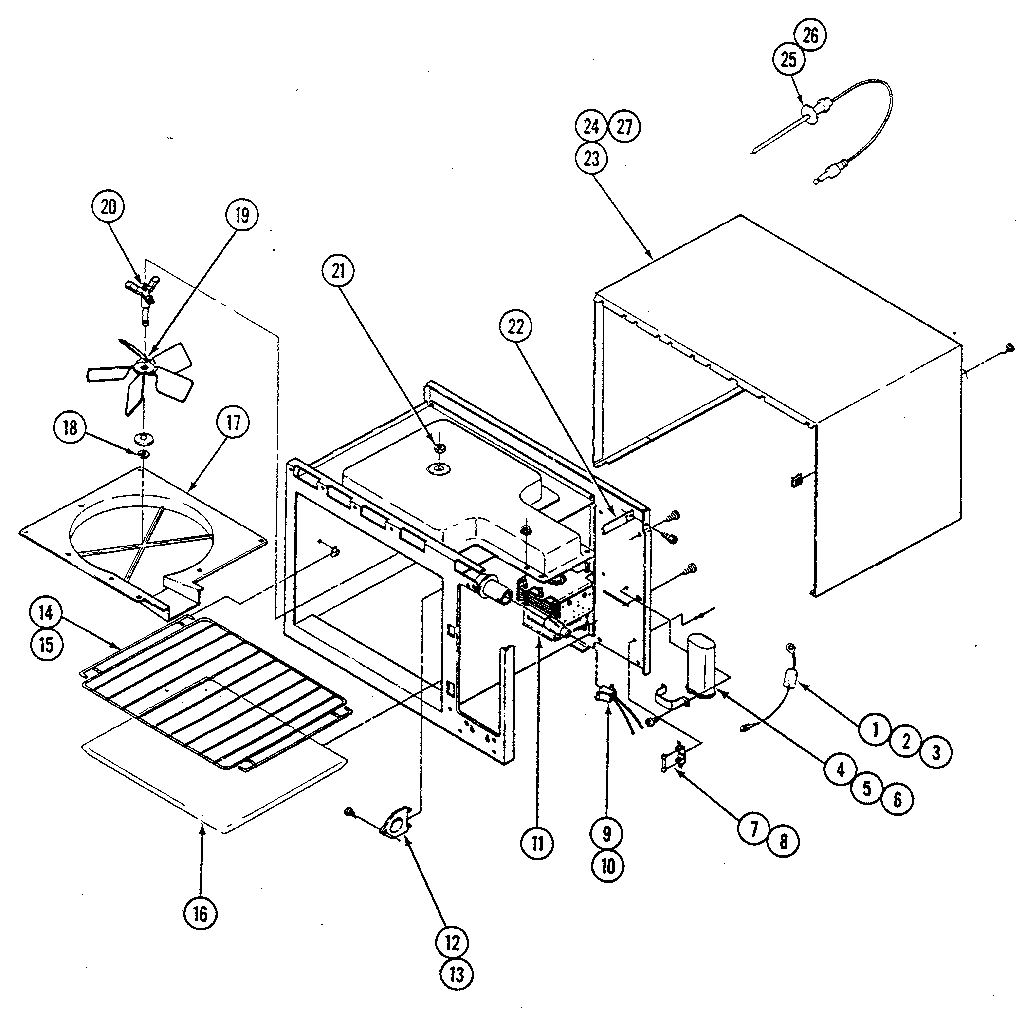

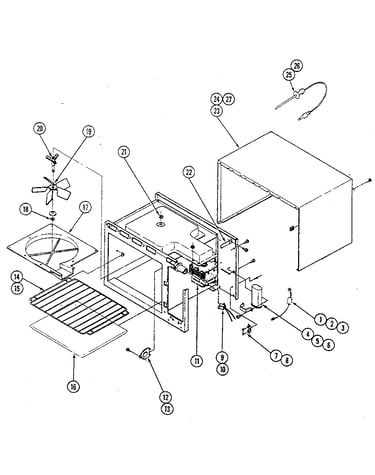

Upper oven - body/liner diagram

Screw

Part #790163

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 790163. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Screw 708310
#24

Lower oven - body diagram

Screw

Part #708310

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 708310. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Window 701648
#11

Door - lower oven diagram

Window

Part #701648

Replaced by #WP5700M600-60

?
Manufacturer substitution
This part replaces 701648. Substitute parts can look different from the original.
$313.68 |
$12.00 OFF Phone Price : $325.68
In Stock
