Kenmore
Refrigerator

Model # 2536688001 Official Kenmore 18.0 cubic foot coldspot refrigerator

Here are the diagrams and repair parts for Official Kenmore 2536688001 18.0 cubic foot coldspot refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Drier 133132
#41

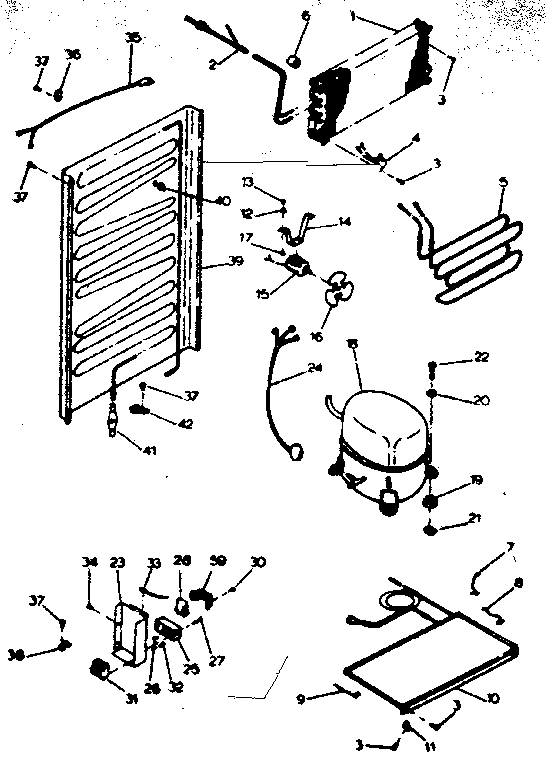

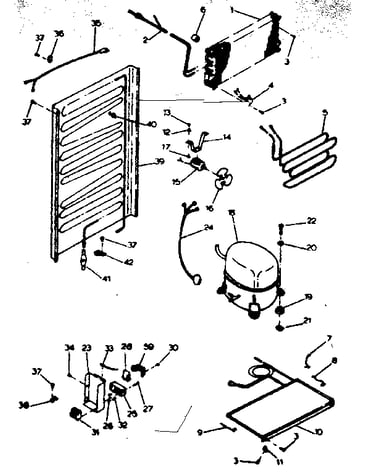

Unit parts diagram

Drier

Part #133132

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 133132. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Bulb 25806
#95

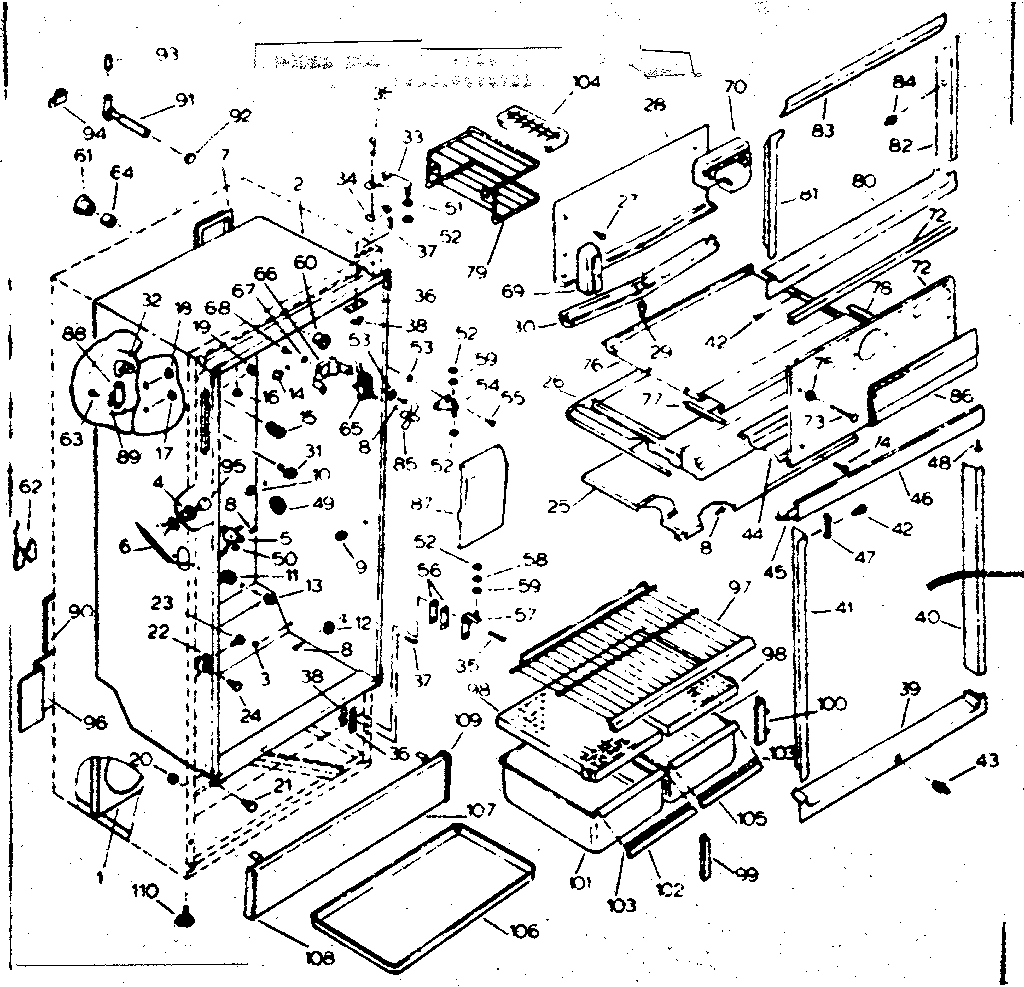

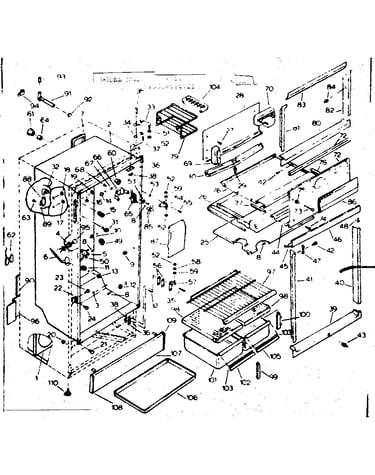

Cabinet parts diagram

Bulb

Part #25806

Replaced by #40A15

?
Manufacturer substitution
This part replaces 25806. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Barrier 131902
#6

Cabinet parts diagram

Refrigerator barrier

Part #131902

Replaced by #5303916855

?
Manufacturer substitution
This part replaces 131902. Substitute parts can look different from the original.
$47.89 |
11% OFF Phone Price : $53.89
In Stock
Refrigerator Capacitor 136467
#28

Unit parts diagram

Refrigerator capacitor

Part #136467

Replaced by #12907

?
Manufacturer substitution
This part replaces 136467. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Refrigerator Ice Tray 108179
#104

Cabinet parts diagram

Refrigerator ice tray

Part #108179

Replaced by #215667501

?
Manufacturer substitution
This part replaces 108179. Substitute parts can look different from the original.
This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
Refrigerator Screw 126779
#30

Unit parts diagram

Refrigerator screw

Part #126779

$12.01
In Stock
Refrigerator Clamp 88088
#42

Unit parts diagram

Refrigerator clamp

Part #88088

Replaced by #5308000133

?
Manufacturer substitution
This part replaces 88088. Substitute parts can look different from the original.
$11.20
In Stock
Screw 99167
#21

Cabinet parts diagram

Screw

Part #99167

Replaced by #241710601

?
Manufacturer substitution
This part replaces 99167. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Refrigerator Fan Blade 126599
#85

Cabinet parts diagram

Refrigerator fan blade

Part #126599

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 126599. Substitute parts can look different from the original.
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Washer 108333
#20

Unit parts diagram

Washer

Part #108333

Replaced by #5303209428

?
Manufacturer substitution
This part replaces 108333. Substitute parts can look different from the original.
$16.80
In Stock
