KitchenAid
Electric Wall Oven

Model # KEBS207YBL0 Official KitchenAid electric built-in double oven

Here are the diagrams and repair parts for Official KitchenAid KEBS207YBL0 electric built-in double oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

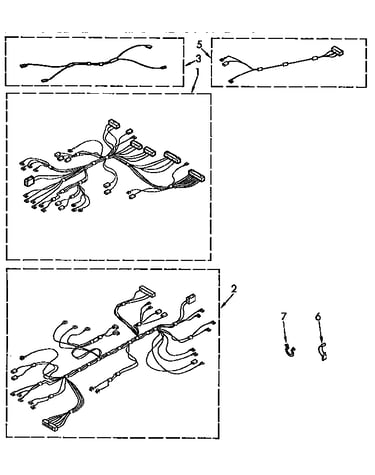

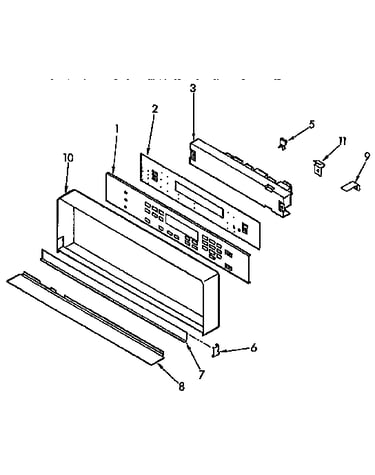

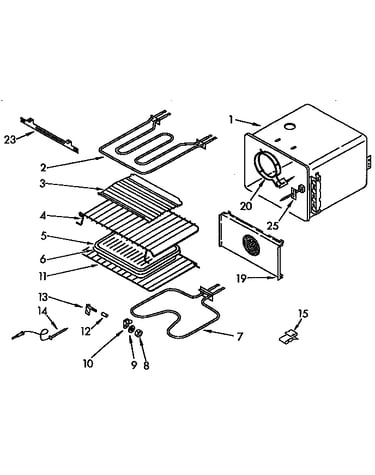

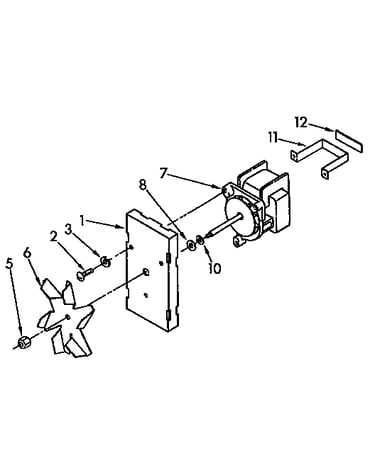

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Light Bulb 311255
Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw 3182346
#1A

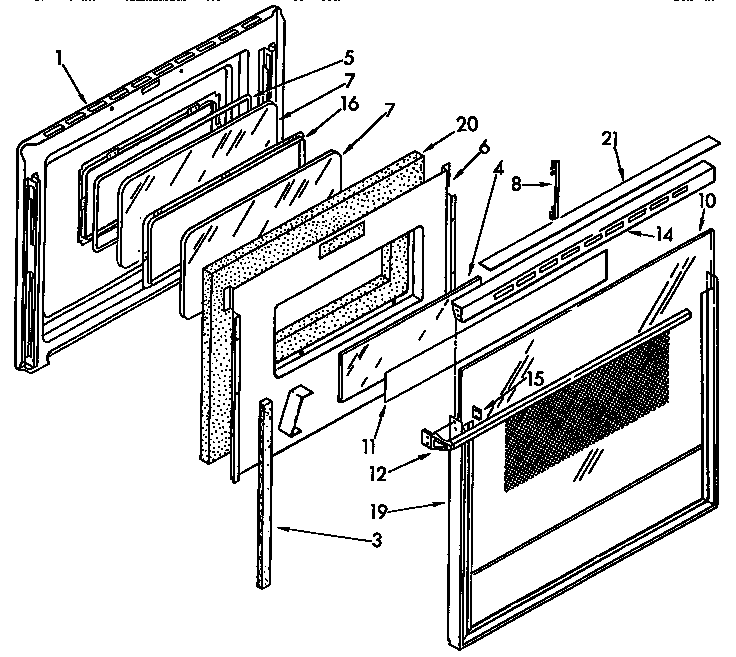

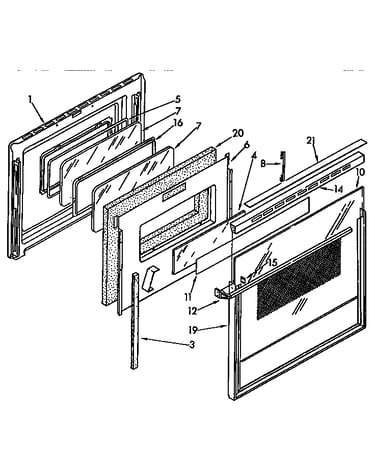

Upper and lower oven door diagram

Screw

Part #3182346

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 3182346. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 338156
#34D

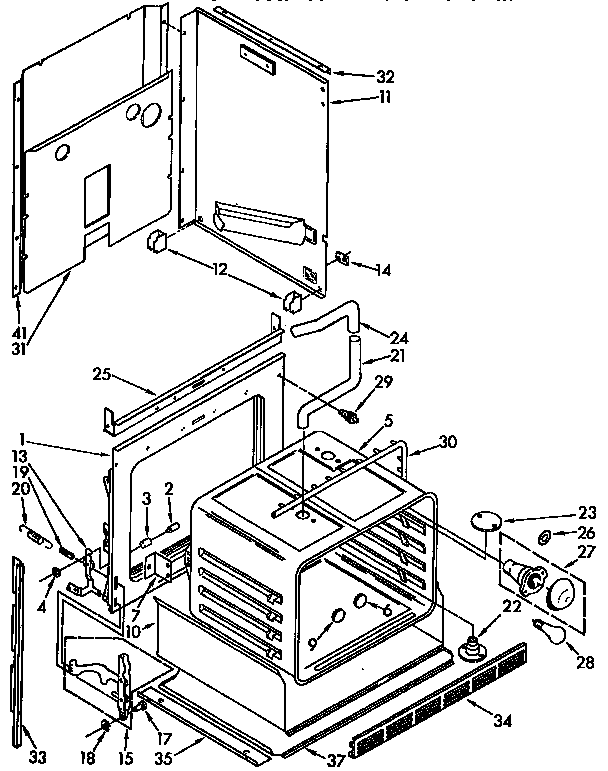

Lower oven diagram

Screw

Part #338156

Replaced by #WP488627

?
Manufacturer substitution
This part replaces 338156. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Wall Oven Door Inner Glass 3169203
#7

Upper and lower oven door diagram

Wall oven door inner glass

Part #3169203

Replaced by #WP3169203

?
Manufacturer substitution
This part replaces 3169203. Substitute parts can look different from the original.
$57.87 |
9% OFF Phone Price : $63.87
In Stock
Terminal Block 258076
#2

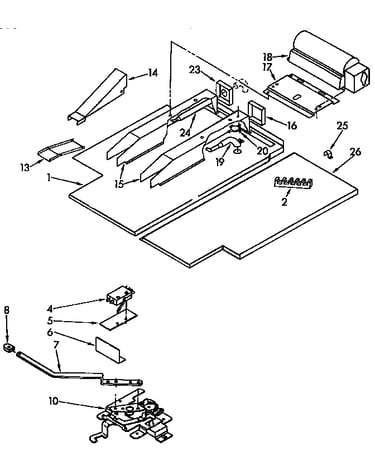

Vent and latch diagram

Terminal block

Part #258076

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 258076. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Range Screw 3177991
#17A

Vent and latch diagram

Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Nut 112432
#2B

Vent and latch diagram

Nut

Part #112432

Replaced by #WP112432

?
Manufacturer substitution
This part replaces 112432. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Range Oven Door Spring 308126
Range oven door spring

Part #308126

Replaced by #WP308126

?
Manufacturer substitution
This part replaces 308126. Substitute parts can look different from the original.
$20.24 |
23% OFF Phone Price : $26.24
In Stock
Hinge Pin 307986
Hinge pin

Part #307986

Replaced by #WP307986

?
Manufacturer substitution
This part replaces 307986. Substitute parts can look different from the original.
$8.42 |
11% OFF Phone Price : $9.42
In Stock
Screw 309133
#43B

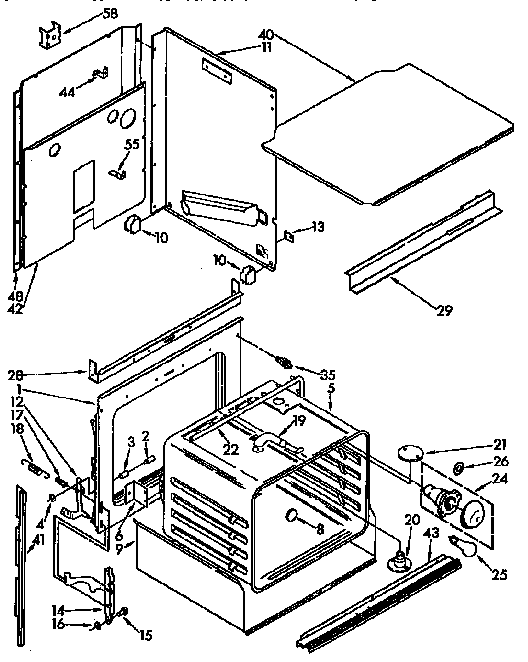

Upper oven diagram

Screw

Part #309133

This item is not returnable
$3.29
In Stock
