Model # KCPT72-9 Official Kelvinator pizza prep table

Here are the diagrams and repair parts for Official Kelvinator KCPT72-9 pizza prep table, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

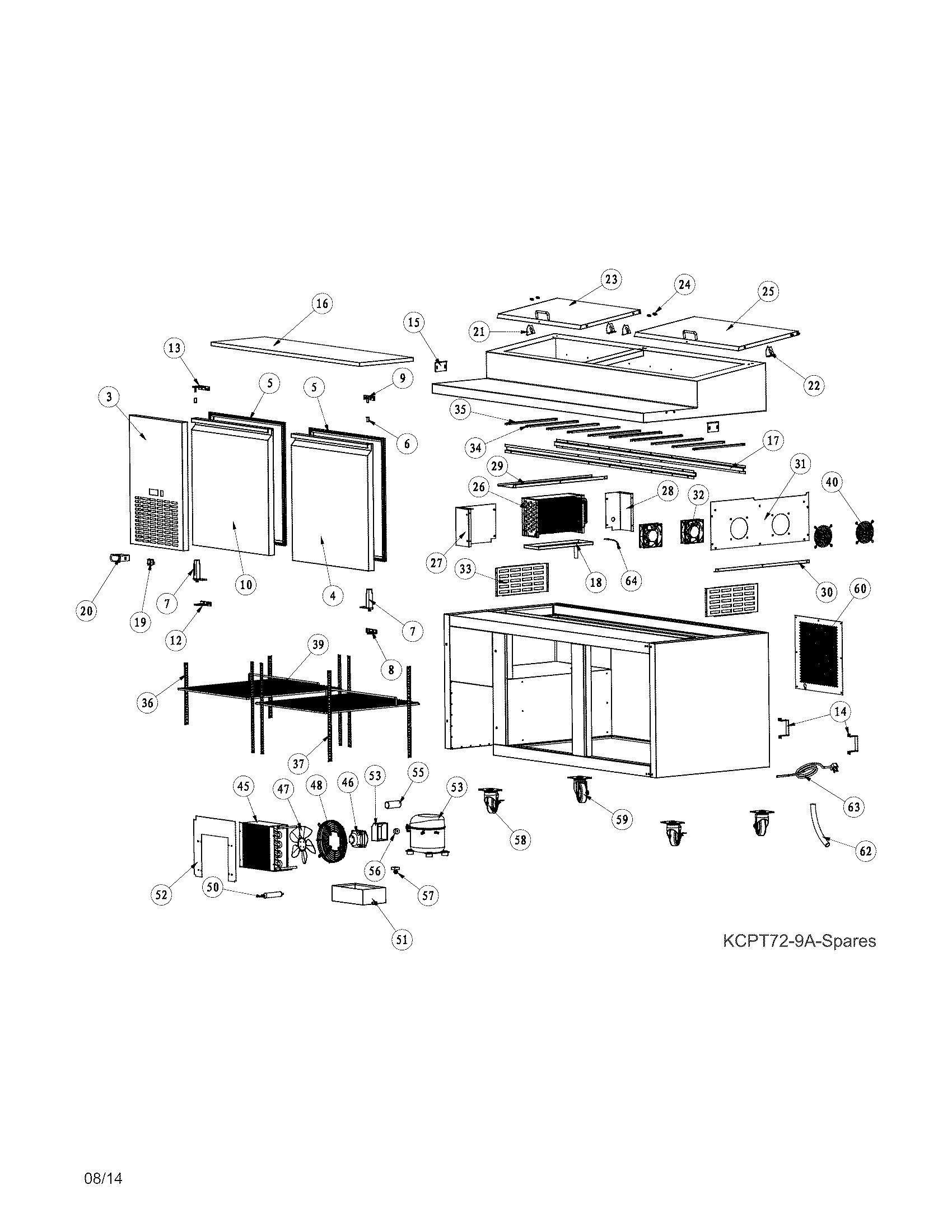

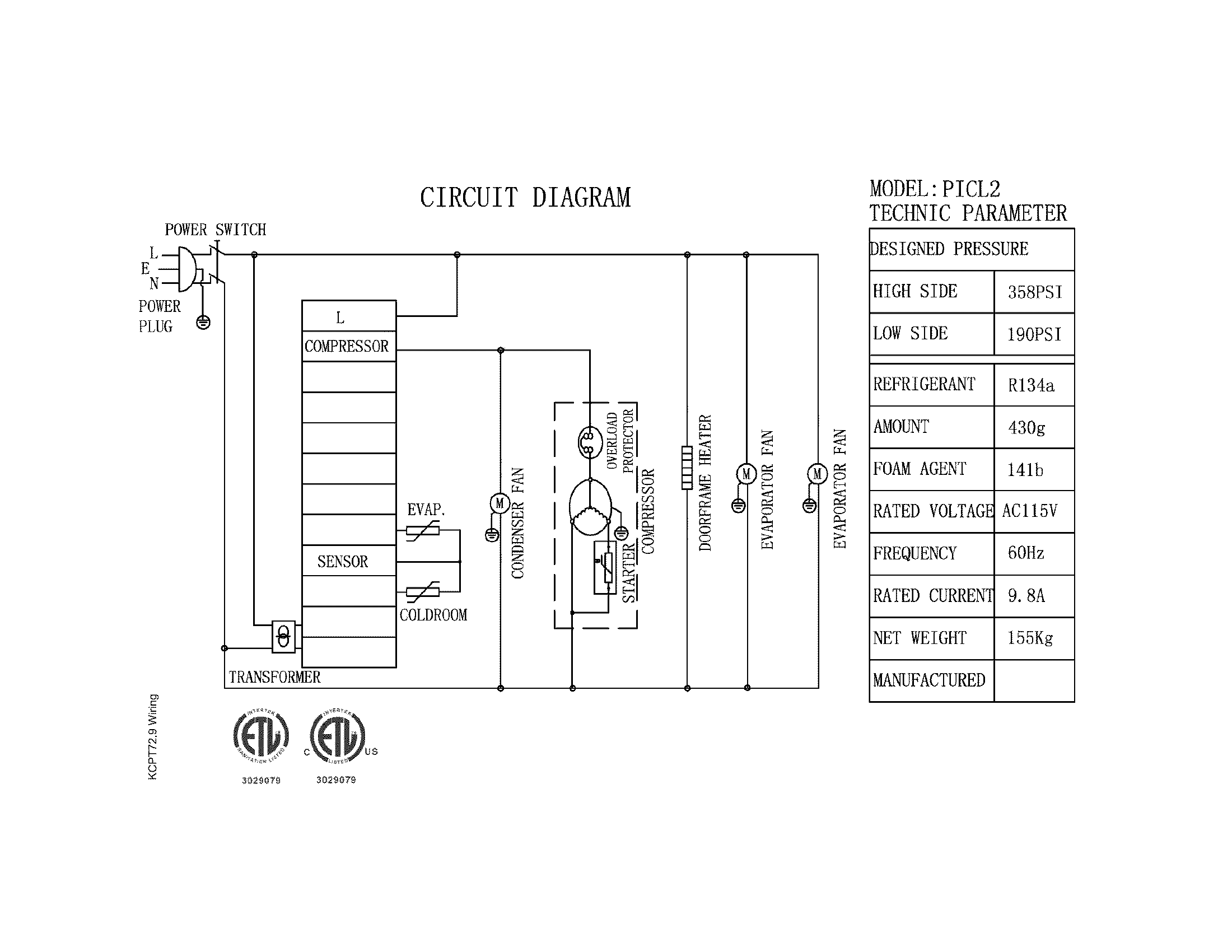

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Refrigerator Door 5304493463
#4

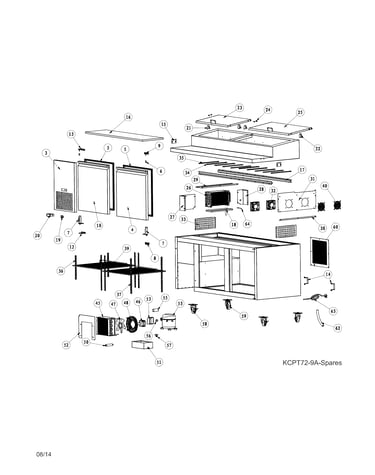

Recommended spare parts diagram

Refrigerator door

Part #5304493463

The manufacturer no longer makes this part, and there's no substitute part

Grille 5304493485
#40

Recommended spare parts diagram

Grille

Part #5304493485

The manufacturer no longer makes this part, and there's no substitute part

Caster 5304492262
#59

Recommended spare parts diagram

Caster

Part #5304492262

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Bracket 5304493482
#35

Recommended spare parts diagram

Refrigerator bracket

Part #5304493482

The manufacturer no longer makes this part, and there's no substitute part

Motor 5304492359
#46

Recommended spare parts diagram

Motor

Part #5304492359

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade,condenser Fan 5304492273
#47

Recommended spare parts diagram

Fan blade,condenser fan

Part #5304492273

The manufacturer no longer makes this part, and there's no substitute part

Hinge 5304493409
#12

Recommended spare parts diagram

Hinge

Part #5304493409

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Lid 5304493472
#25

Recommended spare parts diagram

Refrigerator lid

Part #5304493472

The manufacturer no longer makes this part, and there's no substitute part

Door Closure 5304492217
#7

Recommended spare parts diagram

Door closure

Part #5304492217

The manufacturer no longer makes this part, and there's no substitute part

Hinge 5304493361
#8

Recommended spare parts diagram

Hinge

Part #5304493361

The manufacturer no longer makes this part, and there's no substitute part
