Model # 489474380 Official Sears 26" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 489474380 26" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Fender Assy 100005
#19

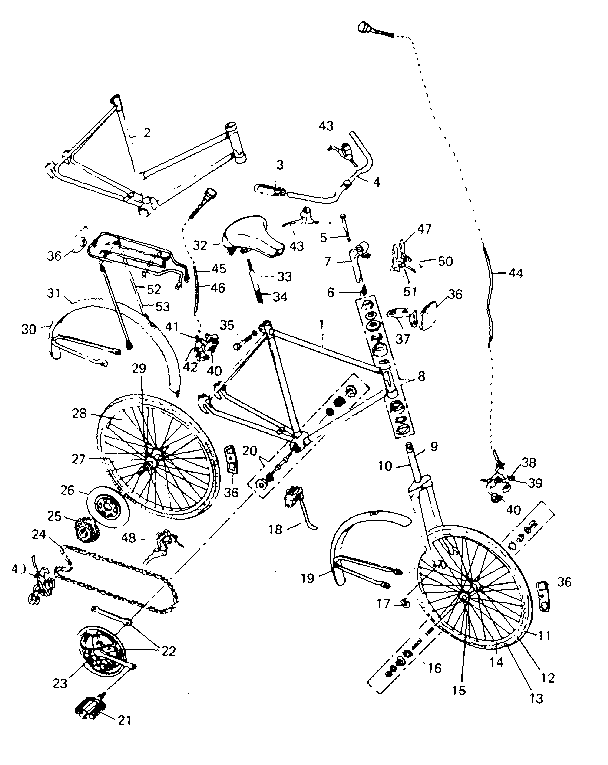

Unit parts diagram

Fender assy

Part #100005

The manufacturer no longer makes this part, and there's no substitute part

Pedal 070002
#21

Unit parts diagram

Pedal

Part #070002

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Tire 040002
#11

Unit parts diagram

Craftsman tire

Part #040002

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Rear Wheel Assembly 045502
#27

Unit parts diagram

Lifestyler rear wheel assembly

Part #045502

The manufacturer no longer makes this part, and there's no substitute part

Ming Ta Bicycle Brake Shoe Set 104002
#40

Unit parts diagram

Ming ta bicycle brake shoe set

Part #104002

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Spoke/nipple 049016
#28

Unit parts diagram

Lifestyler spoke/nipple

Part #049016

The manufacturer no longer makes this part, and there's no substitute part

Bolt W/wedge 008001
#5

Unit parts diagram

Bolt w/wedge

Part #008001

The manufacturer no longer makes this part, and there's no substitute part

Drlr Cbl Csg 087501
#51

Unit parts diagram

Drlr cbl csg

Part #087501

The manufacturer no longer makes this part, and there's no substitute part

Luggage Rack 090001
#52

Unit parts diagram

Luggage rack

Part #090001

The manufacturer no longer makes this part, and there's no substitute part

Fender Assy 051005
#30

Unit parts diagram

Fender assy

Part #051005

The manufacturer no longer makes this part, and there's no substitute part
