Craftsman
Front-Engine Lawn Tractor

Model # 917277370 Official Craftsman lawn tractor

Here are the diagrams and repair parts for Official Craftsman 917277370 lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

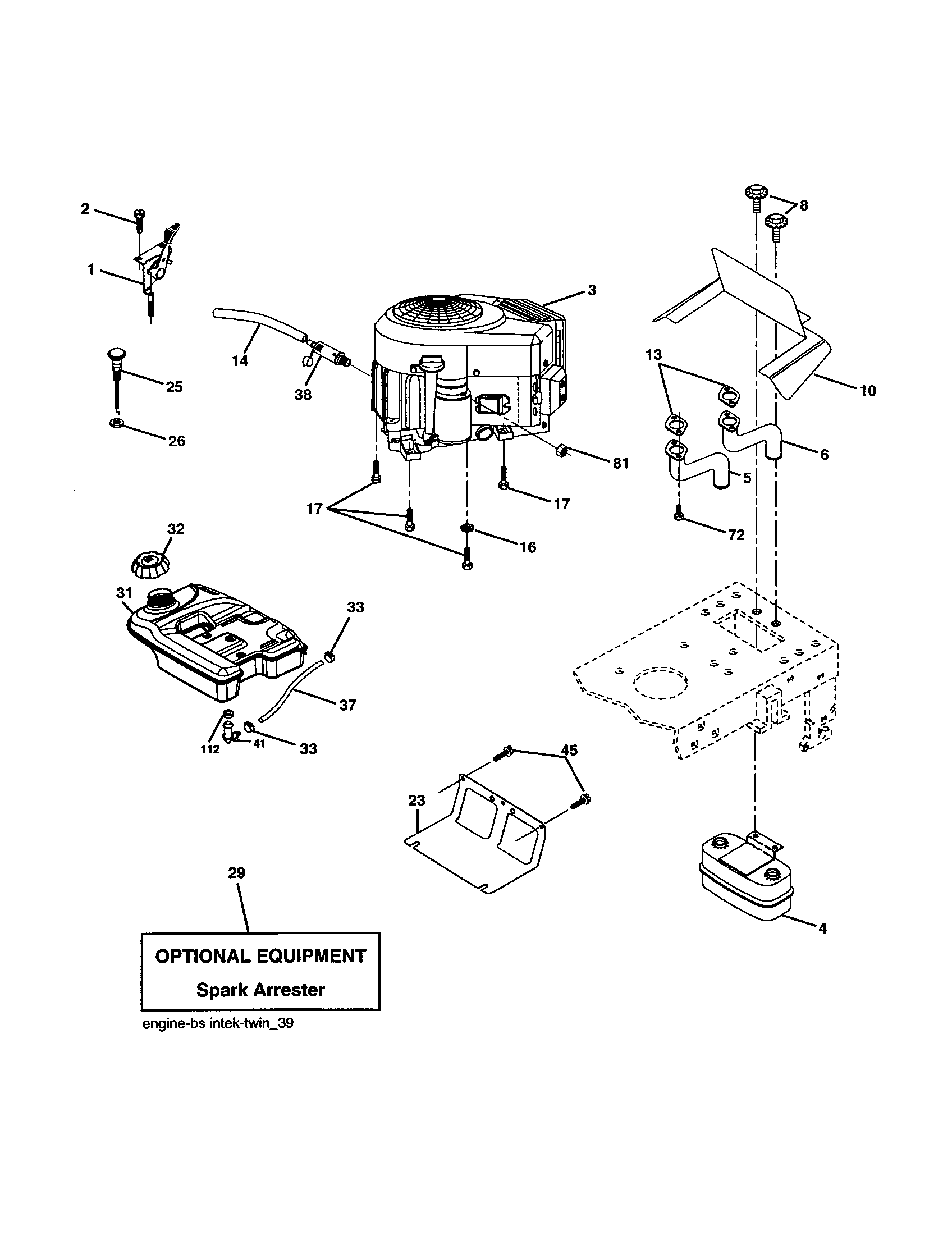

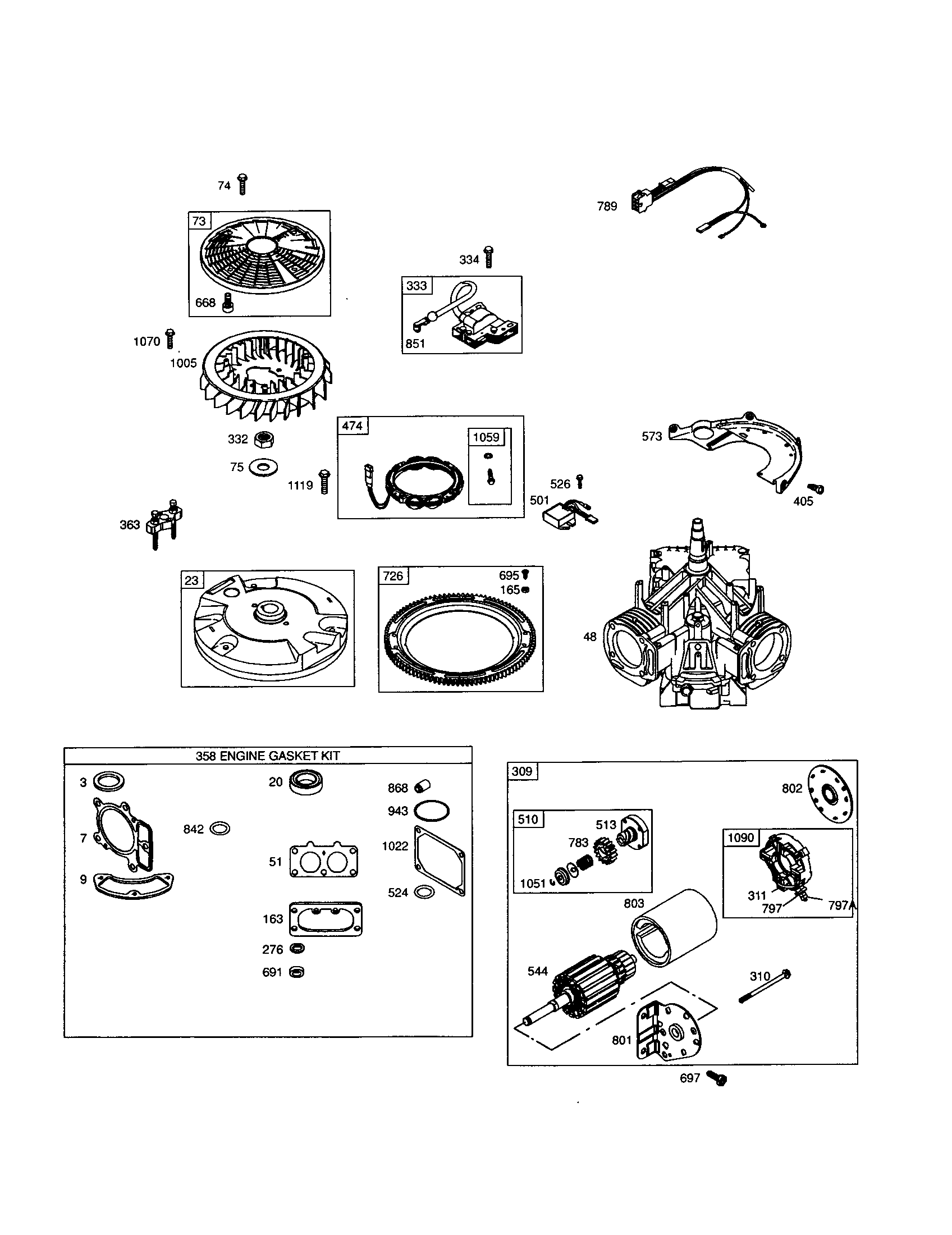

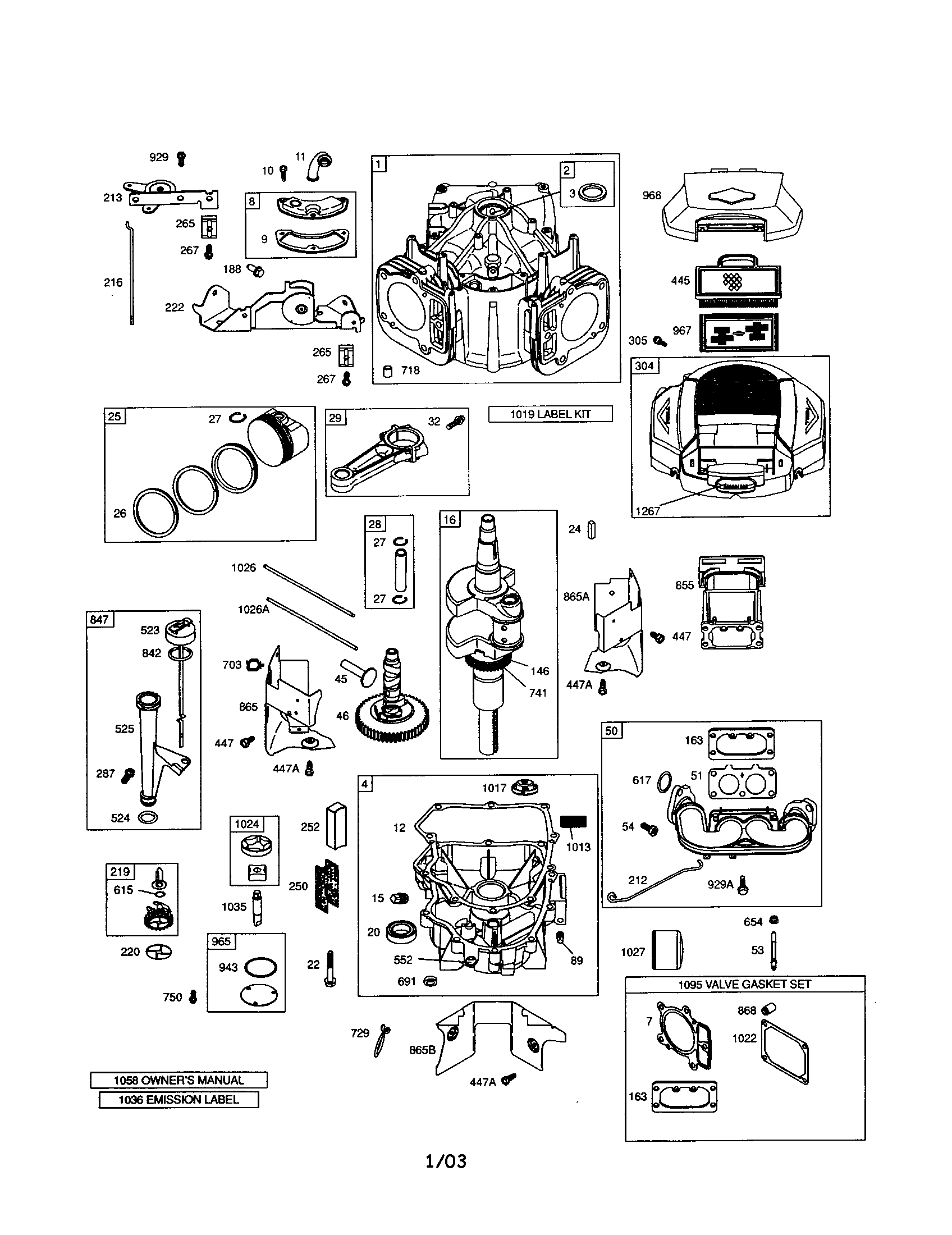

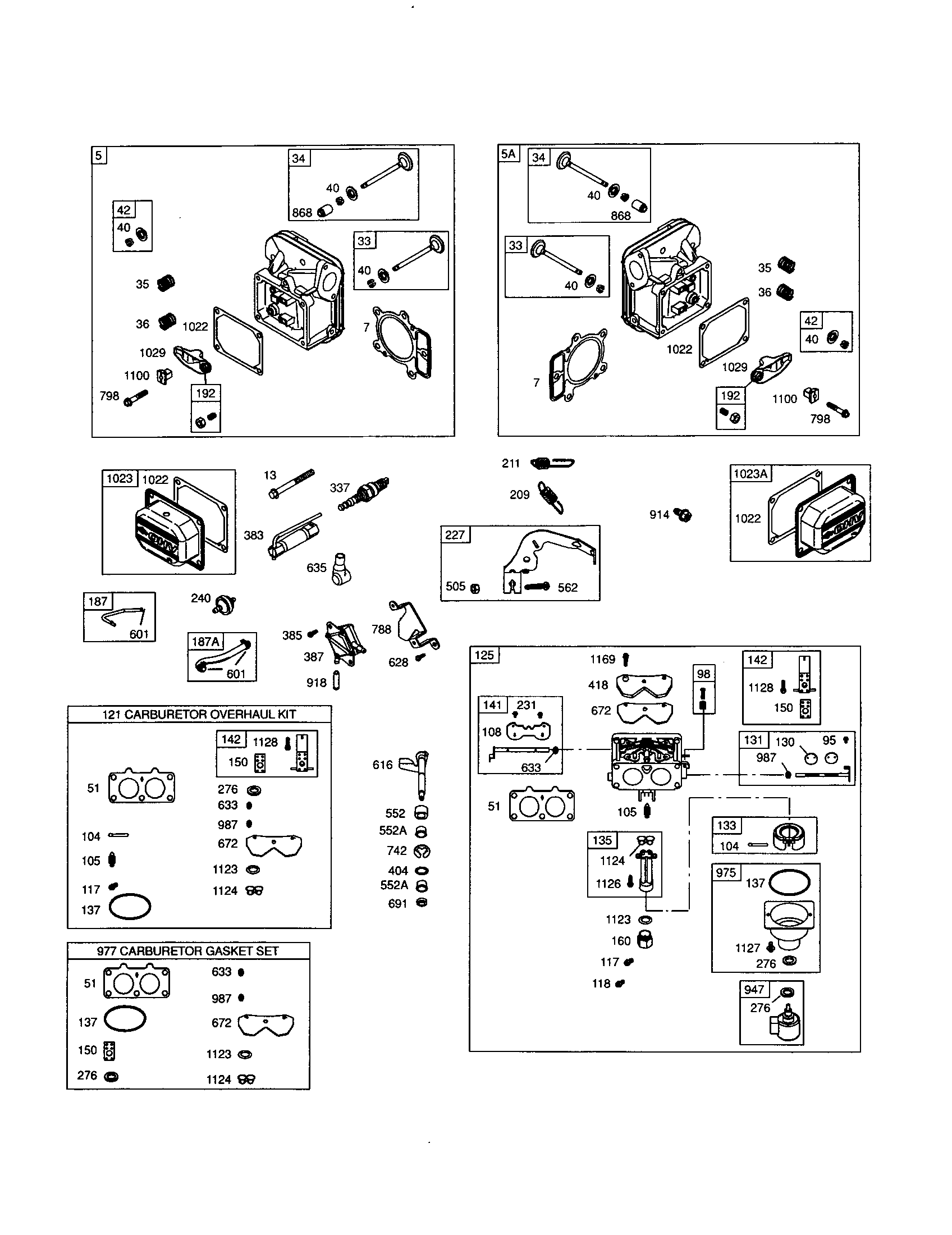

  View engine

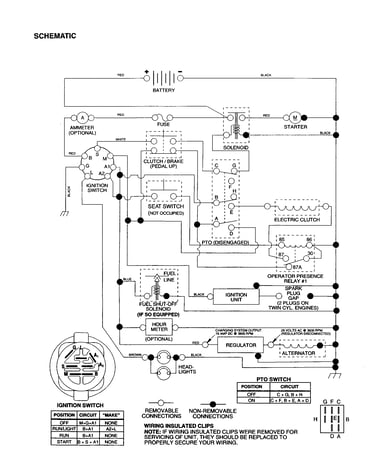

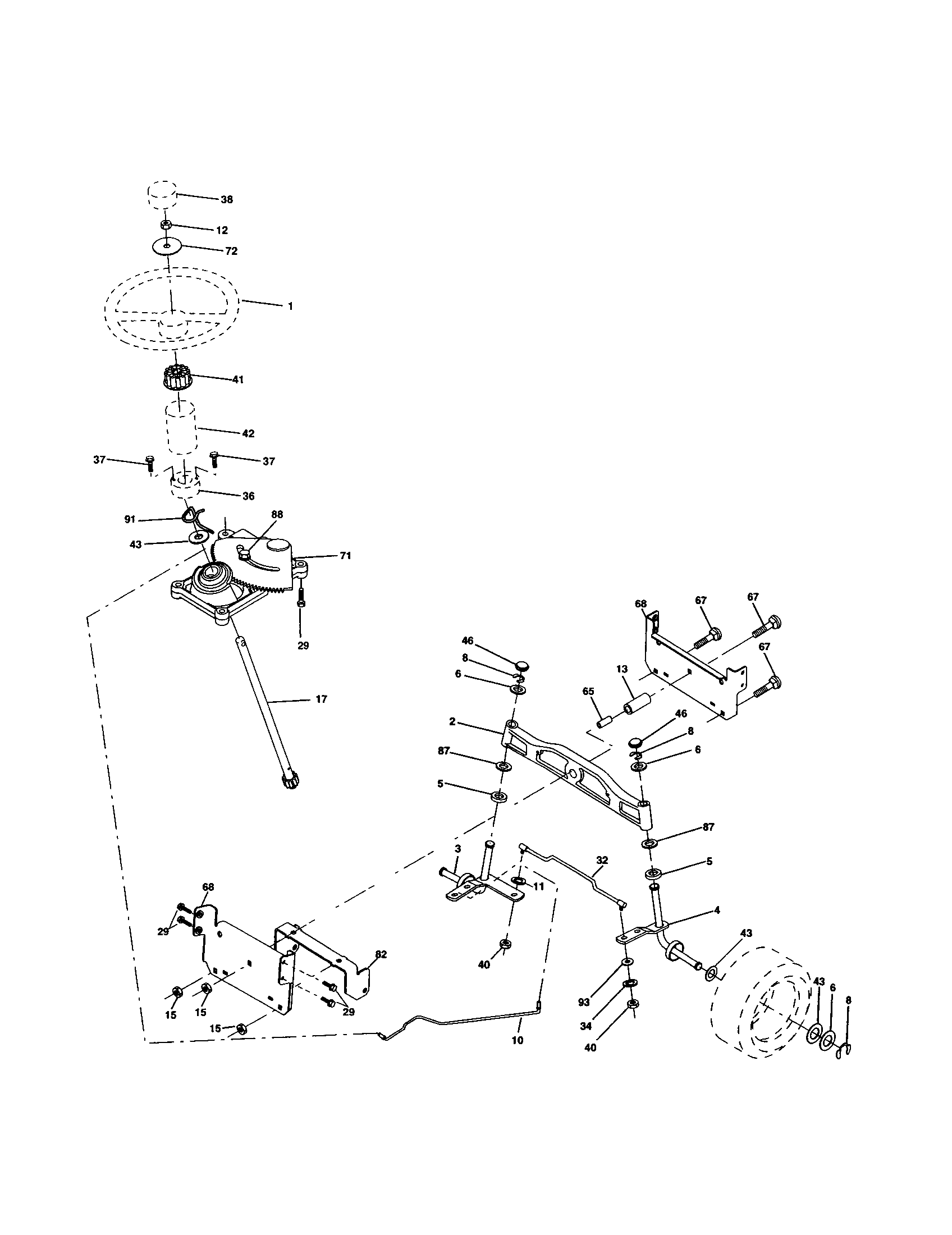

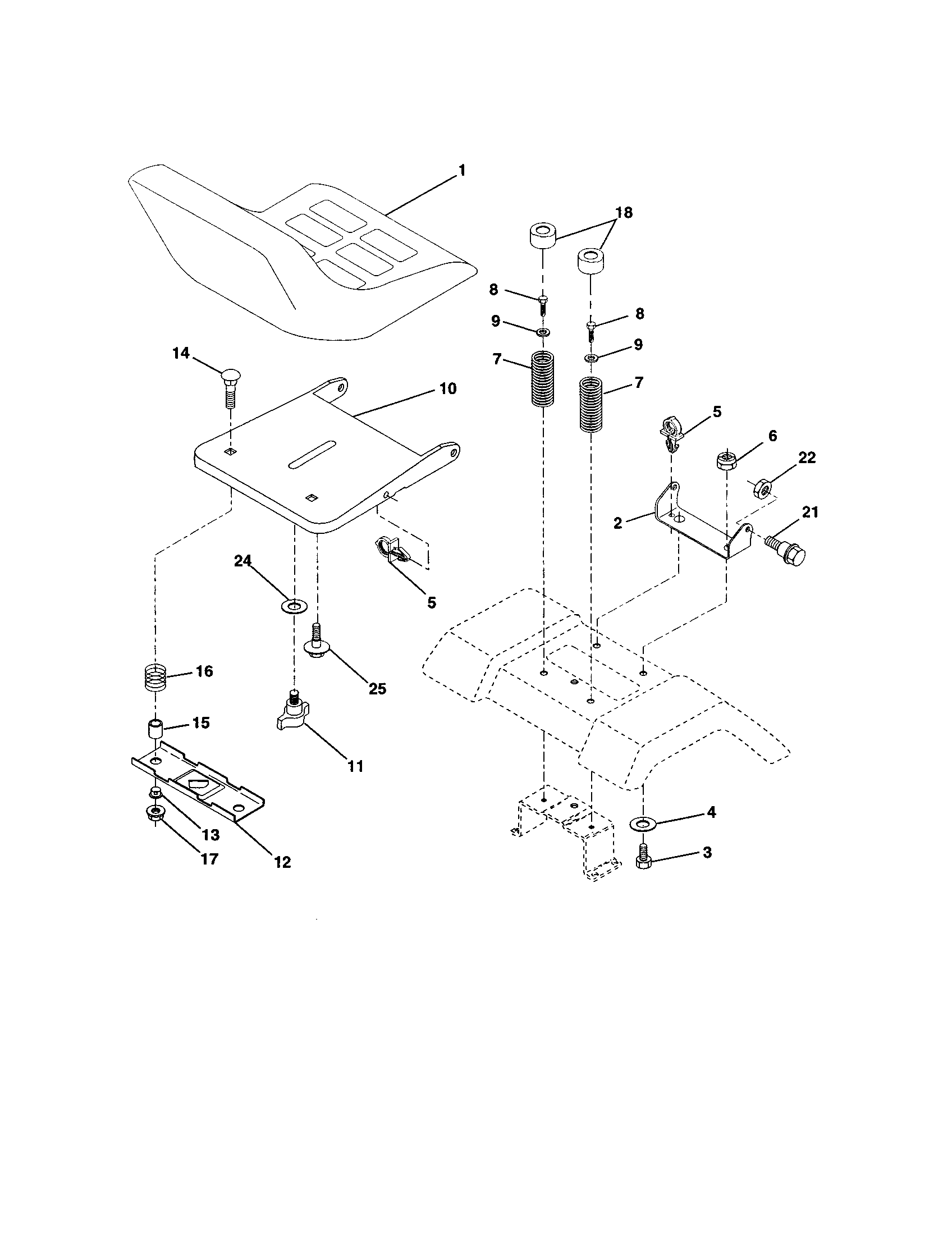

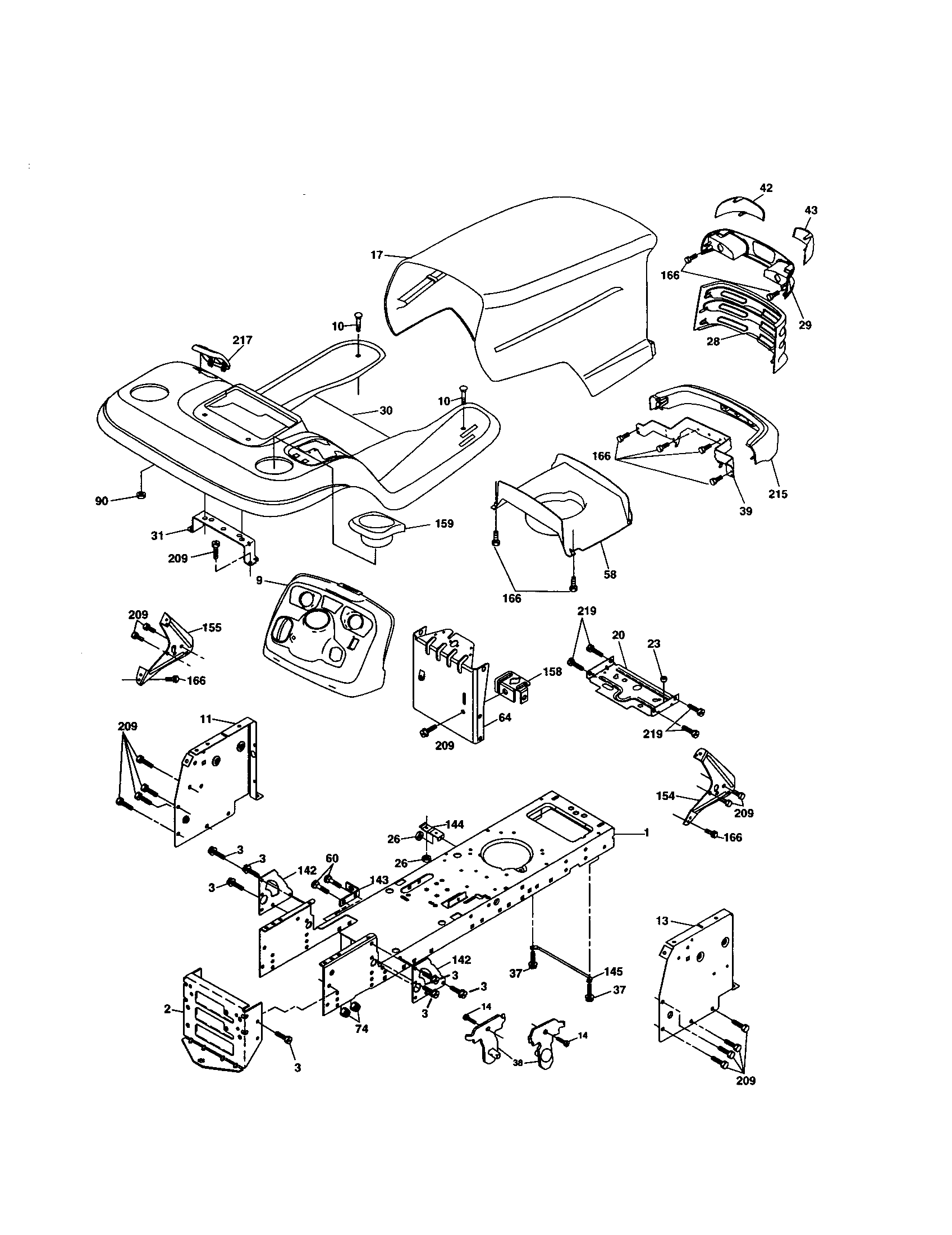

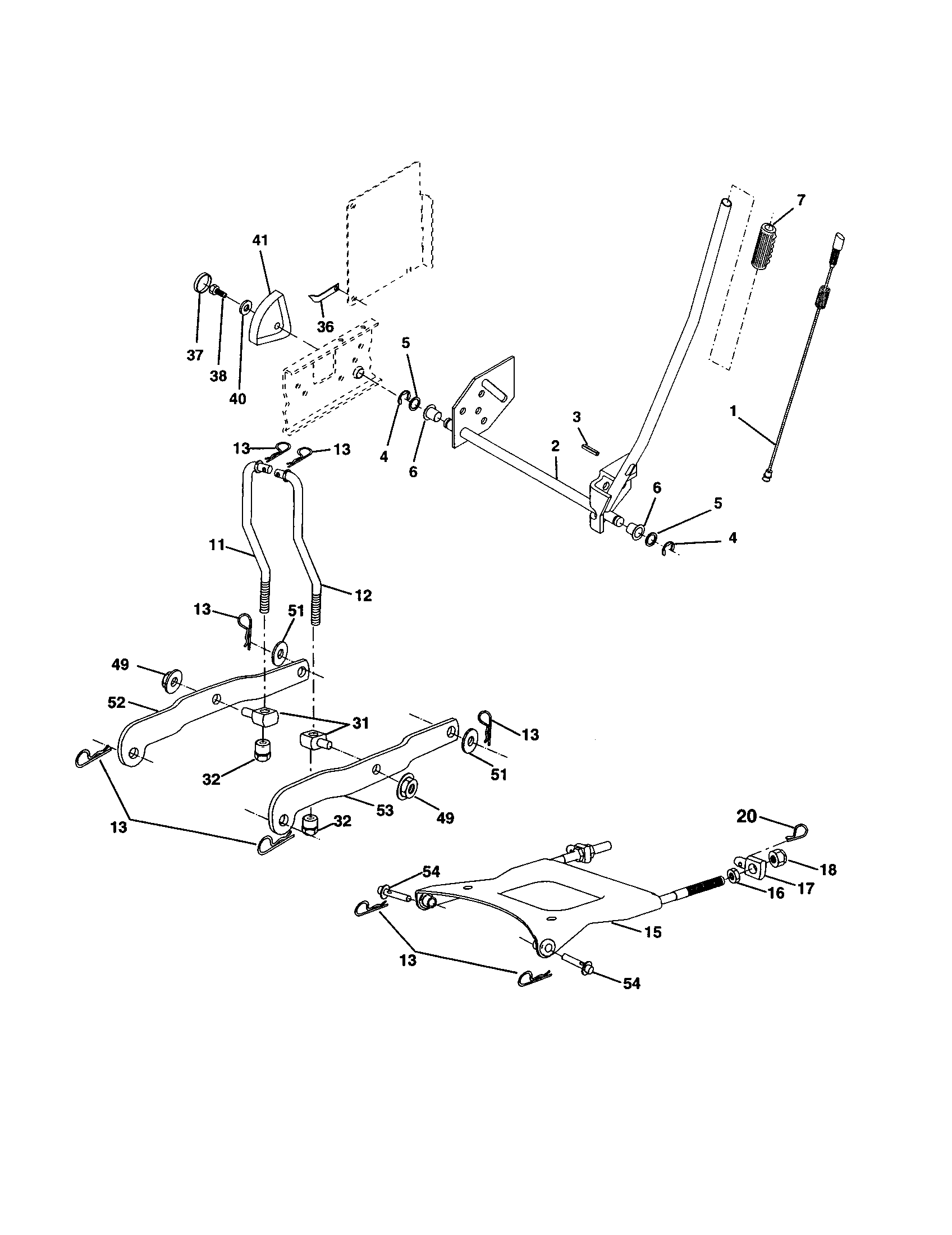

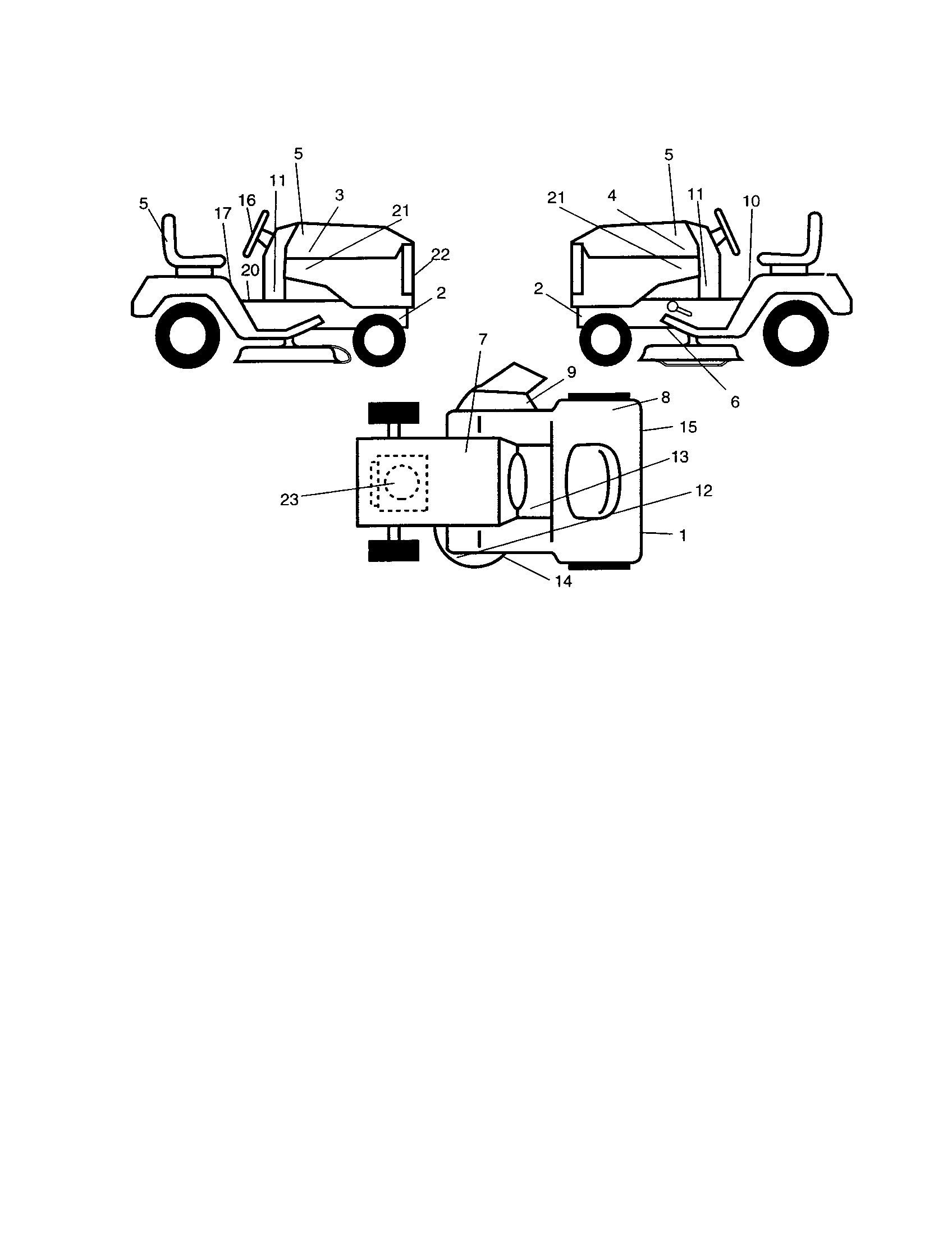

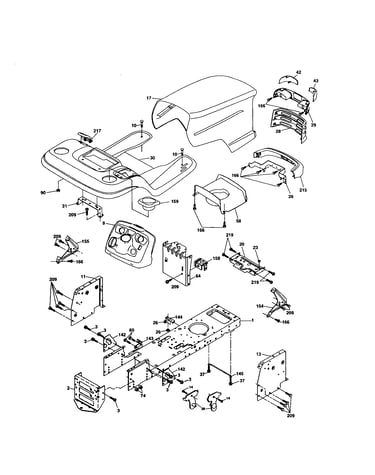

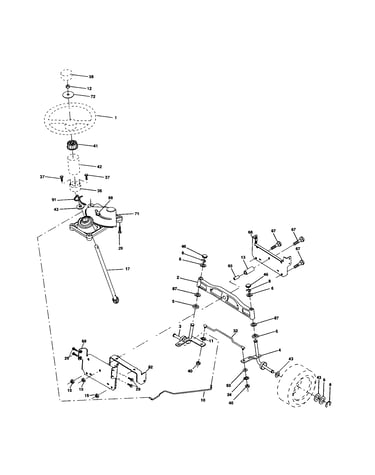

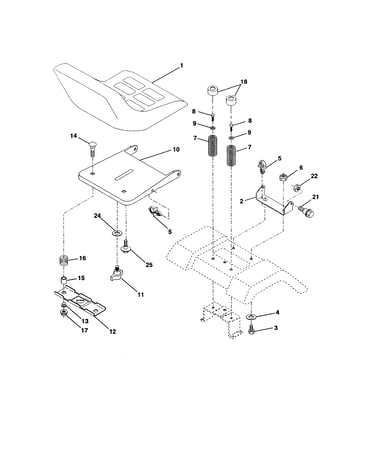

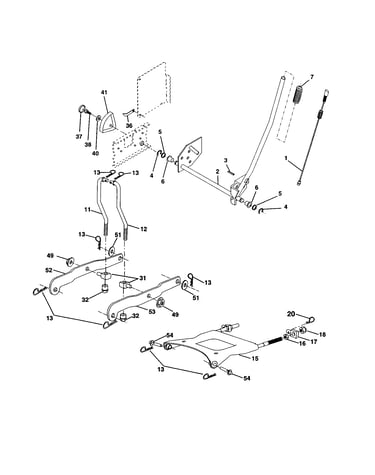

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 652 parts  |
Axle Cap 104757X417
#11

Wheels and tires diagram

Axle cap

Part #104757X417

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X417. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 73900600
#120

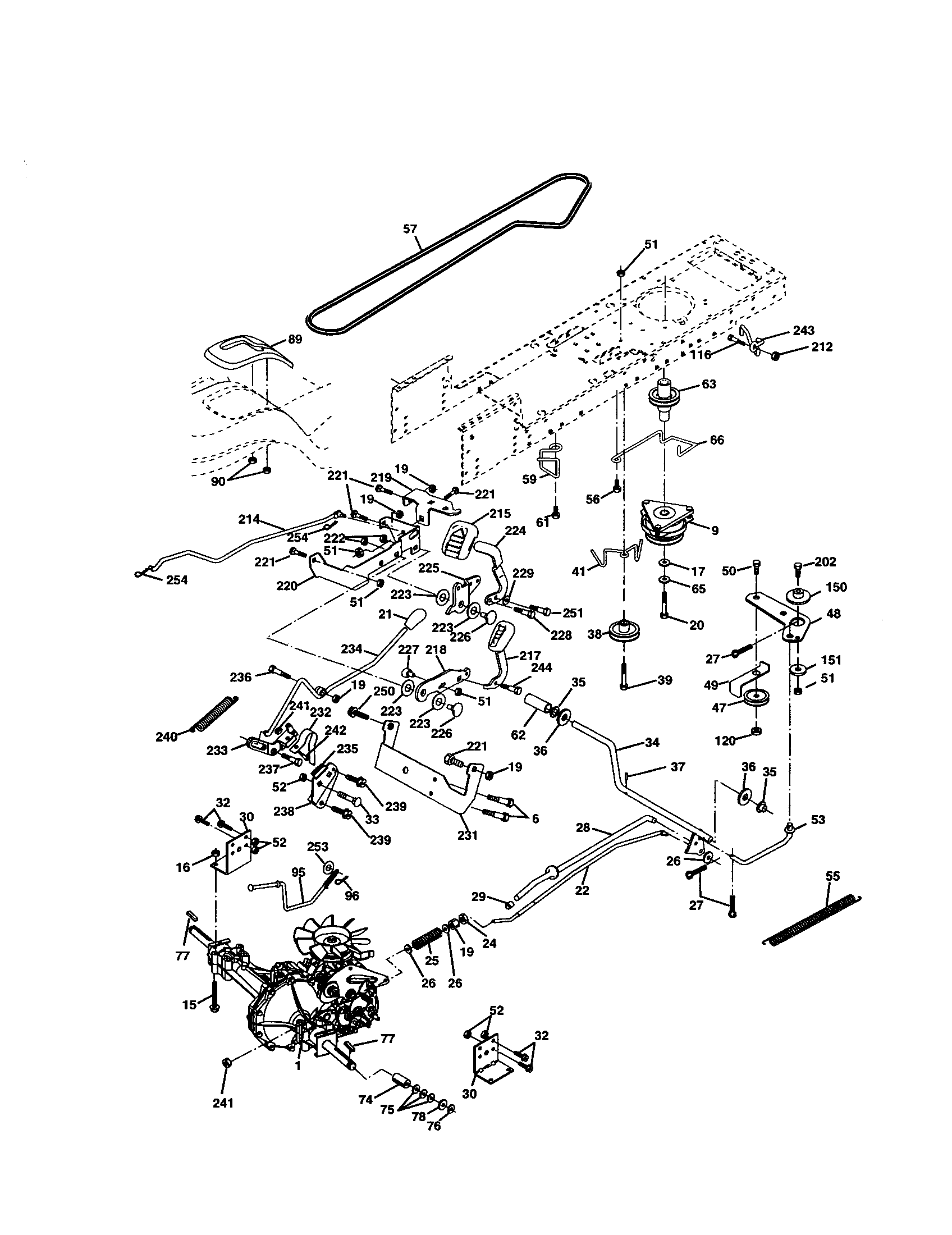

Drive diagram

Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Bolt 173984
#30

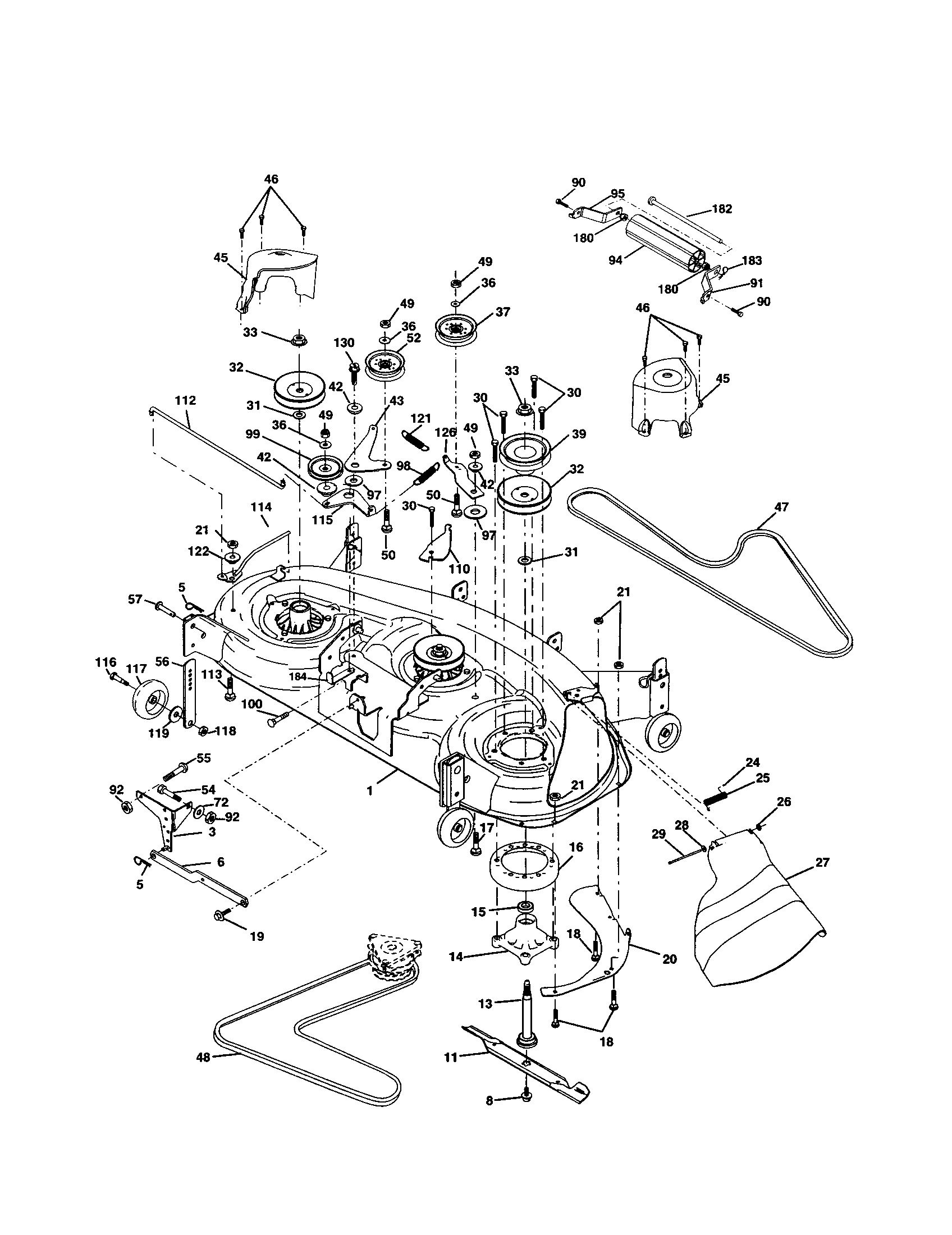

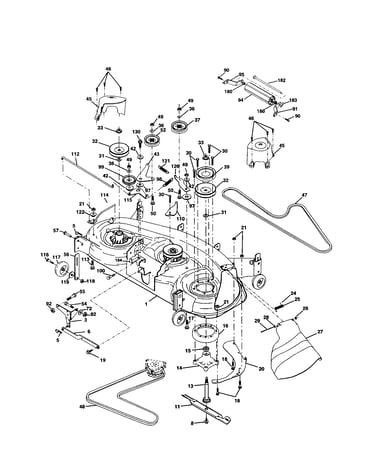

Mower deck diagram

Lawn tractor bolt

Part #173984

Replaced by #584953901

?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Ground Drive Belt, 1/2 X 82-in 140294
#57

Drive diagram

Lawn tractor ground drive belt, 1/2 x 82-in

Part #140294

Replaced by #532140294

?
Manufacturer substitution
This part replaces 140294. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.99 |
15% OFF Phone Price : $38.99
In Stock
Solenoid With Brass Plunger 178861
#43

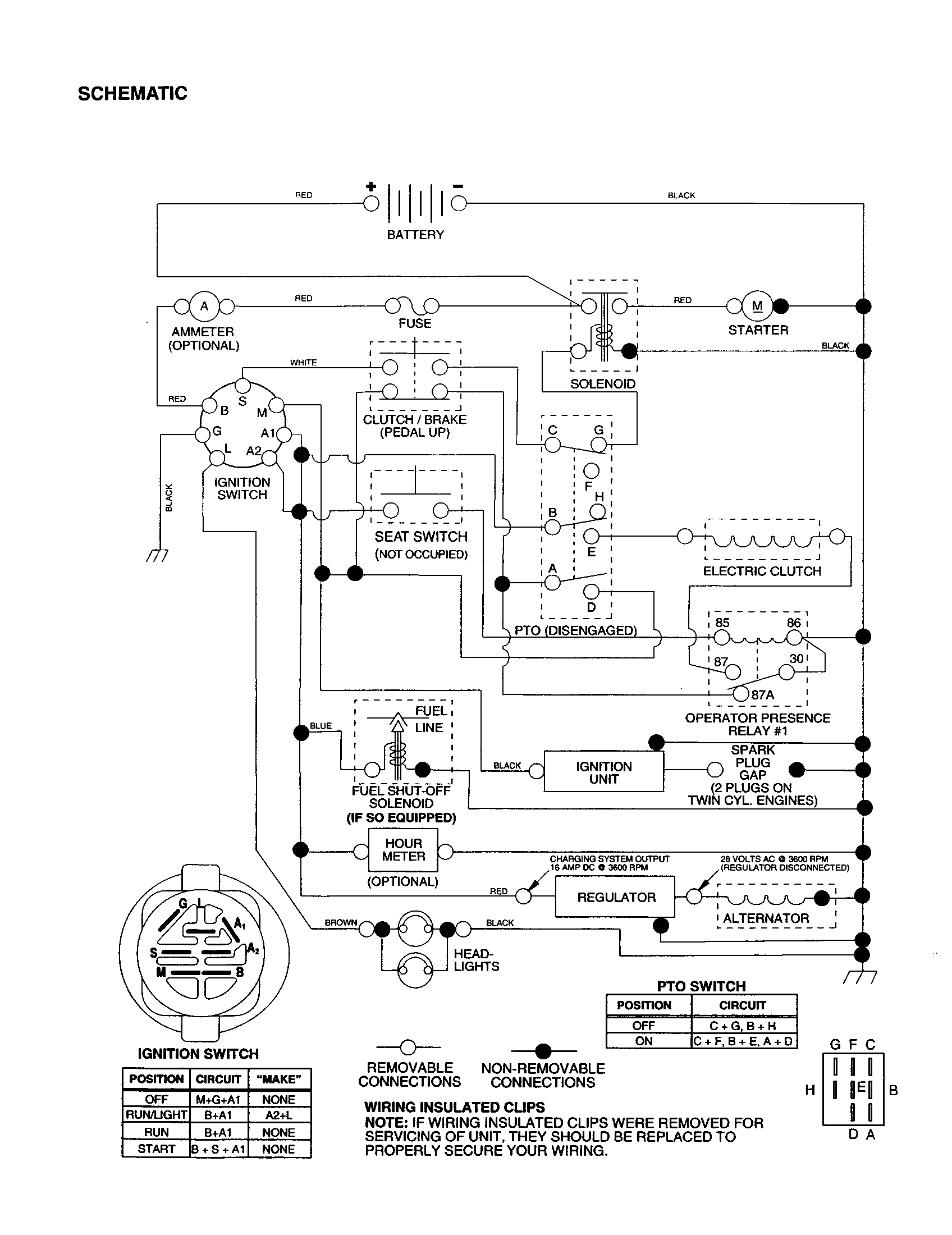

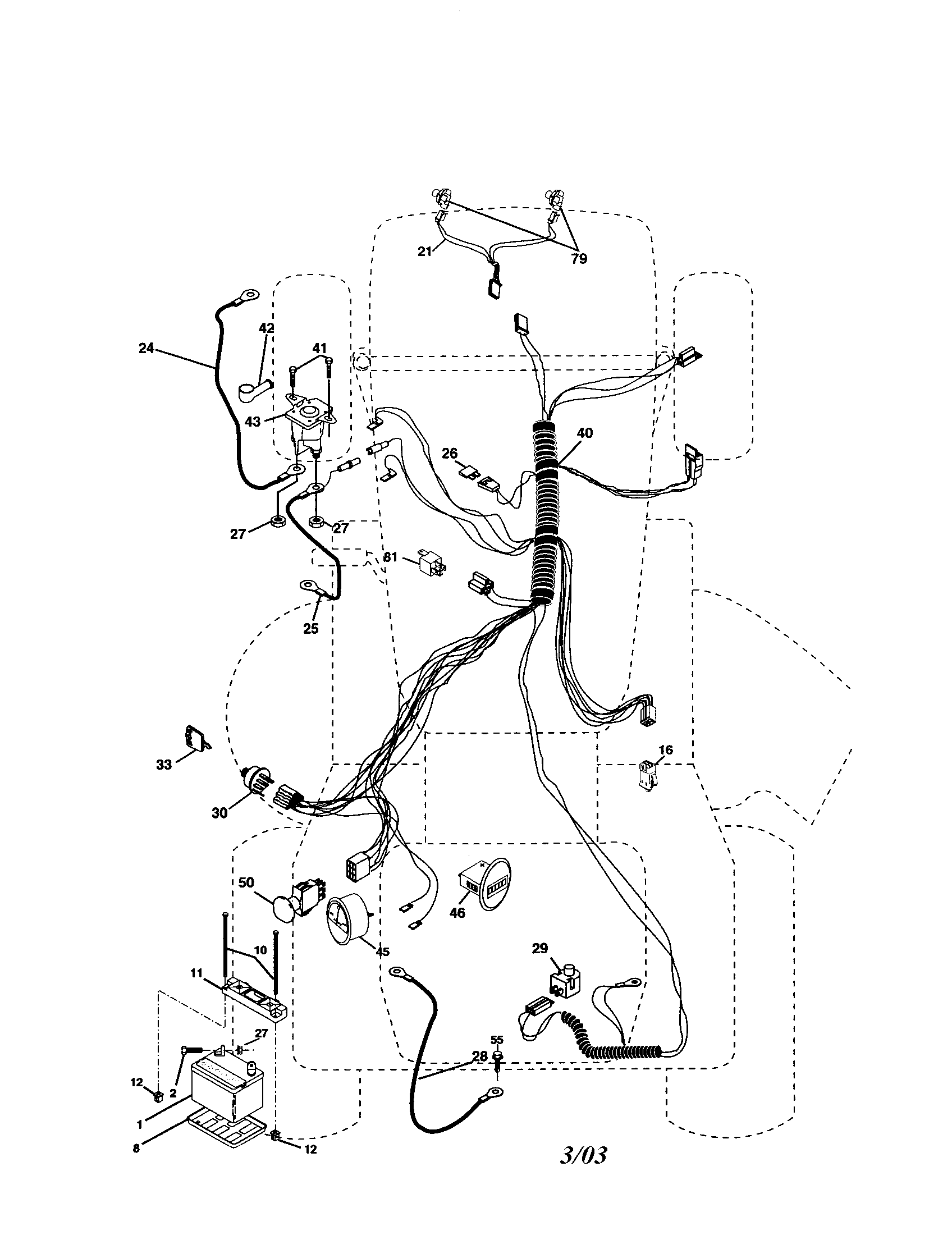

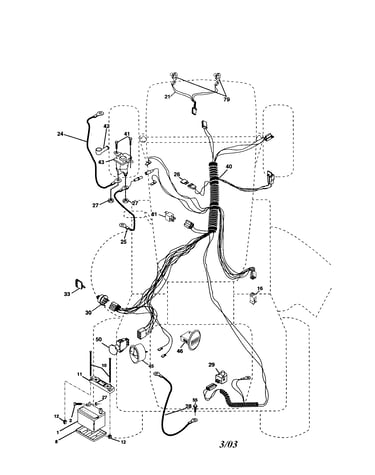

Electrical diagram

Solenoid with brass plunger

Part #178861

Replaced by #532146154

?
Manufacturer substitution
This part replaces 178861. Substitute parts can look different from the original.
BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
$7.05 |
12% OFF Phone Price : $8.05
In Stock
Tire 106222X
#3

Wheels and tires diagram

Tire

Part #106222X

Replaced by #532122073

?
Manufacturer substitution
This part replaces 106222X. Substitute parts can look different from the original.
BEST SELLER
$61.64 |
9% OFF Phone Price : $67.64
In Stock
Flanged Toplock Nut 178342
#33

Mower deck diagram

Flanged toplock nut

Part #178342

Replaced by #596134801

?
Manufacturer substitution
This part replaces 178342. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Washer 19121414
Washer

Part #19121414

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19121414. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
