Model # 203966180 Official Kenmore vacuum cleaner attachment parts

Here are the diagrams and repair parts for Official Kenmore 203966180 vacuum cleaner attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Light Bulb 745362
#17

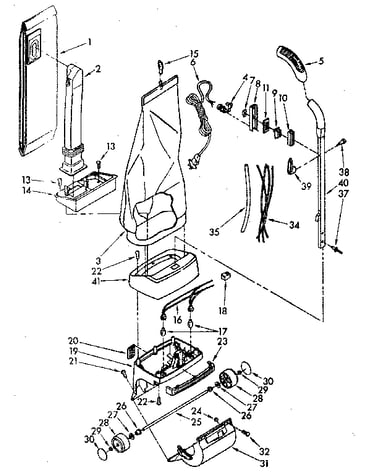

Hand and bag housing parts diagram

Light bulb

Part #745362

Replaced by #5248

?
Manufacturer substitution
This part replaces 745362. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 4152184
#2

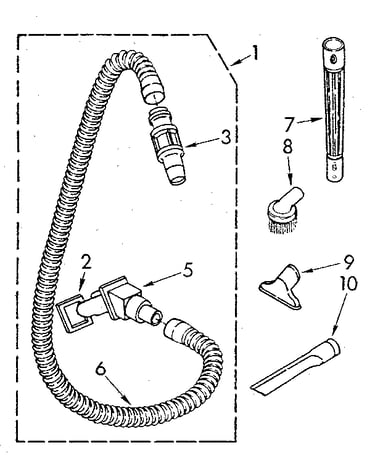

Hose & attachment parts diagram

Gasket

Part #4152184

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor Brush N/P
#1

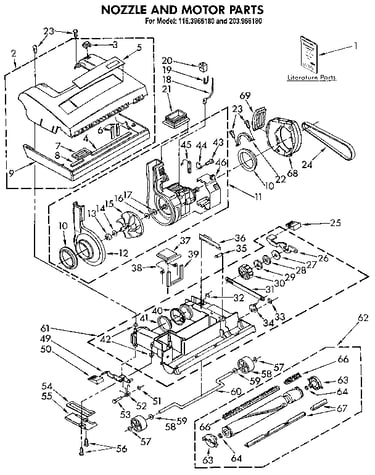

Nozzle and motor parts diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Wiring Diagram LIT4151526
#1C

Nozzle and motor parts diagram

Wiring diagram

Part #LIT4151526

The manufacturer no longer makes this part, and there's no substitute part

Catch 722955
#29

Nozzle and motor parts diagram

Catch

Part #722955

The manufacturer no longer makes this part, and there's no substitute part

Gasket 745338
#7

Nozzle and motor parts diagram

Gasket

Part #745338

The manufacturer no longer makes this part, and there's no substitute part

Connector 596818
#20

Nozzle and motor parts diagram

Connector

Part #596818

The manufacturer no longer makes this part, and there's no substitute part

Cord Hook 4151015
#39

Hand and bag housing parts diagram

Cord hook

Part #4151015

The manufacturer no longer makes this part, and there's no substitute part

Wheel 745297
#58

Nozzle and motor parts diagram

Wheel

Part #745297

The manufacturer no longer makes this part, and there's no substitute part

Rivet 4147467
#37

Hand and bag housing parts diagram

Rivet

Part #4147467

The manufacturer no longer makes this part, and there's no substitute part
