Model # 10671140 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 10671140 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 187 parts |

#NI

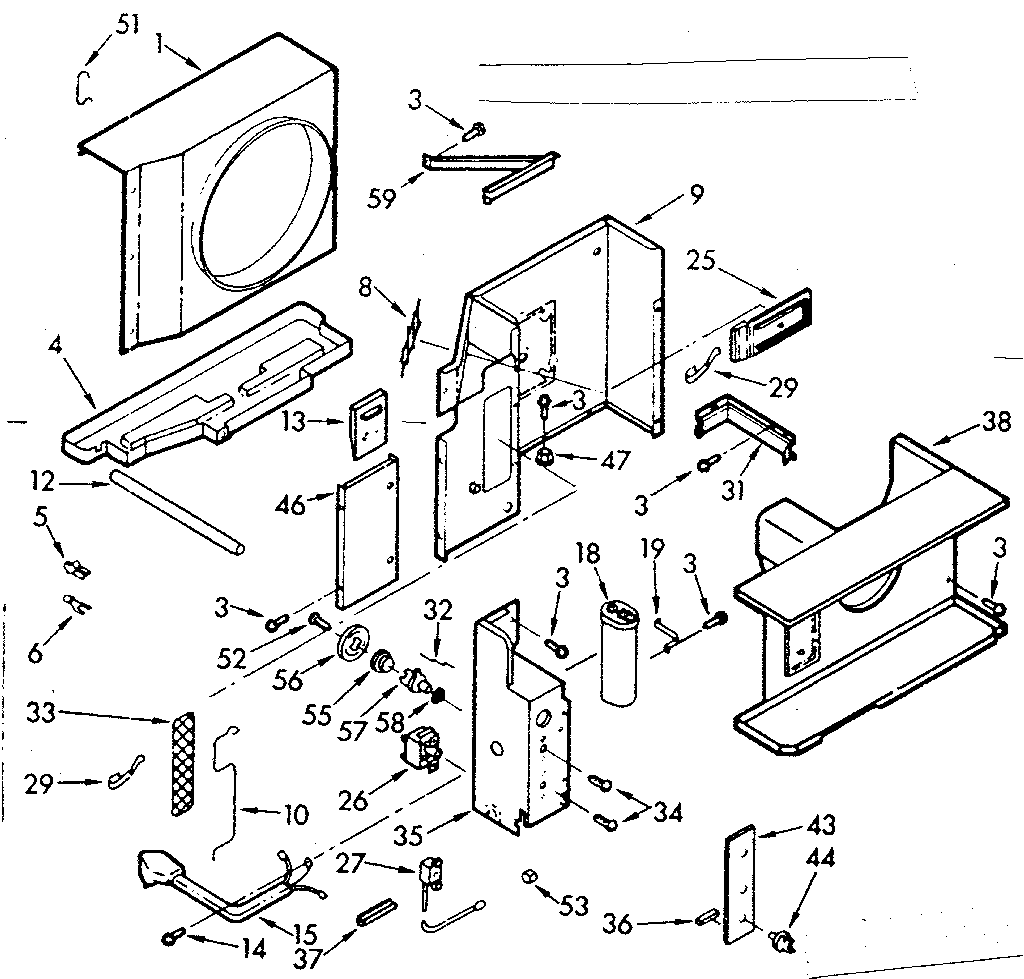

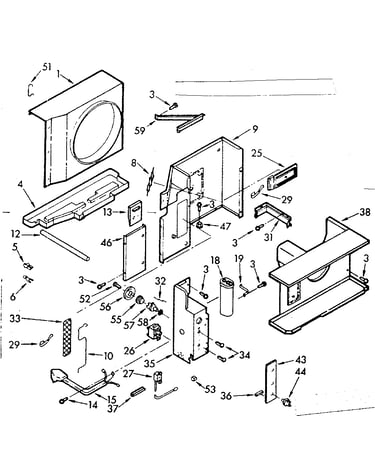

All parts diagram

Cement

Part #797403

Replaced by #WP279368

$42.72 |

12% OFF Phone Price : $48.72

In Stock

Qty

Screw, 8 x 1

Part #488480

Replaced by #WP489069

This item is not returnable

$4.39 |

19% OFF Phone Price : $5.39

In Stock

Qty

#NI

All parts diagram

Capacitor

Part #470168

Replaced by #212643

This item is not returnable

$50.09 |

11% OFF Phone Price : $56.09

In Stock

Qty

#82

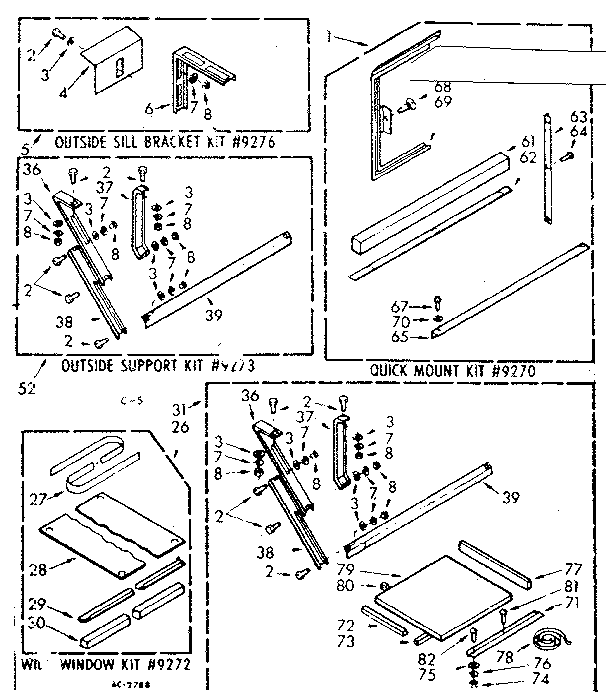

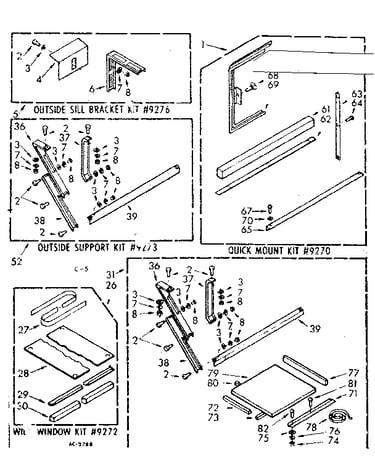

Accessory kit parts diagram

Screw

Part #487461

Replaced by #WP999367

This item is not returnable

$4.46 |

18% OFF Phone Price : $5.46

In Stock

Qty

#25

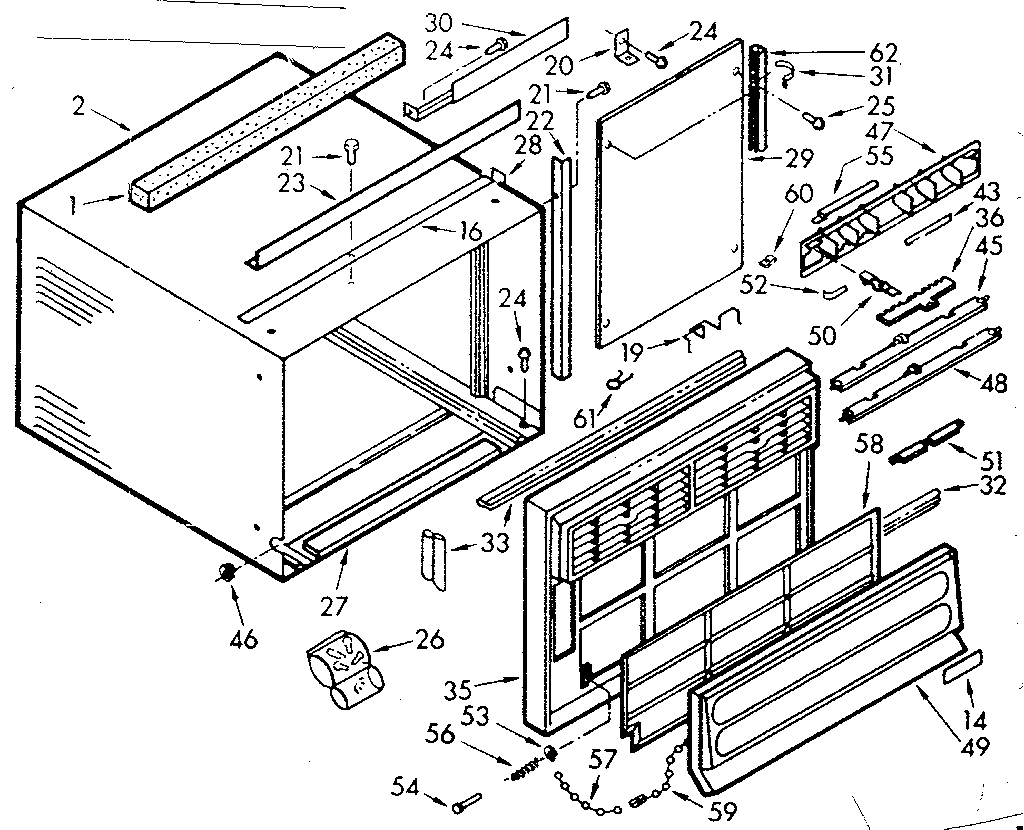

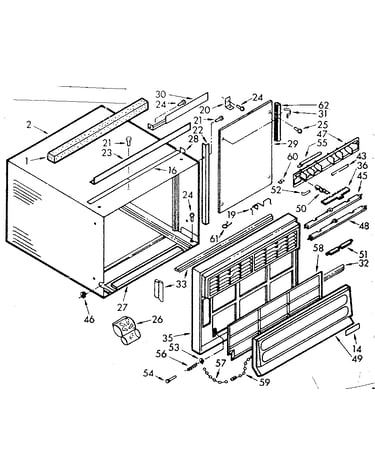

Cabinet parts diagram

Screw

Part #488017

Replaced by #WP965173

This item is not returnable

$5.85

In Stock

Qty

#39

Accessory kit parts diagram

Bracket support

Part #644281

$35.98

In Stock

Qty

#30

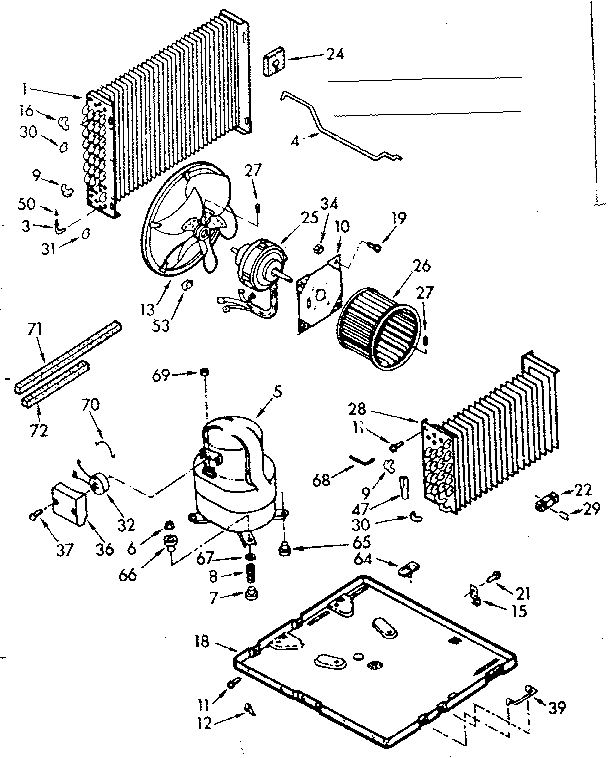

Unit parts diagram

Bend

Part #471570

Replaced by #WP855199

This item is not returnable

$4.33

In Stock

Qty

#19

Unit parts diagram

Screw

Part #488341

The manufacturer no longer makes this part, and there's no substitute part

Accessory kit parts diagram

Bracket kit

Part #485678

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Dvx thnnr gl

Part #799351

The manufacturer no longer makes this part, and there's no substitute part

Symptoms for gas snowblowers

Choose a symptom to see related snowblower repairs.

View all

What should I do about a damaged snowblower tire?

Main causes: punctured tire, damaged rim…

Why does my snowblower stop running after a few seconds?

Main causes: dirty carburetor, stale fuel…

Why does my snowblower engine run rough?

Main causes: dirty carburetor, clogged fuel filter, dirty spark plug, incorrect valve lash, leaky engine gaskets…

Why won't my snowblower start?

Main causes: stale gas, clogged carburetor, clogged or broken fuel line, dirty spark plug, bad rewind starter, incorrect…

Why won't my snowblower chute turn?

Main causes: snow build-up in chute, chute drive mechanism failure, bad chute control assembly…

Why doesn't my snowblower self propel?

Main causes: loose drive clutch cable, damaged drive clutch cable, worn friction disc, scraper blade scraping the ground…

Why won't my snowblower throw snow far enough?

Main causes: clogged chute, damaged auger blades, broken shear pins, worn auger belt, damaged gear case, engine problems…

Why doesn't my snowblower auger turn?

Main causes: broken shear pins, worn or loose auger drive belt, auger drive cable failure, damaged auger, bad gear case…

How do I tune up my snowblower?

Things to do: replace the spark plug, change the oil, rebuild the carburetor, adjust valve lash, adjust or replace the b…

Repair guides for gas snowblowers

These step-by-step repair guides will help you safely fix what’s broken on your snowblower.

View all

How to replace a snowblower fuel filter

Replace the fuel filter on your snowblower if it's clogged or damaged.…

Repair difficulty

Time required

15 minutes or less

How to replace a snowblower shave plate

Follow the 7 easy steps in this repair guide/video to replace a worn out shave plate on your snowblower.…

Repair difficulty

Time required

15 minutes or less

How to replace a snowblower chute control gearbox assembly

Replace the chute control gearbox on your snowblower if it's stripped or damaged.…

Repair difficulty

Time required

15 minutes or less

Effective articles & videos to help repair your central air conditioners

Use the advice and tips in these articles and videos to get the most out of your snowblower.

View all

Maintaining your air conditioner

Learn how to maintain your central air conditioner to keep it running smoothly all summer long.…

How to prevent the 2 most common AC failures from ruining your summer

Get tips to help keep your central AC running all summer long…
