Whirlpool
Electric Cooktop

Model # GJC3034HP3 Official Whirlpool electric counter unit

Here are the diagrams and repair parts for Official Whirlpool GJC3034HP3 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Polish 3191048
#NI

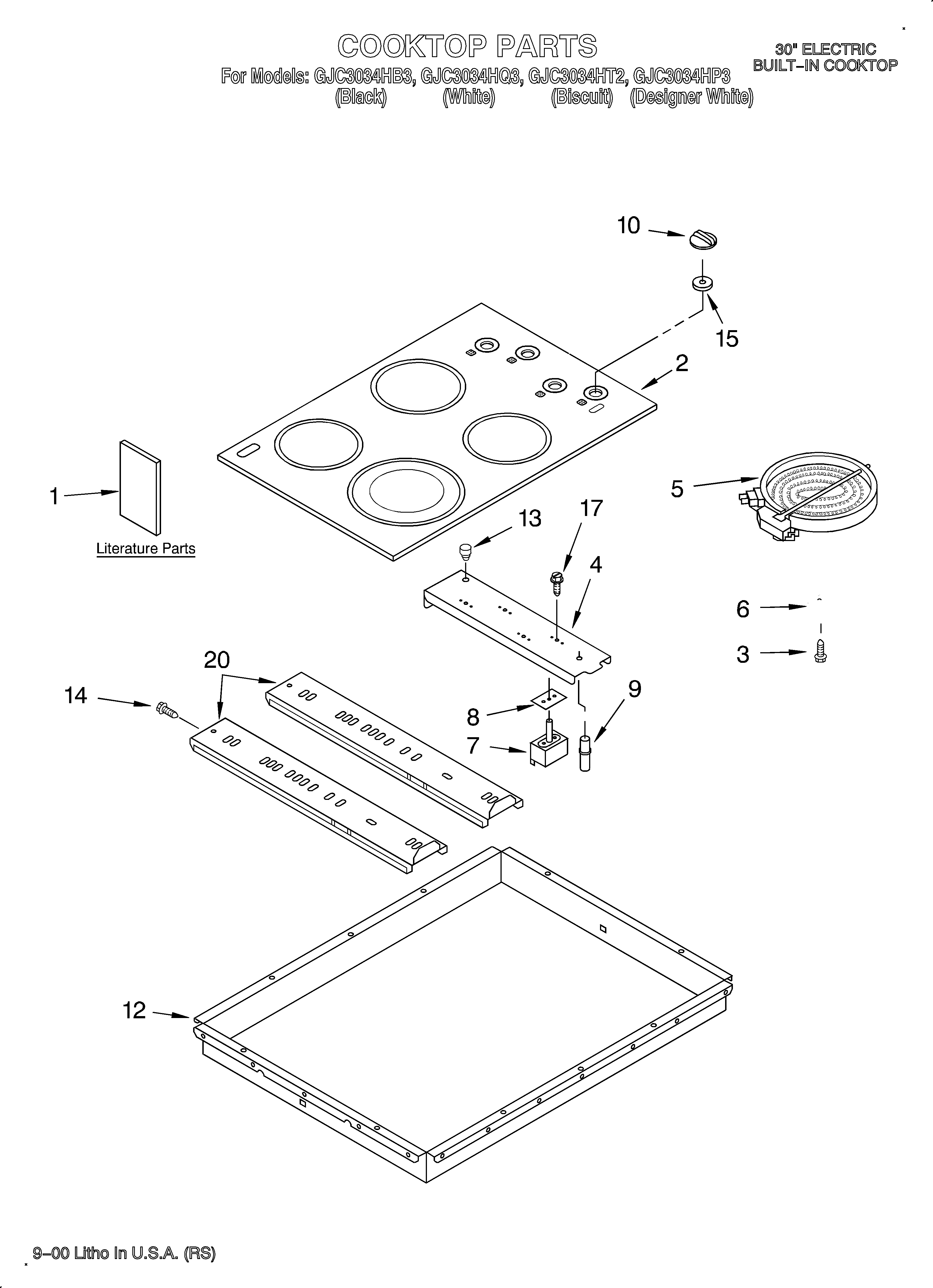

Cooktop/literature diagram

Polish

Part #3191048

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3191048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Surface Element 8272566
#5B

Cooktop/literature diagram

Surface element

Part #8272566

Replaced by #W10823698

?
Manufacturer substitution
This part replaces 8272566. Substitute parts can look different from the original.
BEST SELLER
$126.64 |
9% OFF Phone Price : $138.64
In Stock
Surface Element 8272564
#5A

Cooktop/literature diagram

Surface element

Part #8272564

Replaced by #W10823699

?
Manufacturer substitution
This part replaces 8272564. Substitute parts can look different from the original.
$74.52 |
7% OFF Phone Price : $80.52
In Stock
Range Burner Control Knob 3196231
#10

Cooktop/literature diagram

Range burner control knob

Part #3196231

Replaced by #WP3196231

?
Manufacturer substitution
This part replaces 3196231. Substitute parts can look different from the original.
This item is not returnable
$19.29 |
9% OFF Phone Price : $21.29
In Stock
Cooktop Knob 8272506
#10B

Cooktop/literature diagram

Cooktop knob

Part #8272506

Replaced by #WP3196231

?
Manufacturer substitution
This part replaces 8272506. Substitute parts can look different from the original.
This item is not returnable
$19.29 |
9% OFF Phone Price : $21.29
In Stock
Range Burner Control Knob 3196232
#10A

Cooktop/literature diagram

Range burner control knob

Part #3196232

Replaced by #WP3196232

?
Manufacturer substitution
This part replaces 3196232. Substitute parts can look different from the original.
This item is not returnable
$18.89 |
10% OFF Phone Price : $20.89
In Stock
Bracket 4455364
#NI

Cooktop/literature diagram

Bracket

Part #4455364

$36.53
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831
#NI

Cooktop/literature diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Cooktop Element Control Switch Seal 3183956
#20B

Cooktop/literature diagram

Cooktop element control switch seal

Part #3183956

This item is not returnable
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Hardware 3172515
#NI

Cooktop/literature diagram

Hardware

Part #3172515

Replaced by #8184949

?
Manufacturer substitution
This part replaces 3172515. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
