Model # 11652312200 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11652312200 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Muskin Gasket 742968
#51

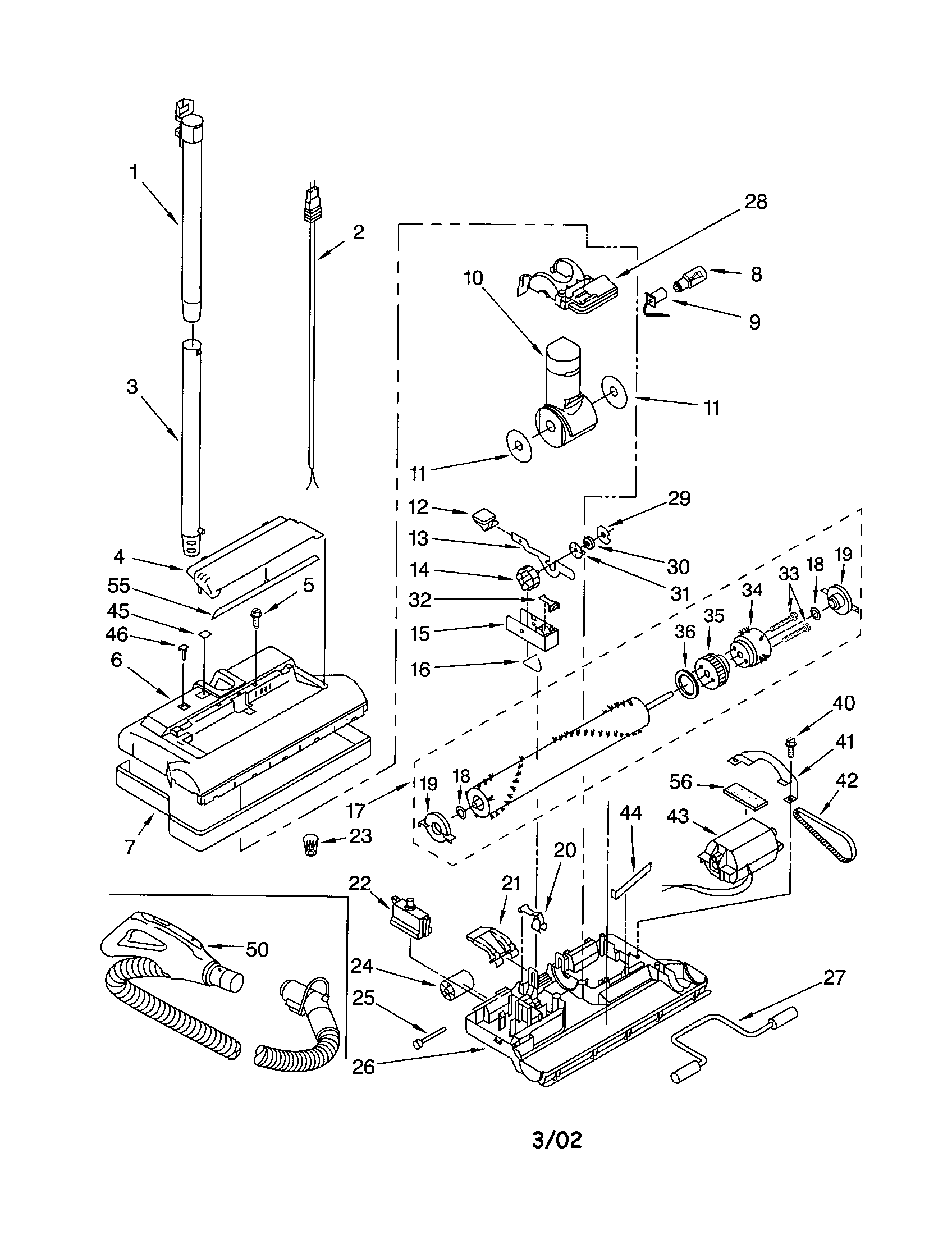

Power-mate parts diagram

Muskin gasket

Part #742968

The manufacturer no longer makes this part, and there's no substitute part

End Brush (black) 8175101
#34

Power-mate parts diagram

End brush (black)

Part #8175101

The manufacturer no longer makes this part, and there's no substitute part

Roller Shaft 742006
#25

Power-mate parts diagram

Roller shaft

Part #742006

The manufacturer no longer makes this part, and there's no substitute part

Sprocket (black) 742506
#35

Power-mate parts diagram

Sprocket (black)

Part #742506

The manufacturer no longer makes this part, and there's no substitute part

Agitator 8175102
#17

Power-mate parts diagram

Agitator

Part #8175102

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Base 8175103
#26

Power-mate parts diagram

Vacuum base

Part #8175103

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 4370364
#24

Power-mate parts diagram

Vacuum wheel

Part #4370364

The manufacturer no longer makes this part, and there's no substitute part

Lens Bulb 747286
#55

Power-mate parts diagram

Lens bulb

Part #747286

The manufacturer no longer makes this part, and there's no substitute part

Screw 681550
#5

Power-mate parts diagram

Screw

Part #681550

The manufacturer no longer makes this part, and there's no substitute part

Hose 4370931
#50

Power-mate parts diagram

Hose

Part #4370931

The manufacturer no longer makes this part, and there's no substitute part
