Model # NGP742UC/01 Official Bosch gas cooktop

Here are the diagrams and repair parts for Official Bosch NGP742UC-01 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Cooktop Burner Orifice Nut 188978
#112

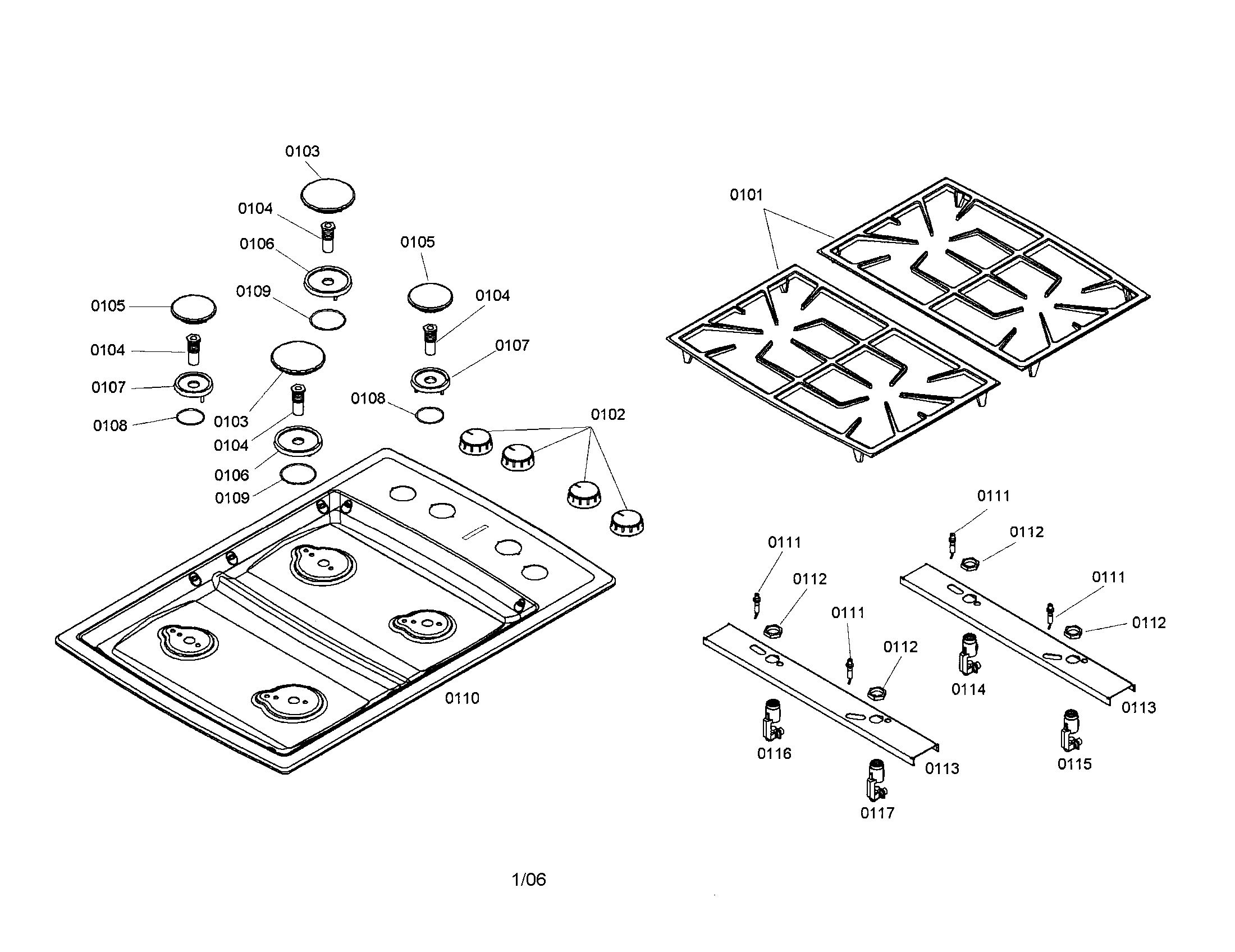

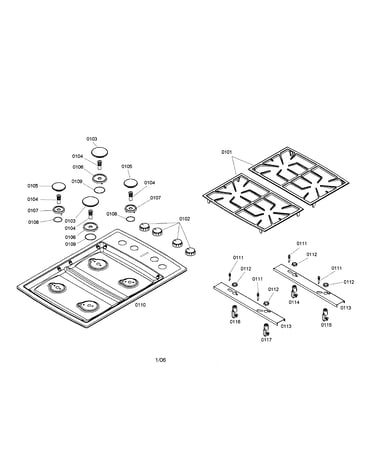

Grate/burner cap/maintop/jet holder diagram

Cooktop burner orifice nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Power Module 486771
#303

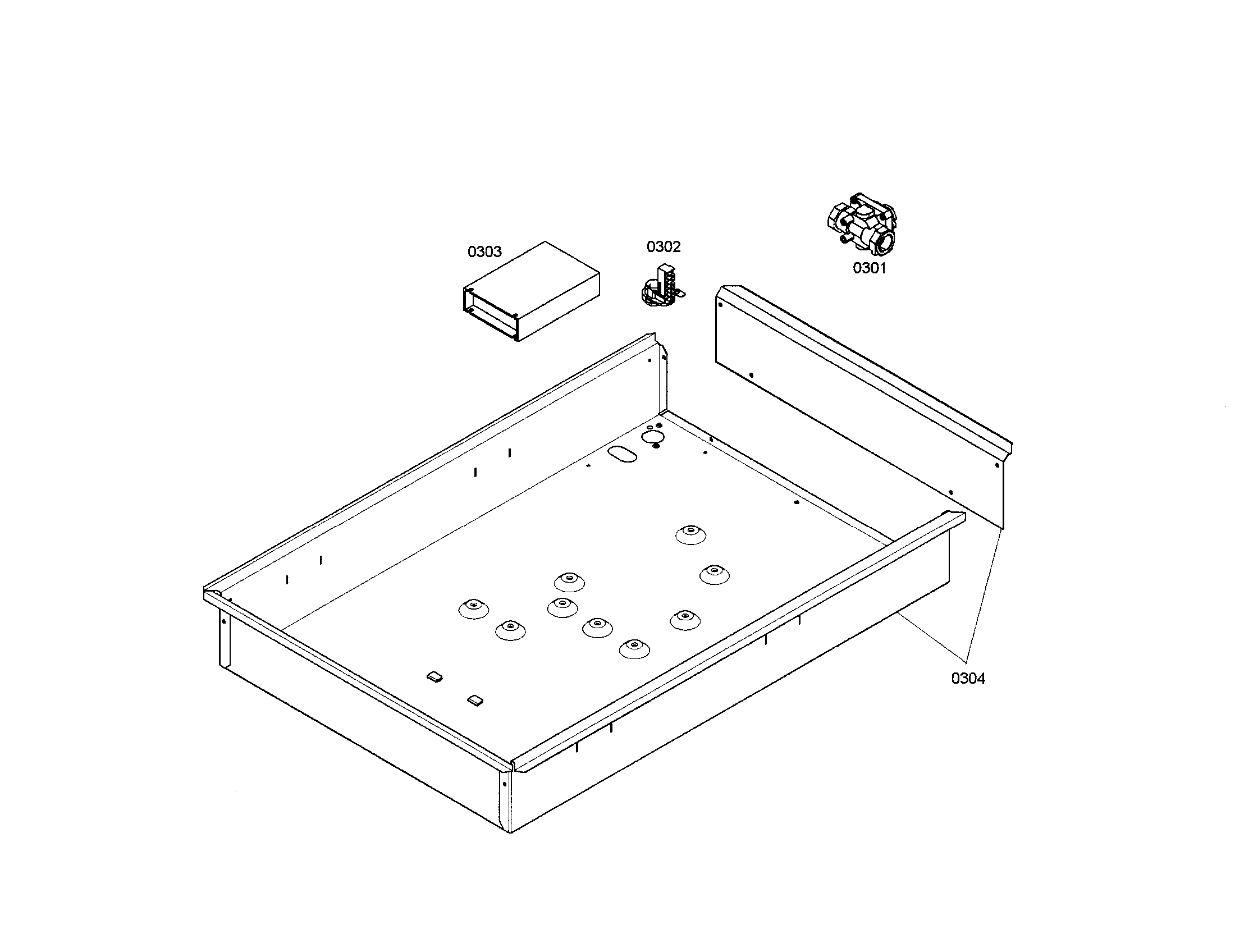

Panel frame/regulator diagram

Power module

Part #486771

Replaced by #00753257

?
Manufacturer substitution
This part replaces 486771. Substitute parts can look different from the original.
$179.68 |
6% OFF Phone Price : $191.68
In Stock
Ignition Head 189324
#111

Grate/burner cap/maintop/jet holder diagram

Ignition head

Part #189324

Replaced by #00189324

?
Manufacturer substitution
This part replaces 189324. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Burn Cap C 189335
#103

Grate/burner cap/maintop/jet holder diagram

Burn cap c

Part #189335

Replaced by #00189335

?
Manufacturer substitution
This part replaces 189335. Substitute parts can look different from the original.
$121.02 |
9% OFF Phone Price : $133.02
In Stock
Cooktop Installation Bracket 188954
#152

Grate/burner cap/maintop/jet holder diagram

Cooktop installation bracket

Part #188954

Replaced by #00188954

?
Manufacturer substitution
This part replaces 188954. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Cooktop Spark Switch 189008
#205

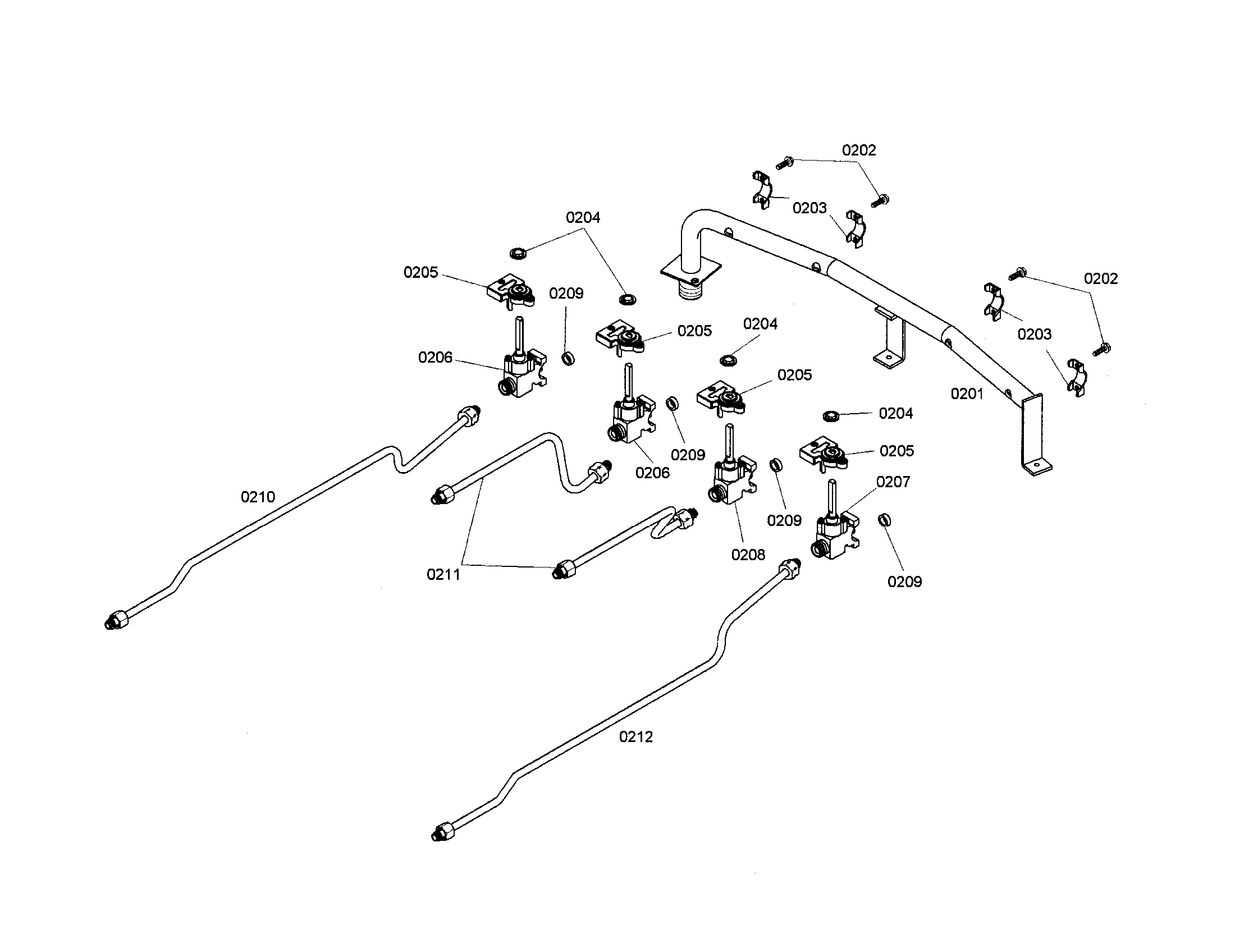

Manifold/valve/tubing diagram

Cooktop spark switch

Part #189008

Replaced by #00189008

?
Manufacturer substitution
This part replaces 189008. Substitute parts can look different from the original.
$33.59 |
15% OFF Phone Price : $39.59
In Stock
Tube 189321
#104

Grate/burner cap/maintop/jet holder diagram

Tube

Part #189321

Replaced by #00189321

?
Manufacturer substitution
This part replaces 189321. Substitute parts can look different from the original.
$46.44
In Stock
Regulator 189034
#301

Panel frame/regulator diagram

Regulator

Part #189034

Replaced by #00189034

?
Manufacturer substitution
This part replaces 189034. Substitute parts can look different from the original.
$199.48
In Stock
Valve (blue) 189305
#207

Manifold/valve/tubing diagram

Valve (blue)

Part #189305

Replaced by #00189305

?
Manufacturer substitution
This part replaces 189305. Substitute parts can look different from the original.
$43.98
In Stock
Washer Retainer 188980
#204

Manifold/valve/tubing diagram

Washer retainer

Part #188980

Replaced by #00188980

?
Manufacturer substitution
This part replaces 188980. Substitute parts can look different from the original.
This item is not returnable
$4.89
In Stock
