Model # 365W Official Minn Kota electric fishing motor

Here are the diagrams and repair parts for Official Minn Kota 365W electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Tube 215200
#25

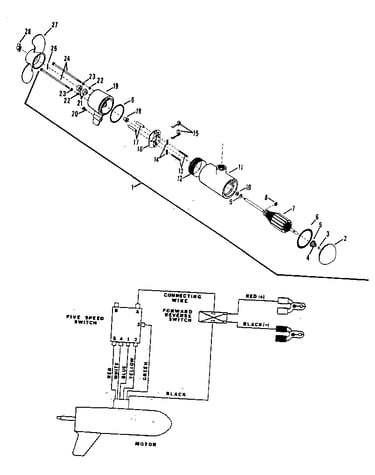

Electric motor assembly diagram

Tube

Part #215200

The manufacturer no longer makes this part, and there's no substitute part

Cntrlbx Scrw 203340
#70

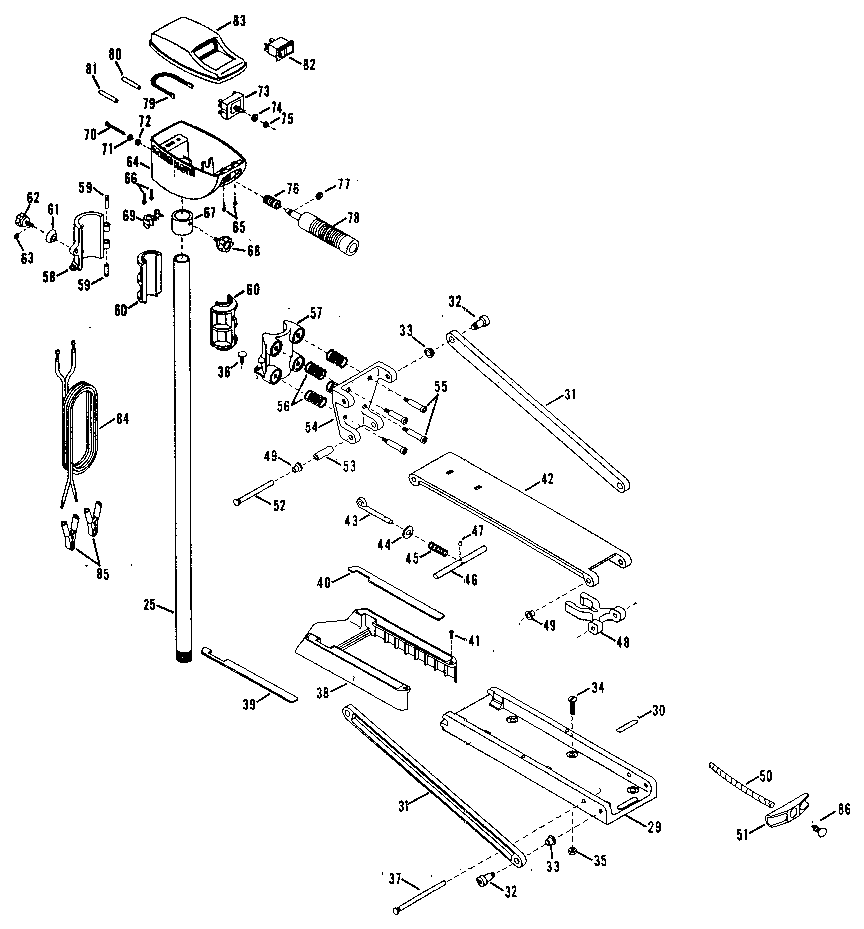

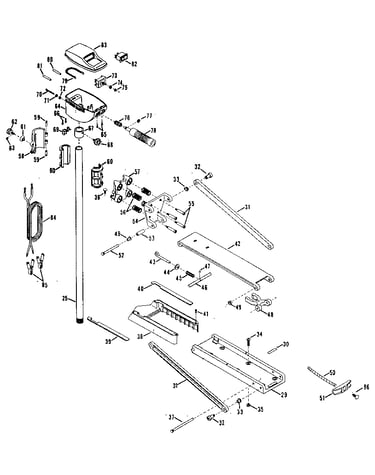

Fishing motor diagram

Cntrlbx scrw

Part #203340

The manufacturer no longer makes this part, and there's no substitute part

5 Spd Switch 206401
#73

Fishing motor diagram

5 spd switch

Part #206401

The manufacturer no longer makes this part, and there's no substitute part

Shldr Bolt 223351
#55

Fishing motor diagram

Shldr bolt

Part #223351

The manufacturer no longer makes this part, and there's no substitute part

Upper Arm 225421
#31

Fishing motor diagram

Upper arm

Part #225421

The manufacturer no longer makes this part, and there's no substitute part

Screw Collar 201134
#68

Fishing motor diagram

Screw collar

Part #201134

The manufacturer no longer makes this part, and there's no substitute part

Propllr Nut 205310
#28

Electric motor assembly diagram

Propllr nut

Part #205310

The manufacturer no longer makes this part, and there's no substitute part

E-ring 405300
#8

Electric motor assembly diagram

E-ring

Part #405300

The manufacturer no longer makes this part, and there's no substitute part

Brush 405070
#15

Electric motor assembly diagram

Brush

Part #405070

The manufacturer no longer makes this part, and there's no substitute part

Strain Rlif 205290
#69

Fishing motor diagram

Strain rlif

Part #205290

The manufacturer no longer makes this part, and there's no substitute part
