Model # N4A418GKA100 Official ICP split-system air conditioner - r410a

Here are the diagrams and repair parts for Official ICP N4A418GKA100 split-system air conditioner - r410a, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
N4A418GKA100 Split-System Air Conditioner - R410A
Carrier Grommet 1171270
#10

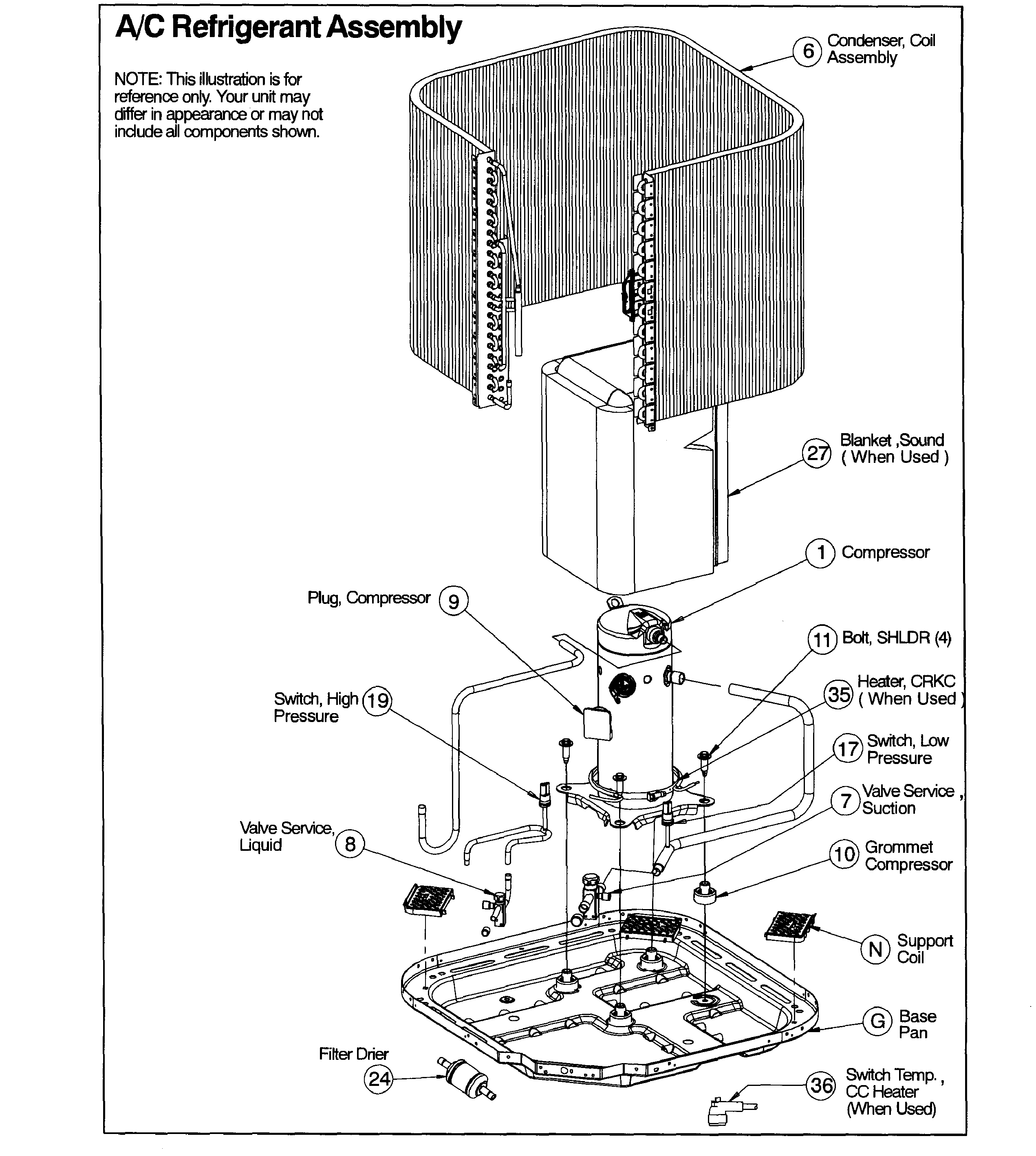

Main asy 2 diagram

Carrier grommet

Part #1171270

This item is not returnable
$4.00
In Stock
Support 1174068
#N

Main asy 2 diagram

Support

Part #1174068

$21.40
In Stock
Condenser 1174208
#6

Main asy 2 diagram

Condenser

Part #1174208

$933.18
In Stock
Central Air Conditioner Contactor 1172472
#4

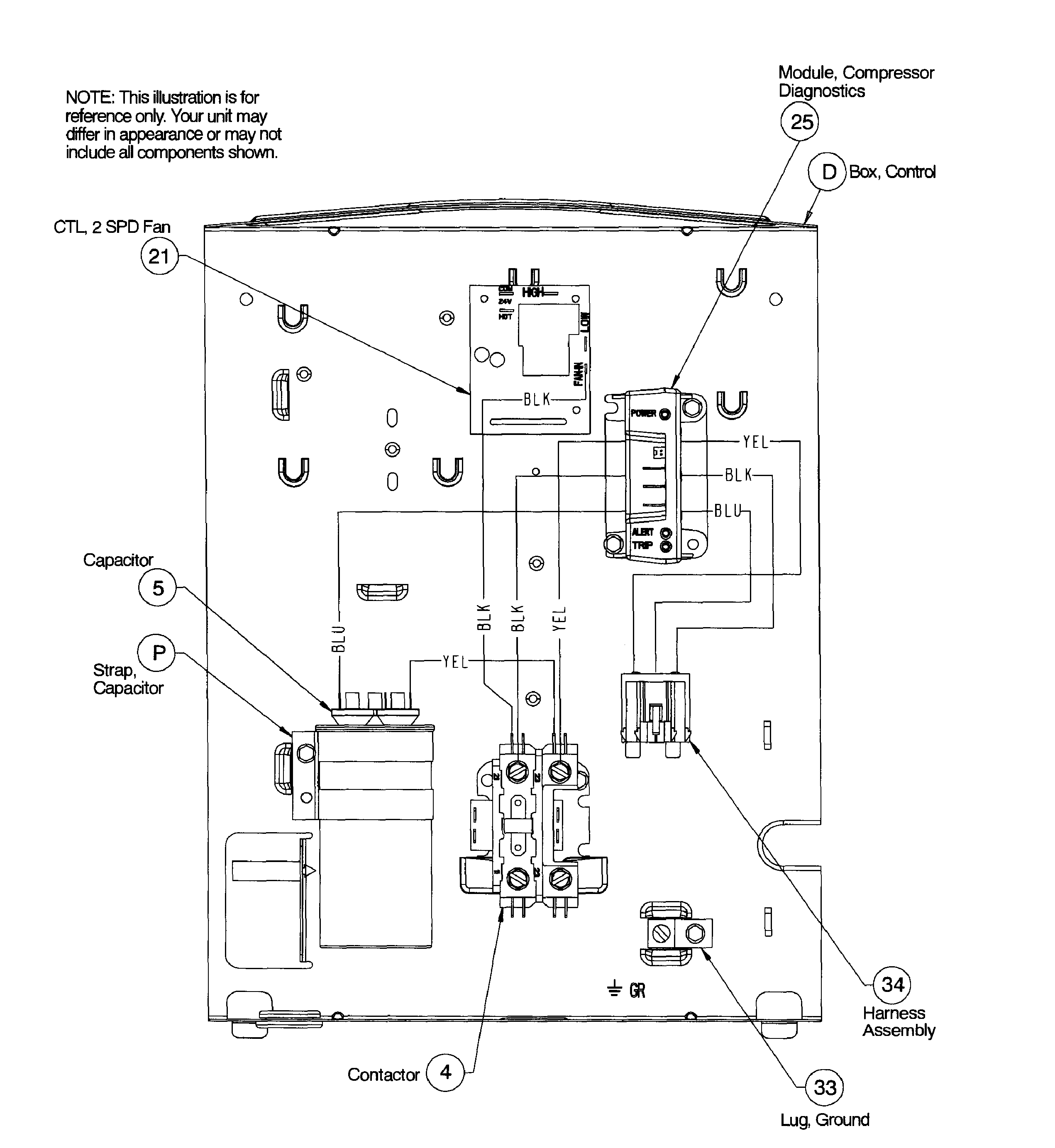

Control panel diagram

Central air conditioner contactor

Part #1172472

$61.35 |
9% OFF Phone Price : $67.35
In Stock
Central Air Conditioner Condenser Fan Motor 1173716
#2

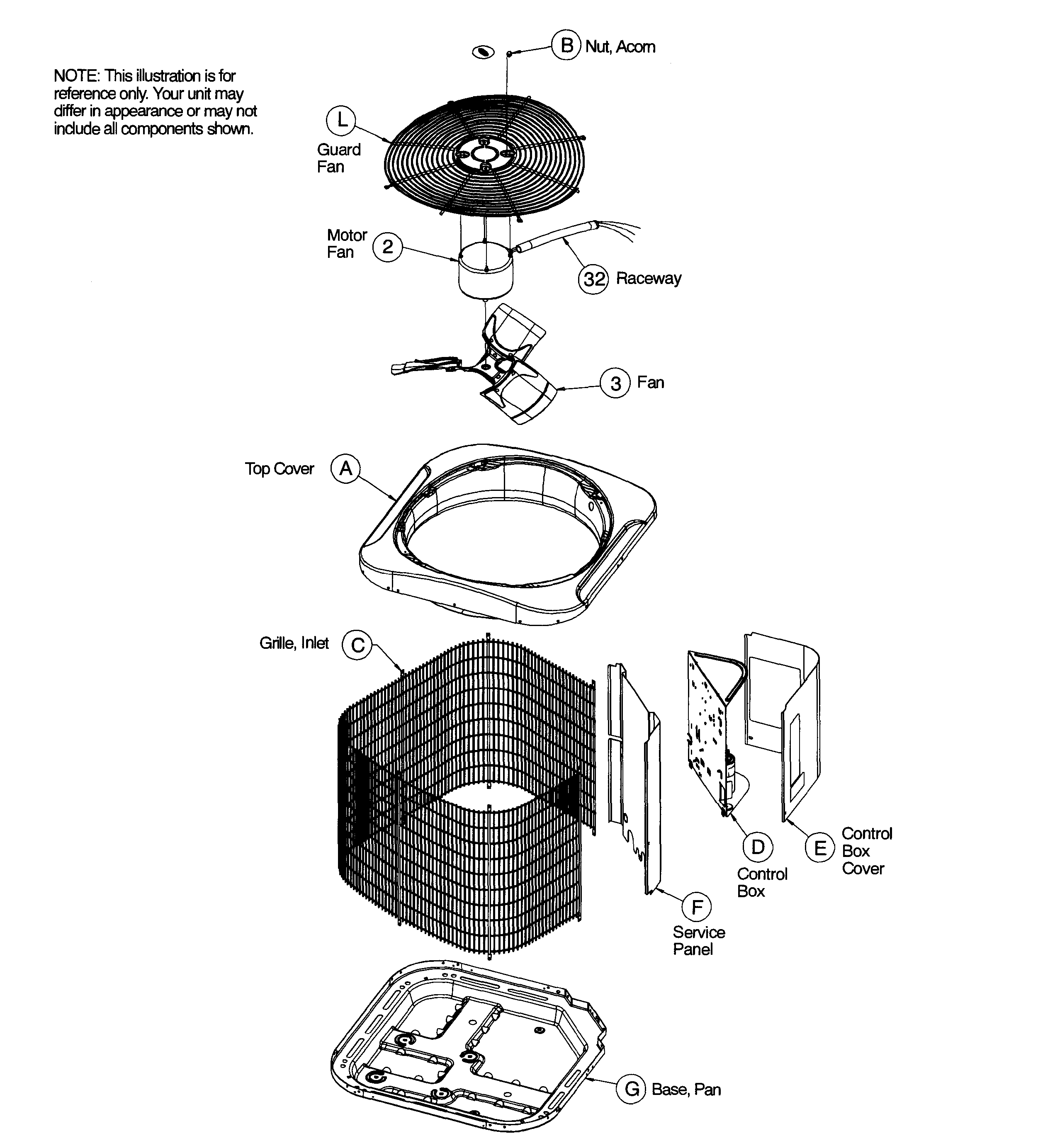

Main asy 1 diagram

Central air conditioner condenser fan motor

Part #1173716

$329.81 |
$12.00 OFF Phone Price : $341.81
In Stock
Clamp 1172734
#P

Control panel diagram

Clamp

Part #1172734

$10.20
In Stock
Central Air Conditioner Condenser Fan Grille 1172764
#L

Main asy 1 diagram

Central air conditioner condenser fan grille

Part #1172764

$381.63
In Stock
Lug Ground 1172300
#33

Control panel diagram

Lug ground

Part #1172300

This item is not returnable
$6.54
In Stock
Fan 1173721
#3

Main asy 1 diagram

Fan

Part #1173721

$299.38
In Stock
Top Cover 1174075
#A

Main asy 1 diagram

Top cover

Part #1174075

$52.58
In Stock
