Magic Chef
Gas Range

Model # 31000PAWD Official Magic Chef gas freestanding range

Here are the diagrams and repair parts for Official Magic Chef 31000PAWD gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Clamp Screw 7101P080-60
#8

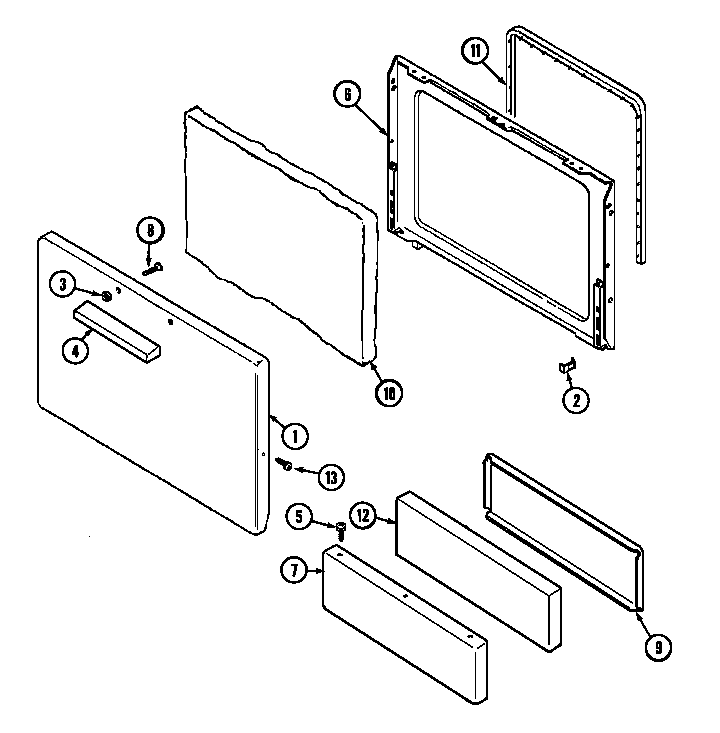

Door diagram

Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7101P282-60
#14

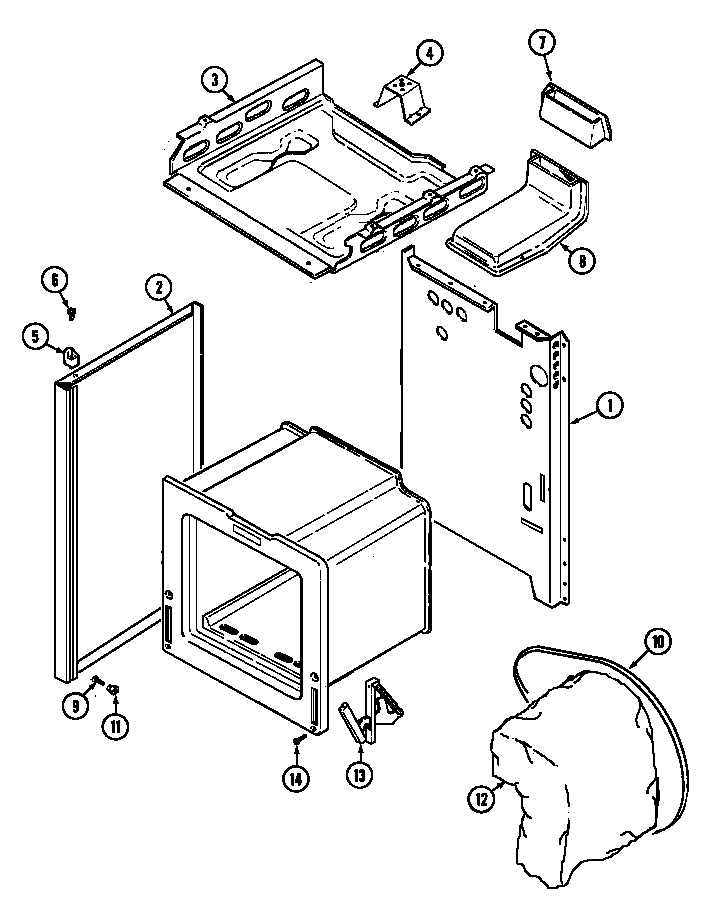

Body diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P112-60
#11A

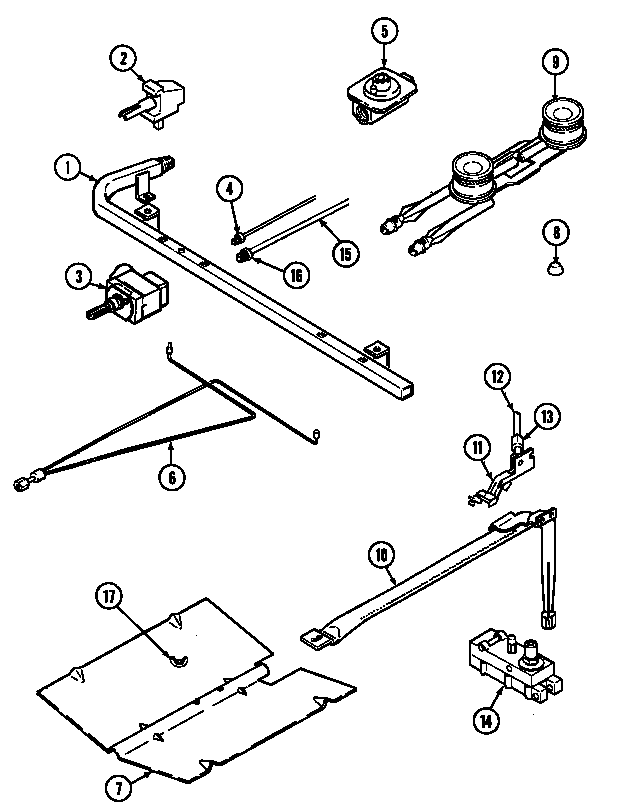

Gas controls diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Thermostat Clip 7112P004-60
#10

Oven/base diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Screw (wht) 7101P373-60
#13

Door diagram

Screw (wht)

Part #7101P373-60

Replaced by #WP98008544

?
Manufacturer substitution
This part replaces 7101P373-60. Substitute parts can look different from the original.
$33.26
In Stock
Range Leveling Leg 74002373
#2

Oven/base diagram

Range leveling leg

Part #74002373

Replaced by #W11665456

?
Manufacturer substitution
This part replaces 74002373. Substitute parts can look different from the original.
$43.45
In Stock
Range Wing Nut 7103P030-60
#17

Gas controls diagram

Range wing nut

Part #7103P030-60

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Oven 74002327
#8

Oven/base diagram

Oven

Part #74002327

$11.60
In Stock
Oven Rack 74001757
#7

Oven/base diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Screw 7101P338-60
#9A

Gas controls diagram

Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
