Model # JGSP21GER3WH Official GE gas range

Here are the diagrams and repair parts for Official GE JGSP21GER3WH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
Kenmore Range Oven Burner Igniter (replaces Wb02x9154, Wb13k10027, Wb13k3) WB2X9154
#316

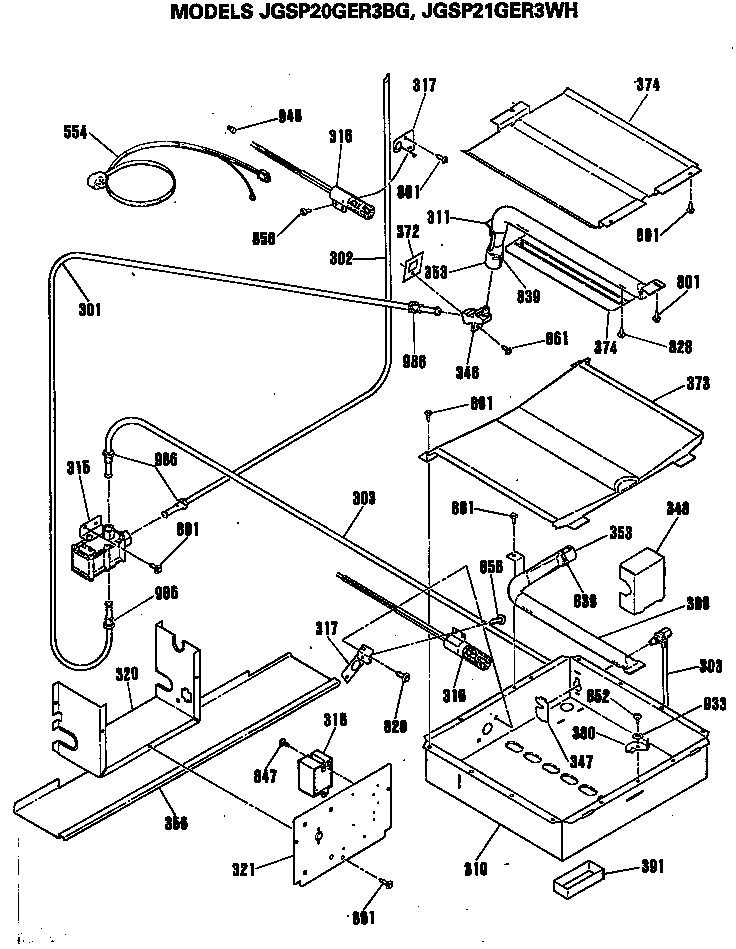

Gas lines diagram

Kenmore range oven burner igniter (replaces wb02x9154, wb13k10027, wb13k3)

Part #WB2X9154

BEST SELLER
$84.11 |
7% OFF Phone Price : $90.11
In Stock
Range Screw (replaces Wb01x1293, Wb1k50) WB1X1293
#856

Gas lines diagram

Range screw (replaces wb01x1293, wb1k50)

Part #WB1X1293

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Lock Motor WB26K5030
#151

Lock diagram

Lock motor

Part #WB26K5030

Replaced by #WB49T10020

?
Manufacturer substitution
This part replaces WB26K5030. Substitute parts can look different from the original.
$130.30 |
8% OFF Phone Price : $142.30
In Stock
Screw-10-32 WB1X1253
#810

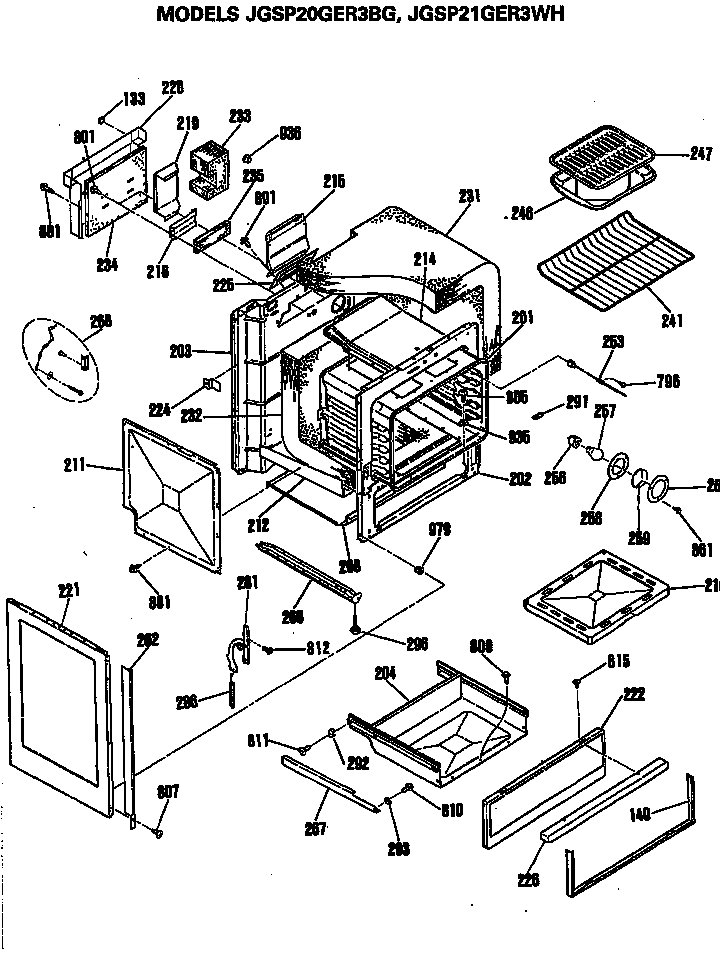

Oven assembly diagram

Screw-10-32

Part #WB1X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB1X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Oven Door Gasket WB2K5221
#132

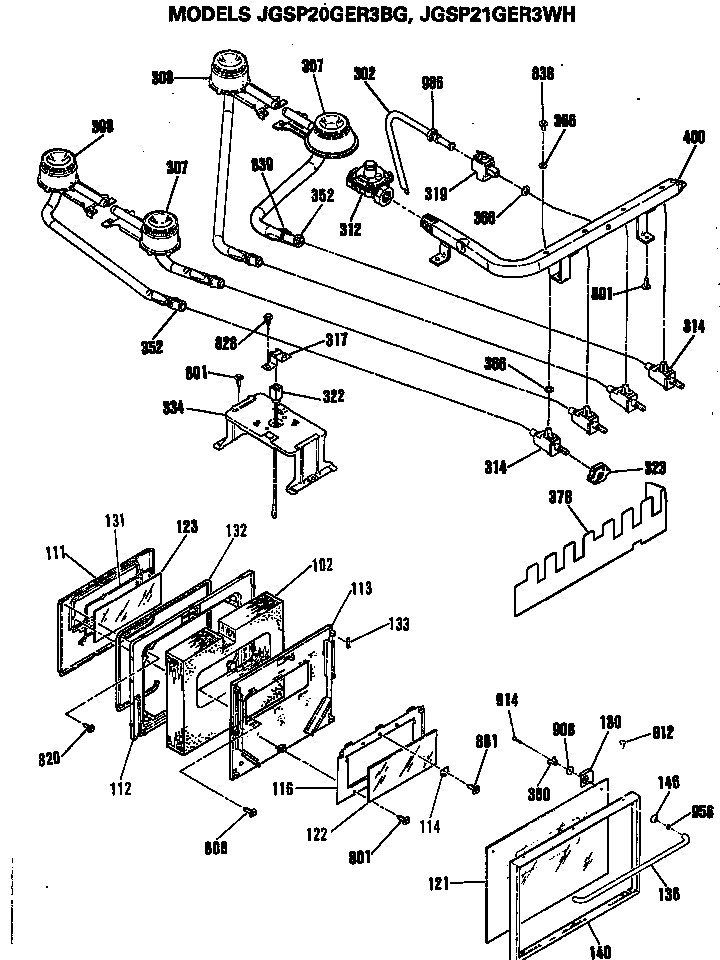

Door/gas lines diagram

Oven door gasket

Part #WB2K5221

Replaced by #WB2K5319

?
Manufacturer substitution
This part replaces WB2K5221. Substitute parts can look different from the original.
$109.34 |
10% OFF Phone Price : $121.34
In Stock
Screw-10ab WB1K5155
Screw-10ab

Part #WB1K5155

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB1K5155. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Igniter Bracket WB2X9162
Igniter bracket

Part #WB2X9162

Replaced by #311689

?
Manufacturer substitution
This part replaces WB2X9162. Substitute parts can look different from the original.
$7.71
In Stock
Scw 8abx.250 WB1X1301
#872

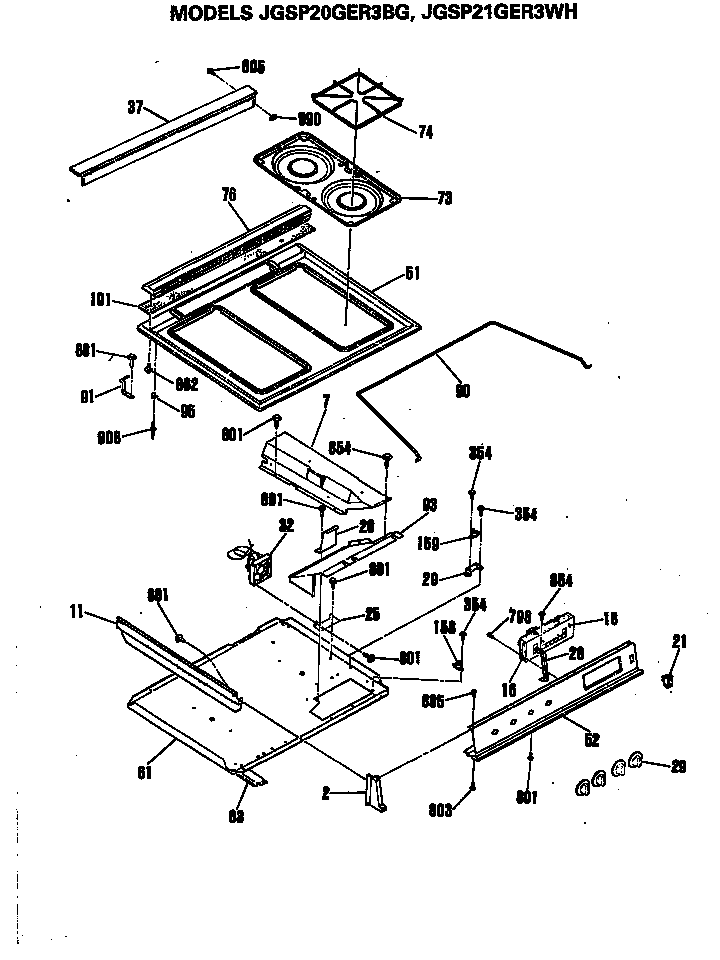

Cooktop diagram

Scw 8abx.250

Part #WB1X1301

Replaced by #WB1X1425

?
Manufacturer substitution
This part replaces WB1X1301. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Rocker Switch WB24X451
#21

Cooktop diagram

Rocker switch

Part #WB24X451

Replaced by #WB24K5022

?
Manufacturer substitution
This part replaces WB24X451. Substitute parts can look different from the original.
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Range Screw WB1K5062
#761

Cooktop diagram

Range screw

Part #WB1K5062

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
