Model # GSE20JEWAFWW Official GE refrigerator - w series
Here are the diagrams and repair parts for Official GE GSE20JEWAFWW refrigerator - w series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forGSE20JEWAFWW Refrigerators
- #243

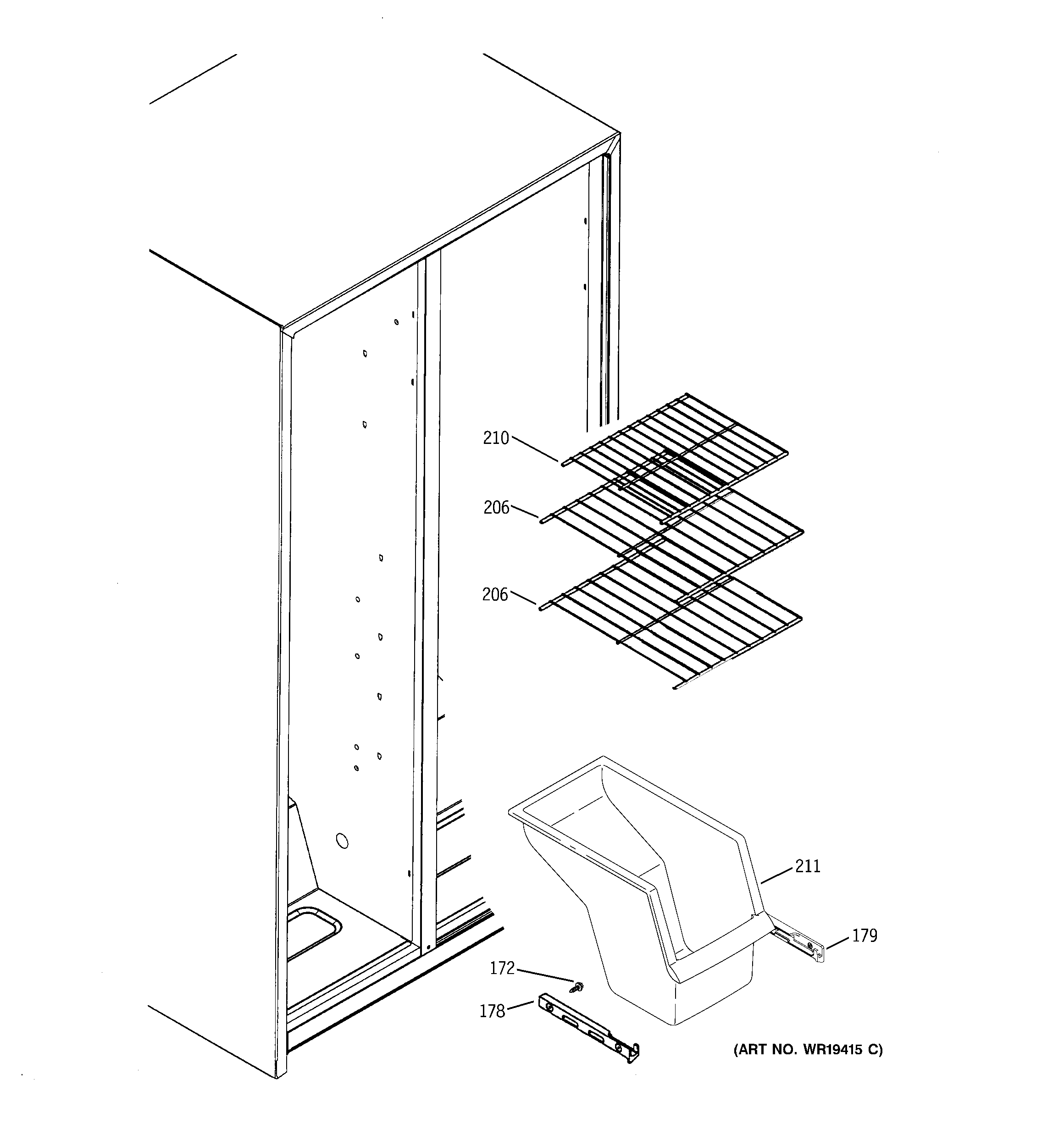

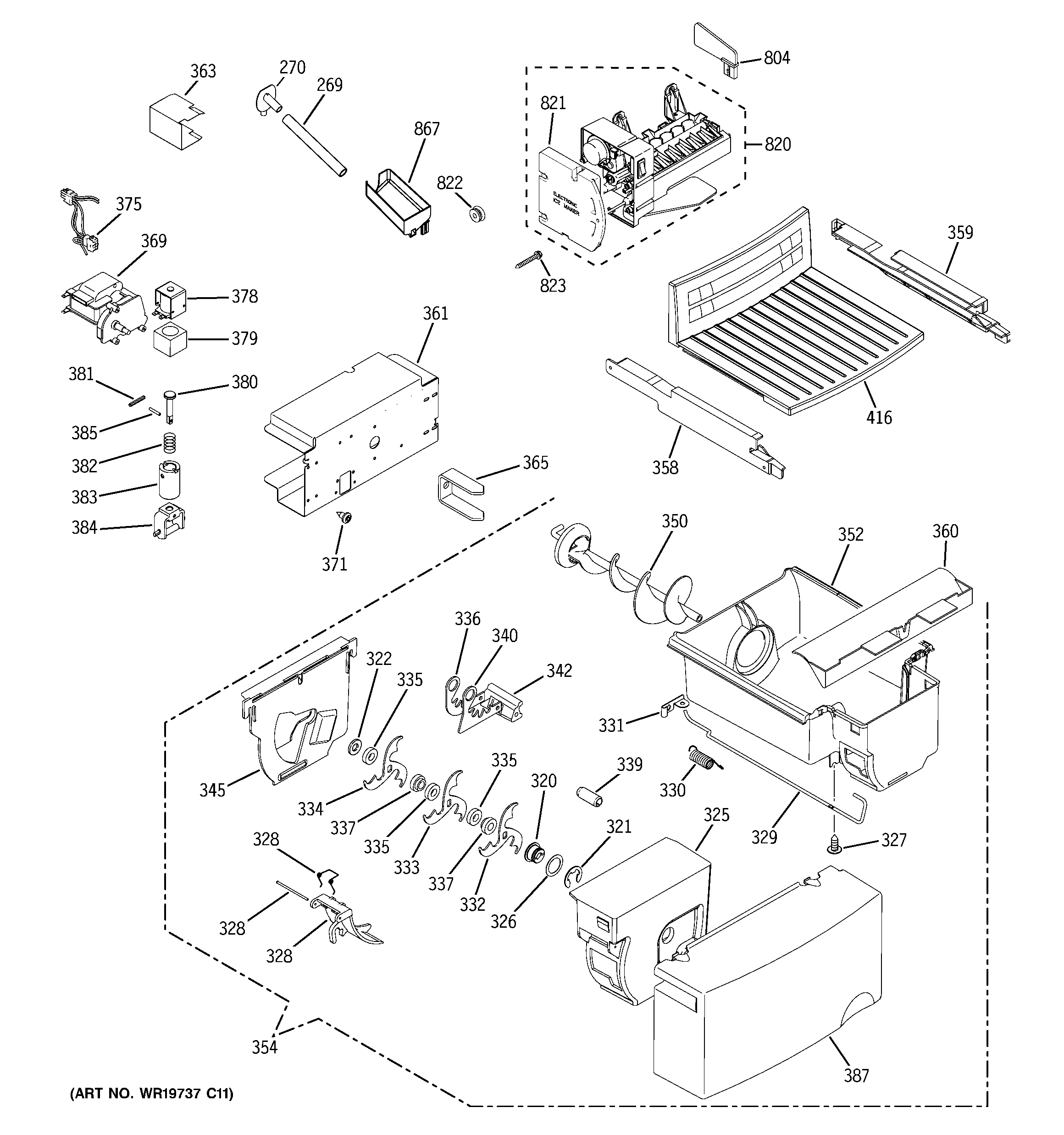

Freezer section diagram
Refrigerator temperature sensorPart #WR55X10737
Replaced by #WR55X10025
?Manufacturer substitutionThis part replaces WR55X10737. Substitute parts can look different from the original.$18.93 |10% OFF Phone Price : $20.93In Stock - #241
Freezer section diagram
Refrigerator temperature sensorPart #WR55X10735
Replaced by #WR55X10025
?Manufacturer substitutionThis part replaces WR55X10735. Substitute parts can look different from the original.$18.93 |10% OFF Phone Price : $20.93In Stock - #242

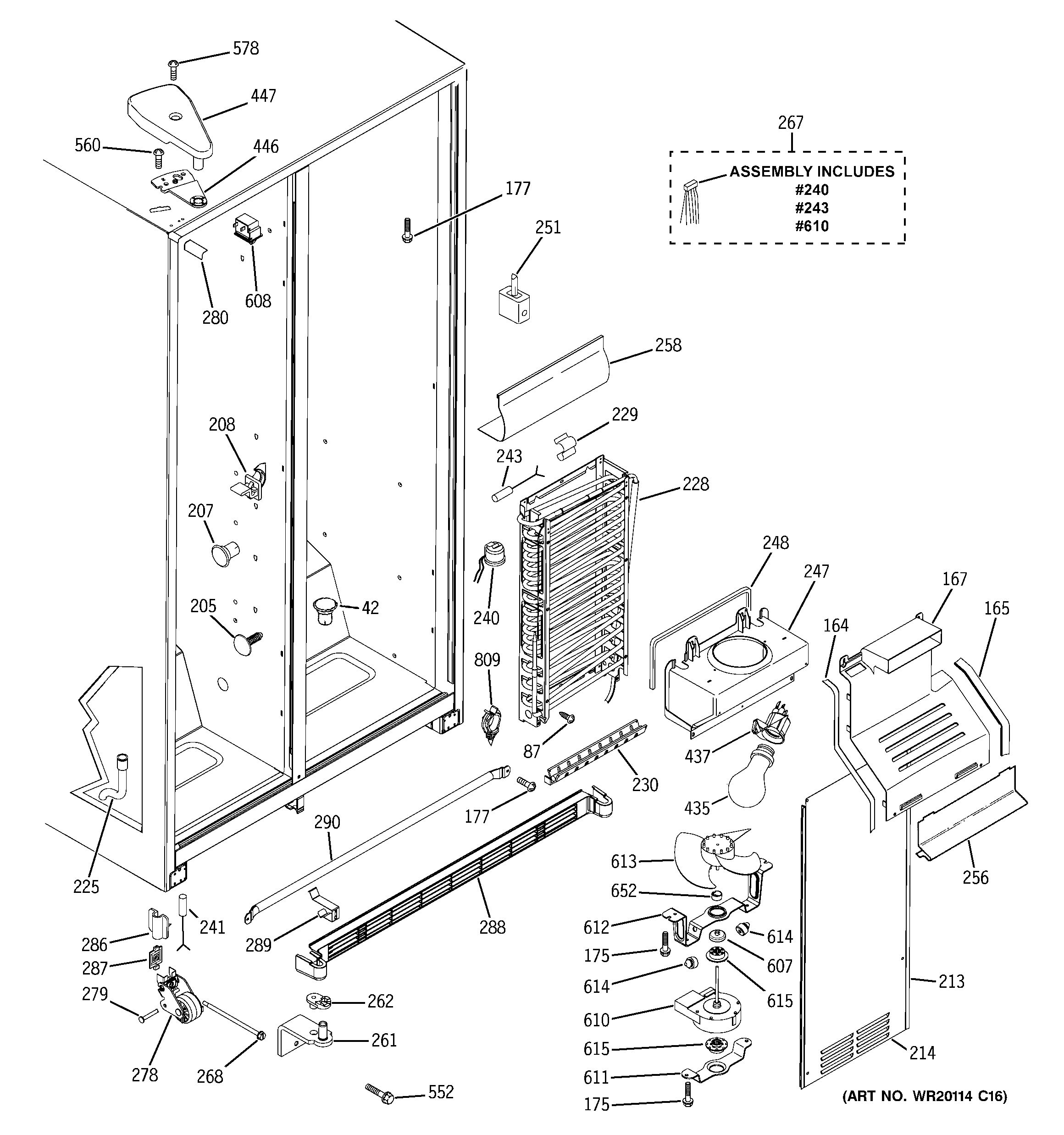

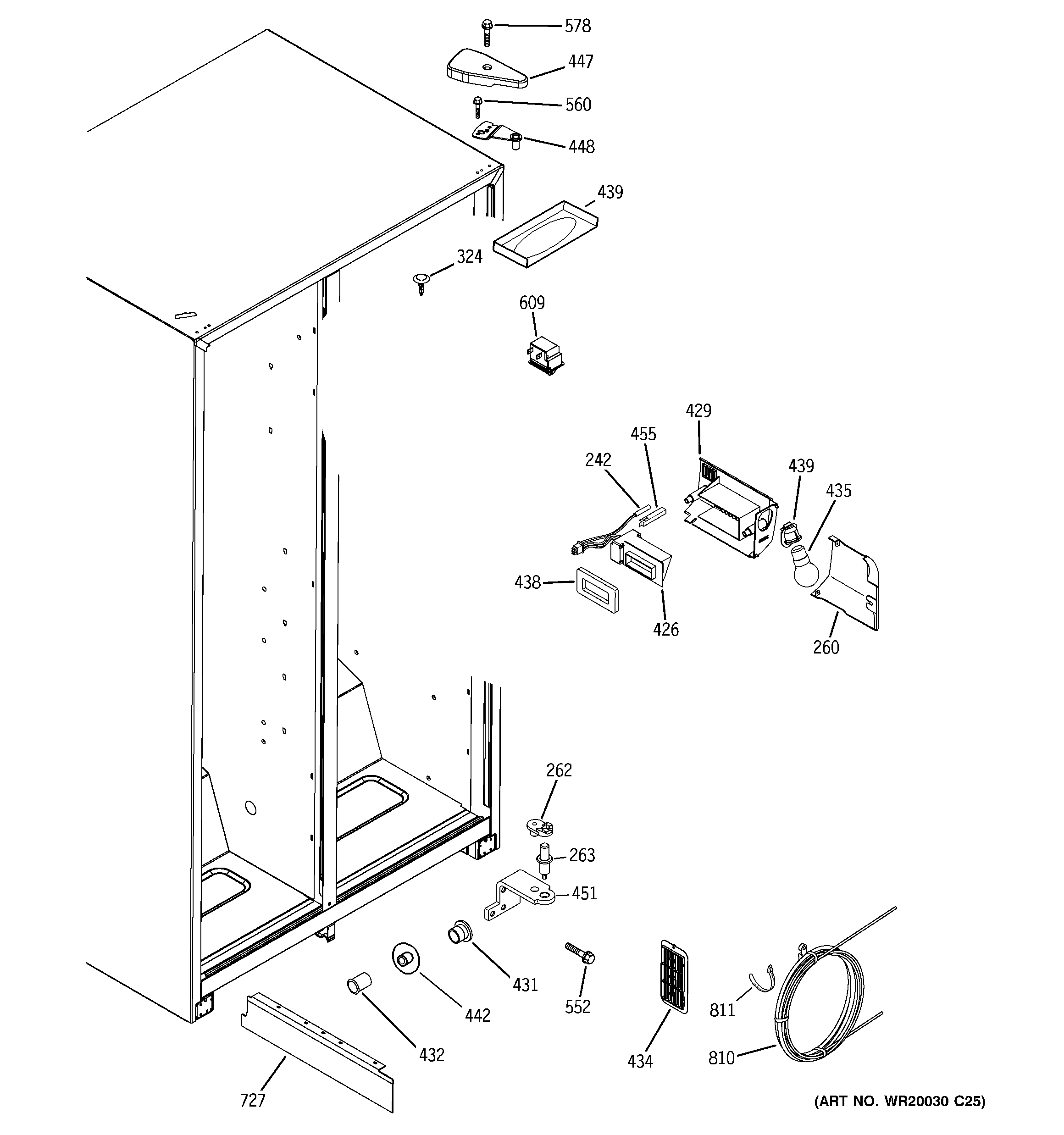

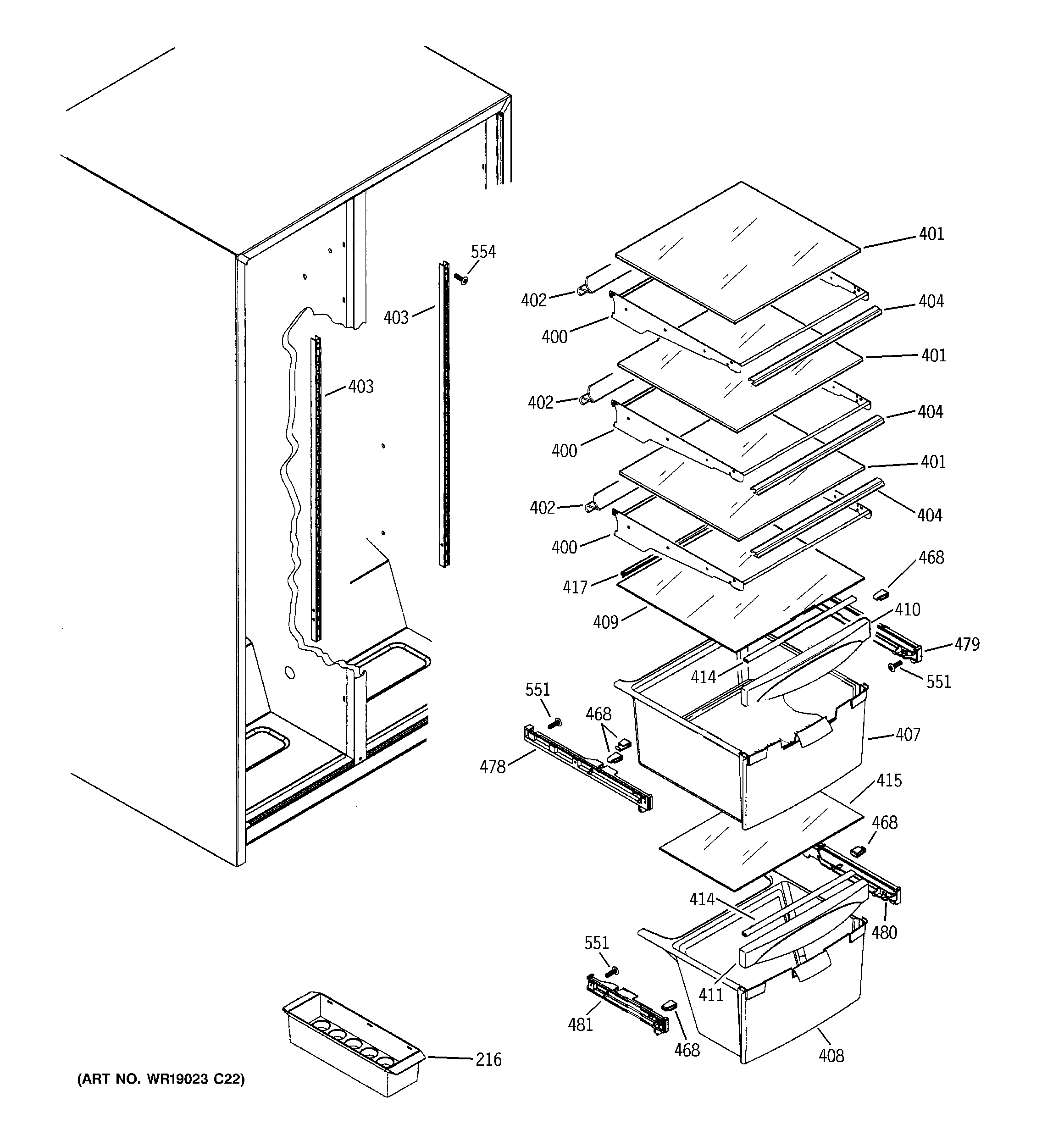

Fresh food section diagram
Refrigerator temperature sensorPart #WR55X10736
Replaced by #WR55X10025
?Manufacturer substitutionThis part replaces WR55X10736. Substitute parts can look different from the original.$18.93 |10% OFF Phone Price : $20.93In Stock - #740

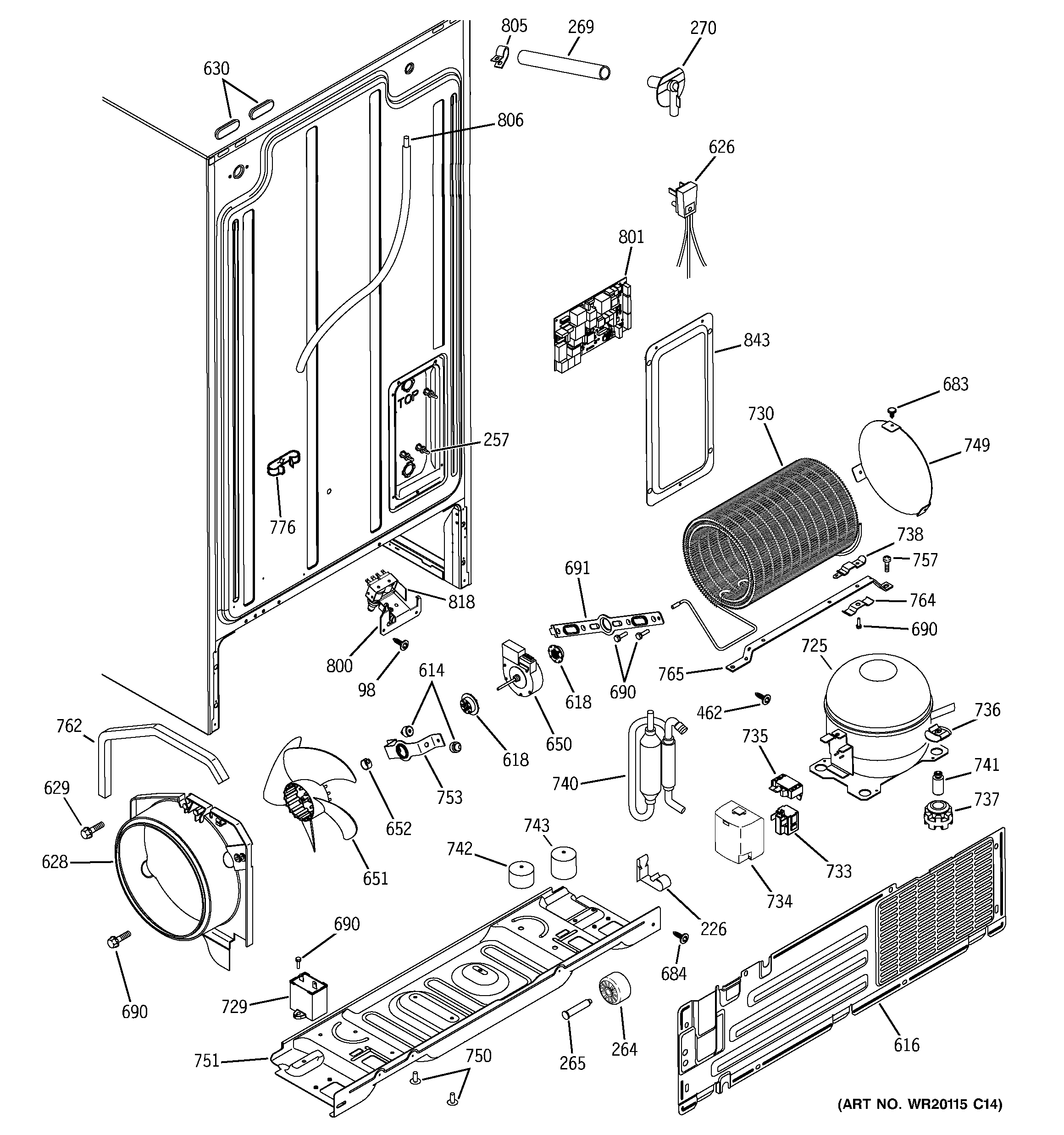

Sealed system & mother board diagram
Refrigerator filter dryerPart #WR86X96
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X96. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - #240
Freezer section diagram
ThermostatPart #WR50X10074
Replaced by #WR50X10068
?Manufacturer substitutionThis part replaces WR50X10074. Substitute parts can look different from the original.$22.27 |21% OFF Phone Price : $28.27In Stock - #36

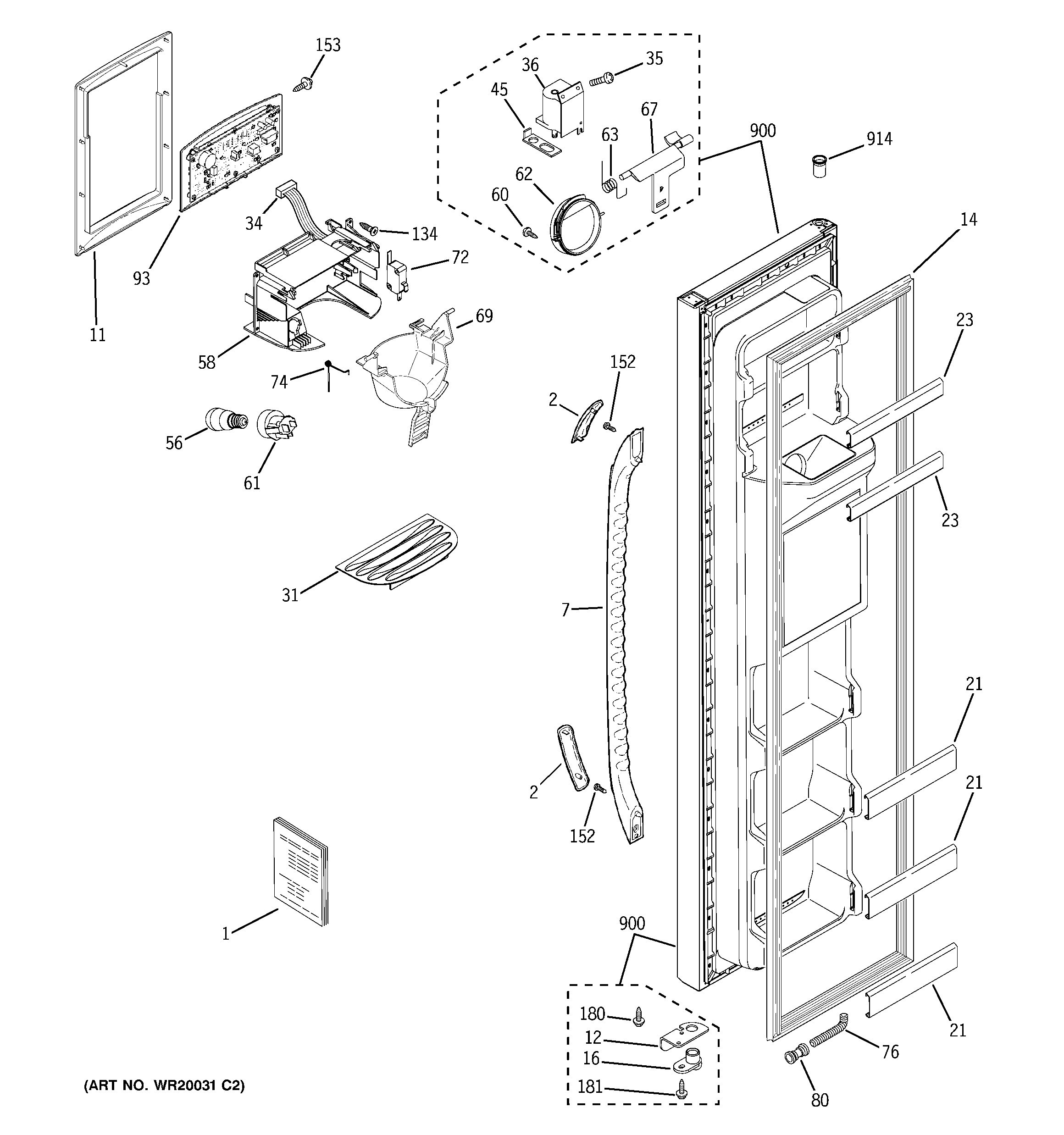

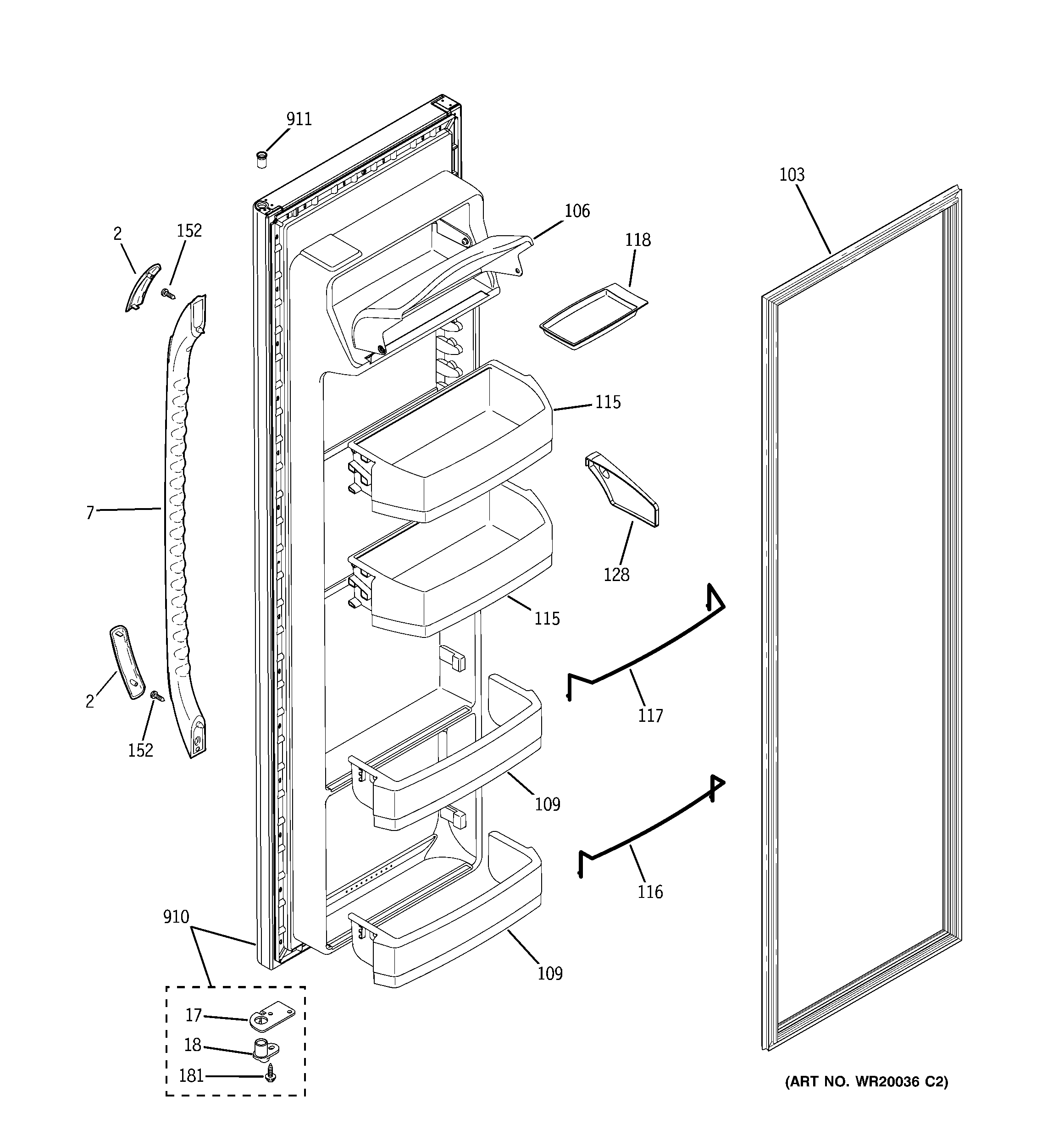

Freezer door diagram
Rca refrigerator dispenser ice chute door solenoidPart #WR62X10055
$57.05 |10% OFF Phone Price : $63.05In Stock - #62
Freezer door diagram
Refrigerator dispenser ice chute door kitPart #WR17X11653
$15.42 |11% OFF Phone Price : $17.42In Stock - #650
Sealed system & mother board diagram
Condenser motorPart #WR60X10216
Replaced by #WR60X10209
?Manufacturer substitutionThis part replaces WR60X10216. Substitute parts can look different from the original.$61.98 |9% OFF Phone Price : $67.98In Stock - #651
Sealed system & mother board diagram
Refrigerator condenser fan bladePart #WR60X10206
Replaced by #WR60X24484
?Manufacturer substitutionThis part replaces WR60X10206. Substitute parts can look different from the original.This item is not returnable$29.22 |17% OFF Phone Price : $35.22In Stock - #608
Freezer section diagram
Refrigerator door switchPart #WR23X10179
Replaced by #WR23X21444
?Manufacturer substitutionThis part replaces WR23X10179. Substitute parts can look different from the original.This item is not returnable$10.39 |16% OFF Phone Price : $12.39In Stock
