Toro
Rear-Engine Riding Mower

Model # 74624 (311000001 AND UP) Official Toro riding lawn mower

Here are the diagrams and repair parts for Official Toro 74624-311000001-AND-UP riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

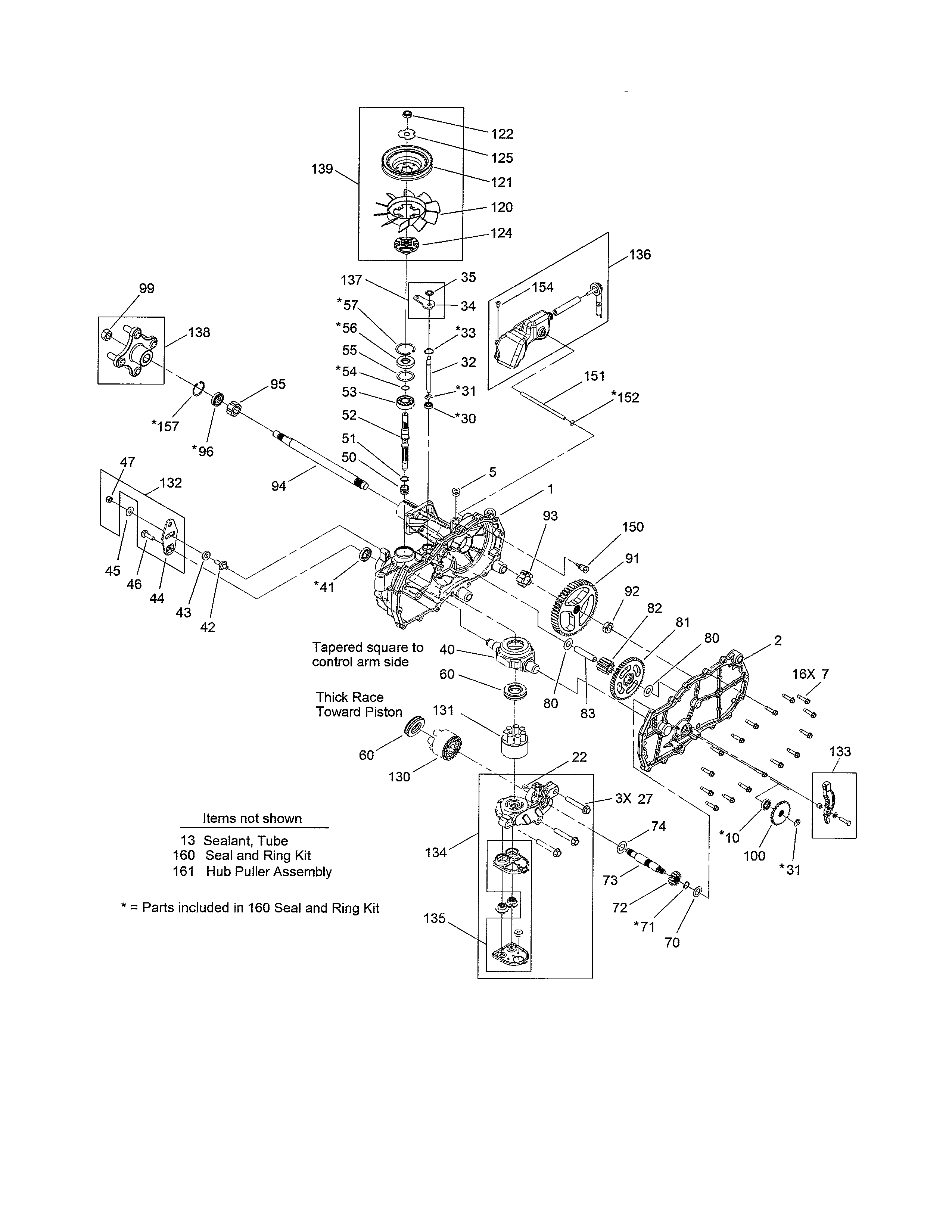

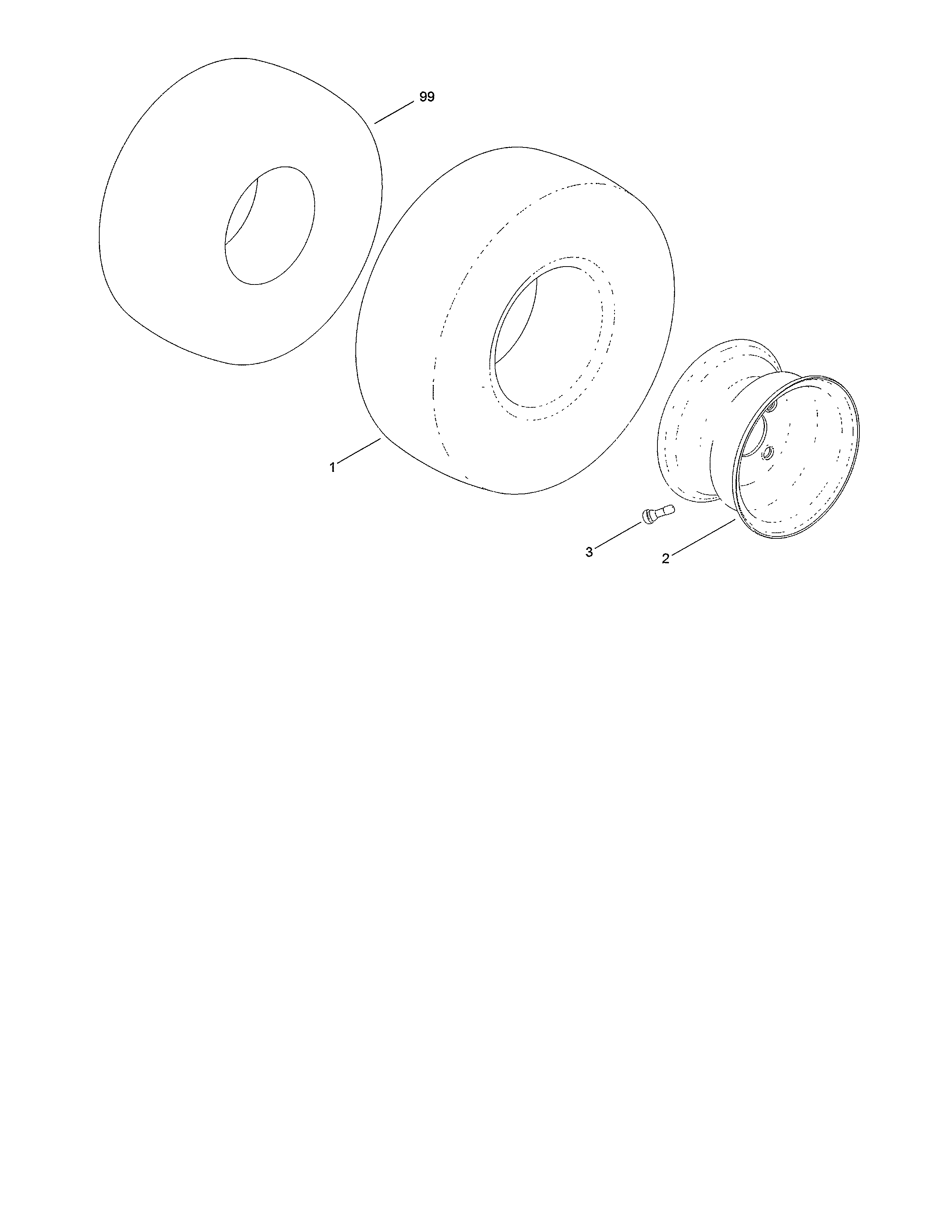

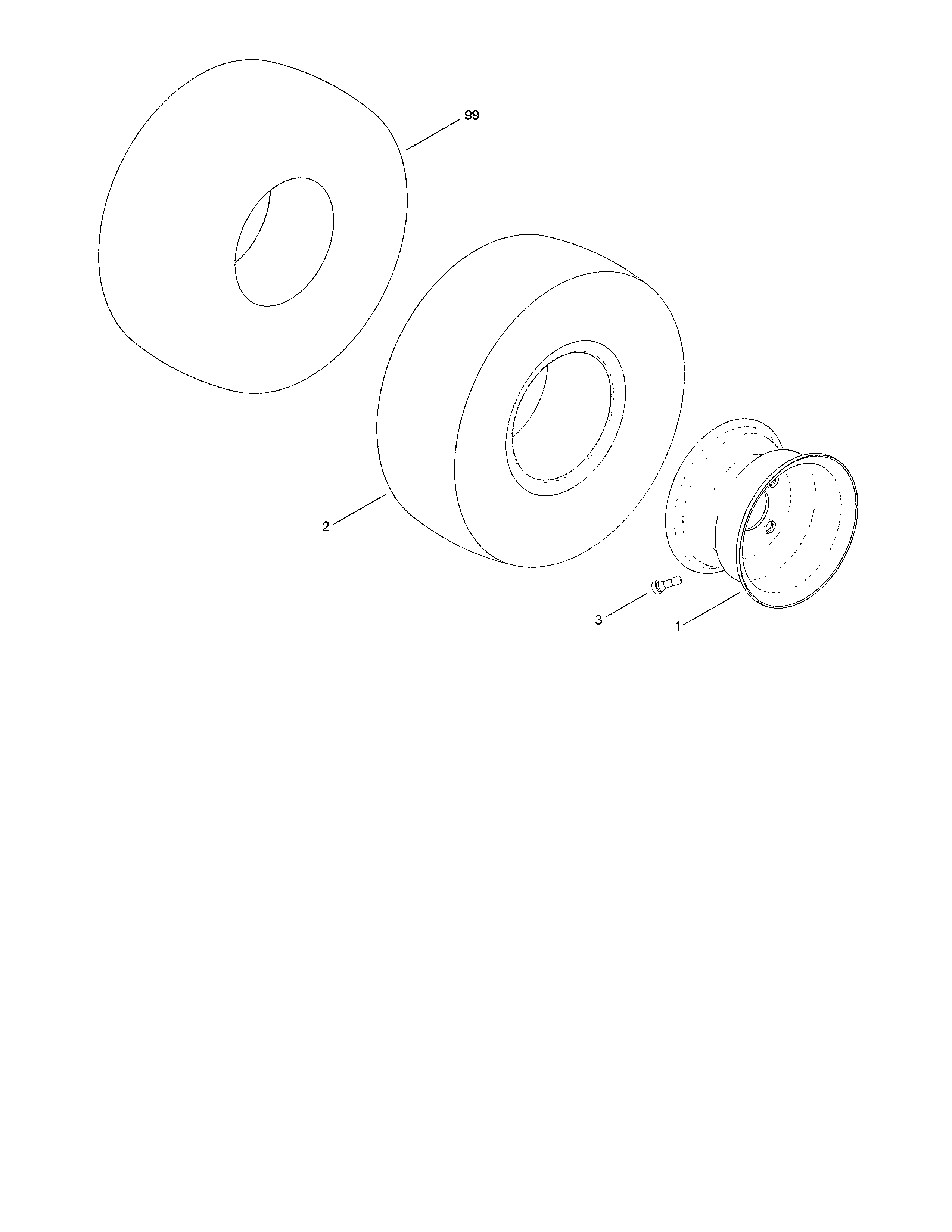

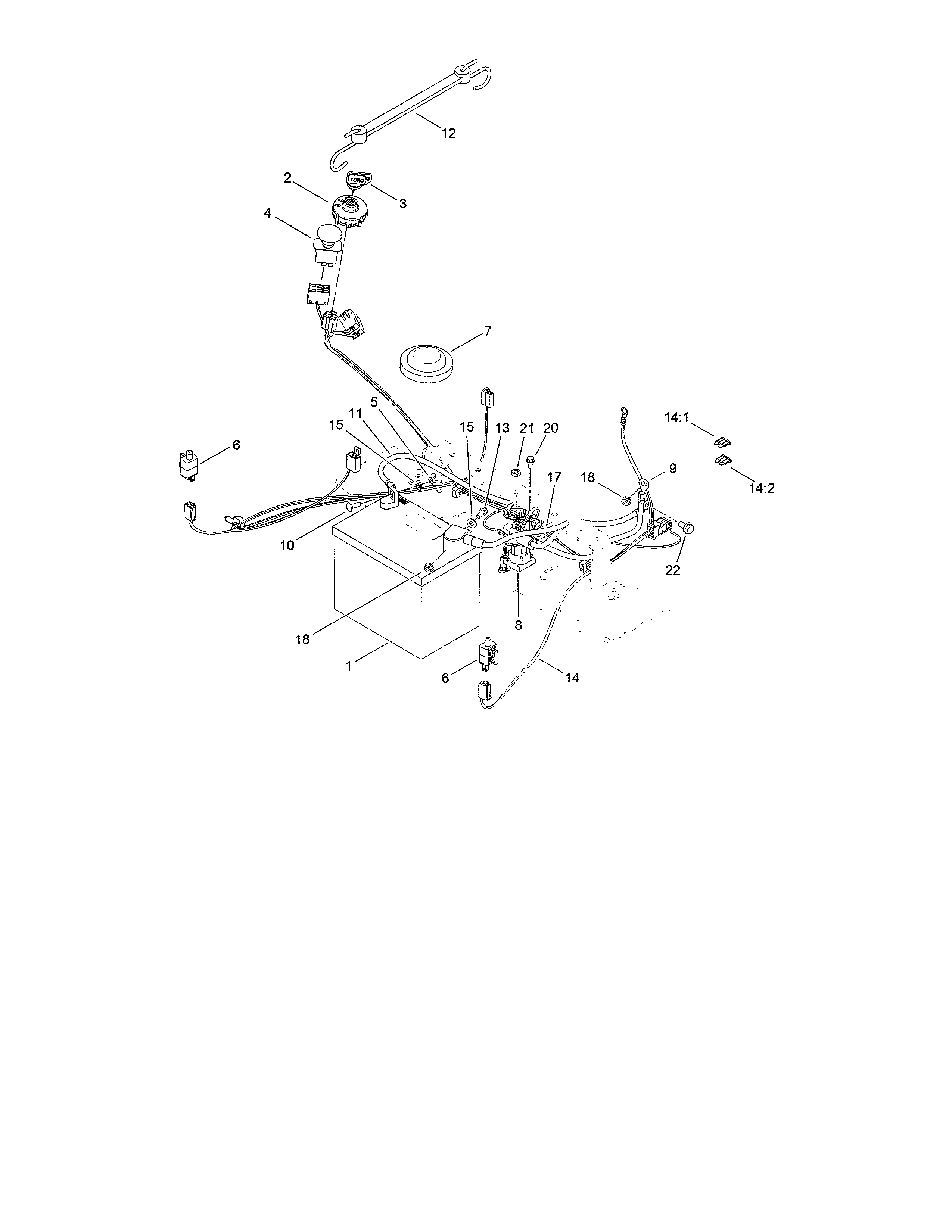

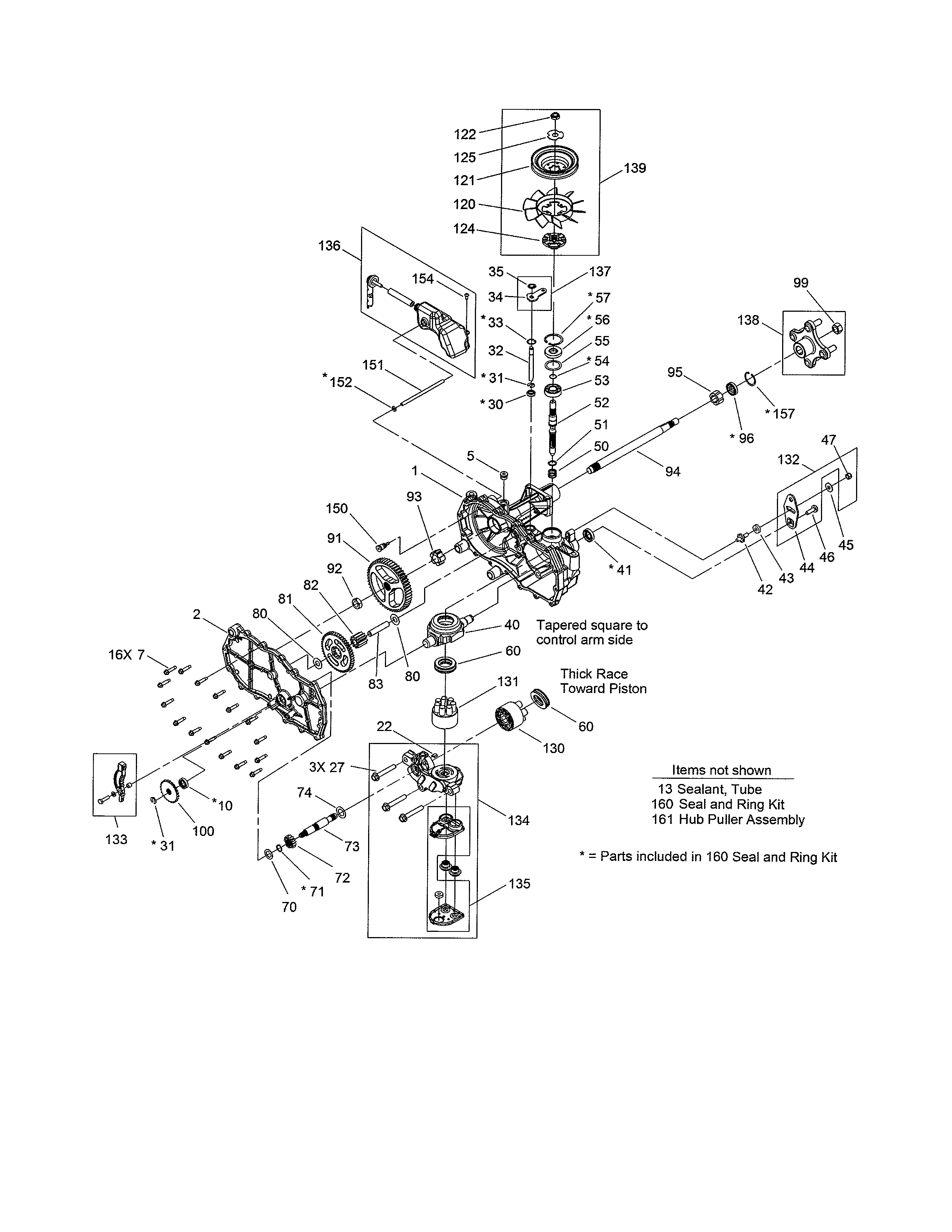

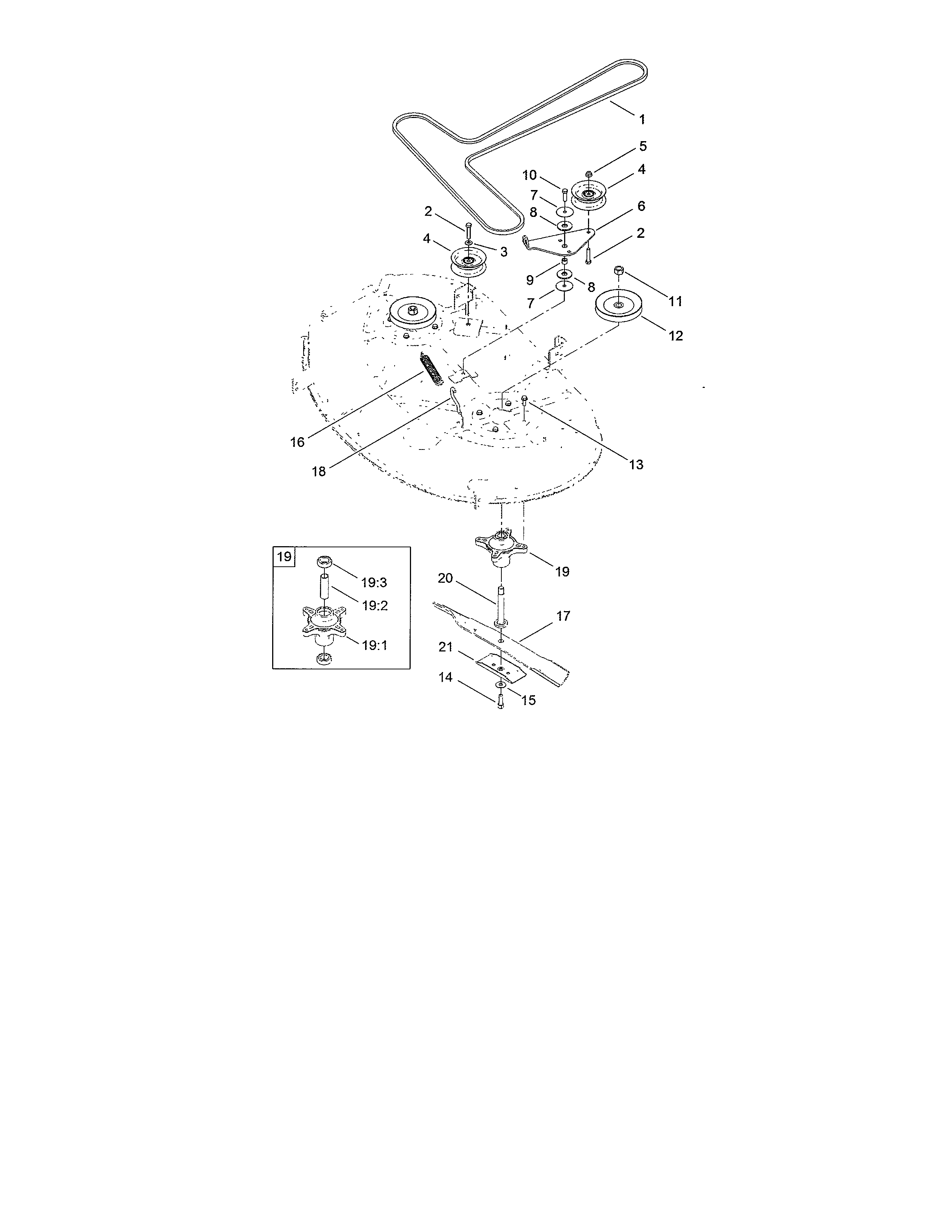

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 318 parts  |
Stop Nut 3296-29
#9

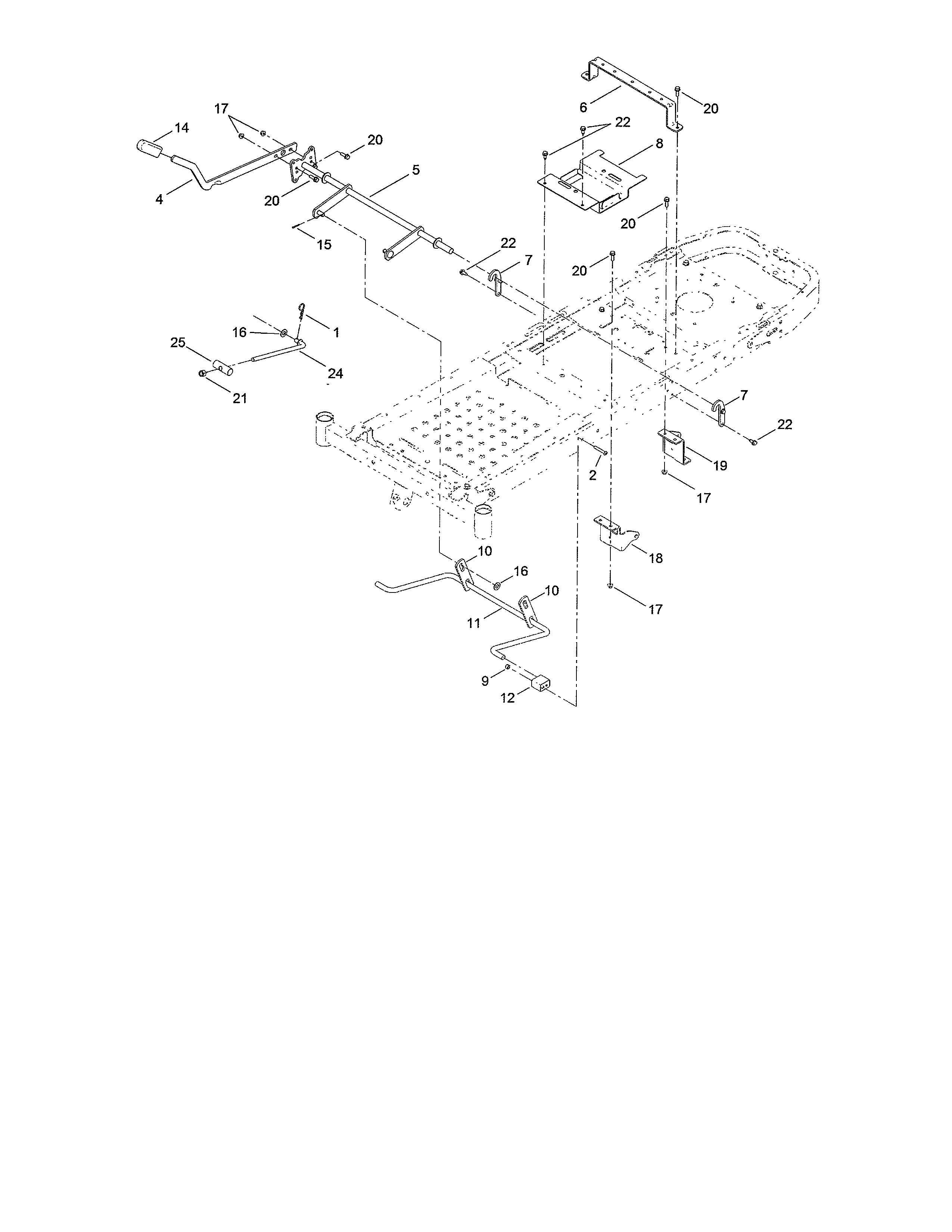

Deck lift assembly diagram

Stop nut

Part #3296-29

The manufacturer no longer makes this part, and there's no substitute part

Fitting-tee 120-2234
#1

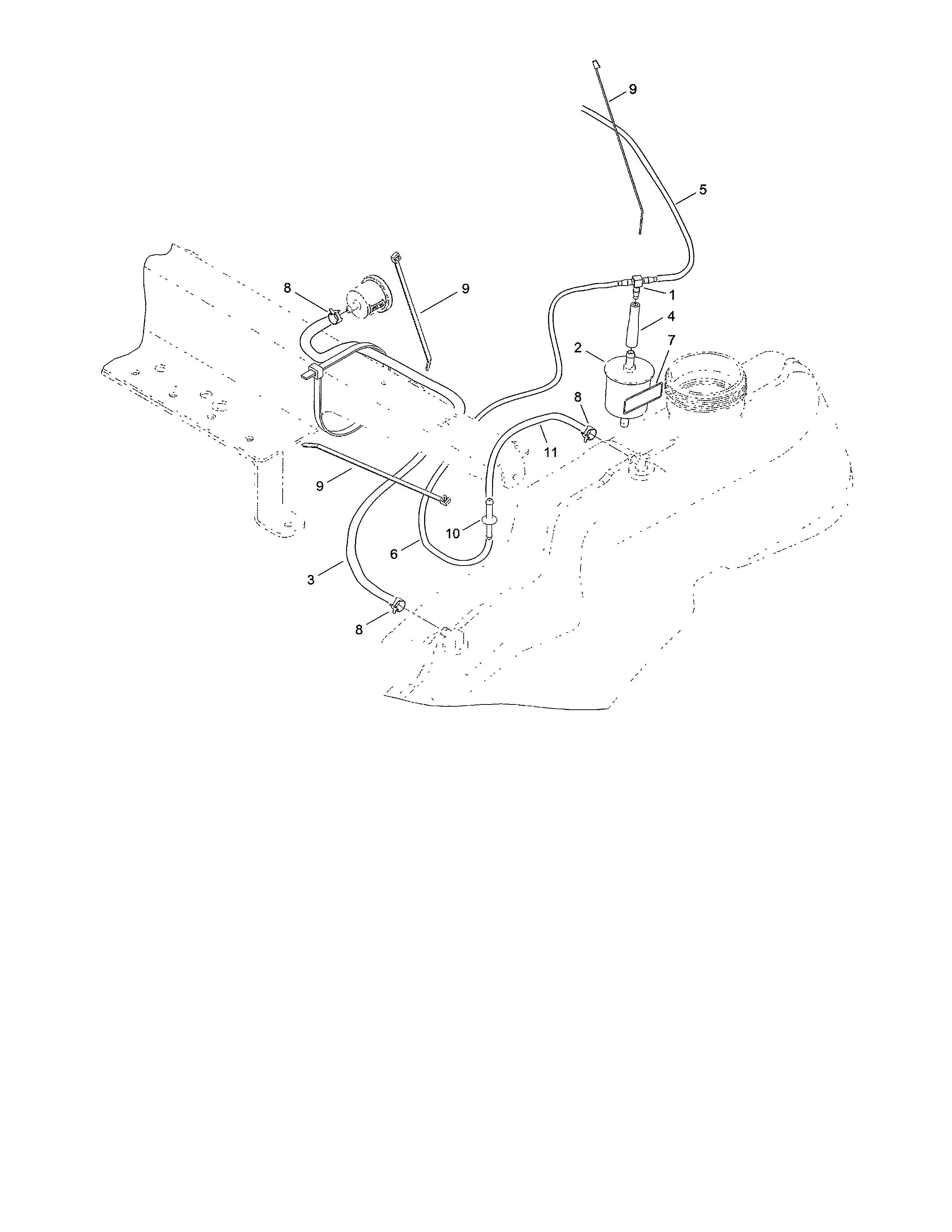

Fuel delivery assembly diagram

Fitting-tee

Part #120-2234

This item is not returnable
$3.74
In Stock
Pan Head Screw 94-4496
#46

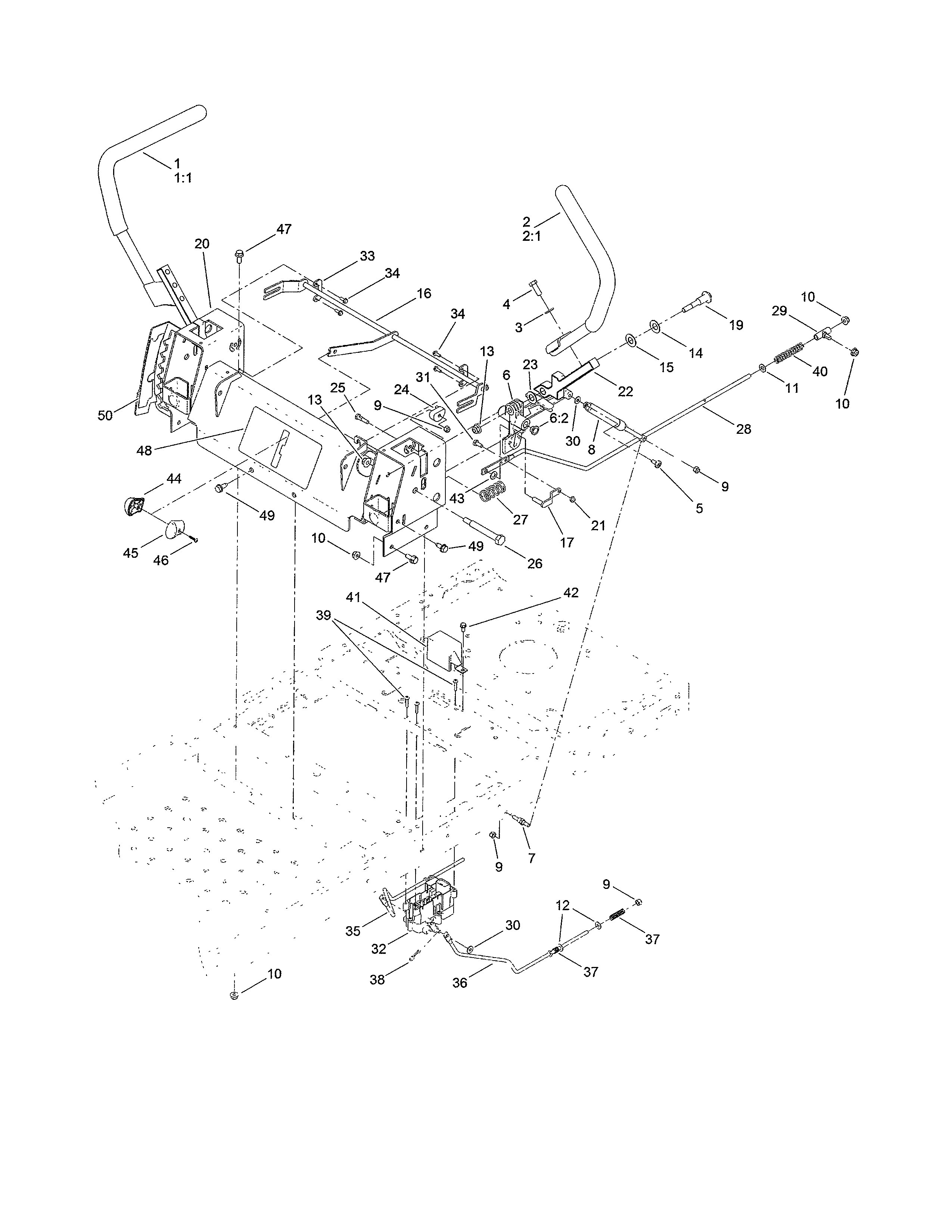

Motion control assembly diagram

Pan head screw

Part #94-4496

This item is not returnable
$2.16
In Stock

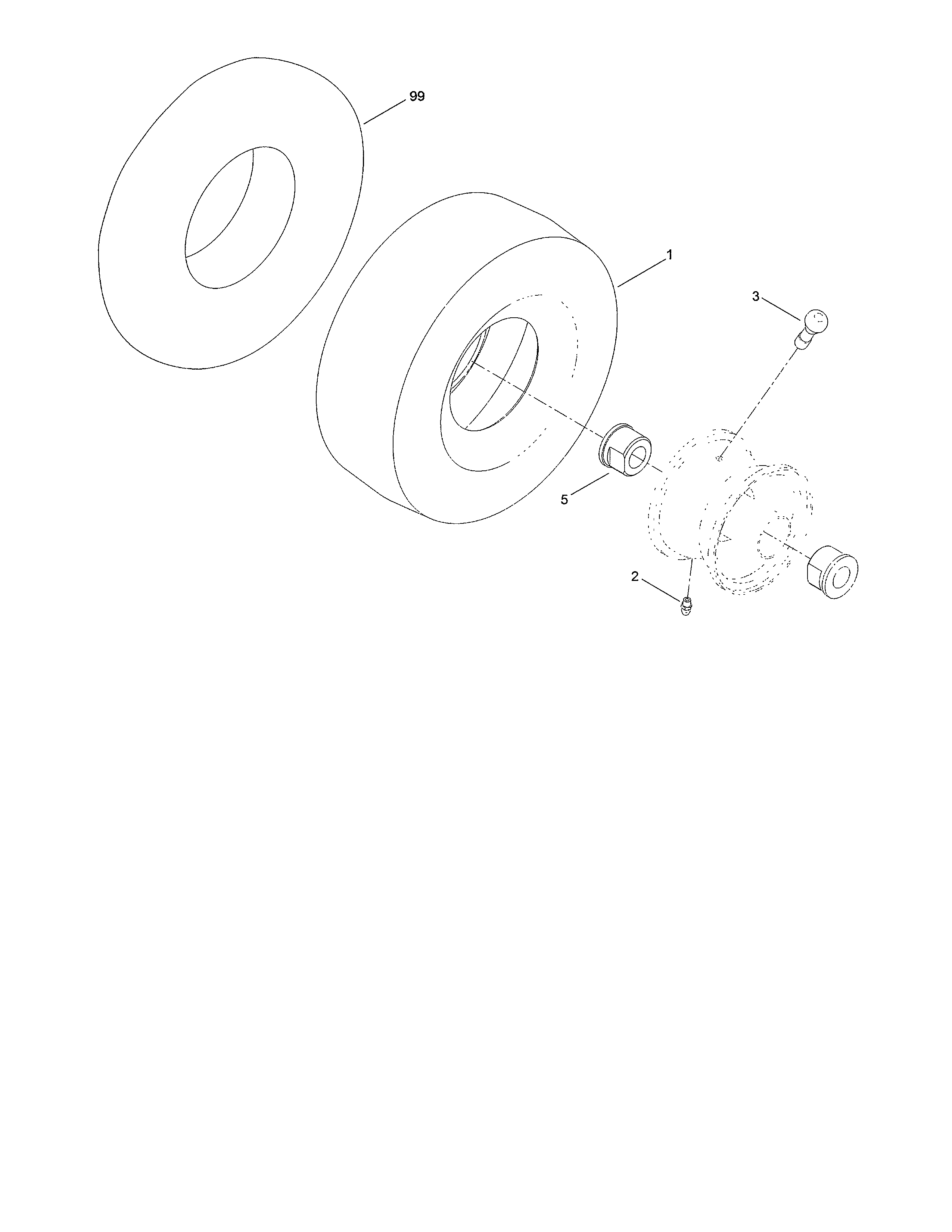

Caster Wheel Assembly (cst)(2) 120-5515
#5

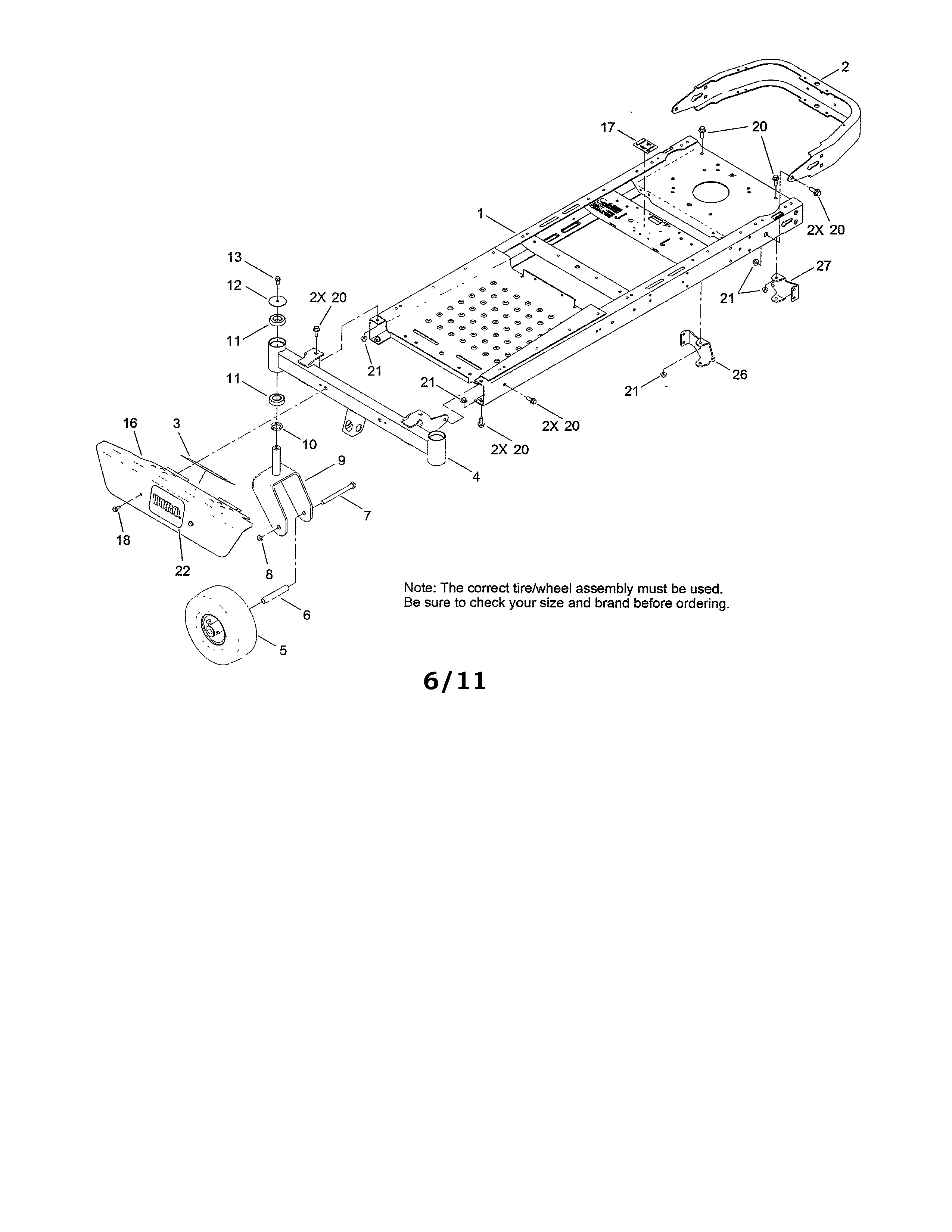

Frame/front axle/caster wheel diagram

Caster wheel assembly (cst)(2)

Part #120-5515

$123.86
In Stock
Connector Housing 95-3270
#12

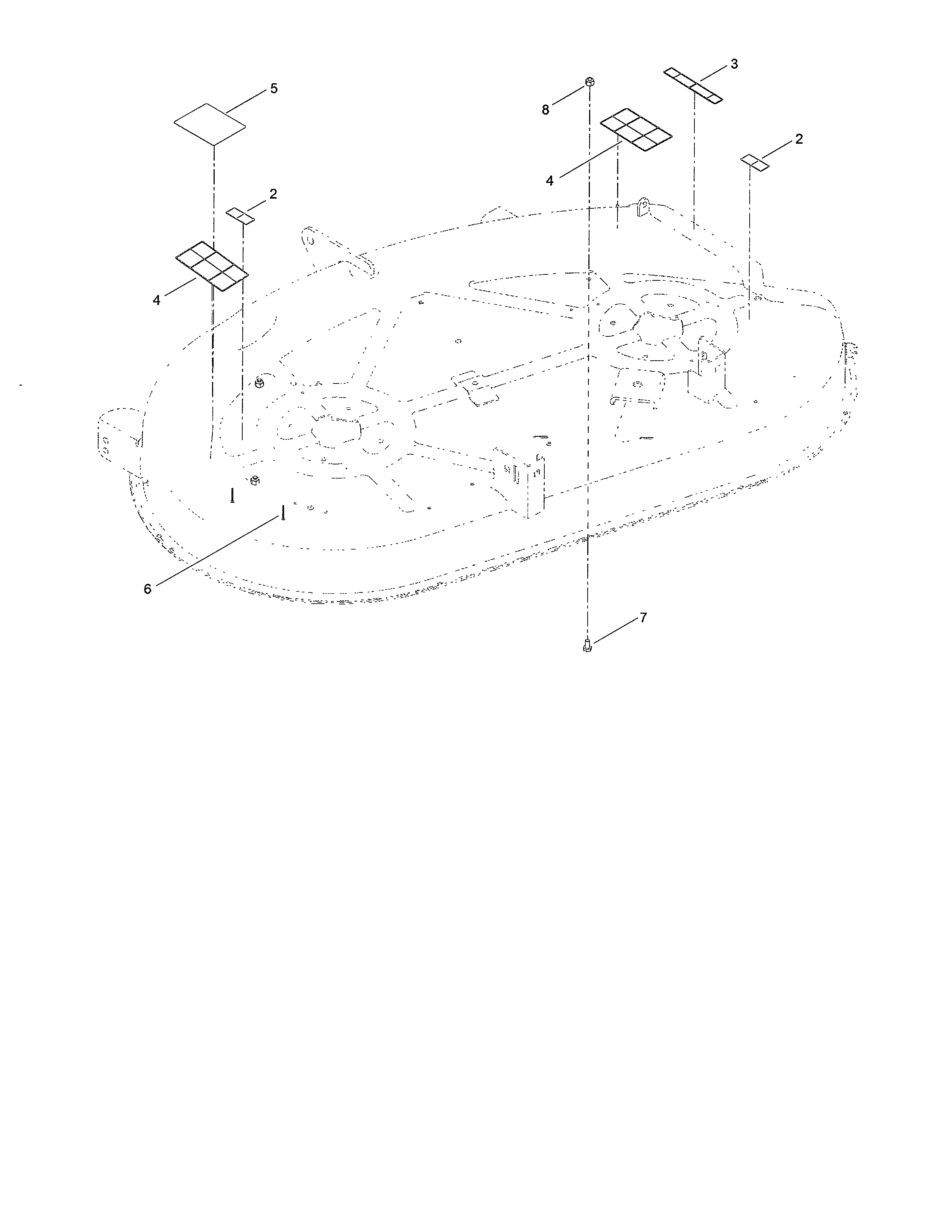

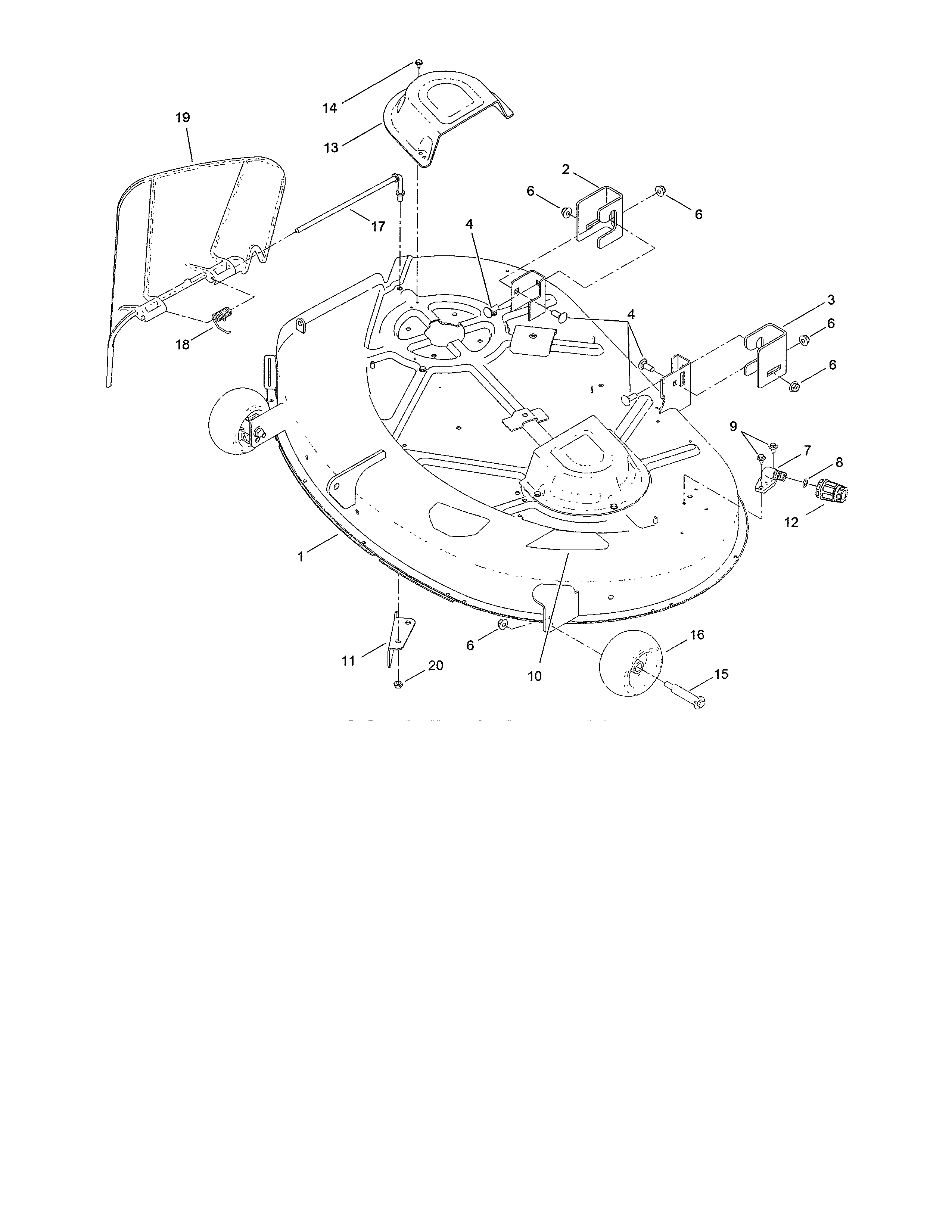

42" deck assembly diagram

Connector housing

Part #95-3270

$34.40
In Stock
Shoulder Bolt 112-3977
#15

42" deck assembly diagram

Shoulder bolt

Part #112-3977

This item is not returnable
$22.11
In Stock
Fuel Tank Assembly 119-3324
#9

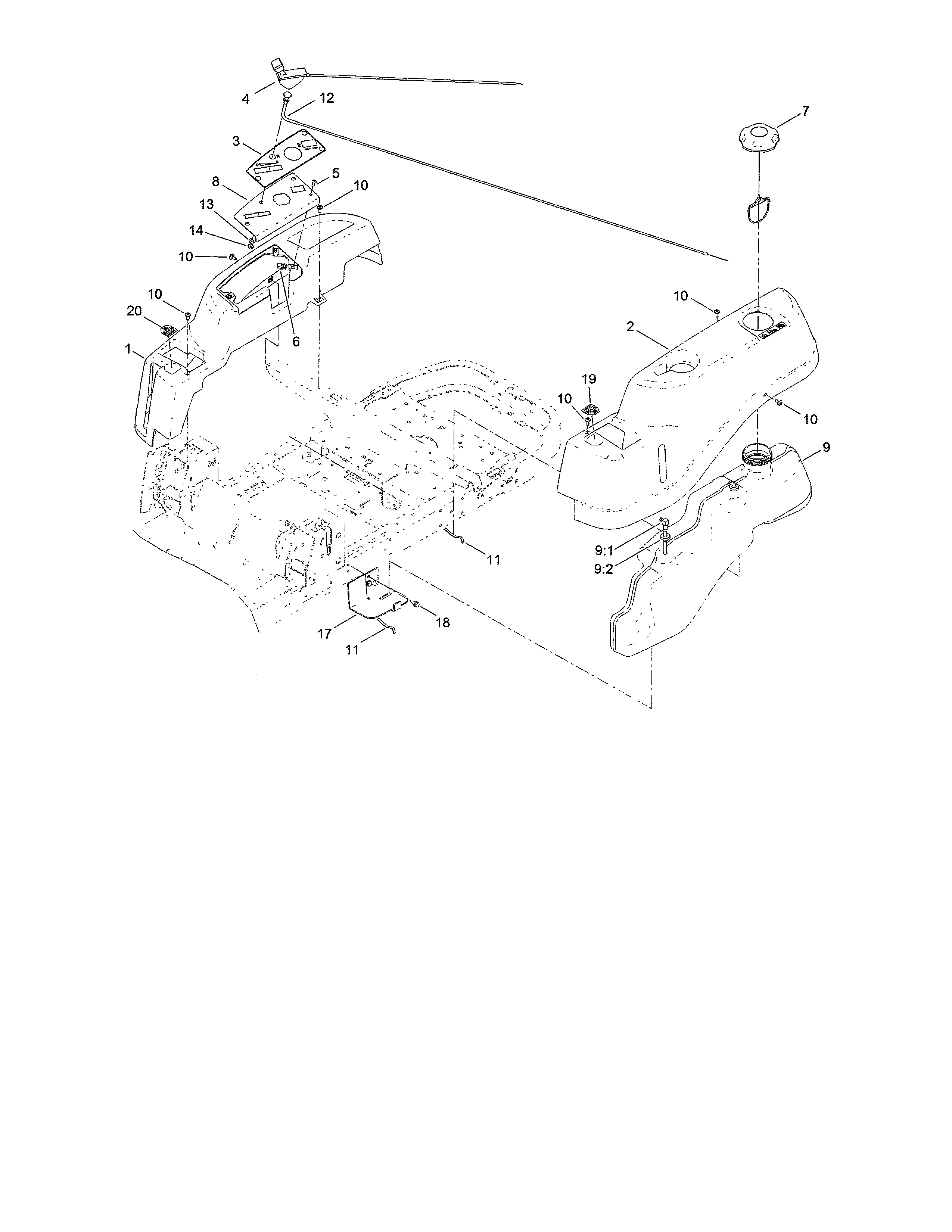

Body styling/fuel tank diagram

Fuel tank assembly

Part #119-3324

$354.83
In Stock
Washer (2) 119-8915
#12

Frame/front axle/caster wheel diagram

Washer (2)

Part #119-8915

This item is not returnable
$5.74
In Stock
Cap Screw 321-3
Cap screw

Part #321-3

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Bolt 323-50
#14

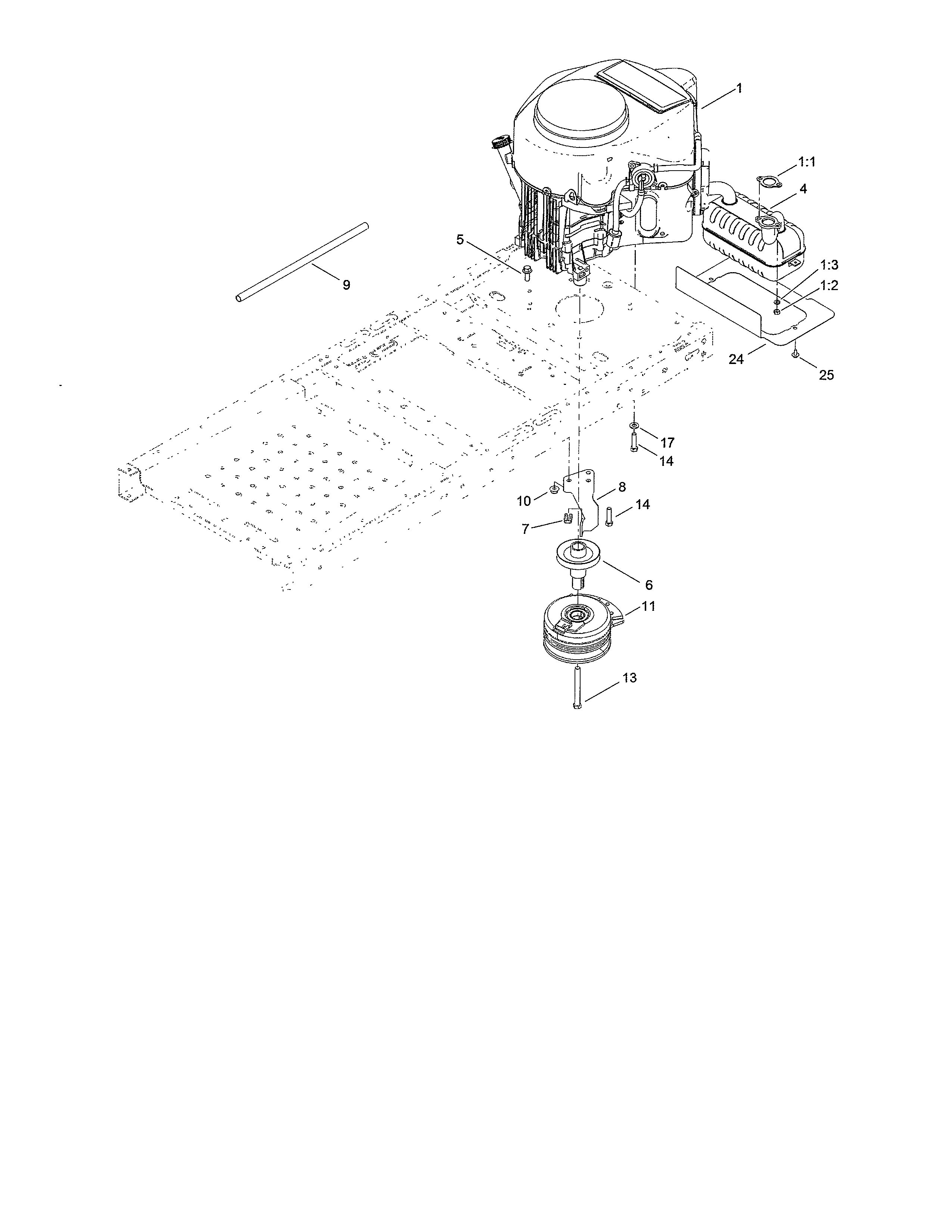

Engine/muffler/clutch diagram

Lawn & garden equipment bolt

Part #323-50

This item is not returnable
$3.34
In Stock
