Model # AT506FTK2 Official GE air conditioner

Here are the diagrams and repair parts for Official GE AT506FTK2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Screw WZ4X392

#NI

All parts diagram

Screw

Part #WZ4X392

This item is not returnable
$3.99
In Stock
Clamp WJ3X284

#NI

All parts diagram

Clamp

Part #WJ3X284

This item is not returnable
$3.99
In Stock
Screw WZ4X362
#994

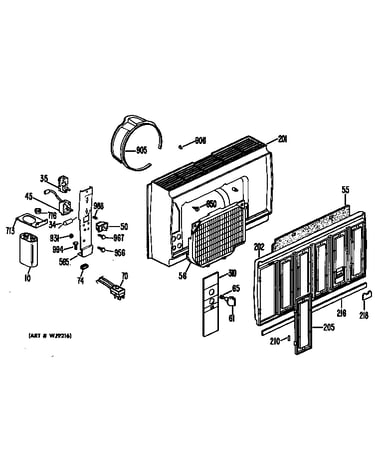

Grille diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Room Air Conditioner Air Filter WJ85X110
#55

Grille diagram

Room air conditioner air filter

Part #WJ85X110

The manufacturer no longer makes this part, and there's no substitute part

Nut & Lockwasher 10-32 WZ8X06
#931

Grille diagram

Nut & lockwasher 10-32

Part #WZ8X06

The manufacturer no longer makes this part, and there's no substitute part

Retainer Overload WJ2X373
#412

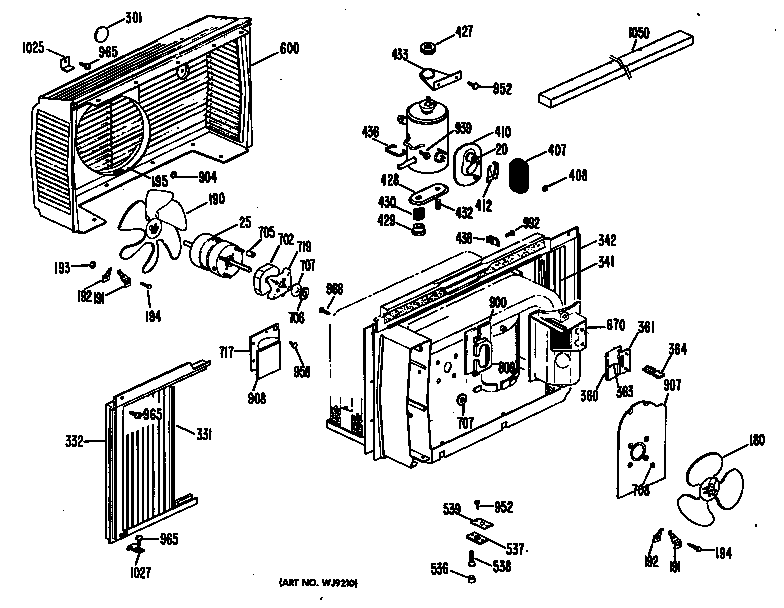

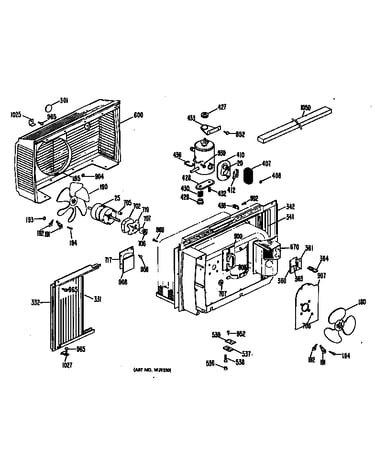

Chassis diagram

Retainer overload

Part #WJ2X373

The manufacturer no longer makes this part, and there's no substitute part

Clamp WJ2X385
#436

Chassis diagram

Clamp

Part #WJ2X385

The manufacturer no longer makes this part, and there's no substitute part

Nameplate WJ7X664
#301

Chassis diagram

Nameplate

Part #WJ7X664

The manufacturer no longer makes this part, and there's no substitute part

Indicator Orifice WJ76X237

#NI

All parts diagram

Indicator orifice

Part #WJ76X237

The manufacturer no longer makes this part, and there's no substitute part

Curtain Assembly, Left WJ68X98
#332

Chassis diagram

Curtain assembly, left

Part #WJ68X98

The manufacturer no longer makes this part, and there's no substitute part
