Model # 11631079101 Official Kenmore upright vacuum cleaner
Here are the diagrams and repair parts for Official Kenmore 11631079101 upright vacuum cleaner, as well as links to manuals and error code tables, if available.
 Owner’s manualBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
11631079101 Vacuum Cleaners
Vacuum screw
Part #4368563
The manufacturer no longer makes this part, and there's no substitute part
#5

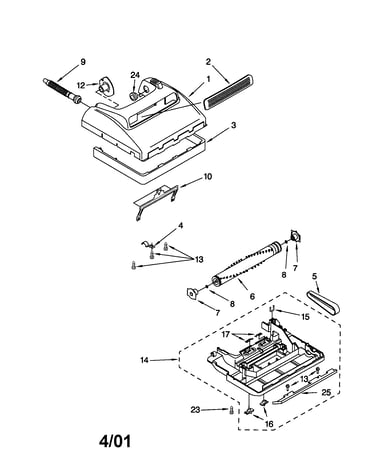

Nozzle diagram
Vacuum drive belt
Part #4369591
The manufacturer no longer makes this part, and there's no substitute part
#28

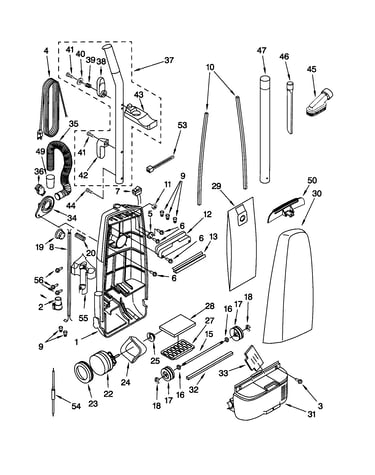

Dust compartment and motor diagram
Vacuum secondary filter
Part #4369572
The manufacturer no longer makes this part, and there's no substitute part
#46
Dust compartment and motor diagram
Vacuum crevice tool
Part #4368684
The manufacturer no longer makes this part, and there's no substitute part
#3
Nozzle diagram
Vacuum furniture guard
Part #4370369
The manufacturer no longer makes this part, and there's no substitute part
#34
Dust compartment and motor diagram
Inlet
Part #4369815
The manufacturer no longer makes this part, and there's no substitute part
#25
Dust compartment and motor diagram
Motor support
Part #8175133
The manufacturer no longer makes this part, and there's no substitute part
#1
Nozzle diagram
Vacuum base cover assembly
Part #8191821
The manufacturer no longer makes this part, and there's no substitute part
#22
Dust compartment and motor diagram
Motor
Part #8191668
The manufacturer no longer makes this part, and there's no substitute part
#35
Dust compartment and motor diagram
Vacuum hose
Part #4369722
The manufacturer no longer makes this part, and there's no substitute part
