Gas Line Trimmer

Model # 358745651 Official Craftsman line trimmer

Here are the diagrams and repair parts for Official Craftsman 358745651 line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#54

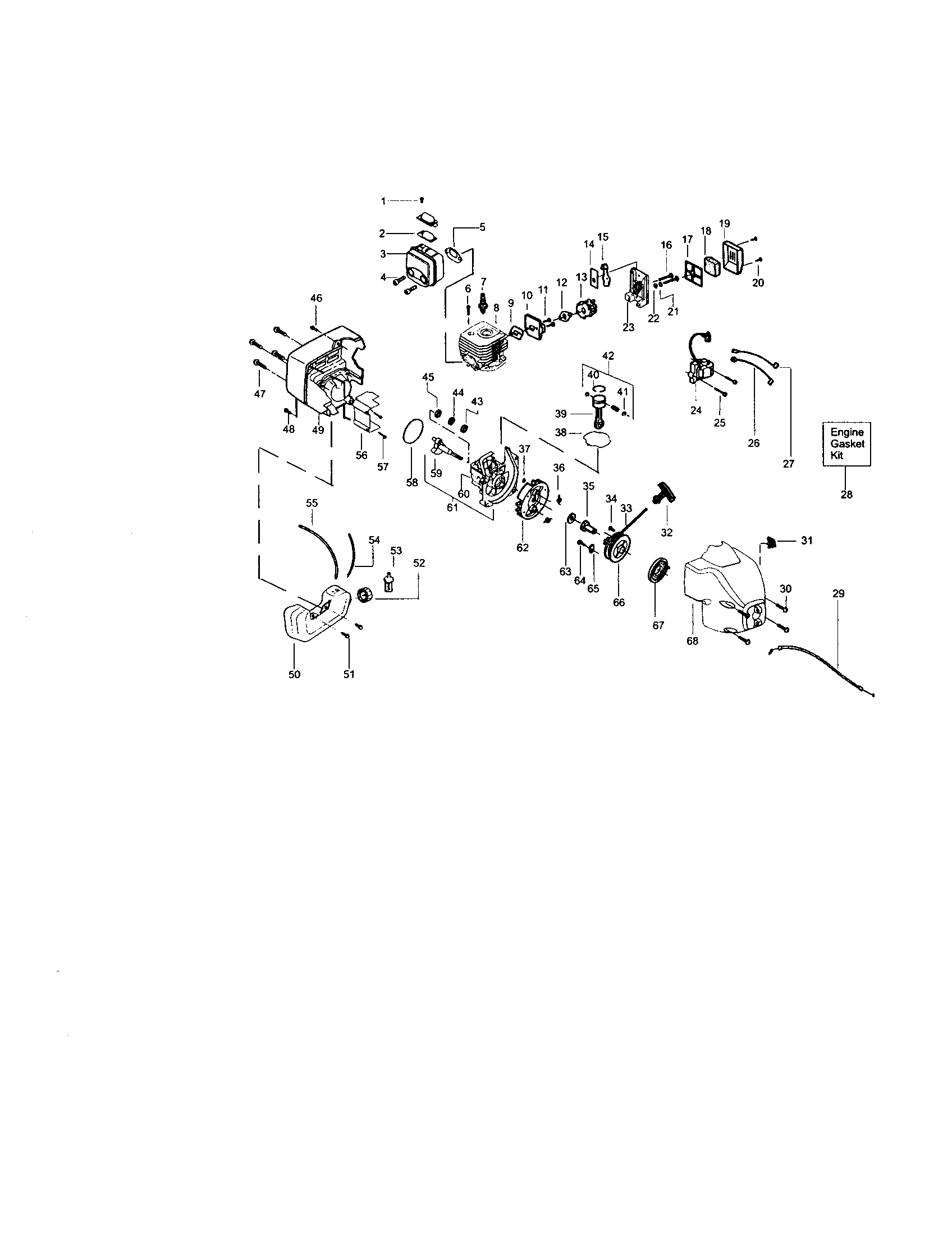

Crankcase/crankshaft diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#55

Crankcase/crankshaft diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Flywheel Assembly 530069886
#62

Crankcase/crankshaft diagram

Flywheel assembly

Part #530069886

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530069886. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Lawn & Garden Equipment Screw 530015814
#17

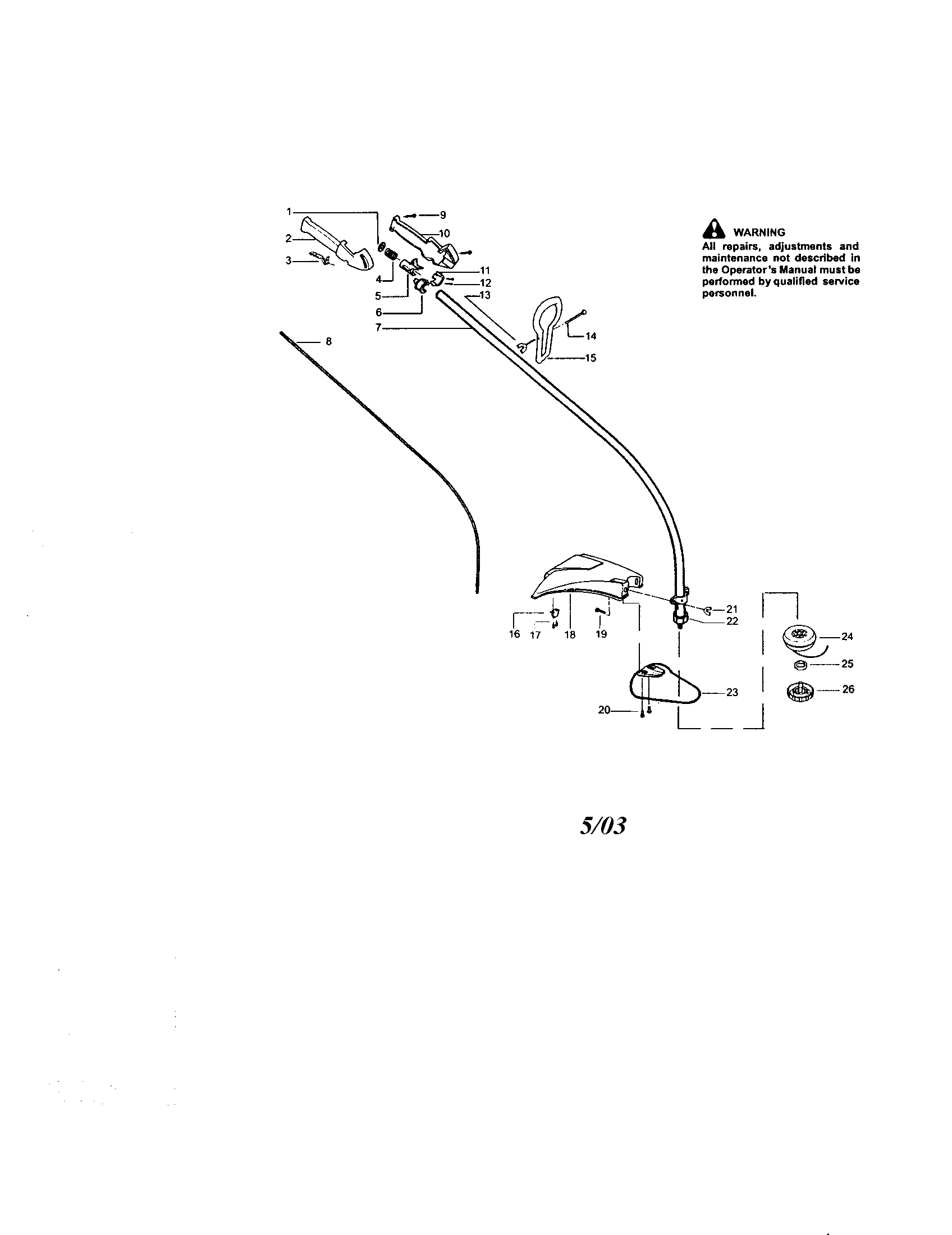

Driveshaft/shield/handle diagram

Lawn & garden equipment screw

Part #530015814

Replaced by #503210619

?
Manufacturer substitution
This part replaces 530015814. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Lawn & Garden Equipment Screw 530015892
#20

Crankcase/crankshaft diagram

Lawn & garden equipment screw

Part #530015892

This item is not returnable
$5.54
In Stock
Lawn & Garden Equipment Head Bolt 530015953
#6

Crankcase/crankshaft diagram

Lawn & garden equipment head bolt

Part #530015953

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Wing Nut 530016118
Wing nut

Part #530016118

Replaced by #530091373

?
Manufacturer substitution
This part replaces 530016118. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn & Garden Equipment Screw 530015805
#57

Crankcase/crankshaft diagram

Lawn & garden equipment screw

Part #530015805

This item is not returnable
$5.11
In Stock
Leaf Blower Engine Crankshaft Oil Seal 530019264
#44

Crankcase/crankshaft diagram

Leaf blower engine crankshaft oil seal

Part #530019264

$9.26
In Stock
Line Trimmer Engine Piston Pin 530015162
#41

Crankcase/crankshaft diagram

Line trimmer engine piston pin

Part #530015162

This item is not returnable
$5.54
In Stock
