KitchenAid
Side-By-Side Refrigerator

Model # KSSS42QDX00 Official KitchenAid built-in refrigerator

Here are the diagrams and repair parts for Official KitchenAid KSSS42QDX00 built-in refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

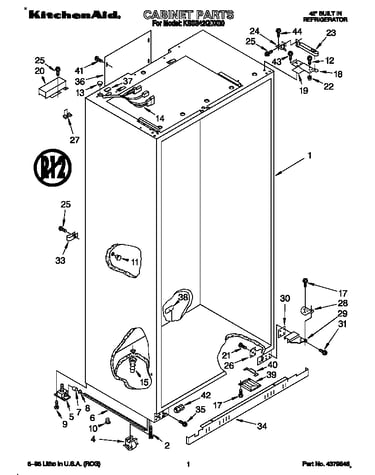

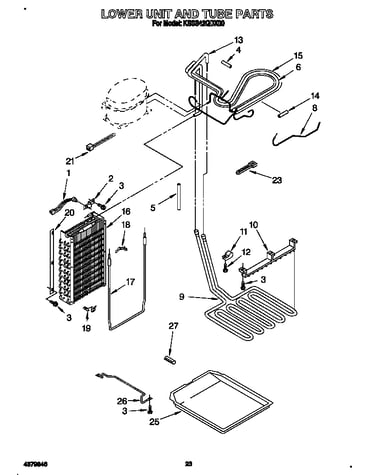

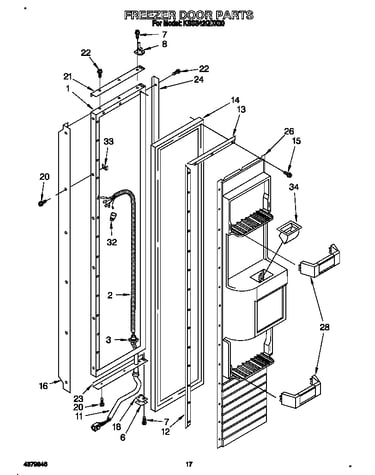

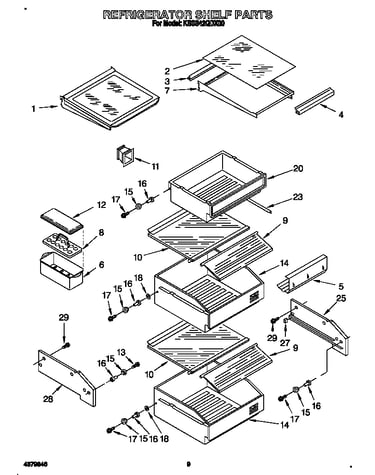

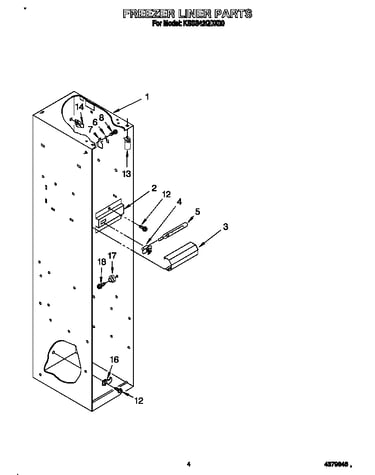

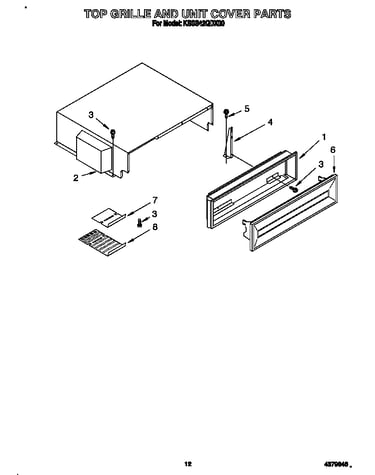

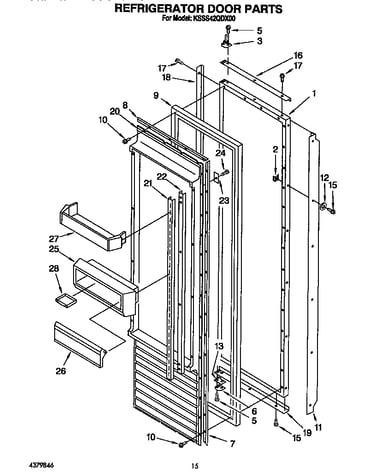

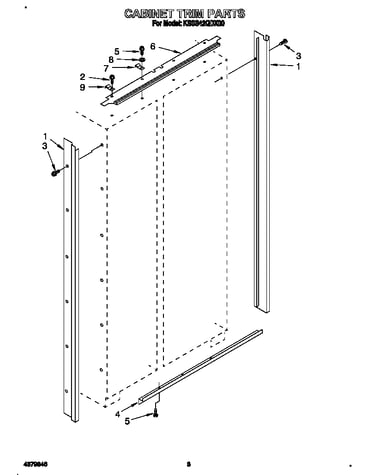

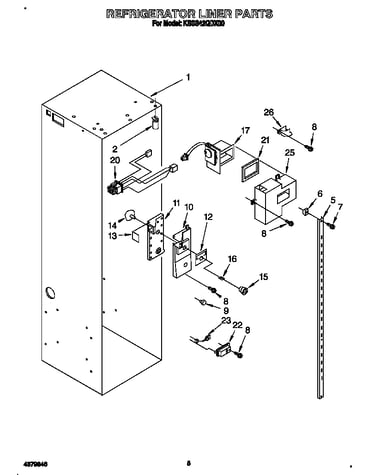

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 396 parts  |
Drier Tube 2164492
#21

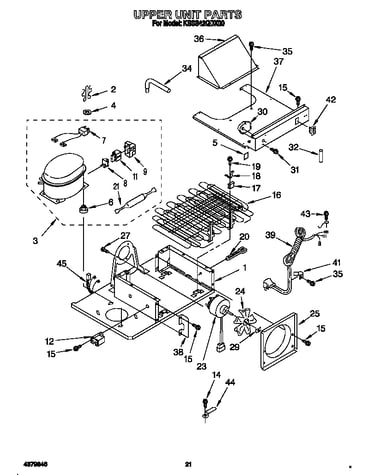

Upper unit diagram

Drier tube

Part #2164492

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2164492. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Jenn-air Refrigerator Ice Maker (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

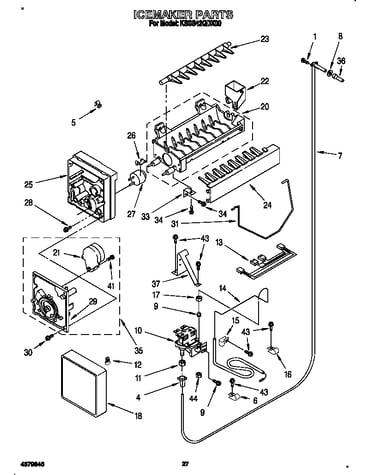

Icemaker diagram

Jenn-air refrigerator ice maker (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Light Switch 1118894
#6

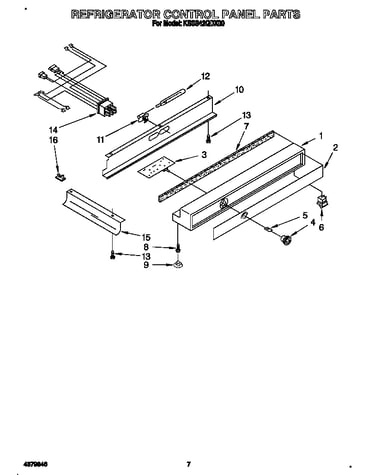

Refrigerator control panel diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Compressor 2169443
#3

Upper unit diagram

Refrigerator compressor

Part #2169443

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 2169443. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Refrigerator Dispenser Switch 2162361
#26

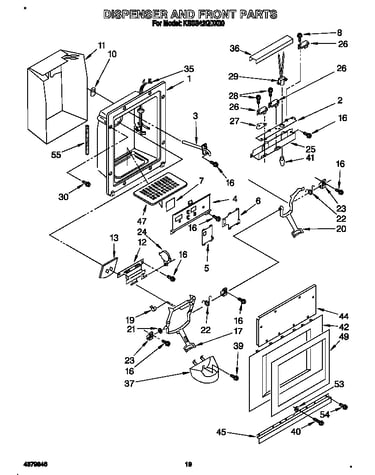

Dispenser and front diagram

Refrigerator dispenser switch

Part #2162361

Replaced by #WP2162361

?
Manufacturer substitution
This part replaces 2162361. Substitute parts can look different from the original.
BEST SELLER
$19.03 |
10% OFF Phone Price : $21.03
In Stock
Refrigerator Reservoir 2000861
#30

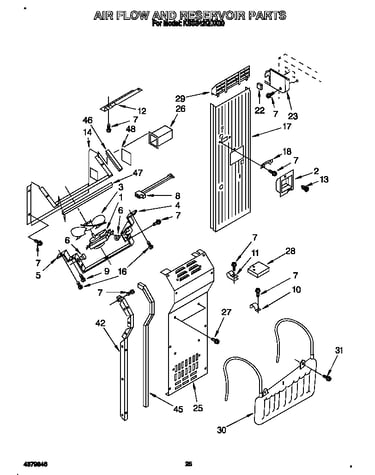

Air flow and reservoir diagram

Refrigerator reservoir

Part #2000861

Replaced by #WP2256126

?
Manufacturer substitution
This part replaces 2000861. Substitute parts can look different from the original.
BEST SELLER
$72.51 |
8% OFF Phone Price : $78.51
In Stock
Refrigerator Inlet Valve 2181729
#10

Icemaker diagram

Refrigerator inlet valve

Part #2181729

Replaced by #W10853654

?
Manufacturer substitution
This part replaces 2181729. Substitute parts can look different from the original.
BEST SELLER
$83.90 |
8% OFF Was : $91.20
In Stock
Refrigerator Coupling 983663
#9

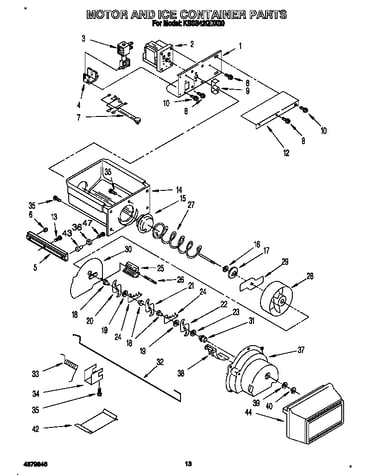

Motor and ice container diagram

Refrigerator coupling

Part #983663

Replaced by #WPW10169511

?
Manufacturer substitution
This part replaces 983663. Substitute parts can look different from the original.
BEST SELLER
$17.03 |
11% OFF Phone Price : $19.03
In Stock
Refrigerator Ice Dispenser Solenoid 2152713
#3

Motor and ice container diagram

Refrigerator ice dispenser solenoid

Part #2152713

Replaced by #WP2152713

?
Manufacturer substitution
This part replaces 2152713. Substitute parts can look different from the original.
BEST SELLER
$110.85 |
10% OFF Phone Price : $122.85
In Stock
Refrigerator Freeer Door Switch 1115373
#5

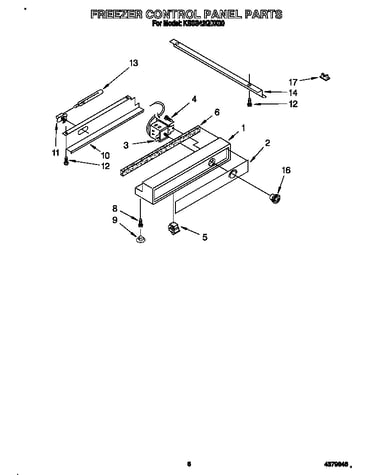

Freezer control panel diagram

Refrigerator freeer door switch

Part #1115373

Replaced by #W11457217

?
Manufacturer substitution
This part replaces 1115373. Substitute parts can look different from the original.
BEST SELLER
$24.79 |
19% OFF Phone Price : $30.79
In Stock
