Model # KHHC2090SBL2 Official KitchenAid microwave/hood combo
Here are the diagrams and repair parts for Official KitchenAid KHHC2090SBL2 microwave/hood combo, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic

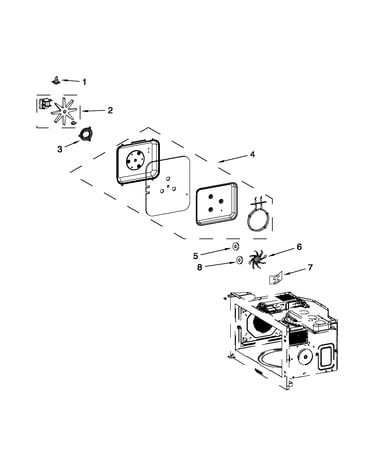

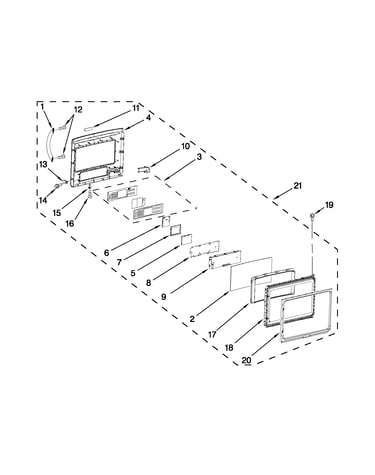

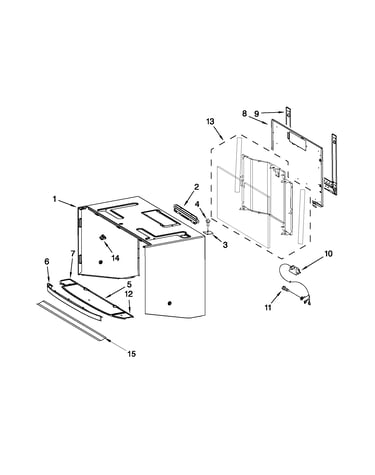

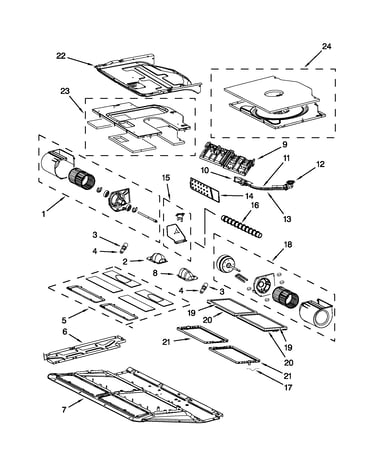

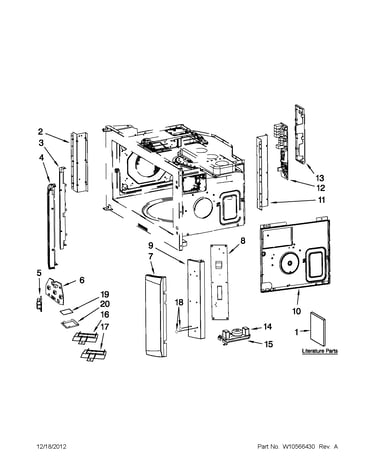

SELECT DIAGRAM
Browse Parts for
KHHC2090SBL2 Microwave/Hood Combo
#22

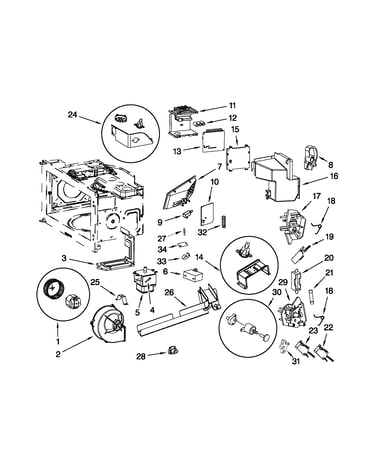

Interior & airflow parts diagram
Microwave door interlock switch
Part #W10211973
Replaced by #W10269458
?
Manufacturer substitution
This part replaces W10211973. Substitute parts can look different from the original.
$24.27 |
20% OFF Phone Price : $30.27
In Stock
#19
Interior & airflow parts diagram
Microwave door interlock switch (replaces 4393442, 8206345, w10217468, wpw10330566)
Part #W10211972
$29.69 |
17% OFF Phone Price : $35.69
In Stock
#21
Interior & airflow parts diagram
Microwave fuse (replaces w10422951)
Part #W10138793
Replaced by #W11707984
?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
$53.15
In Stock
#13
Interior & airflow parts diagram
Inverter
Part #W10468206
Replaced by #W10217711
?
Manufacturer substitution
This part replaces W10468206. Substitute parts can look different from the original.
$207.34 |
5% OFF Phone Price : $219.34
In Stock
#18

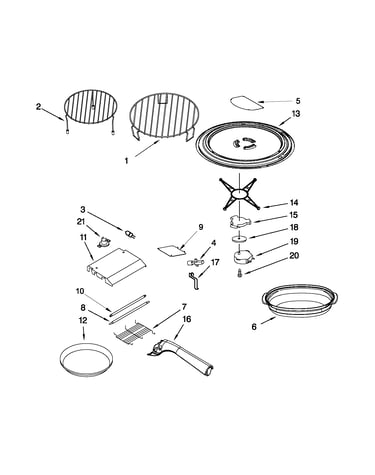

Rack and turntable parts diagram
Spacer
Part #8206101
Replaced by #8184109
?
Manufacturer substitution
This part replaces 8206101. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#6
Rack and turntable parts diagram
Cookware
Part #8206451
Replaced by #W10660052
?
Manufacturer substitution
This part replaces 8206451. Substitute parts can look different from the original.
$17.49 |
10% OFF Phone Price : $19.49
In Stock
Microwave light bulb (replaces 8185188)
Part #8204670
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
#5
Interior & airflow parts diagram
Ikea microwave magnetron
Part #8206079
$189.20 |
6% OFF Phone Price : $201.20
In Stock
#14
Interior & airflow parts diagram
Microwave thermal cut-off
Part #8206035
$90.84
In Stock
#17
Interior & airflow parts diagram
Interlock
Part #W10143956
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
