Model # RM659004 Official Broan range hood

Here are the diagrams and repair parts for Official Broan RM659004 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Range Hood Blower Wheel Assembly B03295071
#49

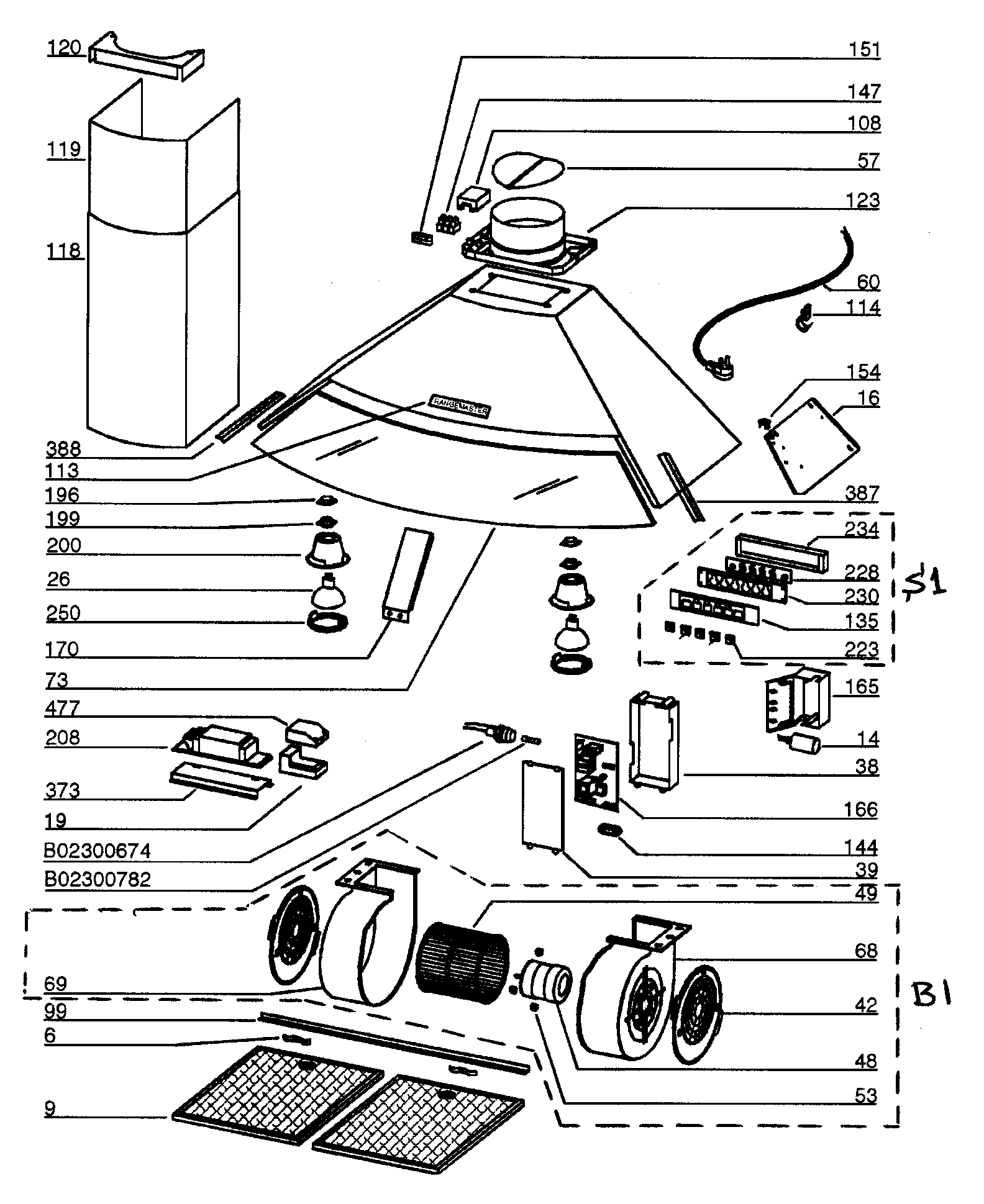

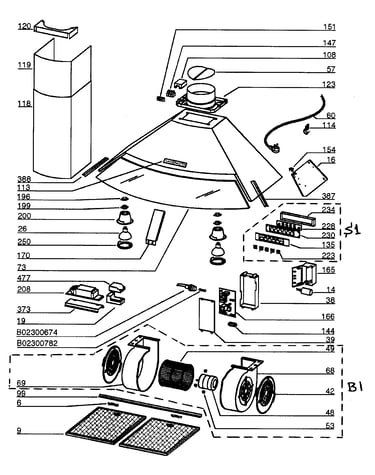

Range hood diagram

Range hood blower wheel assembly

Part #B03295071

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Motor Capacitor B02300233
#14

Range hood diagram

Range hood blower motor capacitor

Part #B02300233

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Light Retainer Nut B02009102
#250

Range hood diagram

Range hood light retainer nut

Part #B02009102

Replaced by #SB02009102

?
Manufacturer substitution
This part replaces B02009102. Substitute parts can look different from the original.
$31.18 |
16% OFF Phone Price : $37.18
In Stock
Range Hood Vent Duct, 6-in 406
#NI

Range hood diagram

Range hood vent duct, 6-in

Part #406

$21.44
In Stock
Range Hood Vent Duct, 7-in 407
#NI

Range hood diagram

Range hood vent duct, 7-in

Part #407

$25.88
In Stock
Motor B02310185
#48

Range hood diagram

Motor

Part #B02310185

Replaced by #SB02310185

?
Manufacturer substitution
This part replaces B02310185. Substitute parts can look different from the original.
$118.48
In Stock
Range Hood Round Vent Damper 97010792
#NI

Range hood diagram

Range hood round vent damper

Part #97010792

Replaced by #S97010792

?
Manufacturer substitution
This part replaces 97010792. Substitute parts can look different from the original.
$29.80
In Stock
Reflector B02009193
#196

Range hood diagram

Reflector

Part #B02009193

Replaced by #SB02009193

?
Manufacturer substitution
This part replaces B02009193. Substitute parts can look different from the original.
$9.75
In Stock
Deco Flue BE3342056
#119

Range hood diagram

Deco flue

Part #BE3342056

Replaced by #SBE3342056

?
Manufacturer substitution
This part replaces BE3342056. Substitute parts can look different from the original.
$119.15
In Stock
Deco.flue BE3342055
#118

Range hood diagram

Deco.flue

Part #BE3342055

Replaced by #SBE3342055

?
Manufacturer substitution
This part replaces BE3342055. Substitute parts can look different from the original.
$80.77
In Stock
