Model # JMW2430DB02 Official Jenn-Air microwave/wall oven combo
Here are the diagrams and repair parts for Official Jenn-Air JMW2430DB02 microwave/wall oven combo, as well as links to manuals and error code tables, if available.
By Schematic
By Part

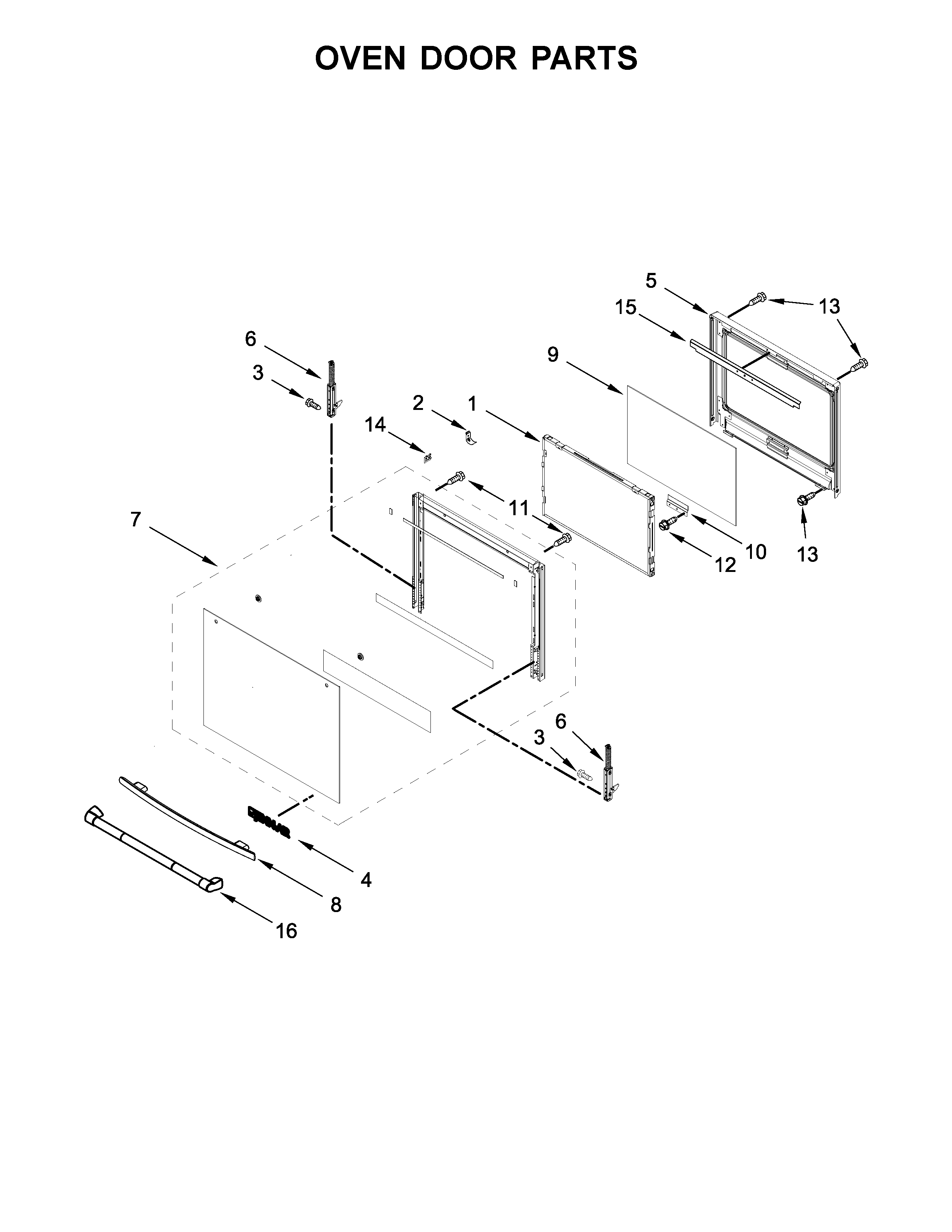

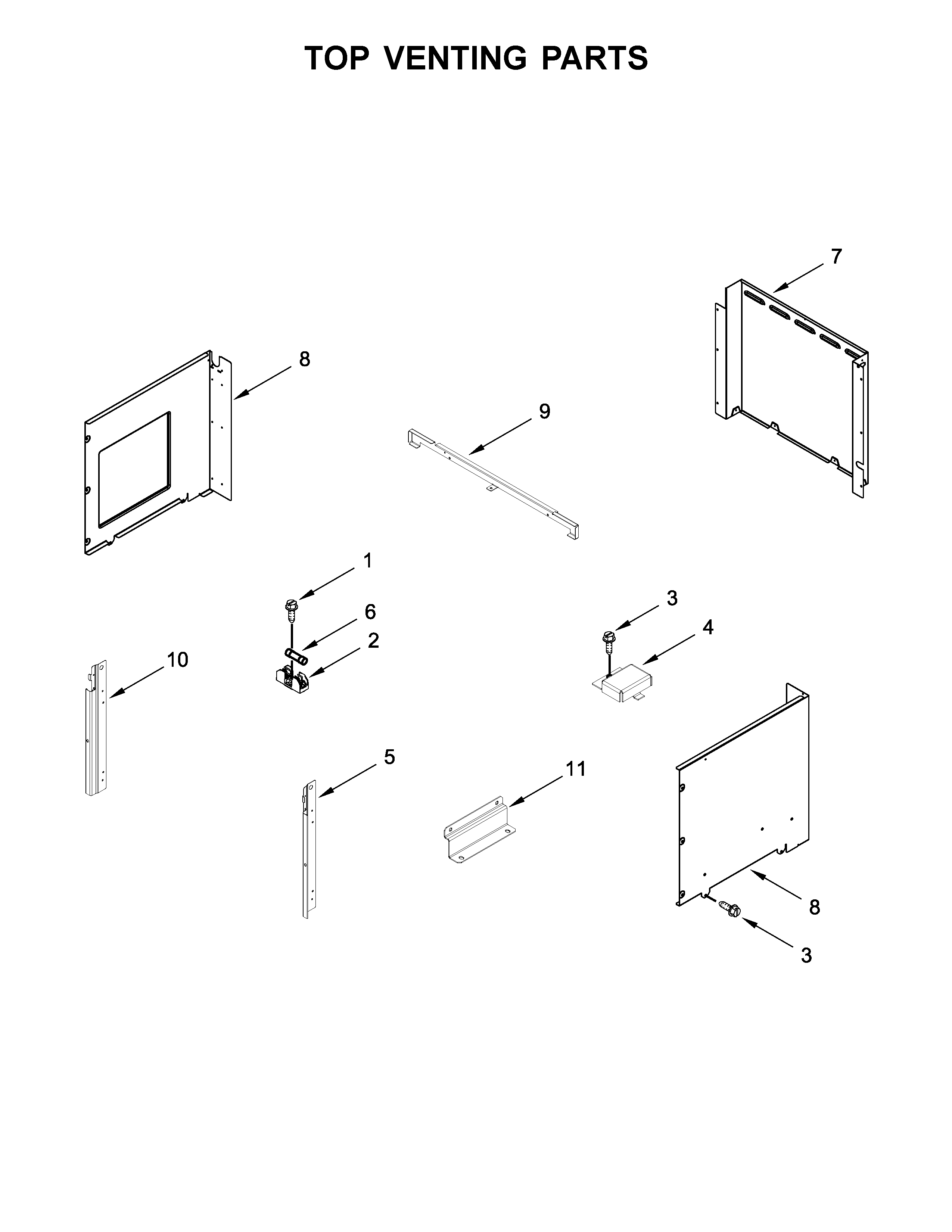

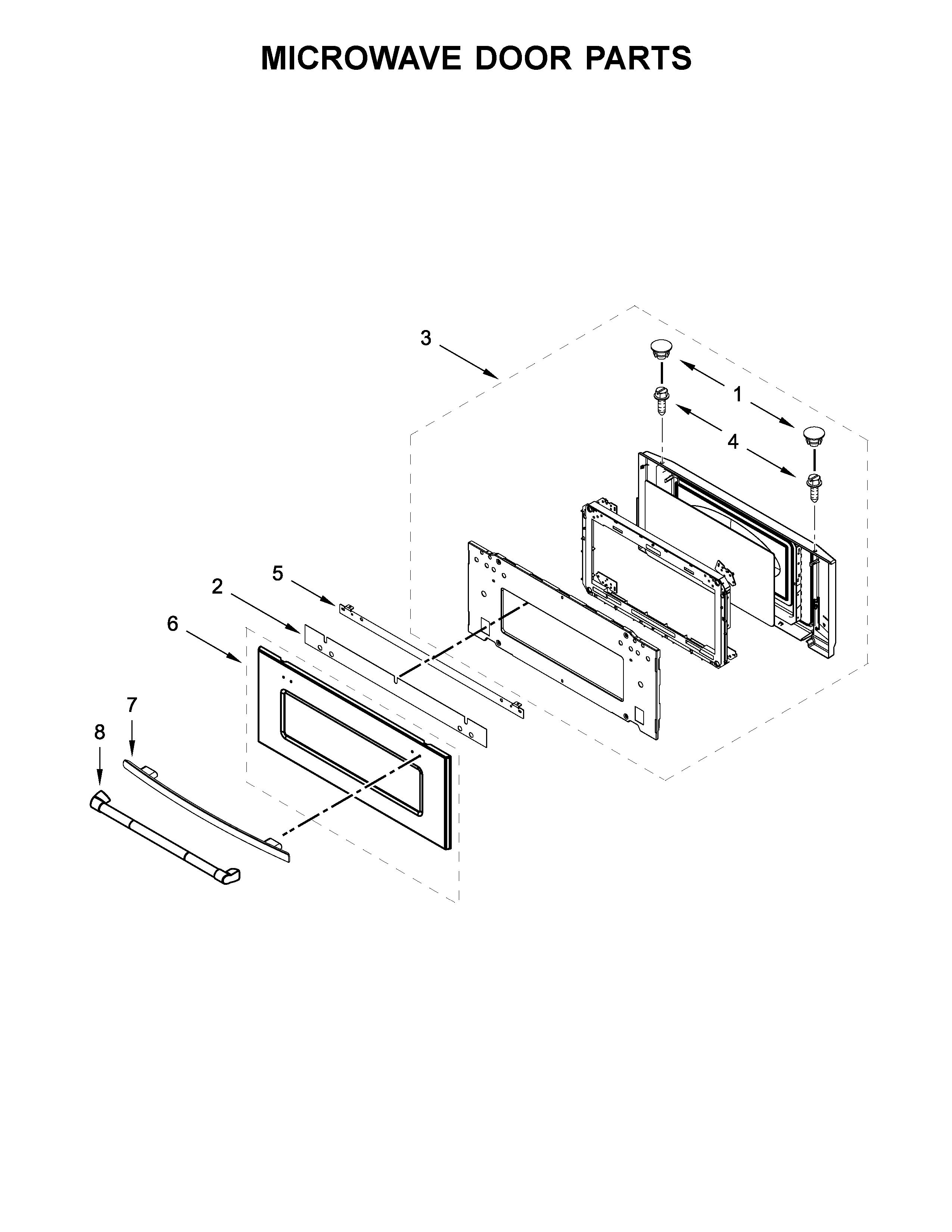

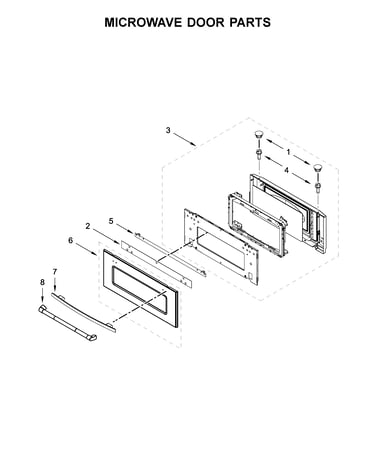

SELECT DIAGRAM
Browse Parts for
JMW2430DB02 Microwave/Wall Oven Combo
#12

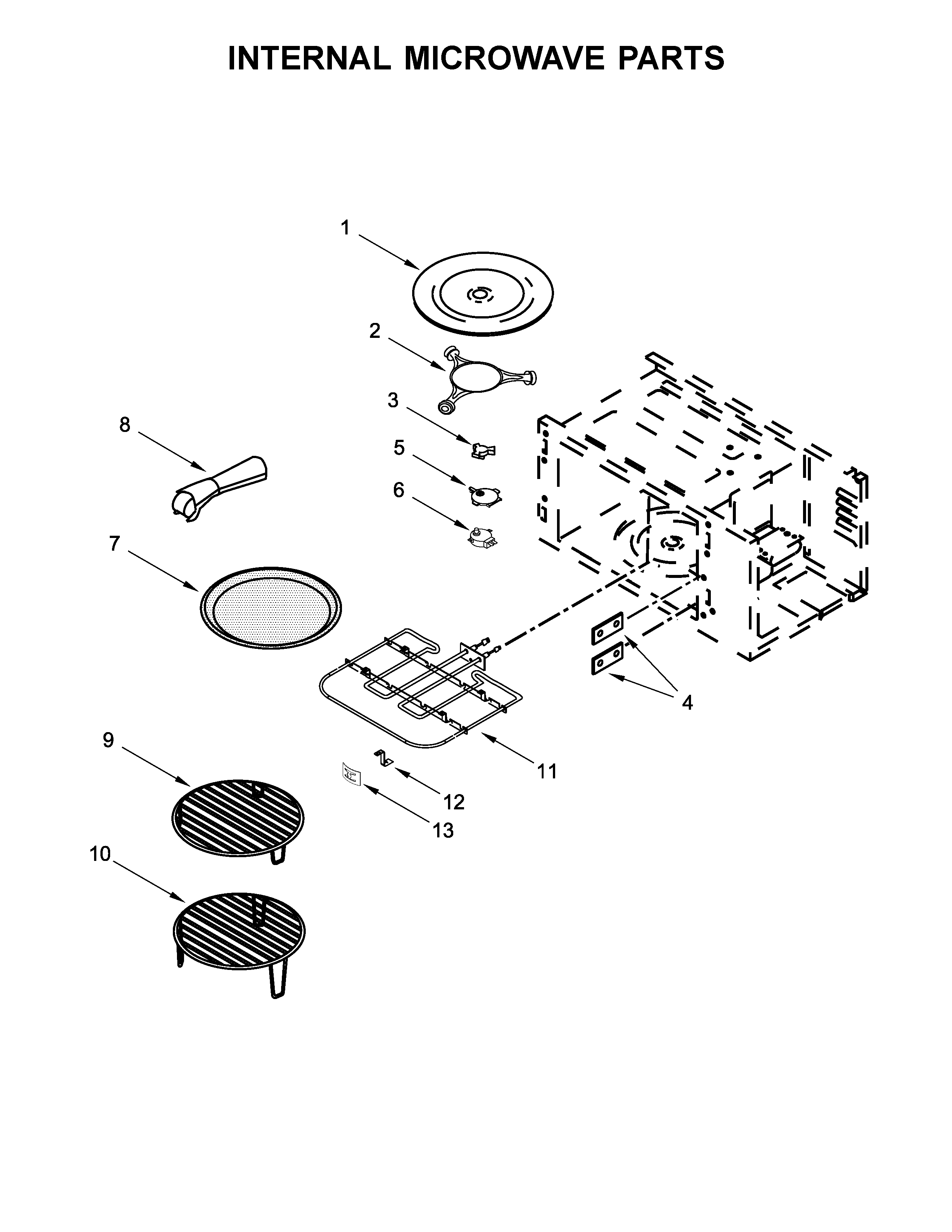

Internal microwave parts diagram
Whirlpool wall oven microwave element clip
Part #461967753871
$11.64
In Stock
#15

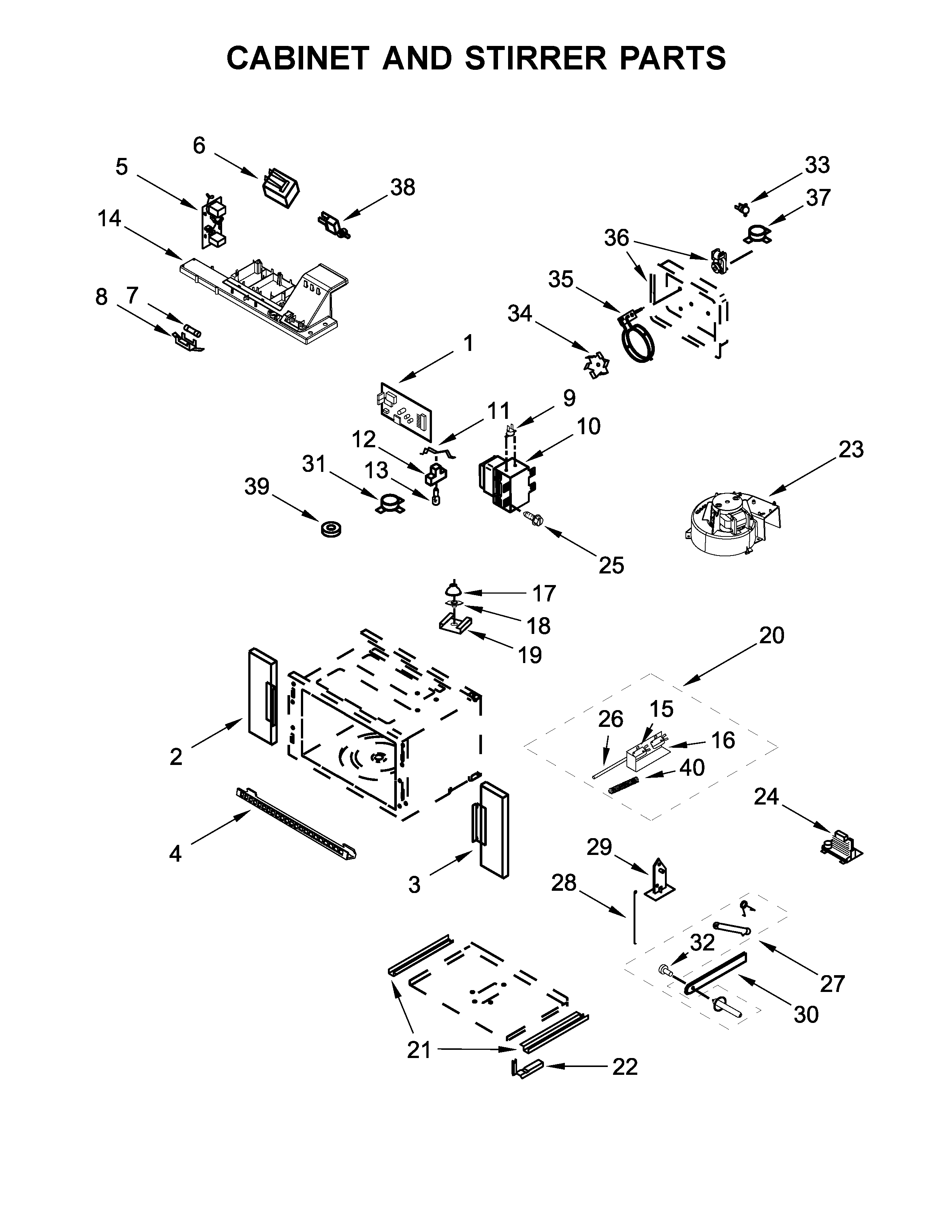

Cabinet and stirrer parts diagram
Microwave door switch
Part #W10330566
Replaced by #W10211972
?
Manufacturer substitution
This part replaces W10330566. Substitute parts can look different from the original.
$29.69 |
17% OFF Phone Price : $35.69
In Stock
#24

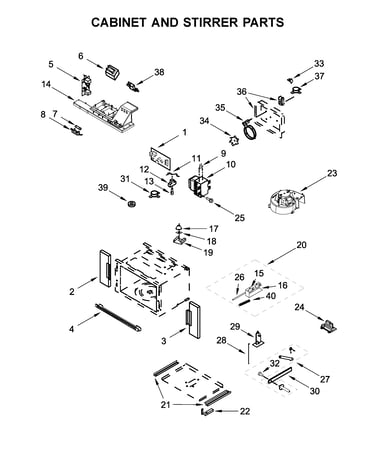

Cabinet and stirrer parts diagram
Inverter
Part #W10468206
Replaced by #W10217711
?
Manufacturer substitution
This part replaces W10468206. Substitute parts can look different from the original.
$207.34 |
5% OFF Phone Price : $219.34
In Stock
#18

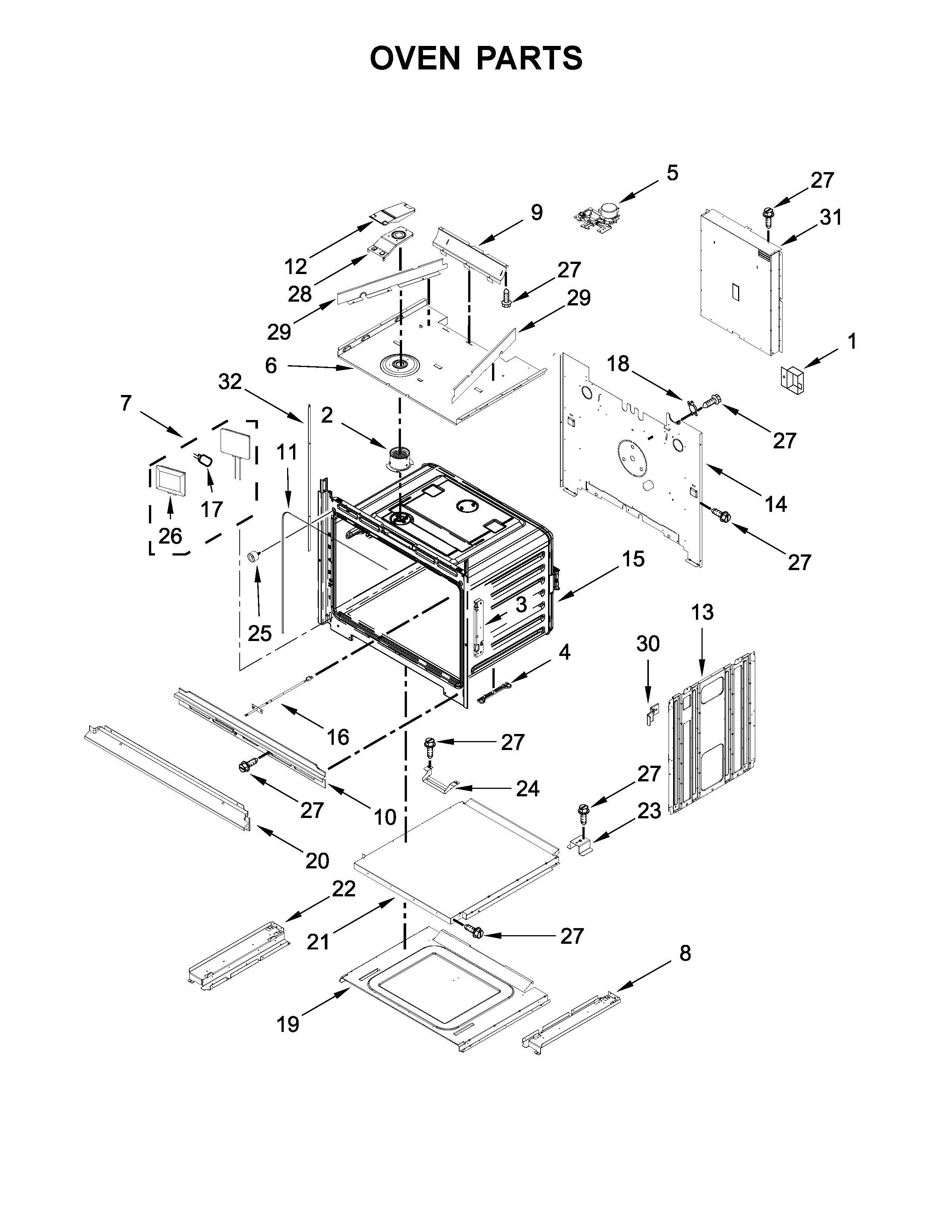

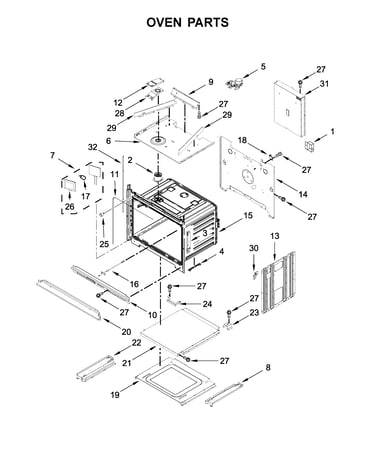

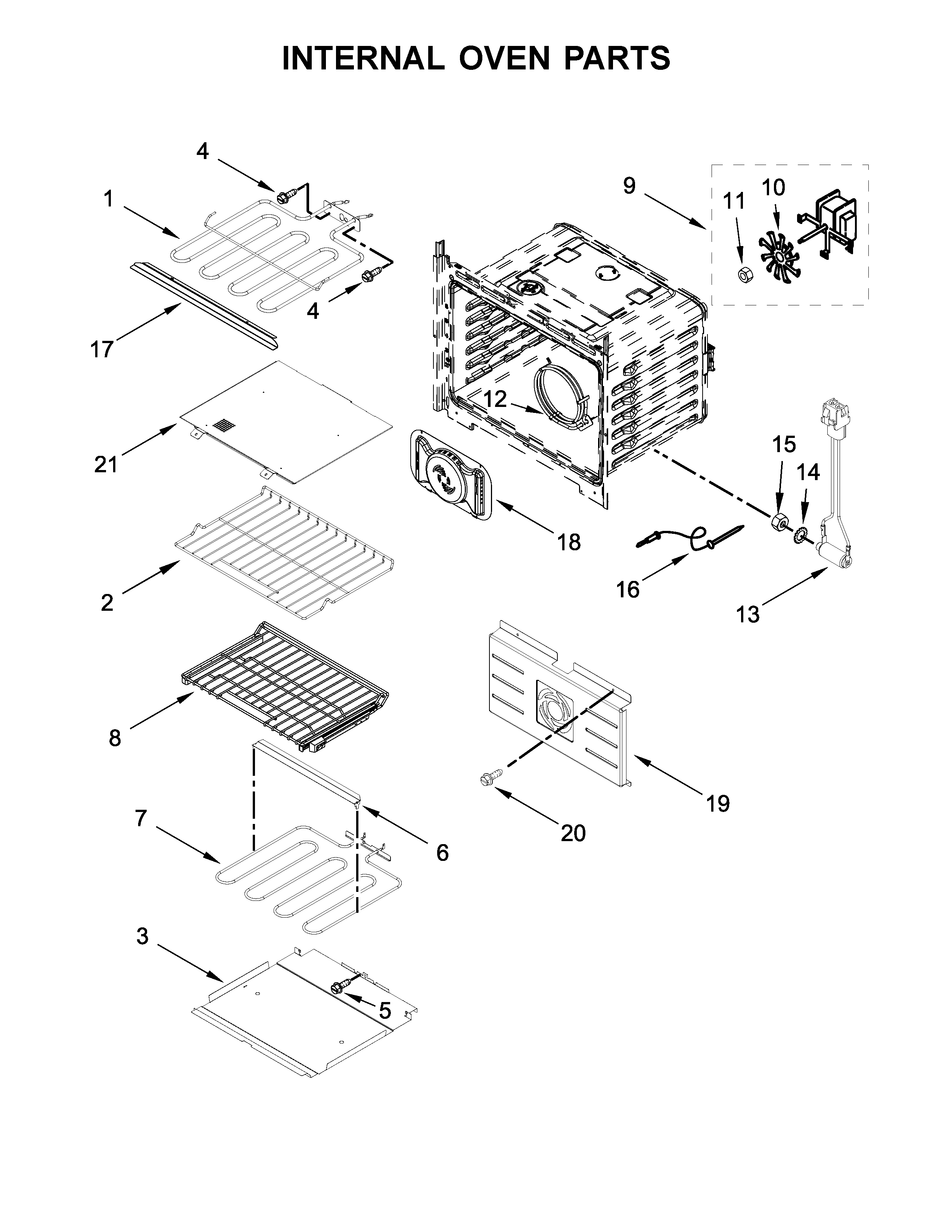

Oven parts diagram
Range high-limit thermostat
Part #4449751
Replaced by #WP4449751
?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
$101.25 |
11% OFF Phone Price : $113.25
In Stock
#NI
Optional parts (not included) diagram
Appliance touch-up paint
Part #72017
Replaced by #72017
?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
$8.29 |
11% OFF Phone Price : $9.29
In Stock
#6
Internal microwave parts diagram
Microwave turntable motor
Part #461967848971
Replaced by #W10911403
?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
$72.72 |
8% OFF Phone Price : $78.72
In Stock
#16

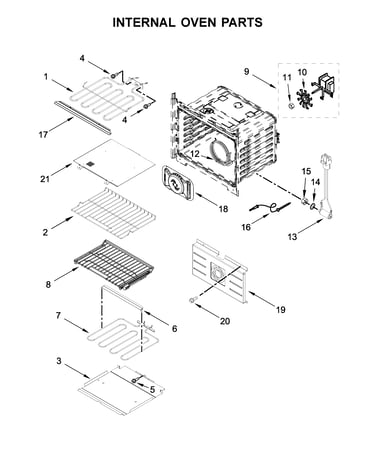

Oven parts diagram
Wako minerva
Part #W10622170
Replaced by #W10859573
?
Manufacturer substitution
This part replaces W10622170. Substitute parts can look different from the original.
$100.74 |
11% OFF Phone Price : $112.74
In Stock
#5

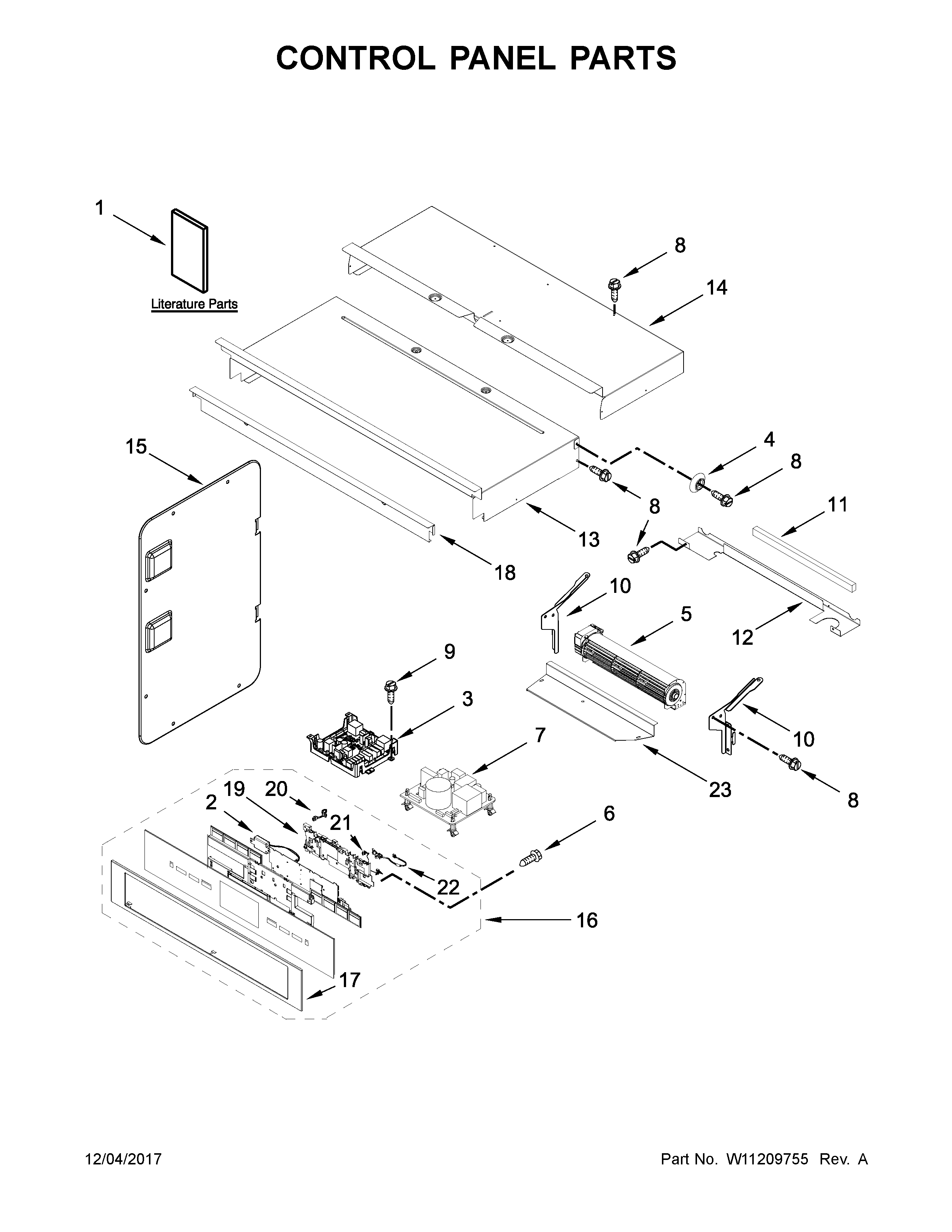

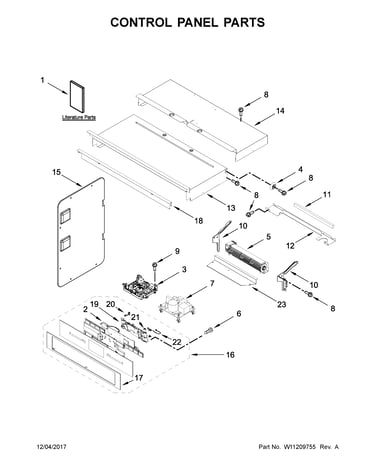

Control panel parts diagram
Dual speed b
Part #W10669823
Replaced by #W11245567
?
Manufacturer substitution
This part replaces W10669823. Substitute parts can look different from the original.
$188.00 |
6% OFF Phone Price : $200.00
In Stock
#13
Cabinet and stirrer parts diagram
Lamp g4 halo
Part #W10795595
Replaced by #W10886919
?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
This item is not returnable
$22.89 |
21% OFF Phone Price : $28.89
In Stock
#NI
Optional parts (not included) diagram
Adhesive
Part #482338
Replaced by #WP482338
?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $23.19 |21% OFF Phone Price : $29.19
