Frigidaire
Side-By-Side Refrigerator

Model # FGHS2342LF8 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FGHS2342LF8 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

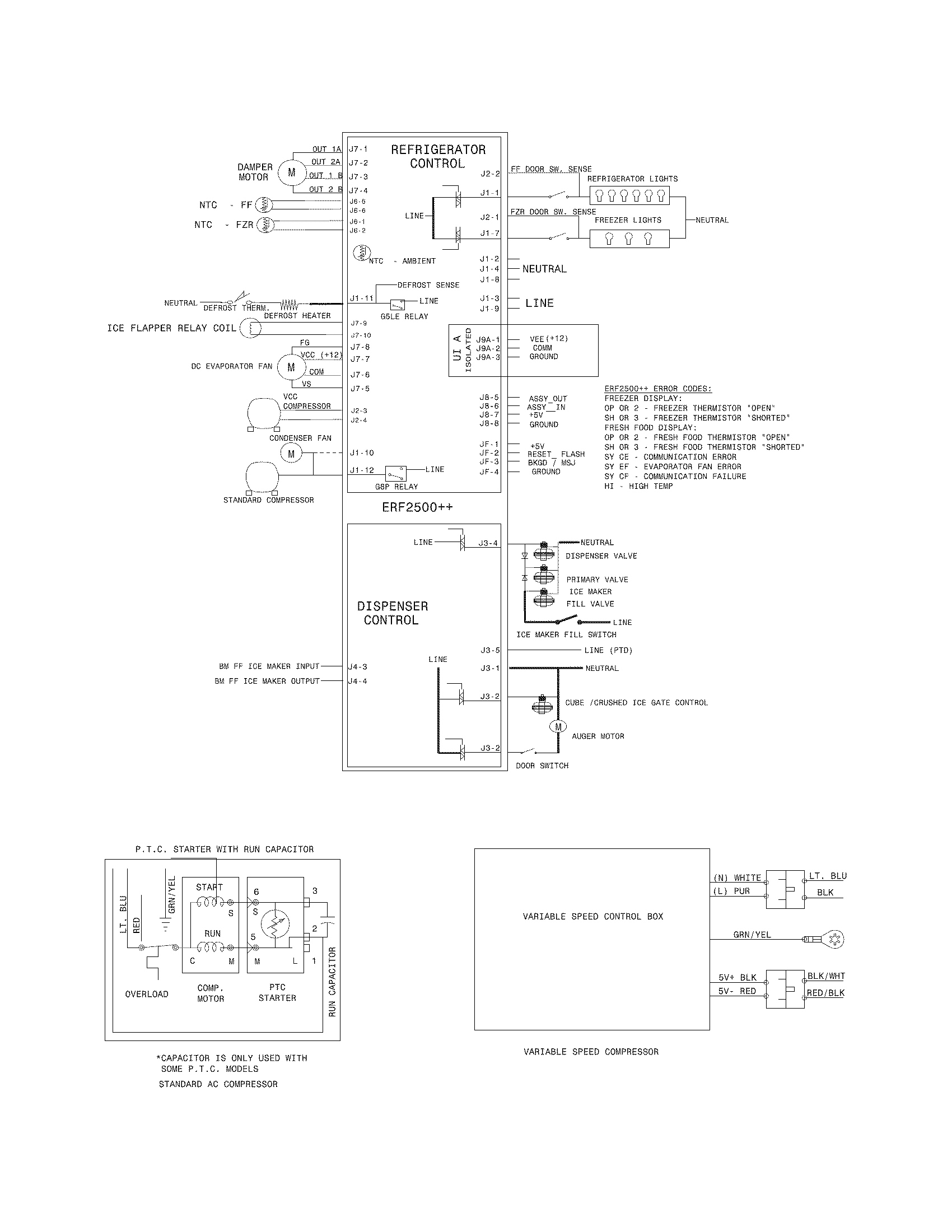

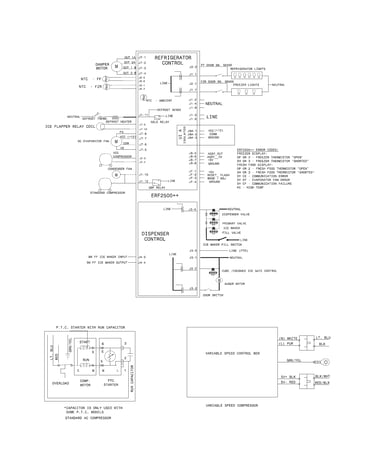

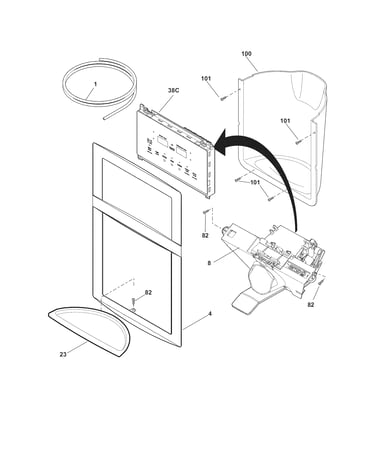

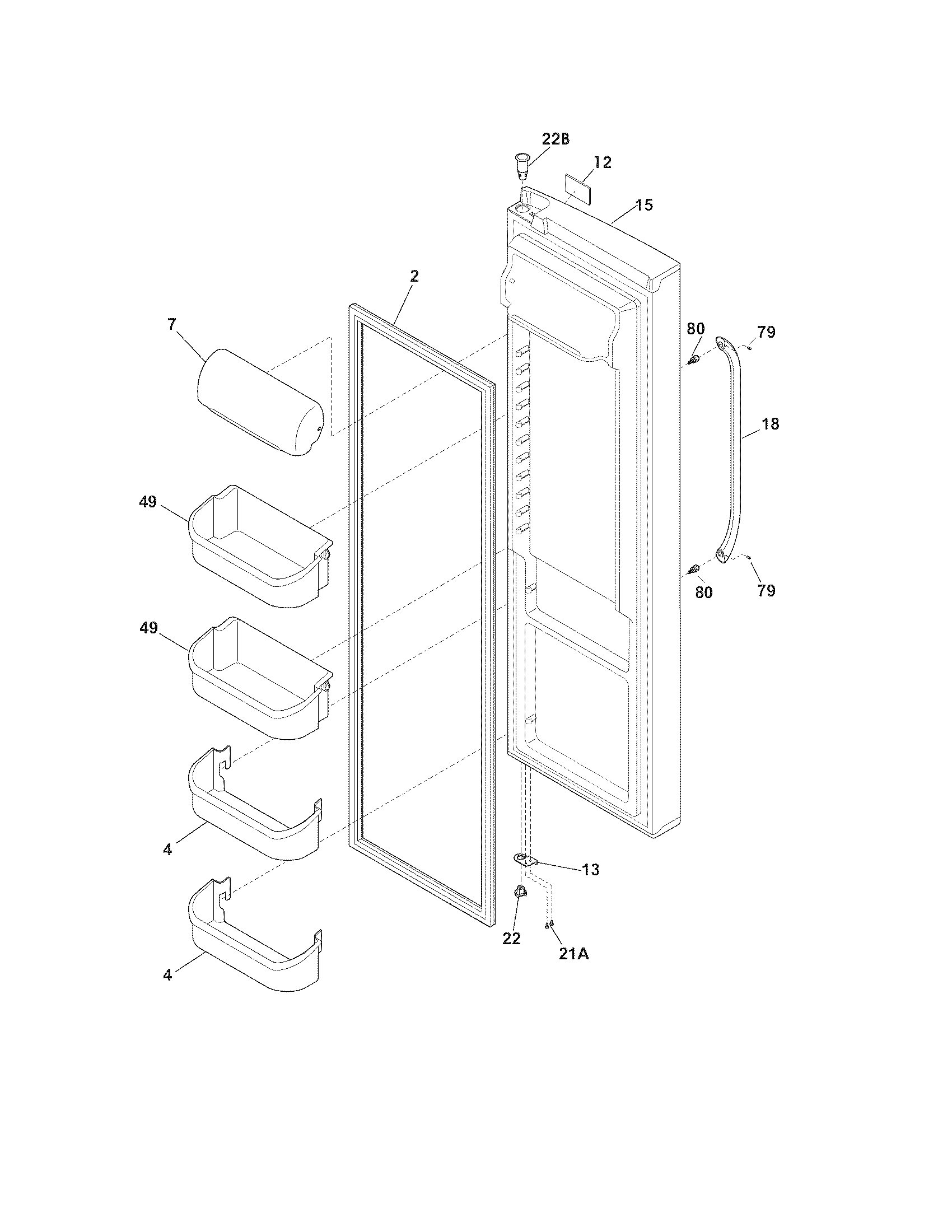

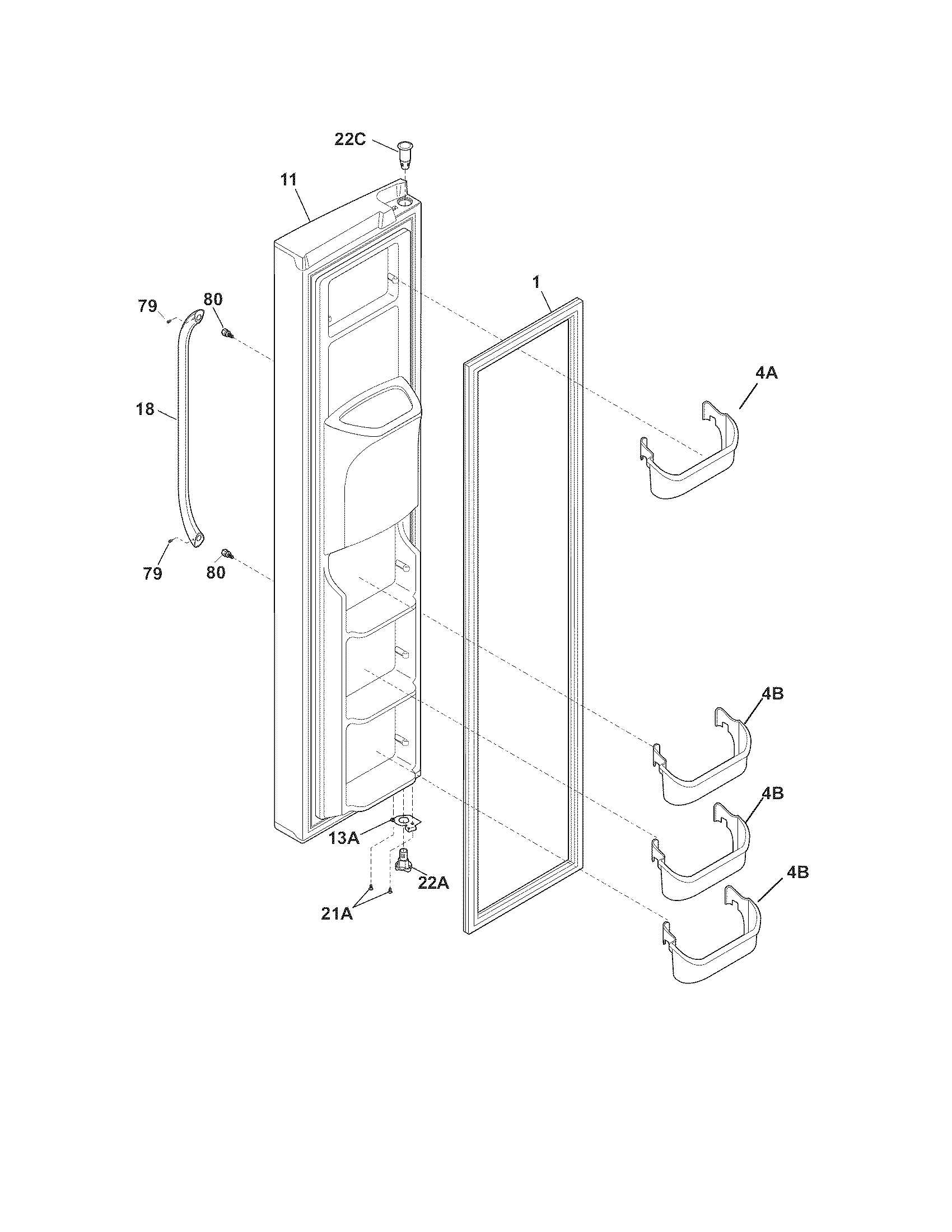

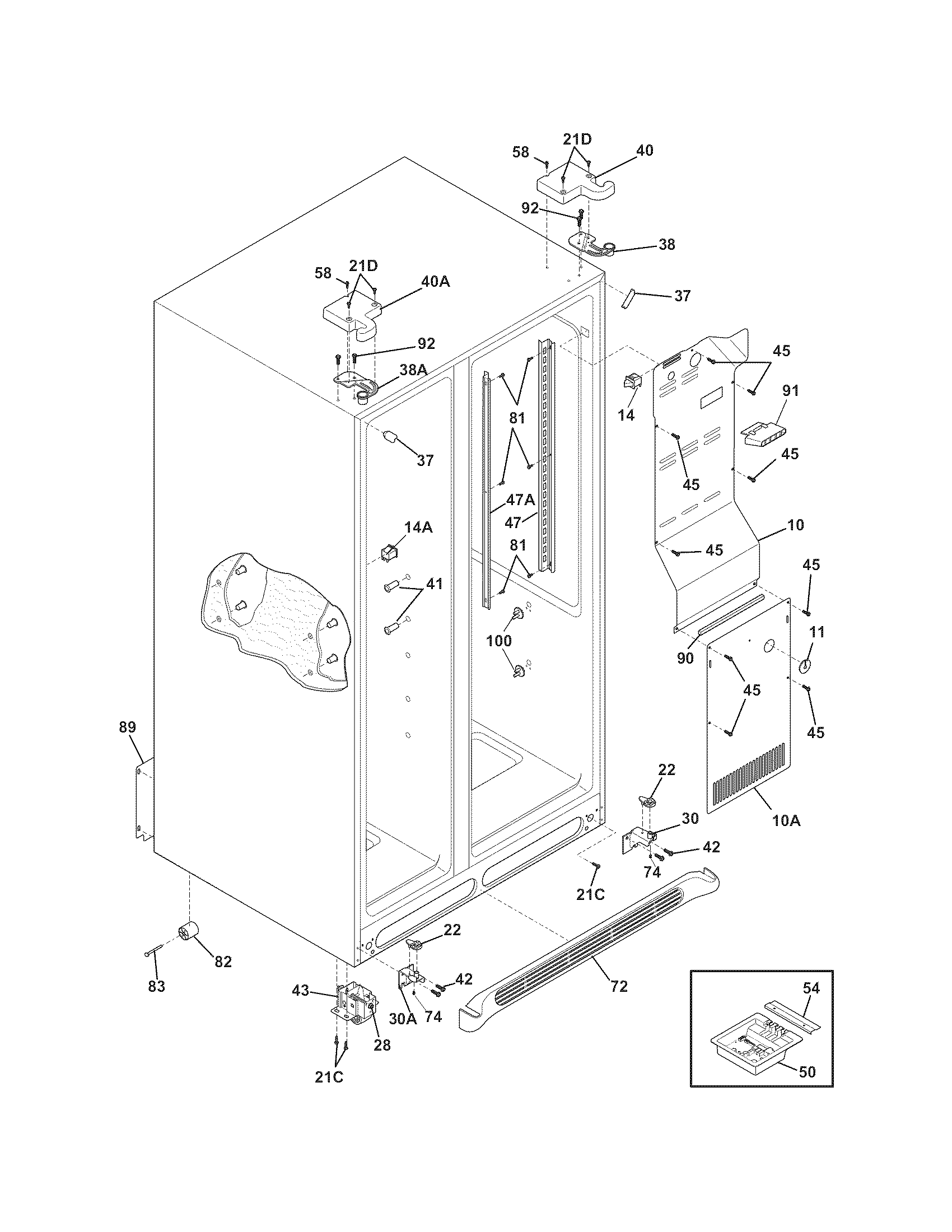

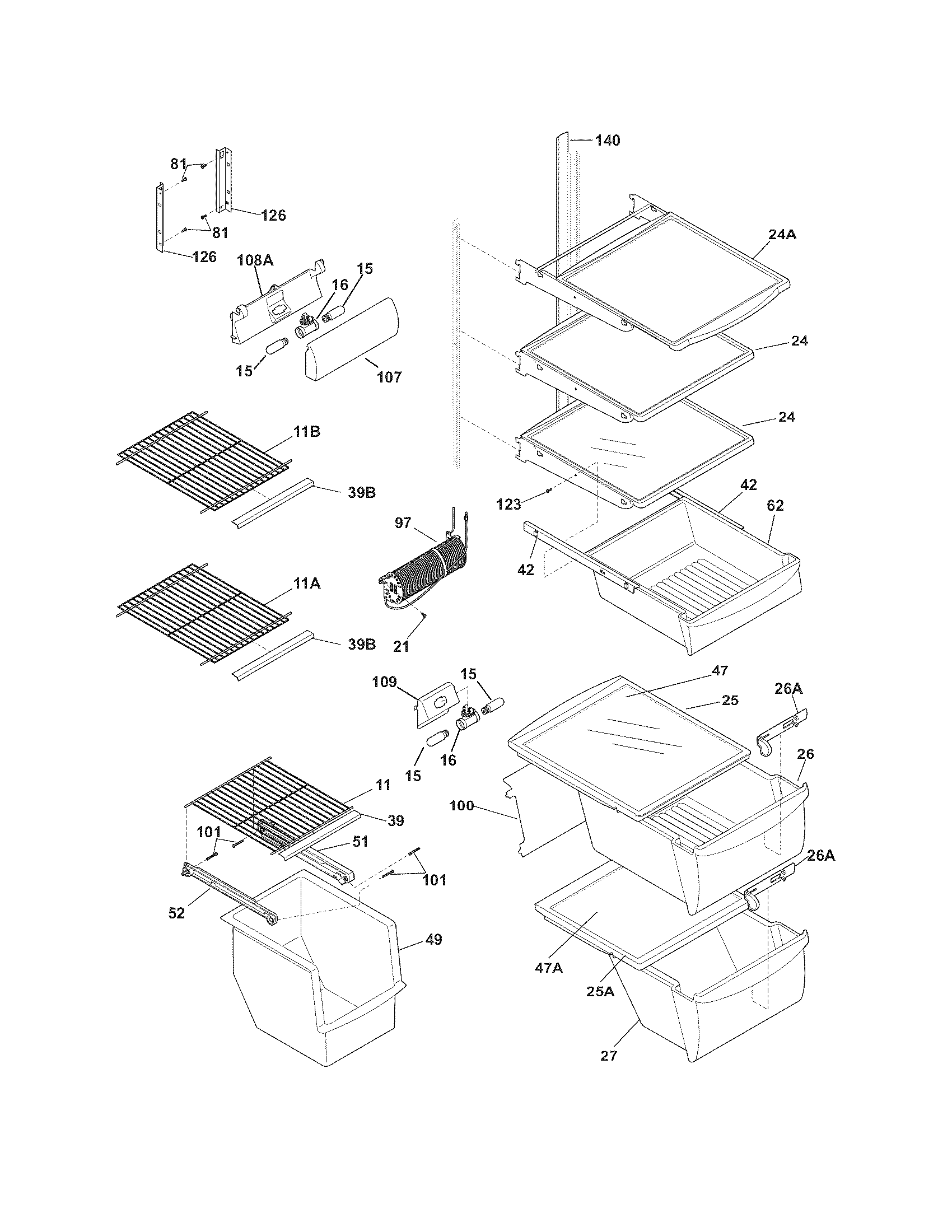

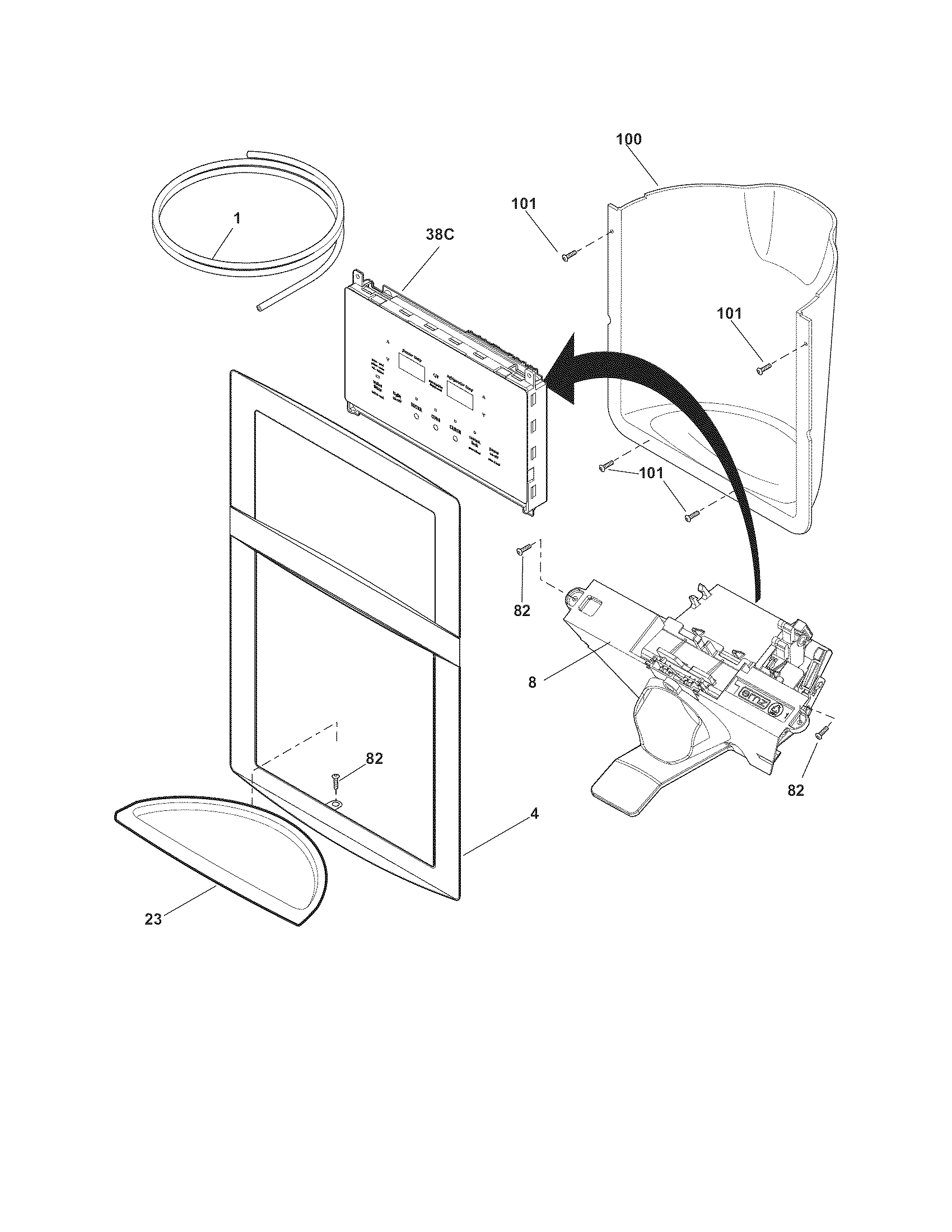

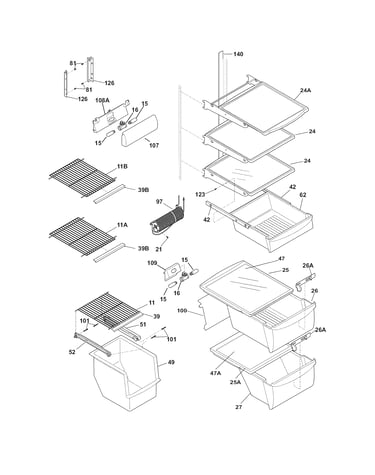

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 270 parts  |
Refrigerator Ice Maker Fill Cup 5304456671
#19

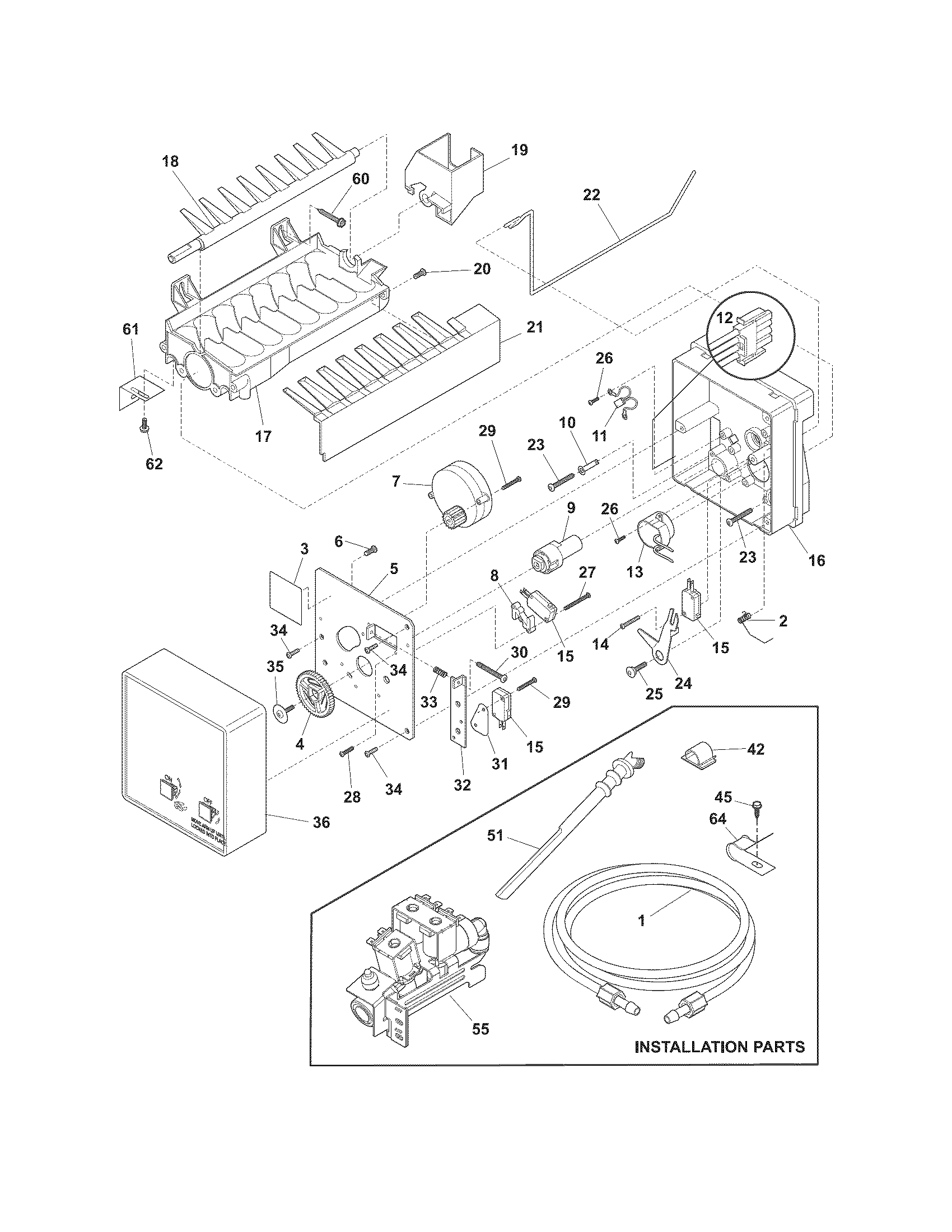

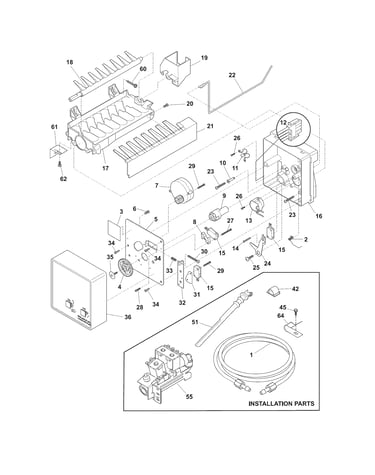

Ice maker diagram

Refrigerator ice maker fill cup

Part #5304456671

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5304456671. Substitute parts can look different from the original.
BEST SELLER
$145.73 |
8% OFF Phone Price : $157.73
In Stock
Refrigerator Filter Dryer 242047603
#4

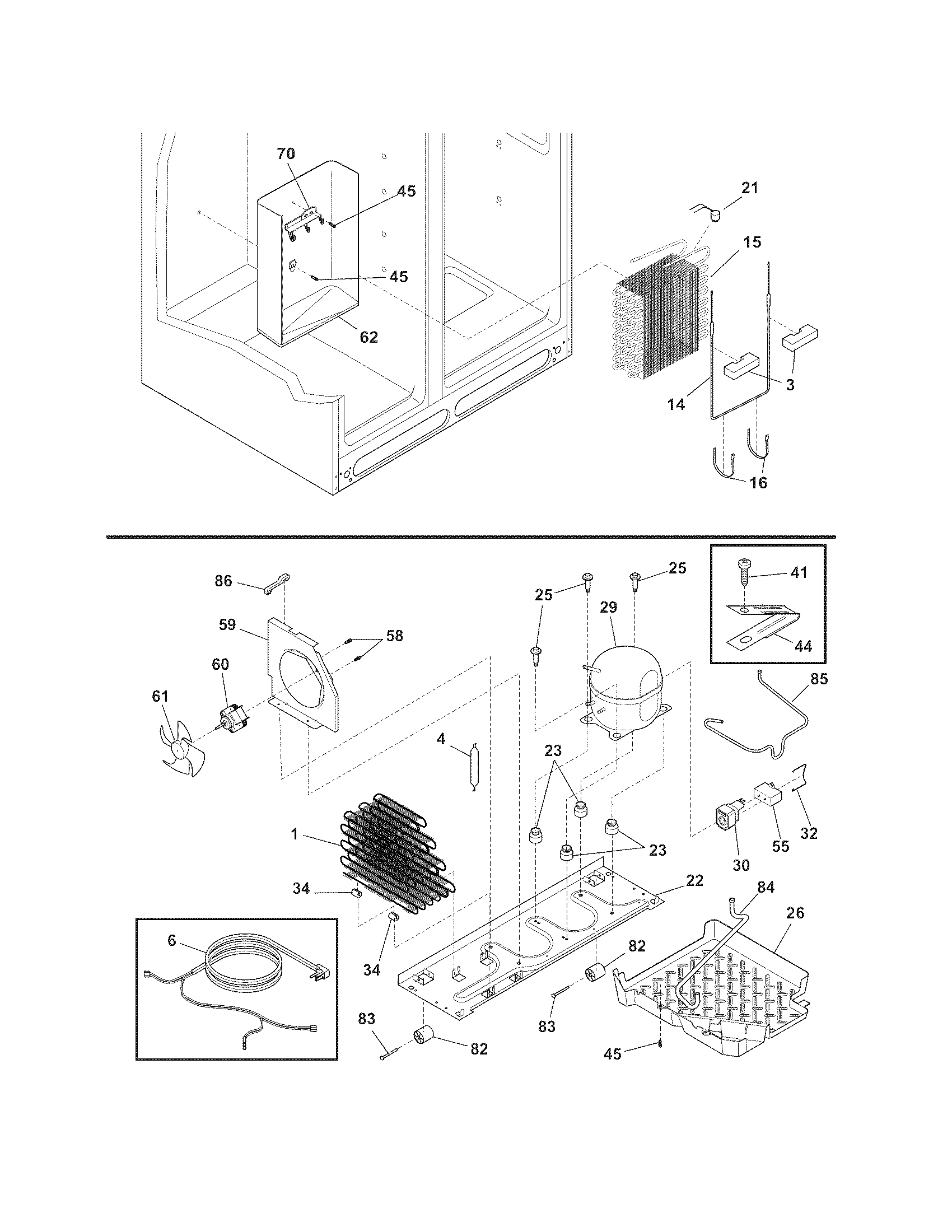

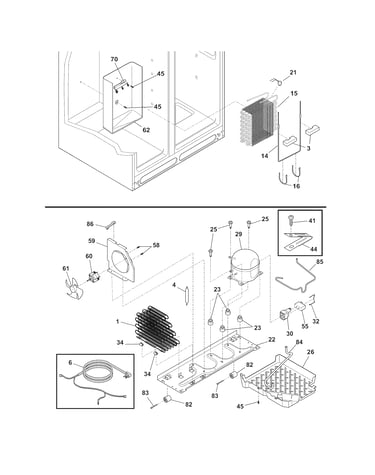

System diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Frigidaire Refrigerator Water Inlet Valve Assembly (replaces 241734302) 242252702
#55

Ice maker diagram

Frigidaire refrigerator water inlet valve assembly (replaces 241734302)

Part #242252702

BEST SELLER
$76.44 |
7% OFF Phone Price : $82.44
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

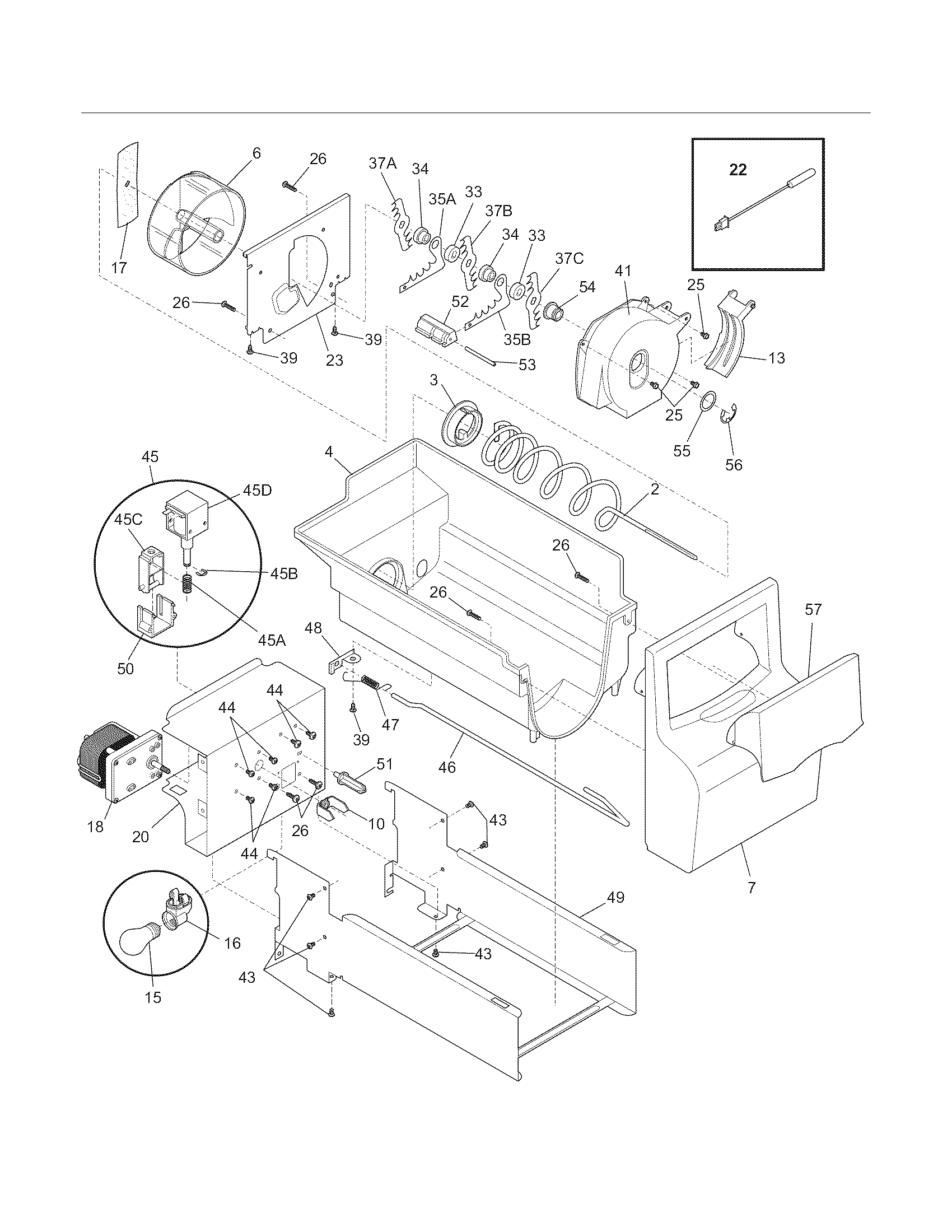

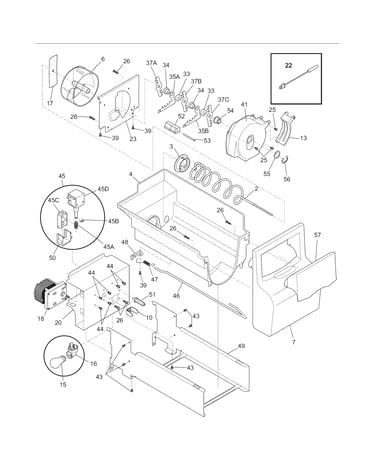

Ice container diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 75303918214) 5303918214
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 75303918214)

Part #5303918214

BEST SELLER
$22.75 |
21% OFF Phone Price : $28.75
In Stock
Universal/multiflex (frigidaire) Refrigerator Evaporator Fan Motor (replaces 241509401, 7241509402) 241509402
#13

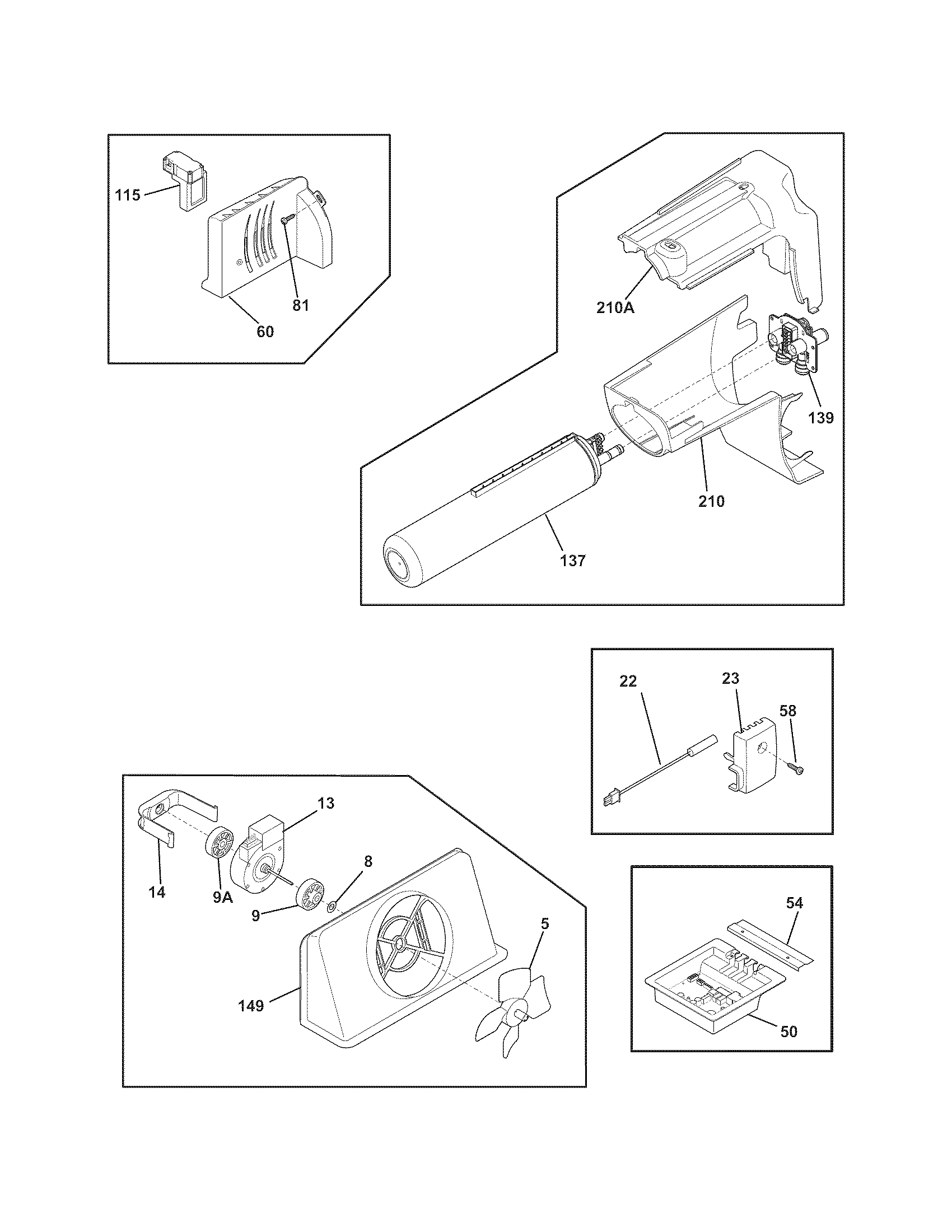

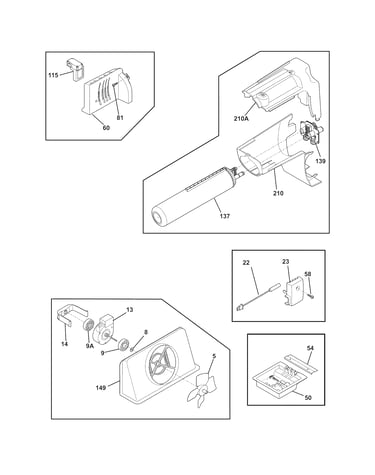

Controls diagram

Universal/multiflex (frigidaire) refrigerator evaporator fan motor (replaces 241509401, 7241509402)

Part #241509402

BEST SELLER
$129.06 |
9% OFF Phone Price : $141.06
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$35.37 |
15% OFF Phone Price : $41.37
In Stock
Refrigerator Solenoid Assembly 241675701
#45

Ice container diagram

Refrigerator solenoid assembly

Part #241675701

Replaced by #241675704

?
Manufacturer substitution
This part replaces 241675701. Substitute parts can look different from the original.
BEST SELLER
$75.50 |
7% OFF Phone Price : $81.50
In Stock
Refrigerator Condenser Fan Motor 242018301
#60

System diagram

Refrigerator condenser fan motor

Part #242018301

Replaced by #242018304

?
Manufacturer substitution
This part replaces 242018301. Substitute parts can look different from the original.
BEST SELLER
$88.64 |
6% OFF Phone Price : $94.64
In Stock
Refrigerator Auger Motor 241676201
#18

Ice container diagram

Refrigerator auger motor

Part #241676201

Replaced by #242221501

?
Manufacturer substitution
This part replaces 241676201. Substitute parts can look different from the original.
BEST SELLER
$189.96 |
6% OFF Phone Price : $201.96
In Stock
