Bosch
Electric Wall Oven

Model # HBL445AUC Official Bosch wall oven

Here are the diagrams and repair parts for Official Bosch HBL445AUC wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Oven Bulb 420228
#420228

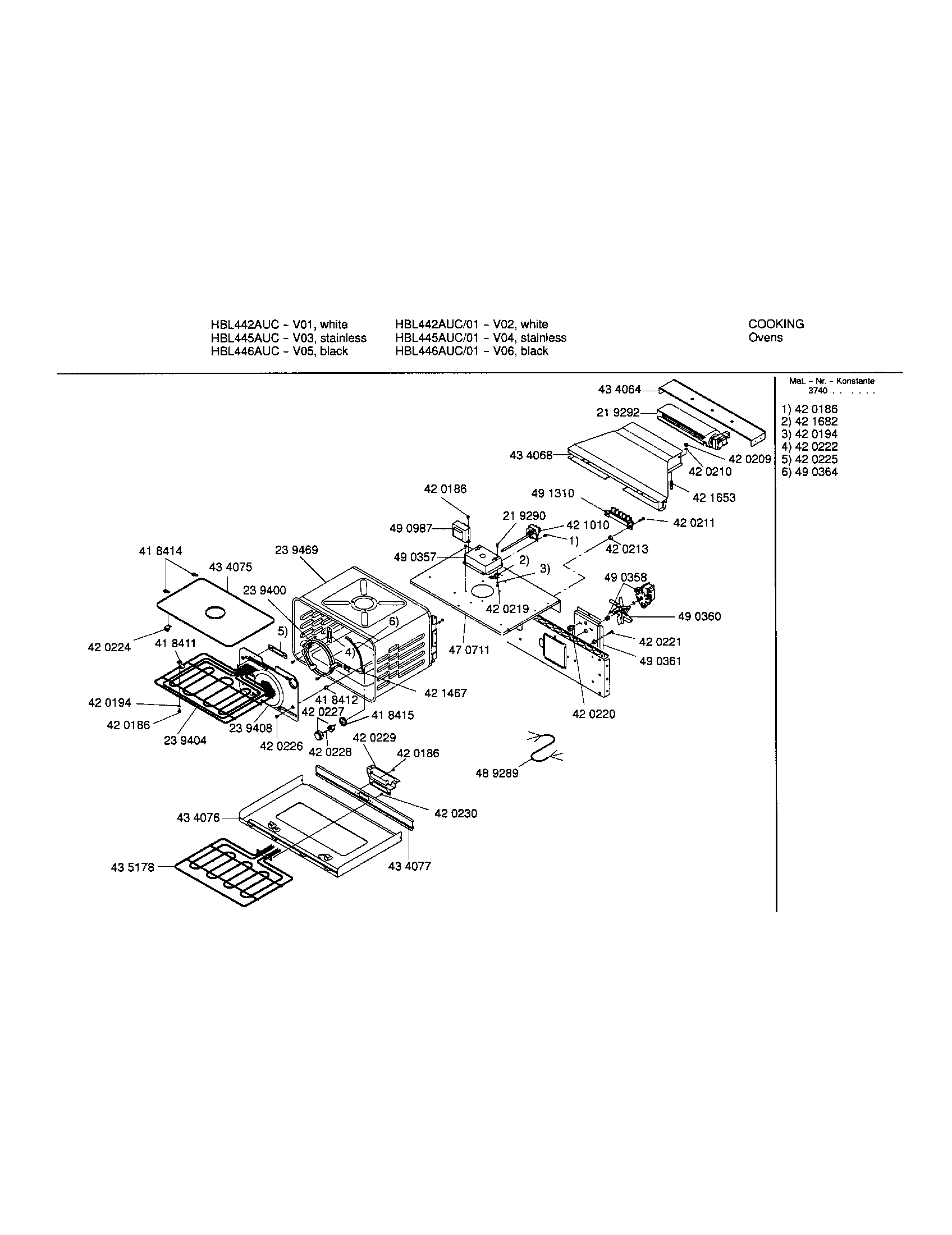

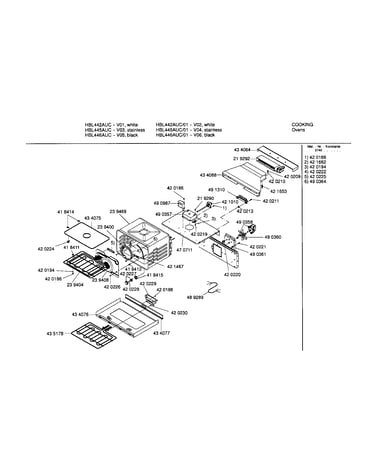

Cavity diagram

Oven bulb

Part #420228

Replaced by #00189351

?
Manufacturer substitution
This part replaces 420228. Substitute parts can look different from the original.
$25.79 |
19% OFF Phone Price : $31.79
In Stock
Locking 490368
#490368

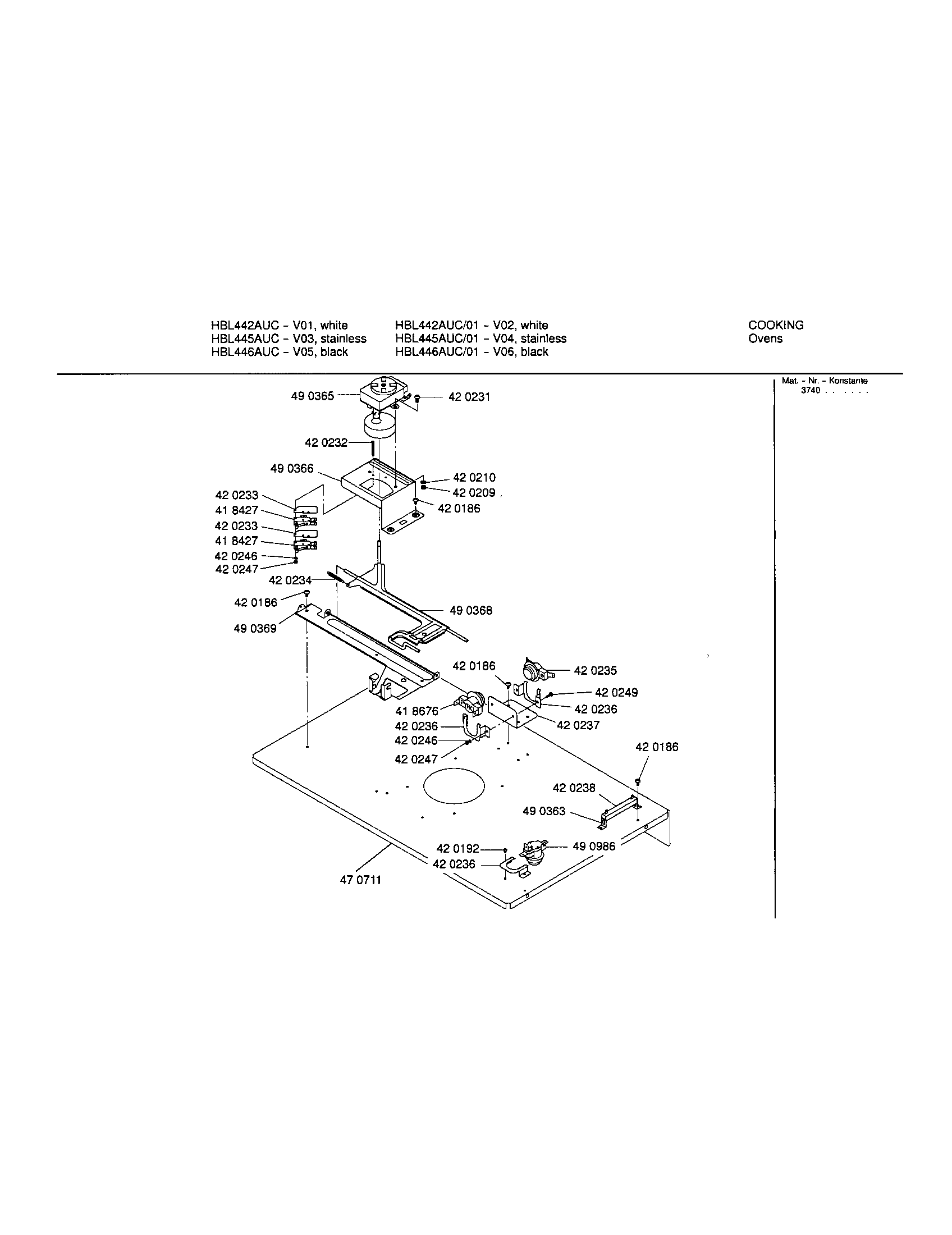

Internal top panel diagram

Locking

Part #490368

The manufacturer no longer makes this part, and there's no substitute part

Oven Element 435178
#435178

Cavity diagram

Oven element

Part #435178

The manufacturer no longer makes this part, and there's no substitute part

Oven Element 420225
#420225

Cavity diagram

Oven element

Part #420225

The manufacturer no longer makes this part, and there's no substitute part

Oven Knob 418435
#418435

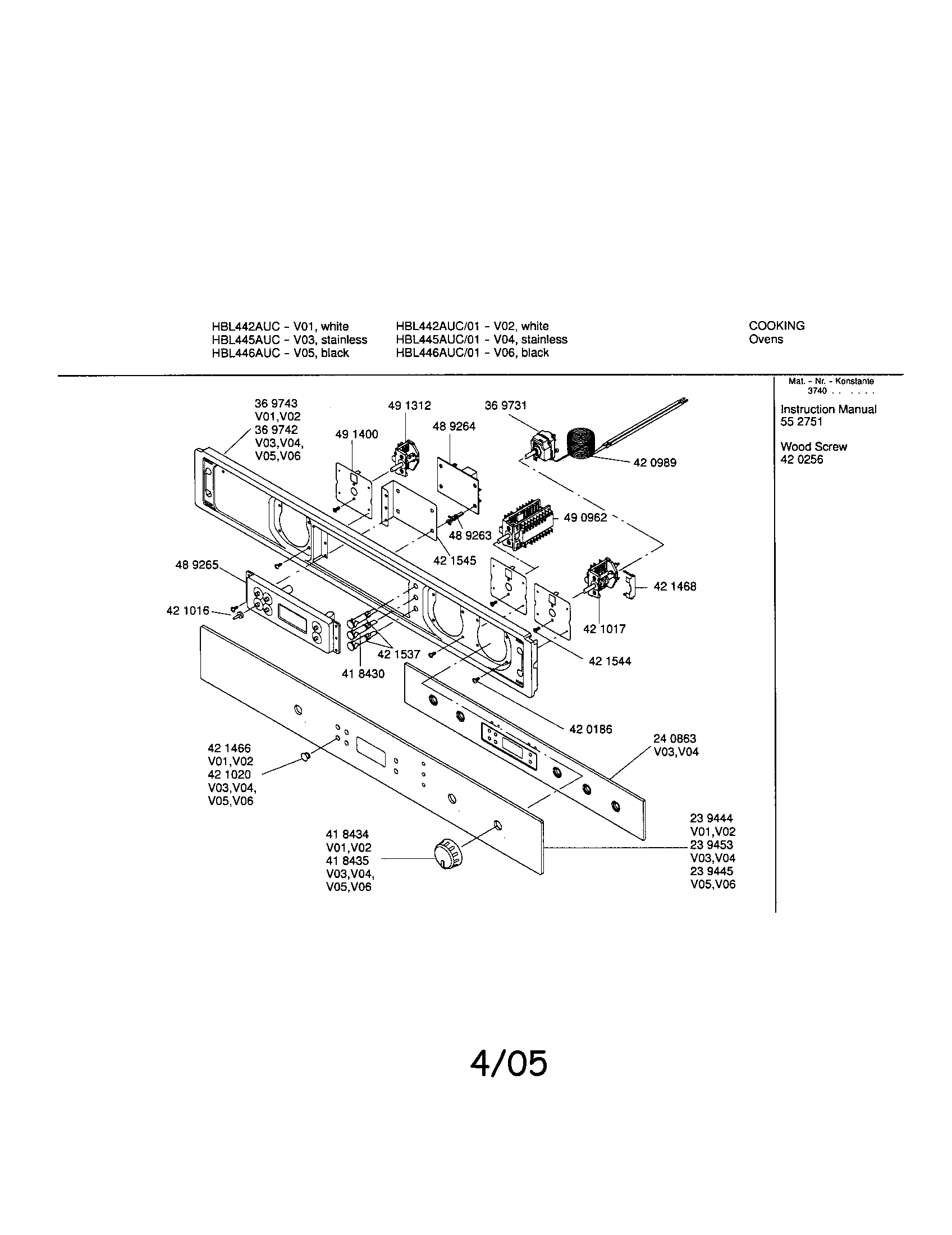

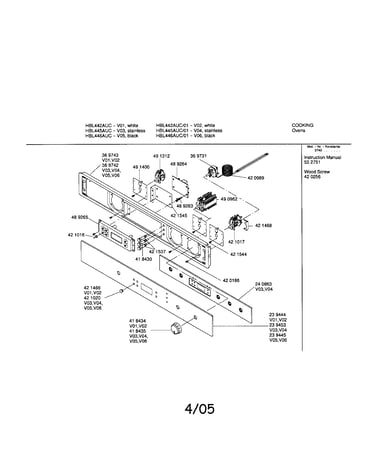

Fascia panel diagram

Oven knob

Part #418435

The manufacturer no longer makes this part, and there's no substitute part

Drive Hinge 143619
#143619

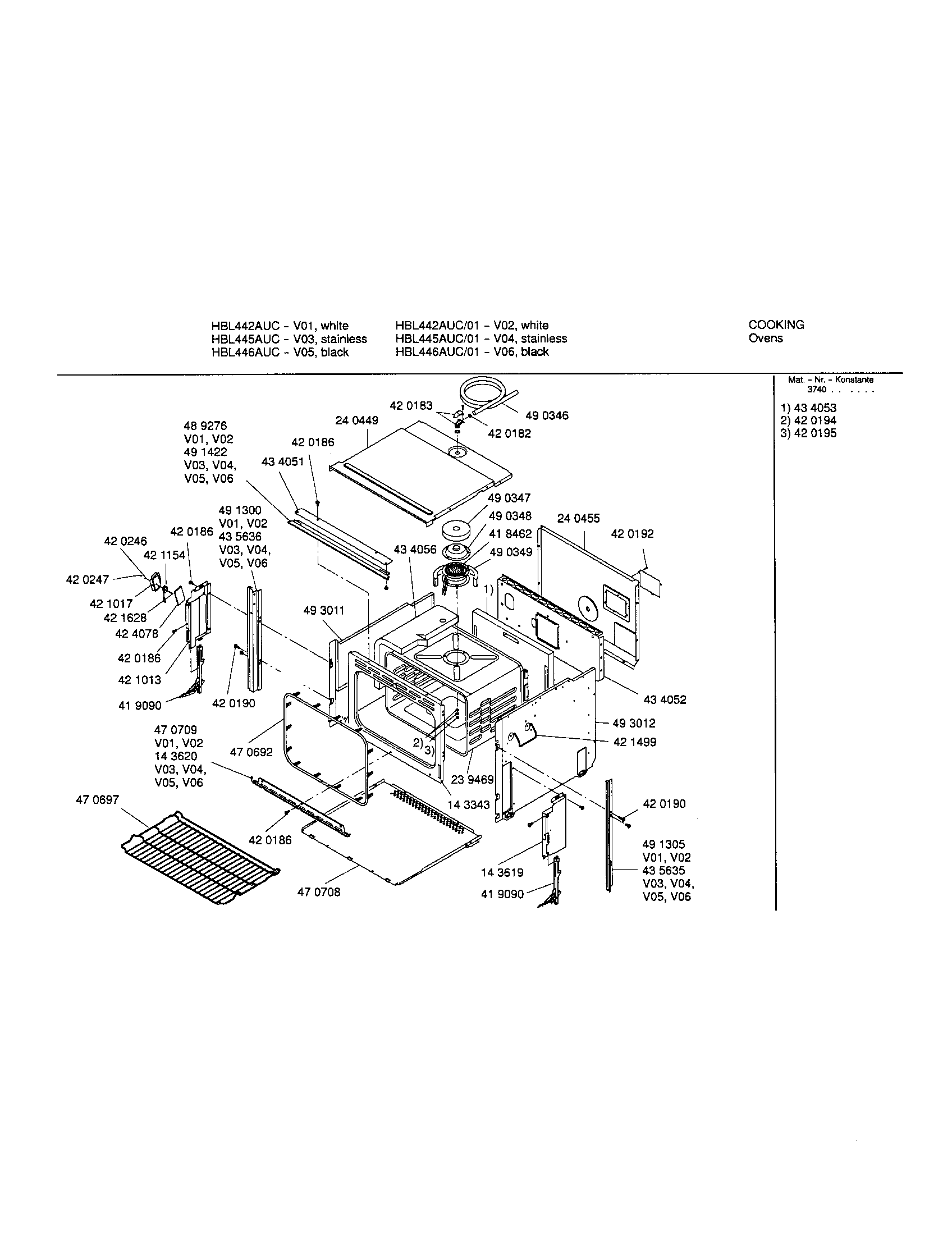

Body diagram

Drive hinge

Part #143619

The manufacturer no longer makes this part, and there's no substitute part

Insulation 434053
#434053

Body diagram

Insulation

Part #434053

The manufacturer no longer makes this part, and there's no substitute part

Oven Door 420250
#420250

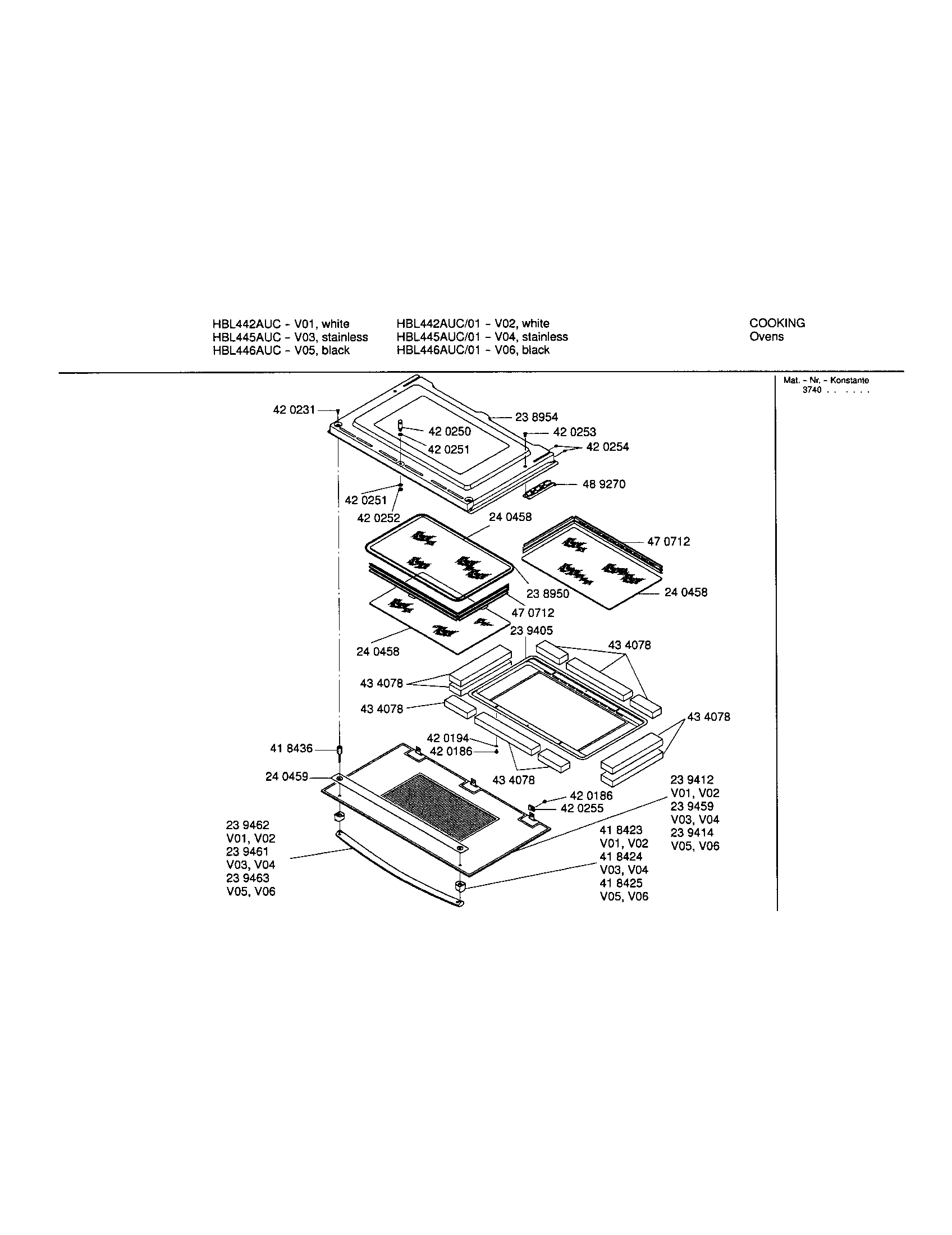

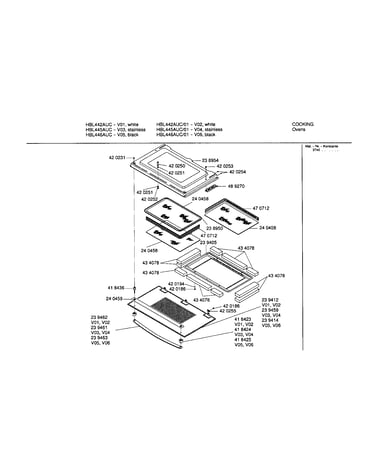

Door diagram

Oven door

Part #420250

The manufacturer no longer makes this part, and there's no substitute part

Screw 420190
#420190

Body diagram

Screw

Part #420190

The manufacturer no longer makes this part, and there's no substitute part

Reflector 239405
#239405

Door diagram

Reflector

Part #239405

The manufacturer no longer makes this part, and there's no substitute part
