Model # 30623399 Official Craftsman planer/molder

Here are the diagrams and repair parts for Official Craftsman 30623399 planer/molder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Rol Chain-27 P-354A
#22

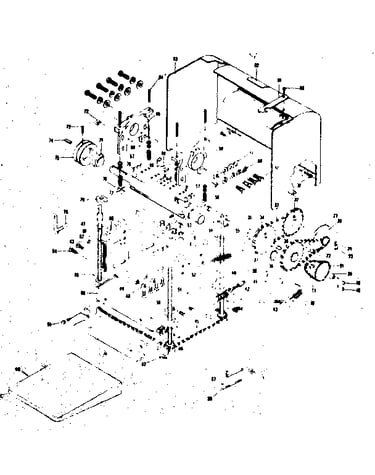

Unit parts diagram

Rol chain-27

Part #P-354A

The manufacturer no longer makes this part, and there's no substitute part

Bolt W/nut Z-112
#108

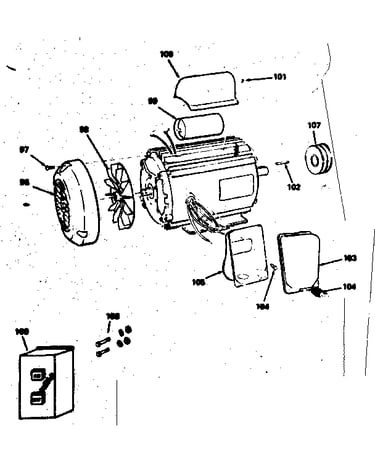

2 h.p. motor diagram

Bolt w/nut

Part #Z-112

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw Z-67
Cap screw

Part #Z-67

The manufacturer no longer makes this part, and there's no substitute part

Bolt Washer Nut Z-111
#15

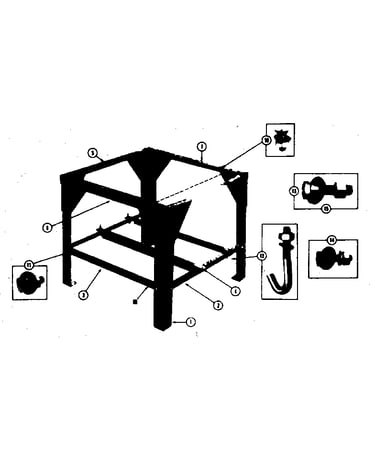

Steel stand diagram

Bolt washer nut

Part #Z-111

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin Z-86
#18

Unit parts diagram

Roll pin

Part #Z-86

The manufacturer no longer makes this part, and there's no substitute part

Conduit Box 37558
#105

2 h.p. motor diagram

Conduit box

Part #37558

The manufacturer no longer makes this part, and there's no substitute part

Pointer Q-7
#85

Unit parts diagram

Pointer

Part #Q-7

The manufacturer no longer makes this part, and there's no substitute part

L Casting P-376A
#80

Unit parts diagram

L casting

Part #P-376A

The manufacturer no longer makes this part, and there's no substitute part

Nut Z-81
#39

Unit parts diagram

Nut

Part #Z-81

The manufacturer no longer makes this part, and there's no substitute part

Drive Pins Z-92
#83

Unit parts diagram

Drive pins

Part #Z-92

The manufacturer no longer makes this part, and there's no substitute part
